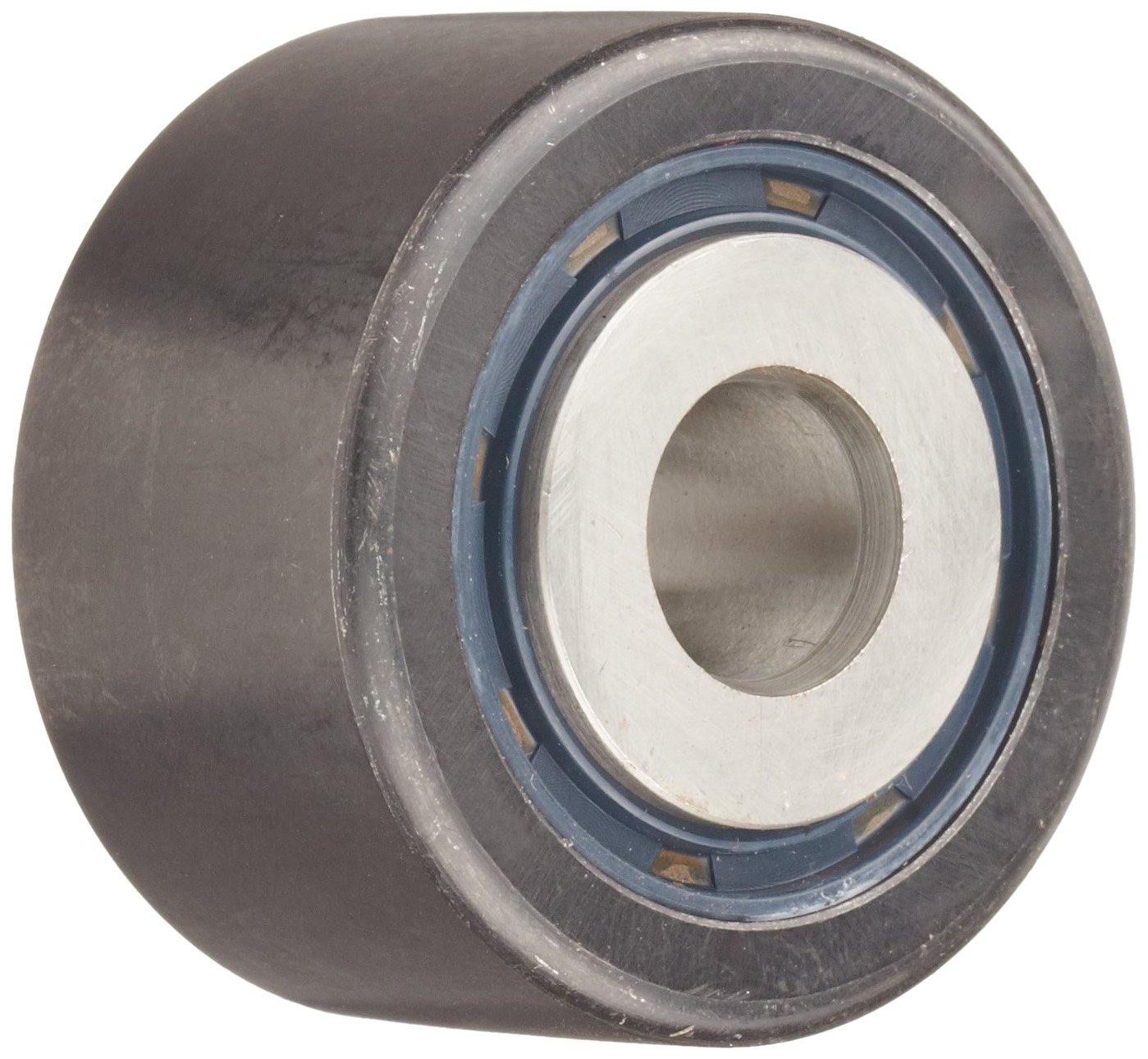

RBC Cam Follower CRBY15/8 1.625" OD x 0.4375" ID, Yoke Type (Without Stud), RBC Roller Cylindrical Roller Design, Crowned Outer Ring Cam Follower

Be the first to review this item

ASIN B003XT7AXK

Specifications for this item
Bore Diameter
0.4375  inches
Bearing Number
CRBY15/8
Part Number
CRBY15/8
Brand Name
RBC Cam Followers
Max Rotational Speed
6200  RPM
Number of Items
1
Bore Diameter Tolerance
+0.0002 / -0.0004  inches
Material Type
52100 Bearing Quality Steel
UPC
637400038090
Outside Diameter
1.625  inches
EAN
0637400038090
Exterior Finish
Black Oxide
Static Load Capacity
7000  pounds
UNSPSC Code
31171530
Dynamic Load Capacity
6200  pounds
System of Measurement
Inch

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Nov 3? Order in-stock items in the next 1 day 3 hrs 28 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Two rows of large diameter, end guided rollers yield maximum capacity and increased fatigue life
  • Crowned outer ring to better accommodate applications where misalignment is present
  • Lubed for life design saves time, maintenance costs, and lubrication costs
  • Contacting lip seals provide positive exclusion of contaminants, along with excellent lubricant retention
  • Center thrust ring design tolerates moderate axial loading and creates large internal grease storage area

Package Details

Shipping Weight: 0.35 pounds
Package Size: 2.6 x 1.7 x 1.4 inches

Product Description

The RBC Roller yoke style cam follower was developed for applications requiring a high degree of reliability and maintainability. The space between the two paths of rollers which is created by the center thrust ring provides a large grease storage cavity. This larger than normal ability to store lubricant, in combination with excellent grease retention of the contacting lip seals, makes the RBC Roller virtually maintenance-free. Under most operating conditions relubrication is not necessary. The center thrust ring in the RBC Roller also imparts end guidance to the two paths of rollers. End-guided cylindrical rollers allow the RBC Roller to run at lower operating temperatures and higher speeds. Thrust loading in the RBC Roller is accommodated through contact between outer ring flanges and roller ends, and contact between roller ends and the center thrust ring. This provides the RBC Roller with superior thrust capability. As a result, the RBC Roller is tolerant of tracking misalignment and axial loads that would overwhelm other designs. Contacting lip seals are a standard feature of the RBC Roller. These seals ride on smooth ground surfaces on the inner ring or stud. This sealing system provides positive exclusion of solid and liquid contaminants, and excellent lubricant retention. The RBC Roller is pre-lubricated at the factory with a high quality mineral oil, NLGI grade 2 grease. This cam follower is manufactured with a crowned outer ring. Crowned outer rings are used to minimize outer ring thrusting in applications where the axis of the cam follower is not parallel to the surface of the track or is skewed relative to the direction of travel. However, in well aligned applications, crowned outer rings can cause accelerated track wear. RBC Bearings has been providing bearing solutions to our customers since 1919. A publicly-traded company (NASDAQ: ROLL), RBC currently has 23 manufacturing facilities worldwide, with 18 located in the USA.
