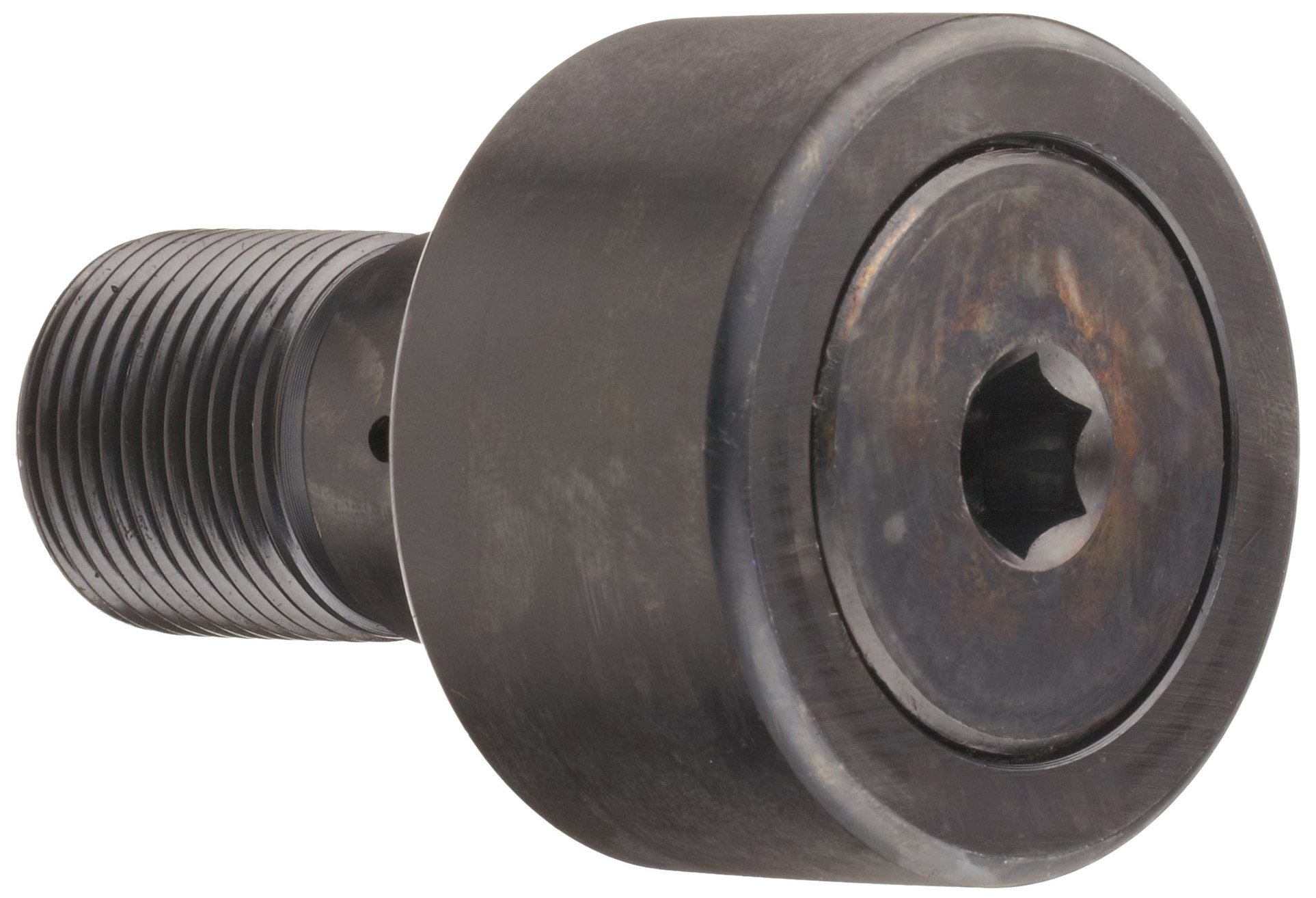

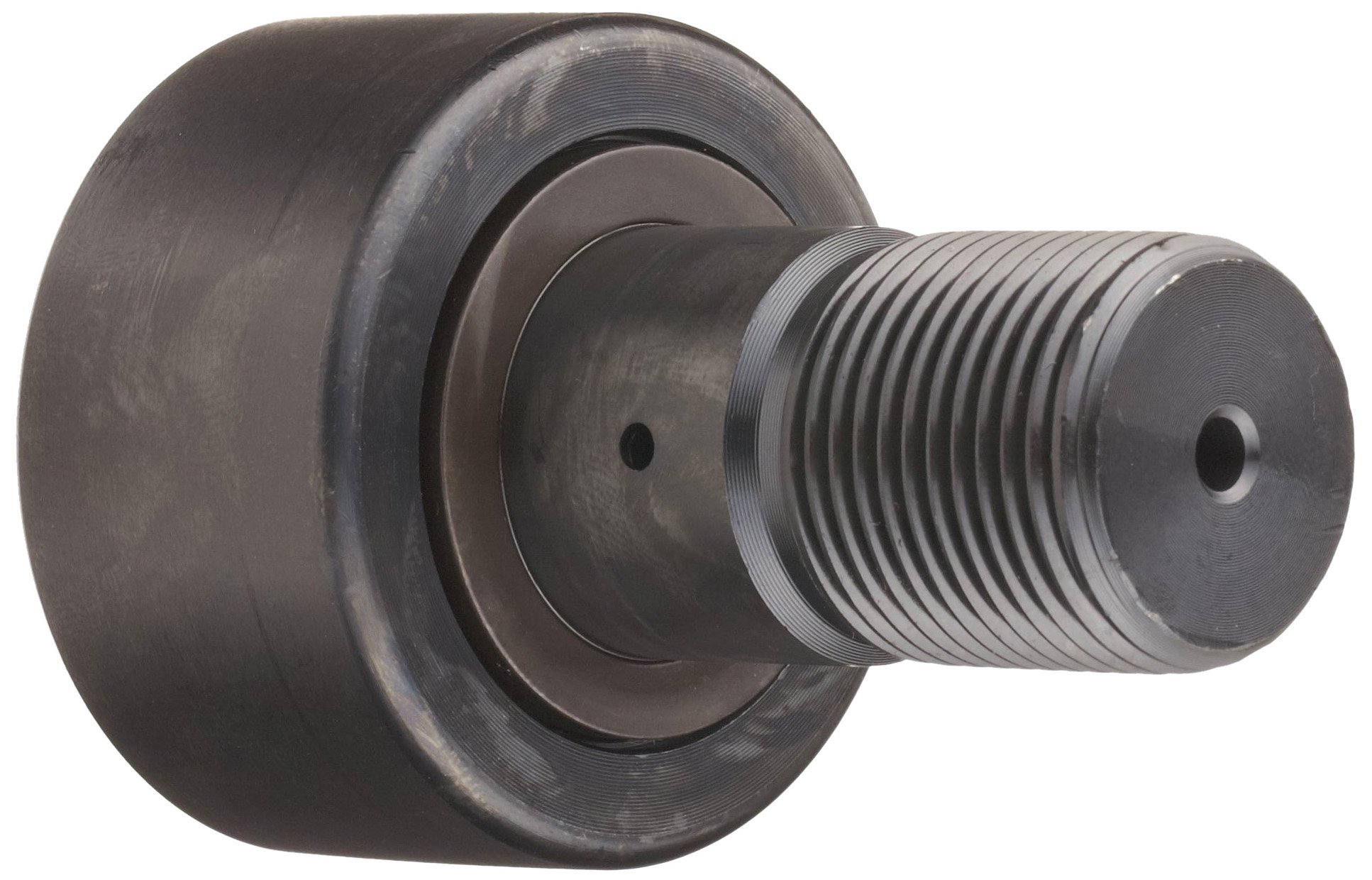

RBC Cam Follower CH48LW 1.500" Outside Diameter, Heavy Duty Stud Type, Hex Head, Sealed, Crowned Outer Ring Cam Follower

Be the first to review this item

ASIN B003XT7ARQ

Specifications for this item
Number of Items
1
Bearing Number
CH48LW
Material Type
52100 Bearing Quality Steel
Shank Height
1.250  inches
Part Number
CH48LW
Shank Diameter
0.875  inches
Outside Diameter
1.500  inches
UPC
637400004408
Brand Name
RBC Cam Followers
EAN
0637400004408
Max Rotational Speed
3100  RPM
Exterior Finish
Black Oxide
Static Load Capacity
11300  pounds
UNSPSC Code
31171530
Dynamic Load Capacity
4900  pounds
System of Measurement
Inch

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Dec 1? Order in-stock items in the next 22 hrs 15 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Designed to provide additional stud strength for applications with high static loading or shock loads
  • Crowned outer ring to better accommodate applications where misalignment is present
  • Hex head design for ease of installation and high torque tightening
  • Design allows for relubrication through the hexagonal head of the cam follower, making relubrication in tight spots possible
  • Black oxide finish provides added corrosion resistance

Package Details

Shipping Weight: 0.6 pounds
Package Size: 4.3 x 4 x 2.4 inches

Product Description

This heavy stud RBC cam follower is part of the RBC HexLube Universal line of cam followers. It can be relubricated through the hex head which can be a great convenience in tight spaces or when stud access is impossible. A cam follower that is properly maintained and lubricated will last longer than a cam follower that is neglected due to the difficulties posed by relubrication. The hex head feature is the preferred mounting method for stud-type cam followers, and with 2 gap seals to keep contaminants out, this RBC HexLube cam follower is the versatile workhorse of the needle bearing cam follower product line. RBC HexLube Universal Cam Followers are designed for applications such as automation and production equipment, bottling and canning, printing machinery, material handling, construction equipment, transfer lines, food processing, and packaging equipment. This cam follower is manufactured with a crowned outer ring. Crowned outer rings are used to minimize outer ring thrusting in applications where the axis of the cam follower is not parallel to the surface of the track or is skewed relative to the direction of travel. Crowned outer rings are a good selection for use with curved or circular tracks. However, in well aligned applications, crowned outer rings can cause accelerated track wear. An added feature of this bearing is a heavy duty stud. Heavy studs are designed to provide additional stud strength for applications with high loading or shock loads where the stud will be subjected to high bending stresses. RBC Bearings has been providing bearing solutions to our customers since 1919. A publicly-traded company (NASDAQ: ROLL), RBC currently has 23 manufacturing facilities worldwide, with 18 located in the USA.
