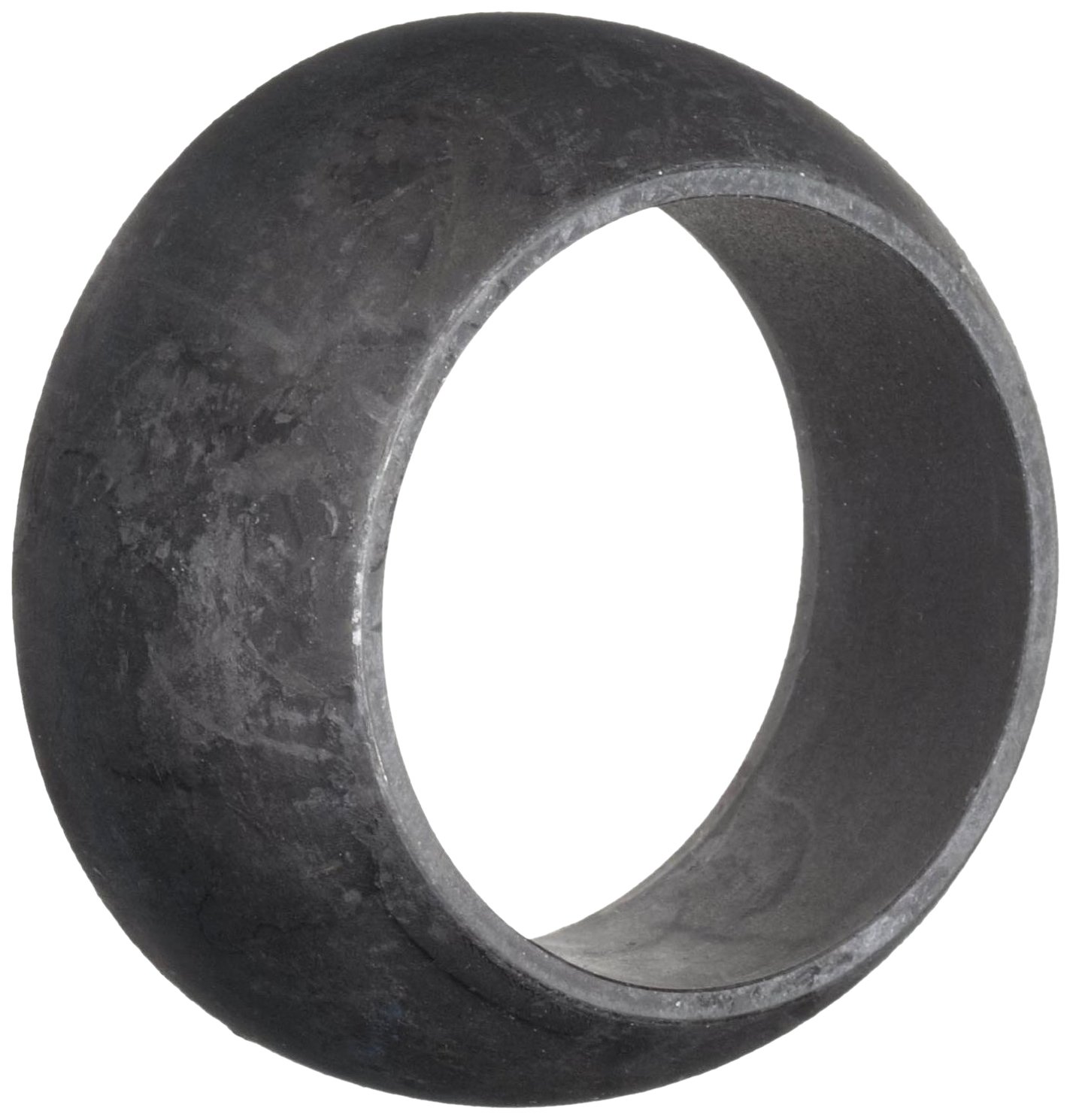

RBC Bearings IRB24SA18 1.5 " Bore x 2.438 " OD x 0.91 " Width Unsealed Spherical Plain Bearing

Be the first to review this item

ASIN B003UHVSRY

Specifications for this item
Number of Items
1
Overall Width
0.910  inches
Bore Diameter
1.500  inches
Bearing Number
IRB24SA18
Material Type
52100 Bearing Quality Steel
Part Number
IRB24SA18
Outside Diameter
2.438  inches
UPC
637400003067
Brand Name
RBC Bearings
EAN
0637400003067
Static Load Capacity
44500  pounds
UNSPSC Code
31171505
Dynamic Load Capacity
11100  pounds
System of Measurement
Inch

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tue, Nov 25? Order in-stock items in the next 14 hrs 11 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Inner Ring Only
  • Heat treated to increase hardness to HRc 57 minimum for optimum wear resistance
  • Lube holes and groove to allow for relubrication
  • Can be used to replace failed inner ring without replacing entire bearing

Package Details

Shipping Weight: 0.3 pounds
Package Size: 2.3 x 2.3 x 1.1 inches

Product Description

This RBC Spherical Plain Bearing Inner Race is manufactured from through-hardened 52100 bearing quality steel per ASTM A485, and heat treated to increase hardness to HRc 57 minimum for optimum wear resistance. This bearing, used in conjunction with an SA-style outer ring, is designed to support heavy unidirectional thrust and combination radial/thrust loads and can be used to replace a broken inner ring without the cost of replacing the entire bearing. This bearing is phosphate treated prior to coating with a dry film lubricant for corrosion resistance. RBC Bearings has been providing bearing solutions to our customers since 1919. A publicly-traded company (NASDAQ: ROLL), RBC currently has 23 manufacturing facilities worldwide, with 18 located in the USA.
