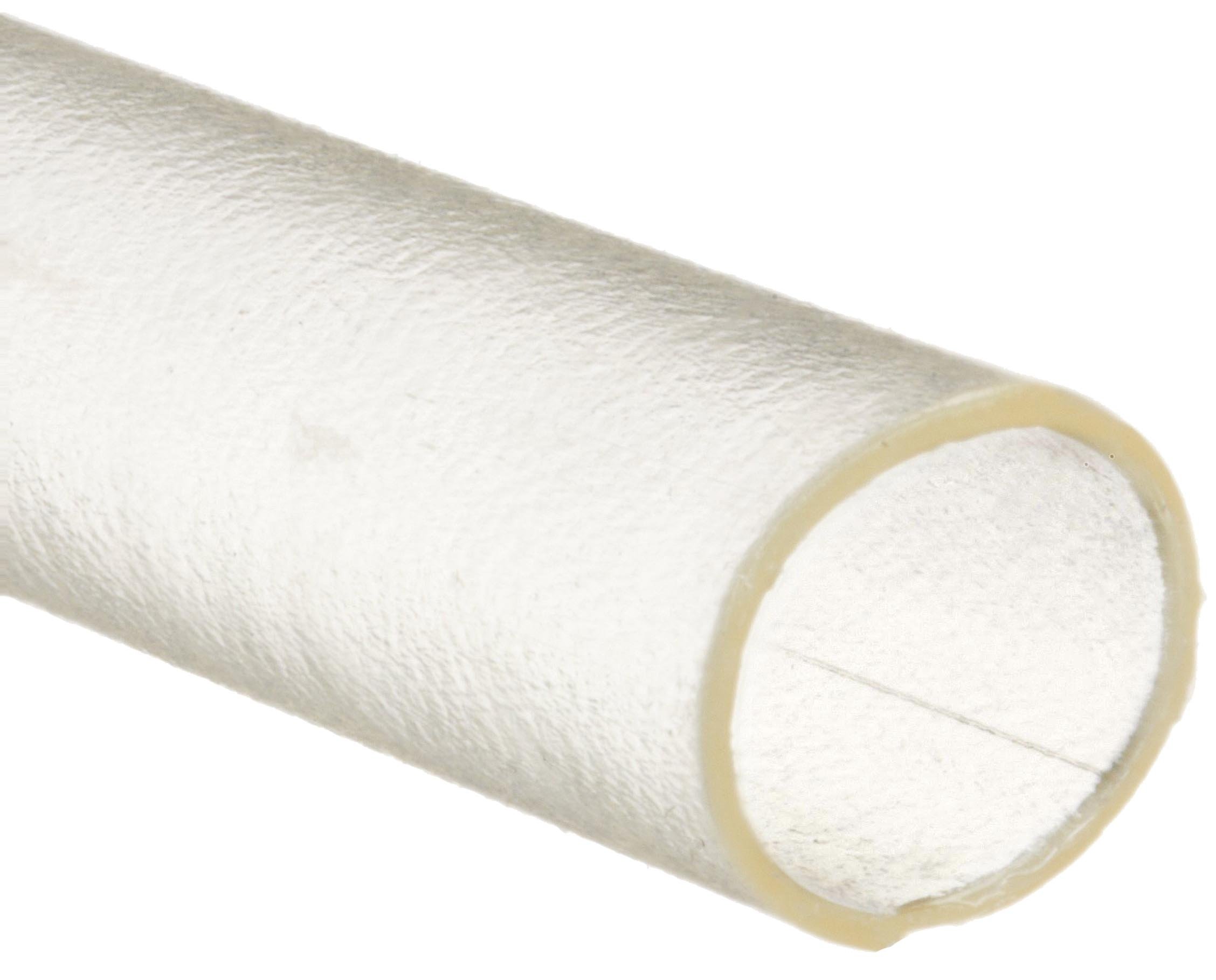

Raychem Altera USP Class VI Polyolefin Heat Shrink Tubing .062" Min. Min. Expanded ID, .031" Recovered ID
Be the first to review this item
Product Specifications
- Brand Name
- Raychem
- Color Name
- White Translucent
- Inside Diameter
- 0.031 inches
- Item Shape
- Round
- LowerTemperature Range
- -70 Degrees Celsius
- Material Type
- Polyolefin
- Outside Diameter
- 0.065 inches
- Part Number
- ALTERA-M5000-1/16
- Pkg Qty
- 1
- System of Measurement
- Inch
- Upper Temperature Range
- 105 Degrees Celsius
- Wall Thickness
- 0.017 inches
These items ship for FREE with 2-Day Shipping on orders over $50. (Details)
Want it delivered on Friday, May 24? Order in-stock items in the next 13 hours 9 minutes and choose One-Day Shipping at checkout.
Key Features
- Shrink Ratio 2:1
- USP Class VI
- Gamma and ETO Sterilization Compatible
- Operating temperature range -70C (-94F) to 105C (221F)
- Minimum shrinkage temp 90C (194C)
Product Description
Altera MT 5000 polyolefin shrink tubing is suitable for use in medical applications requiring flexibility, excellent electrical insulation properties and abrasion resistance. Solvent resistance is excellent and MT 5000 can be Gamma and ETO Sterilized. Since lubricity is not as high as MT 2000, this material will provide better strain relief. The relatively low shrink temperature makes it a good choice for temperature sensitive components. Material has USP Class VI designation with no heavy metals. Color Clear / Translucent Shrink Ratio 2:1
