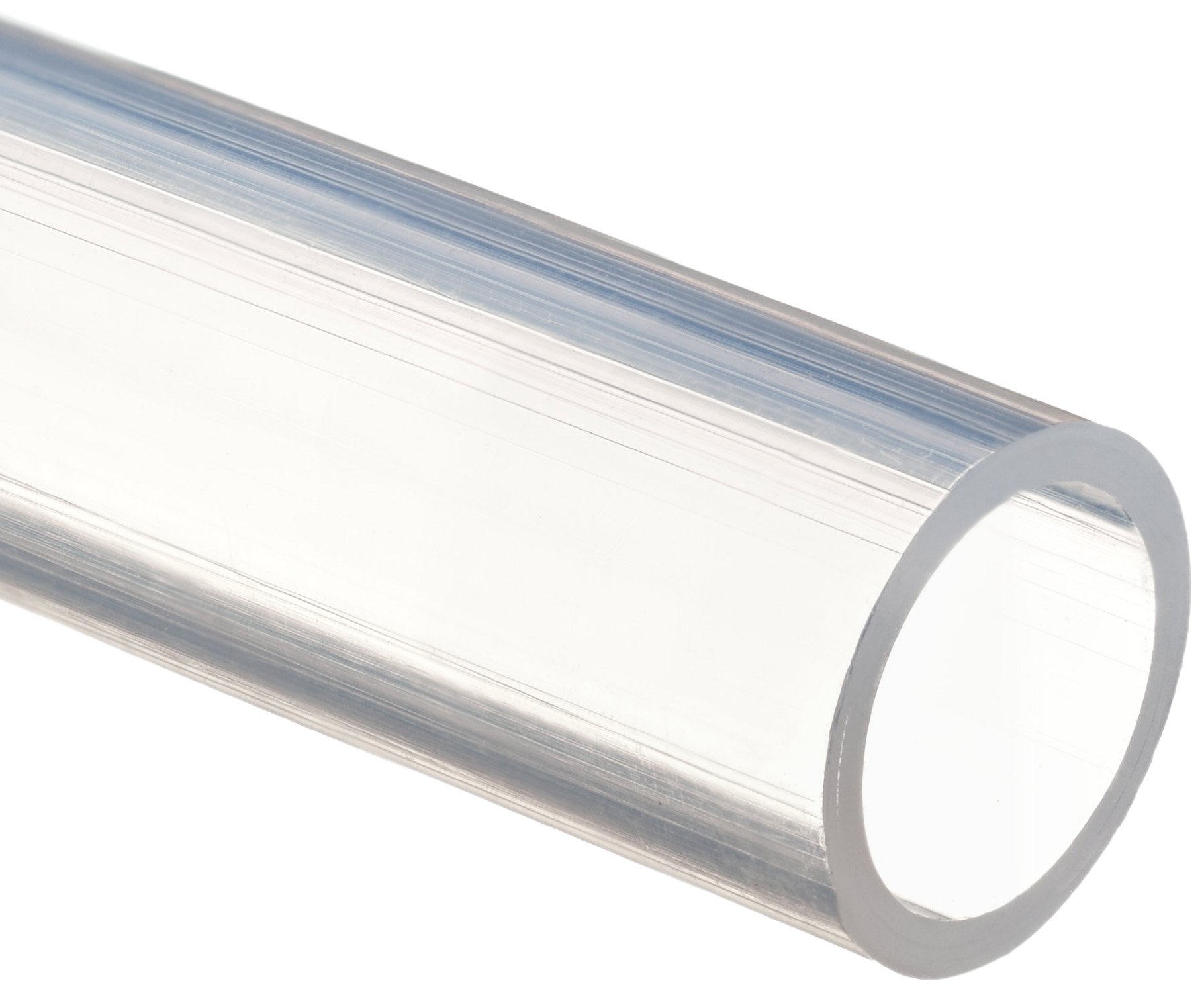

Raychem Altera USP Class VI Polyolefin Heat Shrink Tubing .250" Min. Min. Expanded ID, .125" Recovered ID

Be the first to review this item

Product Specifications
Number of Items
1
Item Shape
Round
Color Name
White Translucent
Material Type
Polyolefin
Part Number
ALTERA-M5000-1/4
Outside Diameter
0.175  inches
Brand Name
Raychem
Upper Temperature Range
105  Degrees Celsius
Inside Diameter
0.125  inches
Wall Thickness
0.025  inches
UNSPSC Code
40183006
System of Measurement
Inch
LowerTemperature Range
-70  Degrees Celsius

This item is no longer available

This item is NOT eligible for "Free Standard Shipping on orders over $50.00" promotion. (Details)

  • Share
Currently showing 1-0 of 0
Item length string ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price

Currently showing 1-0 of 0

No results match your selection criteria.

Key Features

  • Shrink Ratio 2:1
  • USP Class VI
  • Gamma and ETO Sterilization Compatible
  • Operating temperature range -70C (-94F) to 105C (221F)
  • Minimum shrinkage temp 90C (194C)

Product Description

Altera MT 5000 polyolefin shrink tubing is suitable for use in medical applications requiring flexibility, excellent electrical insulation properties and abrasion resistance. Solvent resistance is excellent and MT 5000 can be Gamma and ETO Sterilized. Since lubricity is not as high as MT 2000, this material will provide better strain relief. The relatively low shrink temperature makes it a good choice for temperature sensitive components. Material has USP Class VI designation with no heavy metals. Color Clear / Translucent Shrink Ratio 2:1
