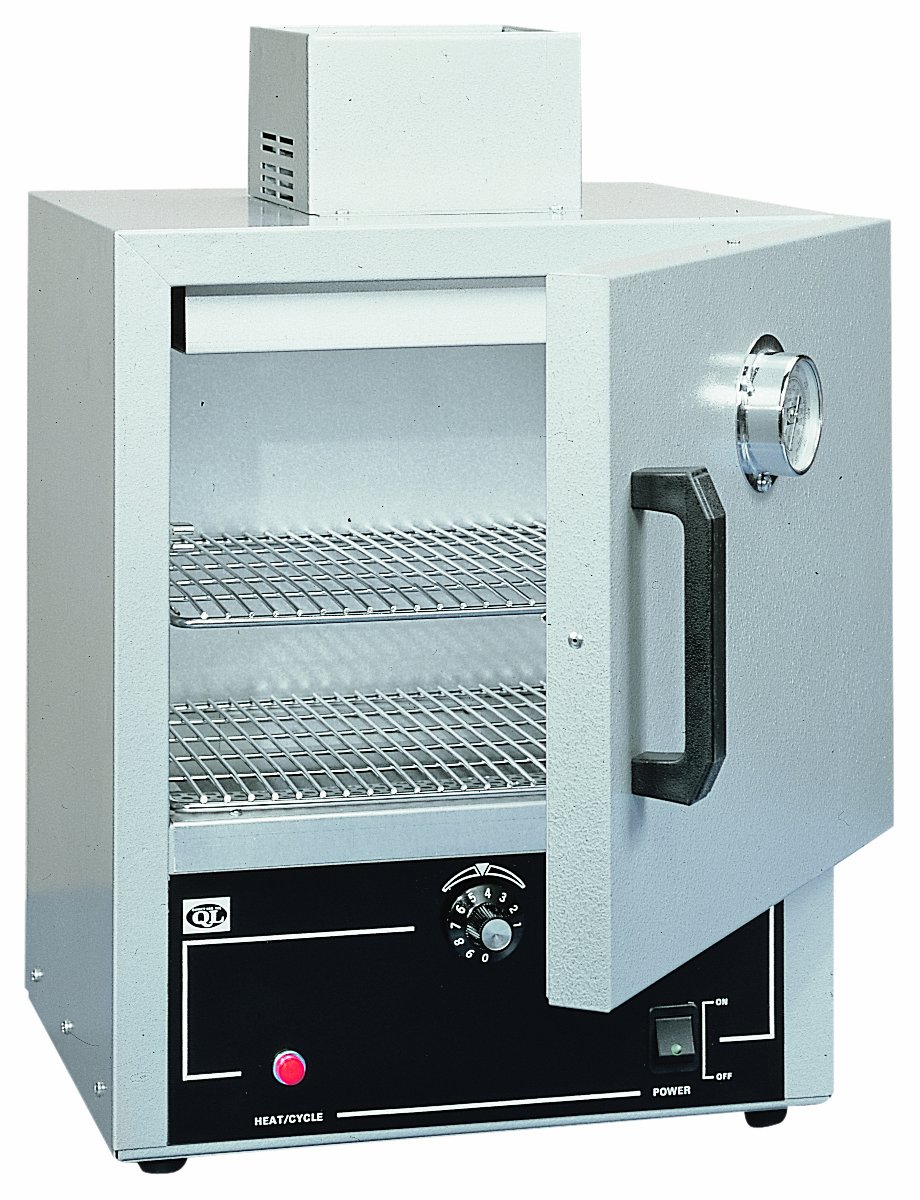

Quincy 10AF Bi-Metal Forced-Air Laboratory Oven, 0.6 Cubic Feet/17 Liter Capacity, 450 Degrees F/232 Degrees C Maximum Temperature, 120V

Be the first to review this item

ASIN B006H8IQ64

Specifications for this item
Number of Items
1
Overall Height
20.5  inches
Overall Width
14  inches
Wattage
800  Watts
Part Number
10AF
Temperature Range
54/225  Degrees Celsius
Brand Name
Quincy
Upper Temperature Range
225  Degrees Celsius
Capacity
0.6  Cubic Feet
UNSPSC Code
41104501
LowerTemperature Range
54  Degrees Celsius

This item is no longer available

Free Standard Shipping! on orders over $50.00.
(limited-time offer, certain restrictions apply) (Details)

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Forced-air laboratory oven for evaporating, annealing, and testing applications, and drying, baking, curing, heat-treating, and sterilizing parts
  • Double-wall construction is insulated with high-density mineral wool to maintain constant temperature and keep exterior cool to the touch
  • Bi-metal thermostat control with control dial and illuminated on/off rocker switch
  • Low-watt density elements are compact to provide quick run-up and recovery times, and Incoloy-sheaths for high-temperature heating and resistance to corrosive solutions
  • Scratch-resistant hammered exterior is abrasion and corrosion resistant, and high-impact thermoplastic handles are durable and remain cool

Package Details

Shipping Weight: 48.9 pounds
Package Size: 27.6 x 20.9 x 19.9 inches

Product Description

The Quincy Lab 10AF forced-air laboratory oven has a bi-metal thermostat for evaporating, annealing, and testing applications, and drying, baking, curing, heat-treating, and sterilizing parts. Forced air ovens provide uniform heat distribution within the chamber, and facilitate drying applications. The oven has a 0.6 cubic foot/17 liter capacity and a maximum temperature of 450 degrees F/232 degrees C. The oven has double-wall construction that is insulated with high-density mineral wool to maintain constant temperature and keep exterior cool to the touch. The bi-metal thermostat is dial-controlled, and the on/off rocker switch is illuminated to indicate power status. Low-watt density elements are compact to provide quick run-up and recovery times, and are Incoloy-sheathed for high-temperature heating and resistance to corrosive solutions. A perforated heat shield absorbs radiant heat to provide temperature uniformity and even heat distribution. The scratch-resistant hammered exterior is abrasion and corrosion resistant, and high-impact thermoplastic handles are durable and remain cool.

Specifications
Maximum temperature (Fahrenheit)450 degrees
Maximum temperature (Celsius)232 degrees
Temperature stability (Fahrenheit)+/- 6 degrees F at 300 degrees F
Temperature stability (Celsius)+/- 3 degrees C at 150 degrees C
Capacity0.6 cubic feet/17 liters
Interior dimensions (H x W x D)8.25 x 12 x 10 inches/21 x 30.5 x 25.4 cm
Exterior dimensions (H x W x D)20.5 x 14 x 12.3 inches/52 x 35.6 x 31.2cm
Power requirements120V/800W; US plug style

H is height, the vertical distance from the lowest to highest point; W is width, the horizontal distance from left to right; D is depth, the horizontal distance from front to back.

Quincy Lab, Inc. manufactures laboratory incubators and ovens. The company, established in 1973, is located in Chicago, IL.
