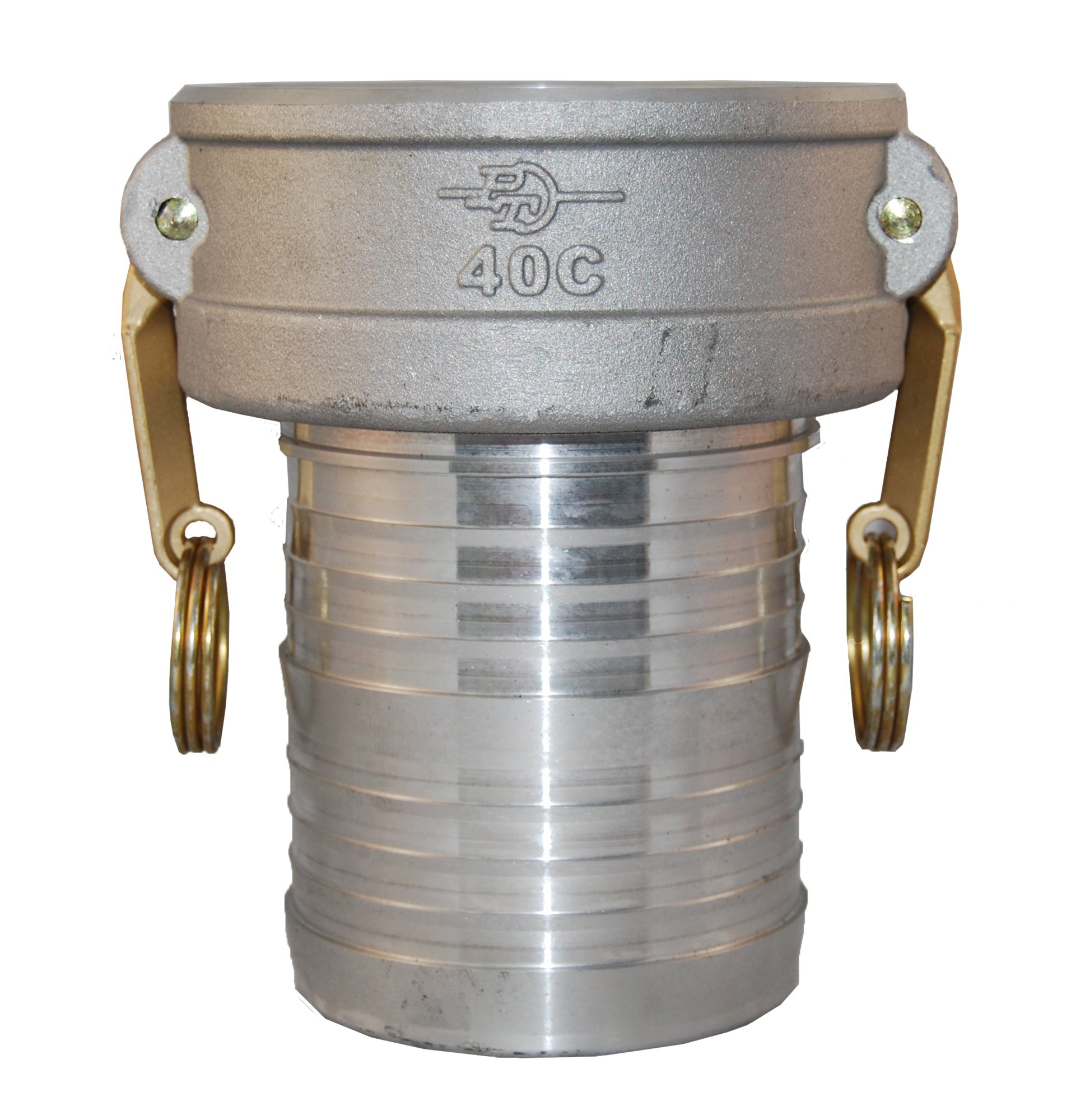

PT Coupling Basic Standard Series Aluminum Cam and Groove Hose Fitting, C-Coupler, Brass (HB) Cam Arms, 4" Coupler x Hose Shank

Be the first to review this item

ASIN B0094MK7GW

Product Specifications
Part Number
1070340
Number of Items
1
Size Name
4"
Maximum Pressure
150  PSI
Specification for this product family (See all  products)
Manufacturer Series Number
Basic Standard
Item Shape
Socket
Material Type
Aluminum
Connector Type
Coupler x Hose Shank
UNSPSC Code
40141734
Brand Name
PT Coupling

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Wed, Nov 26? Order in-stock items in the next 22 hrs 3 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Cam-locking female coupler with gasket provides leak-tight connection to male cam and groove-style fitting
  • Shank for hose connection
  • Aluminum body for corrosion and abrasion resistance and light weight
  • For use with water, hydraulic oil, coolants, gasoline, and petroleum products
  • Complies with Commercial Item Description A-A-59326D for quick disconnect fittings

Package Details

Shipping Weight: 3.35 pounds
Package Size: 6.7 x 6.2 x 5.6 inches

Product Description

This PT Coupling Type C coupler has an aluminum body with brass cam arms, a buna-n (buna nitrile) gasket, and a shank hose connection. The aluminum coupler body resists corrosion and abrasion, is light weight, and is suitable for use with water, hydraulic oil, coolants, gasoline, and petroleum products. The buna-n seal provides a leak-tight connection. The brass cam arms resist corrosion, have ductility at high temperatures and low magnetic permeability, and serve as the mechanism by which the coupler locks into the adapter groove. This cam and groove coupler complies with Commercial Item Description A-A-59326D for quick disconnect fittings and is used in applications such as fuel delivery, wine transfer, and grain movement.

Hose fittings connect, control, change the direction of, and terminate the flow in piping and hose systems. They are made of brass, stainless steel, galvanized steel, and other materials that resist corrosion, pressure, and wear. Hose fittings have various types of connections, including threaded, barbed, push-to-connect, dry disconnect, and others including those based on internationally-accepted specifications. Hose fittings are used in systems such as air compressors, automatic manufacturing operations, aircraft controls, and tire installation in industries including agriculture, mining, road construction, firefighting, and aviation.

PT Coupling manufactures pneumatic and hydraulic hose fittings for industrial and automotive applications. The company, founded in 1951 and headquartered in Enid, OK, meets International Organization for Standardization (ISO) standard 9001.
