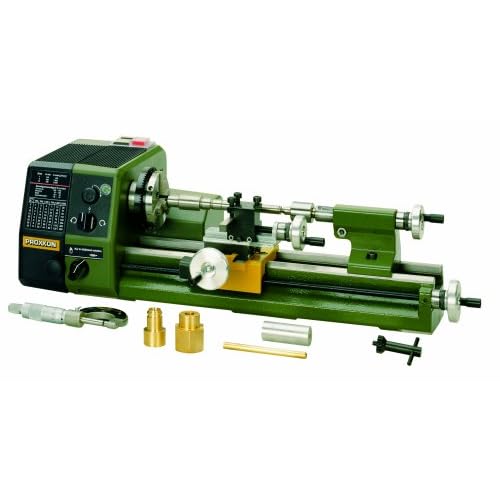

Proxxon 34004 PD 230/E Lathe

Be the first to review this item

ASIN B001FWXENM

Specifications for this item
Part Number
34004
Brand Name
Proxxon
EAN
4006274340046
Warranty
Limited Warranty of Proxxon Power Tools for home use. Prox-Tech, Inc. warrants to the original purchaser only that all Proxxon consumer power tools will be free from defects in material or workmanship for a period of two years from the date of purchase. Seller's sole obligation and your exclusive remedy under this limited warranty and, to the extent permitted by law, any warranty or condition implied by law, shall be the repair or replacement of parts, without charge, which are defective in material or workmanship and which have not been misused, carelessly handled, or misrepaired by persons other than Seller or Authorized Service Station. This limited warranty does not apply to accessory items such as circular saw blades, drill bits, router bits jigsaw blades, sanding belts, grinding wheels and other related items. Damage to the product resulting from tampering, accident, abuse, negligence, unauthorized repairs or alterations, unapproved attachments or other causes unrelated to problems with material or workmanship are not covered by this warranty. Any implied warranties shall be limited in duration to two years from date of purchase. Some states in the U.S. and some Canadian provinces do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you. In no event shall seller be liable for any incidental or consequential damages (including but not limited to liability for loss of profits) arising from the sale or use of this product. Some states in the U.S. and some Canadian provinces do not allow the exclusion or limitation of incidental or consequential damages, sol the above limitation or exclusion may not apply to you.

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tue, Oct 28? Order in-stock items in the next 1 day 23 hrs 29 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Use on materials such as plastic, steel, brass, and aluminum
  • Gear casing with a chart showing the appropriate speeds for different materials and diameters
  • On/off switch with emergency stop
  • Includes top slide for taper turning, tool holder MT-1 (short) live center, and 3-jaw chuck with 5/64- to 2-23/64-inch capacity
  • Dimensions are approximately 21-by-9.8-by-5.9-inches at 30-pounds

Package Details

Shipping Weight: 28.6 pounds
Package Size: 22.6 x 13.4 x 9 inches

Product Description

From the Manufacturer

Proxxon Lathe PD 230/E : Machine is usable on materials such as plastic, steel, brass and aluminum. Comes complete with automatic feed, thread cutting capability, headstock chuck, live center and top slide for taper turner. It may be used to part, turn, and cut tapers. The numerous optional accessories add the versatility you need to complete all your miniature projects. Weight approximately 30 pounds and dimensions approximately 21inches by 9.8 inches by 5.9 inches. Has features of full sized lathe and can be packed away after each use. Practical hand wheel with zero adjustable scales 1 division = 0.001 (0.025 millimeter) 1 revolution equals .04 (1 millimeter). Cast iron bed with ground prism for tool rest and tailstock to ensure minimal deflection even at high loads. Combination of 3 speeds and additional electronic speed control allowing speeds from 100 to 3000 rpm are among the many features standard on this precision lathe.
