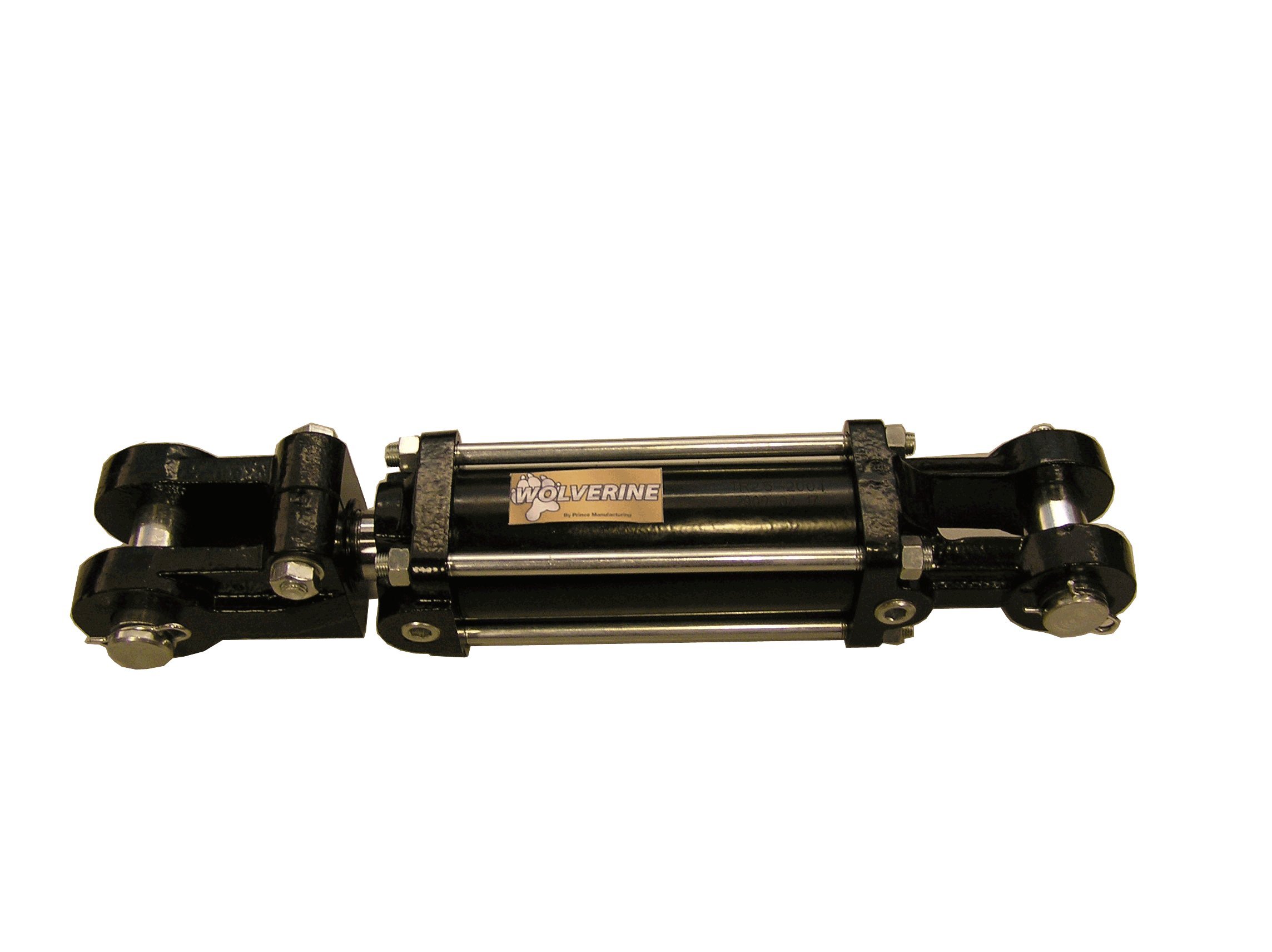

Click for larger image and other views Image is representative of the product family. Select individual products in the table below for more specific images and product specifications

How can we improve our images or Product Specifications?

Prince Wolverine Double-Acting Tie-Rod Hydraulic Cylinder, Clevis Mounting, Black, NPTF

Be the first to review this item

Product Specifications
Exterior Finish
Plated
Specification Met
ASAE
Item Shape
Tie-Rod
Mounting Type
Clevis Mounting
Seal Material Type
Urethane
Connector Type
NPT Female
UNSPSC Code
27121602
Brand Name
Prince Manufacturing
System of Measurement
Inch

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Wed, Sep 3? Order in-stock items in the next 2 days 13 hrs 10 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-20 of 28 Next 8 »
Bore Diameter Stroke Length Max Pressure Retracted Length Rod Diameter Port Size Mfr Part # ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All All All All
Currently showing 1-20 of 28 Next 8 »
2" 36" 2500 PSI 46.25" 1-1/8" 3/8" NPTF W200360 B005CWLGL8 yes $191.20 Buy Options
2" 30" 2500 PSI 40.25" 1-1/8" 3/8" NPTF W200300 B005CWLGD6 yes $133.84 Buy Options
2" 24" 2500 PSI 34.25" 1-1/8" 3/8" NPTF W200240 B005CWLG40 yes $124.31 Buy Options
2" 16" 2500 PSI 31.50" 1-1/8" 3/8" NPTF V200160 B005CWLBTK yes $105.39 Buy Options
2-1/2" 30" 2500 PSI 40.25" 1-1/4" 3/8" NPTF W250300 B005CWLIU2 yes $168.30 Buy Options
2-1/2" 24" 2500 PSI 34.25" 1-1/4" 3/8" NPTF W250240 B005CWLIMU yes $141.29 Buy Options
2-1/2" 8" 2500 PSI 18.25" 1-1/8" 3/8" NPTF W250080 B005CWLH30 yes $101.77 Buy Options
2-1/2" 20" 2500 PSI 30.25" 1-1/4" 3/8" NPTF W250200 B005CWLIES yes $132.53 Buy Options
2-1/2" 16" 2500 PSI 26.25" 1-1/8" 3/8" NPTF W250160 B005CWLI02 yes $121.83 Buy Options
2-1/2" 8" 2500 PSI 20.25" 1-1/8" 3/8" NPTF V250080 B005CWLC8A yes $103.15 Buy Options
3" 30" 2500 PSI 40.25" 1-1/2" 1/2" NPTF W300300 B005CWLMHQ yes $236.85 Buy Options
3" 24" 2500 PSI 34.25" 1-1/2" 1/2" NPTF W300240 B005CWLM7G yes $191.21 Buy Options
3" 6" 2500 PSI 16.25" 1-1/4" 1/2" NPTF W300060 B005CWLJR4 yes $112.20 Buy Options
3-1/2" 30" 2500 PSI 40.25" 1-1/2" 1/2" NPTF W350300 B005CWLPF0 yes $281.58 Buy Options
3-1/2" 24" 2500 PSI 34.25" 1-1/2" 1/2" NPTF W350240 B005CWLP2I yes $263.29 Buy Options
3-1/2" 20" 2500 PSI 30.25" 1-1/2" 1/2" NPTF W350200 B005CWLO1A yes $218.91 Buy Options
3-1/2" 18" 2500 PSI 28.25" 1-1/4" 1/2" NPTF W350180 B005CWLNP2 yes $209.19 Buy Options
3-1/2" 14" 2500 PSI 24.25" 1-1/4" 1/2" NPTF W350140 B005CWLN98 yes $163.40 Buy Options
3-1/2" 16" 2500 PSI 26.25" 1-1/4" 1/2" NPTF W350160 B005CWLNH0 yes $191.68 Buy Options
3-1/2" 12" 2500 PSI 22.25" 1-1/4" 1/2" NPTF W350120 B005CWLMZS yes $150.15 Buy Options

Key Features

  • Actuator for converting hydraulic power into mechanical motion
  • Steel rod clevis and base clevis for strength
  • Plated piston rod for strength and resistance to wear
  • Black powder coat paint for resistance to corrosion
  • Maximum operating pressure of 2,500 psi

Product Description

This Prince Wolverine tie-rod hydraulic cylinder is an actuator for converting hydraulic power into mechanical motion. It is a double-acting cylinder with two National Pipe Taper Female (NPTF) hydraulic ports for both extension and retraction of the rod. It has a steel rod clevis and base clevis for strength and a plated piston rod for strength and resistance to wear. It has black powder coat paint for resistance to corrosion. This hydraulic cylinder has a maximum operating pressure of 2,500 pounds per square inch (psi).

Linear motion actuators are independent units that, when combined with a switch and power source, push or pull loads in a straight line. Actuator types (mechanical, hydraulic, pneumatic, piezoelectric, electro-mechanical, and telescoping) vary and their application is determined by the power source available, as well as the load and space requirements. Linear motion actuators are used in a variety of applications, such as computer disk drives, deck and implement lifts for tractors, wheelchair lifts on a vehicle, and flow control mechanisms, such as flood gates on a dam.

Prince Manufacturing builds hydraulic cylinders, valves, and pumps. The company, founded in 1941, is headquartered in North Sioux City, SD.
