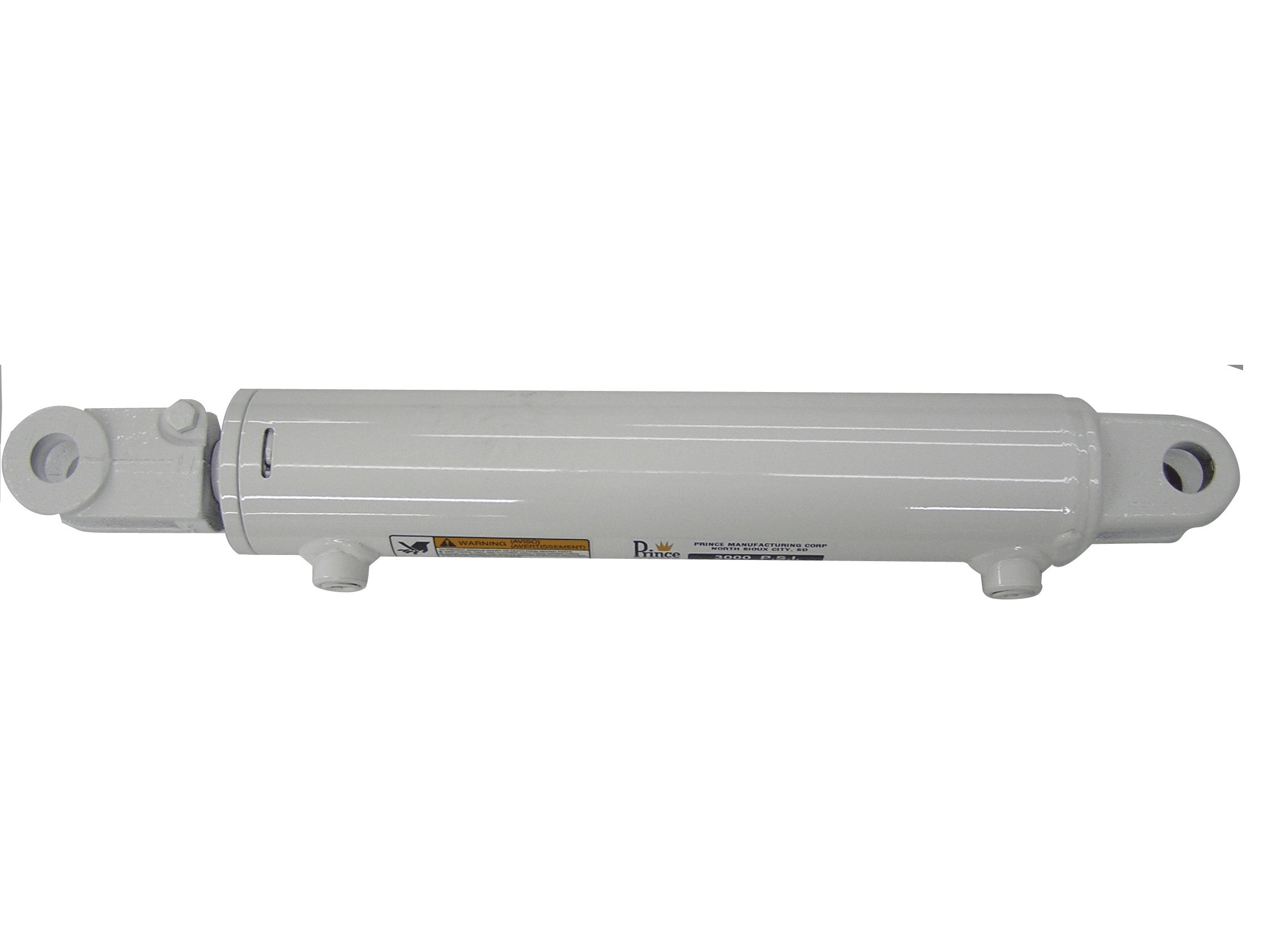

Click for larger image and other views Image is representative of the product family. Select individual products in the table below for more specific images and product specifications

How can we improve our images or Product Specifications?

Prince Sword Double-Acting Welded Hydraulic Cylinder, Clevis Mounting, White, NPTF

Be the first to review this item

Product Specifications
Exterior Finish
Chrome Finish
Item Shape
Welded Body
Mounting Type
Clevis Mounting
Seal Material Type
Urethane
Connector Type
NPT Female
UNSPSC Code
27121602
Brand Name
Prince Manufacturing
System of Measurement
Inch

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tue, Nov 25? Order in-stock items in the next 1 day 4 hrs 55 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-18 of 18
Bore Diameter Stroke Length Max Pressure Retracted Length Rod Diameter Port Size Mfr Part # ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All All All All
Currently showing 1-18 of 18
2" 24" 3000 PSI 34.25" 1-1/8" 1/2" NPTF PMC-42024 B005CWK6GE yes $277.79 Buy Options
2" 20" 3000 PSI 30.25" 1-1/8" 1/2" NPTF PMC-42020 B005CWK5YC yes $265.79 Buy Options
2" 16" 3000 PSI 31.5" 1-1/8" 1/2" NPTF PMC-42016 B005CWK5N8 yes $283.93 Buy Options
2" 10" 3000 PSI 20.25" 1-1/8" 1/2" NPTF PMC-42010 B005CWK4L6 yes $252.35 Buy Options
2" 8" 3000 PSI 20.25" 1-1/8" 1/2" NPTF PMC-42008 B005CWK45M yes $237.25 Buy Options
2-1/2" 20" 3000 PSI 30.25" 1-1/4" 1/2" NPTF PMC-42520 B005CWK9LG yes $88.75 Buy Options
3" 12" 3000 PSI 22.25" 1-3/8" 1/2" NPTF PMC-43012 B005CWKBEG yes $226.96 Buy Options
3" 20" 3000 PSI 30.25" 1-3/8" 1/2" NPTF PMC-43020 B005CWKC86 yes $345.69 Buy Options
3" 8" 3000 PSI 20.25" 1-3/8" 1/2" NPTF PMC-43008 B005CWKAGK yes $265.28 Buy Options
3-1/2" 24" 3000 PSI 34.25" 1-1/2" 1/2" NPTF PMC-43524 B005CWKFWE yes $397.15 Buy Options
3-1/2" 20" 3000 PSI 30.25" 1-1/2" 1/2" NPTF PMC-43520 B005CWKF88 yes $388.68 Buy Options
3-1/2" 16" 3000 PSI 31.5" 1-1/2" 1/2" NPTF PMC-43516 B005CWKEI4 yes $392.89 Buy Options
3-1/2" 12" 3000 PSI 22.25" 1-1/2" 1/2" NPTF PMC-43512 B005CWKE2K yes $426.26 Buy Options
4" 20" 3000 PSI 30.25" 1-3/4" 1/2" NPTF PMC-44020 B005CWKI8U yes $474.50 Buy Options
4" 10" 3000 PSI 20.25" 1-3/4" 1/2" NPTF PMC-44010 B005CWKH6S yes $410.71 Buy Options
4" 8" 3000 PSI 20.25" 1-3/4" 1/2" NPTF PMC-44008 B005CWKG96 yes $348.97 Buy Options
4" 30" 3000 PSI 40.25" 1-3/4" 1/2" NPTF PMC-44030 B005CWKJG6 yes $667.33 Buy Options
4" 16" 3000 PSI 31.5" 1-3/4" 1/2" NPTF PMC-44016 B005CWKHUO yes $445.33 Buy Options

Key Features

  • Actuator for converting hydraulic power into mechanical motion
  • Chromed, ground, and polished piston rod for resistance to wear
  • Ductile iron piston and gland for strength and durability
  • Urethane u-cup seal and wiper ring in gland for resistance to contaminants
  • Maximum operating pressure of 3,000 psi

Product Description

This Prince Sword hydraulic cylinder is an actuator for converting hydraulic power into mechanical motion. It is a double-acting cylinder with two 1/2" National Pipe Taper Female (NPTF) hydraulic ports for both extension and retraction of the rod. It has clevis mounts on both ends for mounting. It has a chromed, ground, and polished piston rod for resistance to wear. The piston and gland are made of ductile iron for strength and durability, and the u-cup seal and wiper ring in the gland are made of urethane for resistance to contaminants. This all-purpose hydraulic cylinder has a heavy duty welded construction and has a maximum operating pressure of 3,000 pounds per square inch (psi).

Linear motion actuators are independent units that, when combined with a switch and power source, push or pull loads in a straight line. Actuator types (mechanical, hydraulic, pneumatic, piezoelectric, electro-mechanical, and telescoping) vary and their application is determined by the power source available, as well as the load and space requirements. Linear motion actuators are used in a variety of applications, such as computer disk drives, deck and implement lifts for tractors, wheelchair lifts on a vehicle, and flow control mechanisms, such as flood gates on a dam.

Prince Manufacturing builds hydraulic cylinders, valves, and pumps. The company, founded in 1941, is headquartered in North Sioux City, SD.
