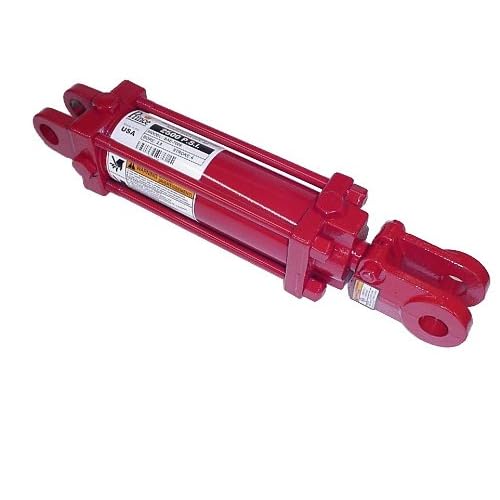

Prince Majestic Double-Acting Tie-Rod Hydraulic Cylinder, Clevis Mounting, Red, UNF

Be the first to review this item

Product Specifications
Exterior Finish
Chrome Finish
Item Shape
Tie-Rod
Mounting Type
Clevis Mounting
Seal Material Type
Urethane
Connector Type
UNF
UNSPSC Code
27121602
Brand Name
Prince Manufacturing
System of Measurement
Inch

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Nov 24? Order in-stock items in the next 1 day 7 hrs 26 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-12 of 12
Bore Diameter Stroke Length Max Pressure Retracted Length Rod Diameter Port Size Mfr Part # ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All All All All
Currently showing 1-12 of 12
2" 10" 2500 PSI 20.25" 1" #8 SAE SAE-8410 B005CWLABO yes $175.95 Buy Options
2" 8" 2500 PSI 20.25" 1" #8 SAE SAE-8408 B005CWLA0A yes $148.03 Buy Options
2" 6" 2500 PSI 16.25" 1" #8 SAE SAE-8406 B005CWL9LU yes $166.74 Buy Options
2" 4" 2500 PSI 14.25" 1" #8 SAE SAE-8404 B005CWL9BU yes $163.11 Buy Options
2-1/2" 6" 2500 PSI 16.25" 1-1/8" #8 SAE SAE-7006 B005CWL78U yes $191.06 Buy Options
2-1/2" 8" 2500 PSI 20.25" 1-1/8" #8 SAE SAE-7008 B005CWL7GW yes $174.75 Buy Options
3" 6" 2500 PSI 16.25" 1-1/8" #8 SAE SAE-7106 B005CWL7RG yes $199.87 Buy Options
3" 8" 2500 PSI 20.25" 1-1/8" #8 SAE SAE-7108 B005CWL820 yes $202.44 Buy Options
4" 10" 2500 PSI 20.25" 1-1/2" #8 SAE SAE-8610 B005CWLB7M yes $115.18 Buy Options
4" 8" 2500 PSI 20.25" 1-1/2" #8 SAE SAE-8608 B005CWLAPK yes $334.74 Buy Options
5" 10" 2500 PSI 22.25" 1-3/4" #10 SAE SAE-8210 B005CWL8UW yes $154.50 Buy Options
5" 8" 2500 PSI 20.25" 1-3/4" #10 SAE SAE-8208 B005CWL8MU yes $472.40 Buy Options

Key Features

  • Actuator for converting hydraulic power into mechanical motion
  • Chromed, ground, and polished piston rod for resistance to wear
  • Ductile iron piston, butt, gland, and clevis for strength and durability
  • Urethane u-cup seal and wiper ring in gland for resistance to contaminants
  • Maximum operating pressure of 2,500 psi

Product Description

This Prince Majestic tie-rod hydraulic cylinder is an actuator for converting hydraulic power into mechanical motion. It is a double-acting cylinder with two Society of Automotive Engineers (SAE) hydraulic ports for both extension and retraction of the rod. It has clevis mounts on both ends with Unified Fine Thread (UNF) threading. It has a chromed, ground, and polished piston rod for resistance to wear. The piston, butt, gland, and clevis are made of ductile iron for strength and durability, and the u-cup seal and wiper ring in the gland are made of urethane for resistance to contaminants. This medium-duty hydraulic cylinder has a maximum operating pressure of 2,500 pounds per square inch (psi).

Linear motion actuators are independent units that, when combined with a switch and power source, push or pull loads in a straight line. Actuator types (mechanical, hydraulic, pneumatic, piezoelectric, electro-mechanical, and telescoping) vary and their application is determined by the power source available, as well as the load and space requirements. Linear motion actuators are used in a variety of applications, such as computer disk drives, deck and implement lifts for tractors, wheelchair lifts on a vehicle, and flow control mechanisms, such as flood gates on a dam.

Prince Manufacturing builds hydraulic cylinders, valves, and pumps. The company, founded in 1941, is headquartered in North Sioux City, SD.
