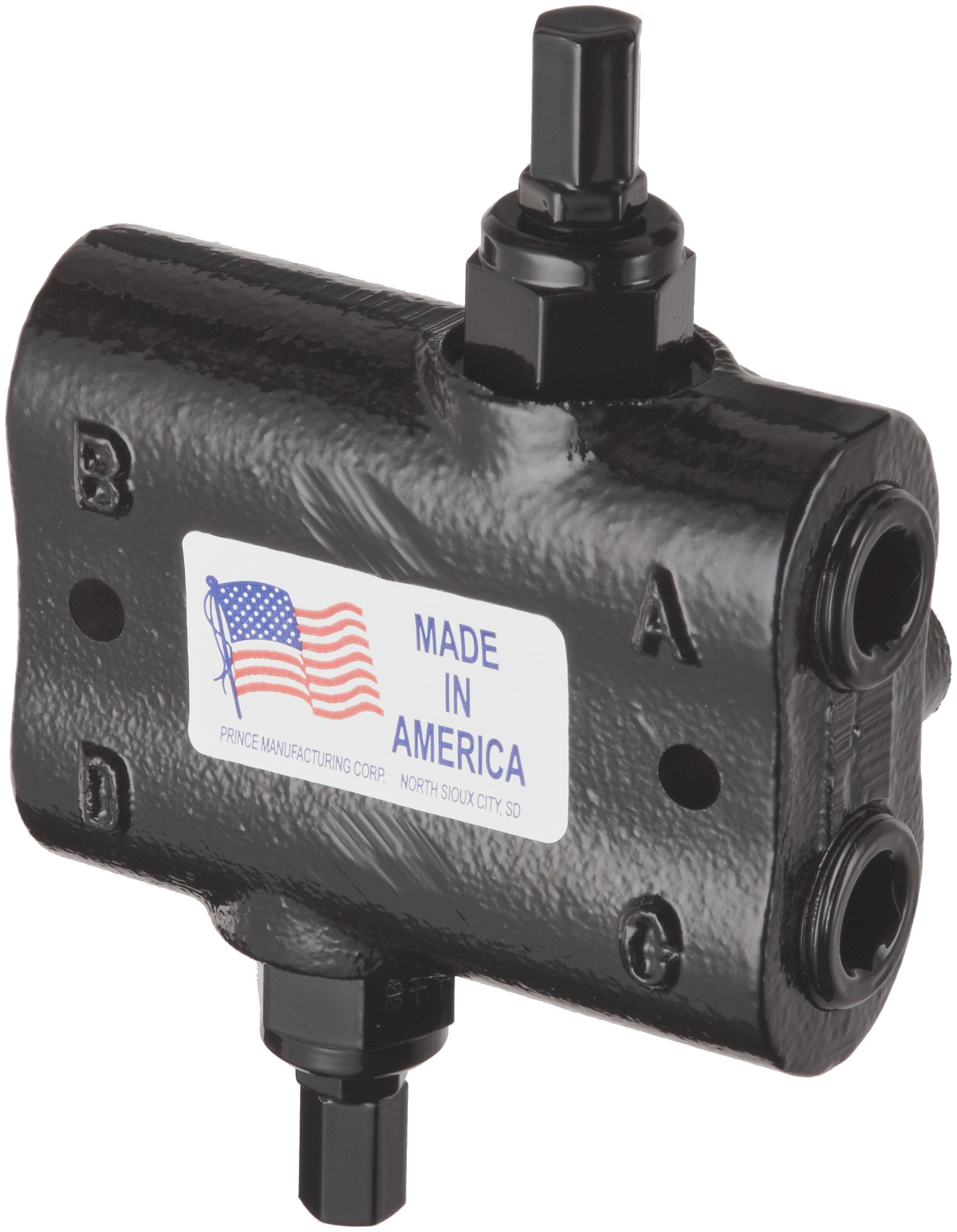

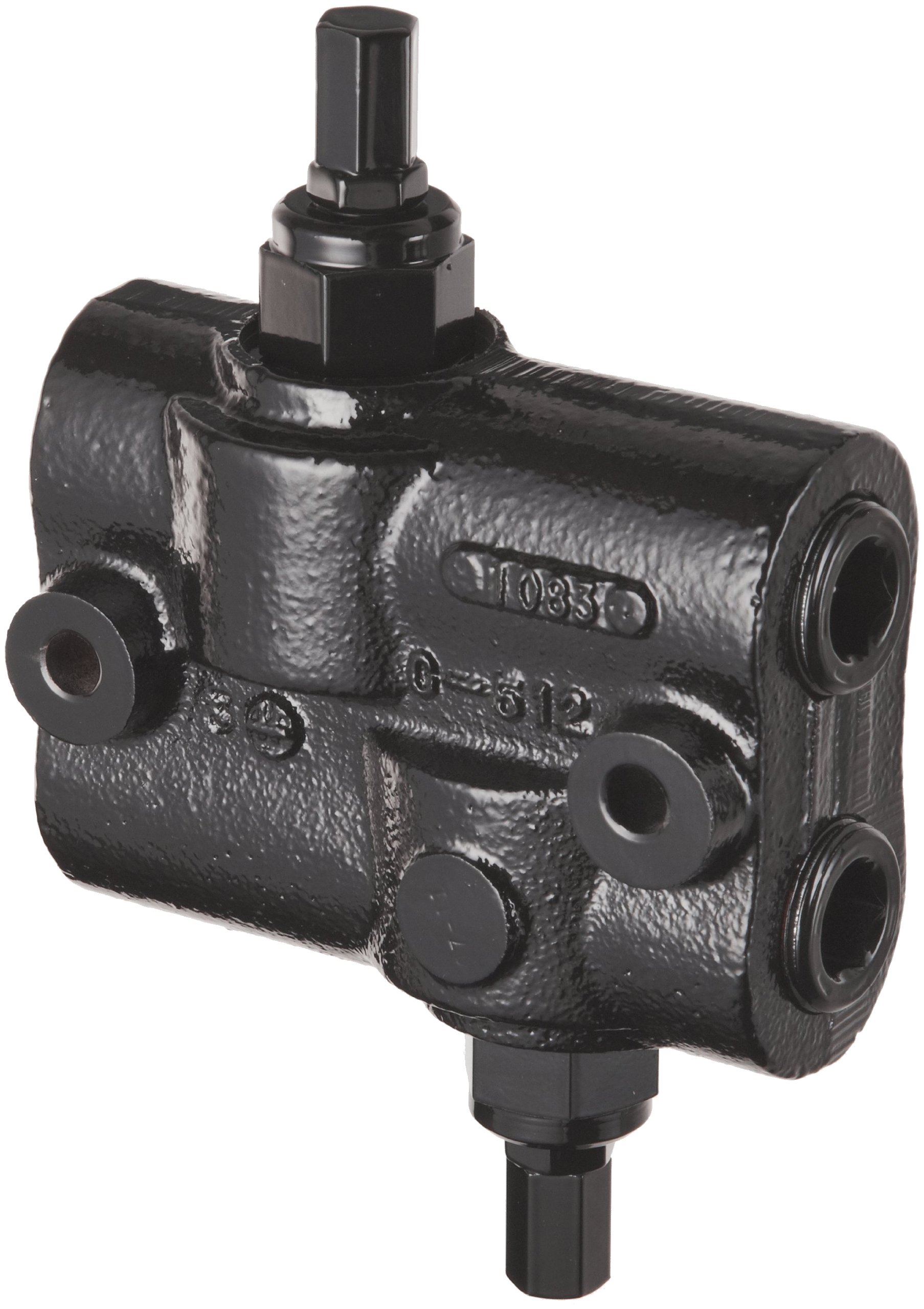

Prince DRV-2HH Double Relief Valve, Differential Poppet, Cast Iron, 3000 psi, 30 gpm, 3/4" NPTF

Be the first to review this item

ASIN B005H3TWXG

Specifications for this item
Number of Items
1
Pressure Flow Rate
30  Gallons per Minute
Color Name
Black
Material Type
Cast Iron
Part Number
DRV-2HH
Brand Name
Prince Manufacturing
Size Name
3/4"
Maximum Temperature
180  Degrees Fahrenheit
Maximum Pressure
3000  PSI
UNSPSC Code
40141606
Style Name
Threaded
System of Measurement
Inch

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Fri, Sep 19? Order in-stock items in the next 14 hrs 43 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Relief pressure adjustable from 1,500 to 3,000 psi with a flow rate of 30 gpm
  • 3/4" female NPT threaded inlet connection
  • Painted cast iron valve body for corrosion resistance
  • Double relief valve for use in systems that require cross over relief protection or a cushion valve
  • 180 degrees F maximum temperature for use in high temperature applications

Package Details

Shipping Weight: 5.35 pounds
Package Size: 7.6 x 5.9 x 2.6 inches

Product Description

The Prince valve model DRV is a differential poppet type double relief. This valve uses the same relief cartridge as the model RV. The double relief is used in systems that require cross over relief protection such a reversible hydraulic motor, or systems that require a cushion valve such as double acting cylinders.
