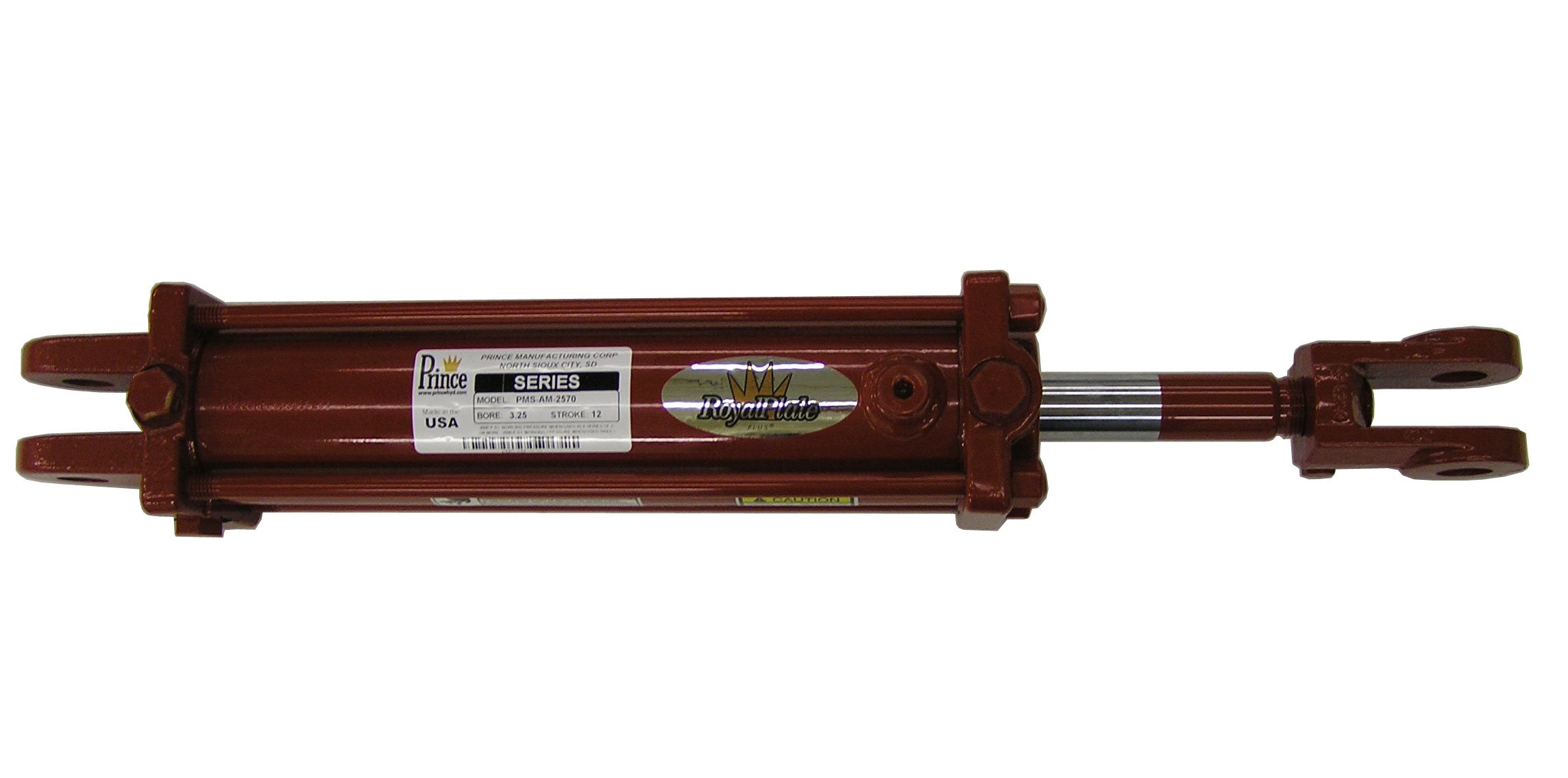

Click for larger image and other views Image is representative of the product family. Select individual products in the table below for more specific images and product specifications

How can we improve our images or Product Specifications?

Prince Series Double-Acting Tie-Rod Hydraulic Cylinder, Clevis Mounting, Red, UNF

Be the first to review this item

Product Specifications
Exterior Finish
Plated
Item Shape
Tie-Rod
Mounting Type
Clevis Mounting
Seal Material Type
Urethane
Connector Type
UNF
UNSPSC Code
27121602
Brand Name
Prince Manufacturing
System of Measurement
Inch

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Jul 28? Order in-stock items in the next 1 day 10 hrs 14 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-20 of 30 Next 10 »
Bore Diameter Stroke Length Max Pressure Retracted Length Rod Diameter Port Size Mfr Part # ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All All All All
Currently showing 1-20 of 30 Next 10 »
2-1/2" 8" 3000 PSI 20.25" 1-1/8" #8 SAE PMS-AM-2586 B005CWPVZK 2 $321.88 Buy Options
3" 10" 3000 PSI 22.25" 1-1/4" #8 SAE PMS-AM-2625 B005CWPYRU 3 $96.46 Buy Options
3" 16" 3000 PSI 28.25" 1-1/4" #8 SAE PMS-AM-2578 B005CWPVI2 1 $336.08 Buy Options
3" 12" 3000 PSI 24.25" 1-1/4" #8 SAE PMS-AM-2576 B005CWPUSS 2 $349.72 Buy Options
3" 8" 3000 PSI 20.25" 1-1/4" #8 SAE PMS-AM-2574 B005CWPU9W 1 $285.36 Buy Options
3-1/4" 10" 3000 PSI 22.25" 1-1/4" #8 SAE PMS-AM-2623 B005CWPY9I 1 $369.12 Buy Options
3-1/4" 16" 3000 PSI 28.25" 1-1/4" #8 SAE PMS-AM-2572 B005CWPTQ6 1 $357.33 Buy Options
3-1/4" 12" 3000 PSI 24.25" 1-1/4" #8 SAE PMS-AM-2570 B005CWPTDO 2 $370.68 Buy Options
3-1/4" 8" 3000 PSI 20.25" 1-1/4" #8 SAE PMS-AM-2568 B005CWPSMG 1 $352.28 Buy Options
3-1/2" 10" 3000 PSI 22.25" 1-1/4" #8 SAE PMS-AM-2621 B005CWPXQ2 1 $379.91 Buy Options
3-1/2" 12" 3000 PSI 24.25" 1-1/4" #8 SAE PMS-AM-2564 B005CWPRRW 1 $351.24 Buy Options
3-1/2" 16" 3000 PSI 28.25" 1-1/4" #8 SAE PMS-AM-2566 B005CWPS4O 1 $369.15 Buy Options
3-1/2" 8" 3000 PSI 20.25" 1-1/4" #8 SAE PMS-AM-2562 B005CWPR5O 2 $348.13 Buy Options
3-3/4" 10" 3000 PSI 22.25" 1-3/8" #8 SAE PMS-AM-2619A B005CWPX8A 1 $429.04 Buy Options
3-3/4" 8" 3000 PSI 20.25" 1-3/8" #8 SAE PMS-AM-2556A B005CWPP88 1 $350.21 Buy Options
3-3/4" 12" 3000 PSI 24.25" 1-3/8" #8 SAE PMS-AM-2558A B005CWPPVA Usually ships in 2 to 4 weeks $414.59 Buy Options
3-3/4" 16" 3000 PSI 28.25" 1-3/8" #8 SAE PMS-AM-2560A B005CWPQMI 1 $443.26 Buy Options
4" 16" 3000 PSI 28.25" 1-3/8" #8 SAE PMS-AM-2554A B005CWPOSO 1 $448.01 Buy Options
4" 12" 3000 PSI 24.25" 1-3/8" #8 SAE PMS-AM-2552A B005CWPOEI 1 $371.50 Buy Options
4" 8" 3000 PSI 20.25" 1-3/8" #8 SAE PMS-AM-2550A B005CWPNVM 1 $358.09 Buy Options

Key Features

  • Rephasing actuator for converting hydraulic power into mechanical motion in series or parallel applications
  • High strength tie-rod for large loads
  • Induction-hardened piston rod for strength and resistance to wear
  • DU bushings for long life
  • Maximum operating pressure of 3,000 psi

Product Description

This Prince tie-rod hydraulic cylinder is an actuator for converting hydraulic power into mechanical motion. It is a double-acting cylinder with two hydraulic ports for both extension and retraction of the rod, and it is a rephasing model with an external bypass valve for applications using two or more cylinders plumbed in series or parallel. The ports are Society of Automotive Engineers (SAE) size 8. It has clevis mounts on both ends for mounting. It is a high strength tie-rod for large loads, with an induction-hardened piston rod for strength and resistance to wear and DU bushings for a longer life. This hydraulic cylinder is suitable for use in a series cylinder circuit at a maximum pressure of 3,000 pounds per square inch (psi).

Linear motion actuators are independent units that, when combined with a switch and power source, push or pull loads in a straight line. Actuator types (mechanical, hydraulic, pneumatic, piezoelectric, electro-mechanical, and telescoping) vary and their application is determined by the power source available, as well as the load and space requirements. Linear motion actuators are used in a variety of applications, such as computer disk drives, deck and implement lifts for tractors, wheelchair lifts on a vehicle, and flow control mechanisms, such as flood gates on a dam.

Prince Manufacturing builds hydraulic cylinders, valves, and pumps. The company, founded in 1941, is headquartered in North Sioux City, SD.
