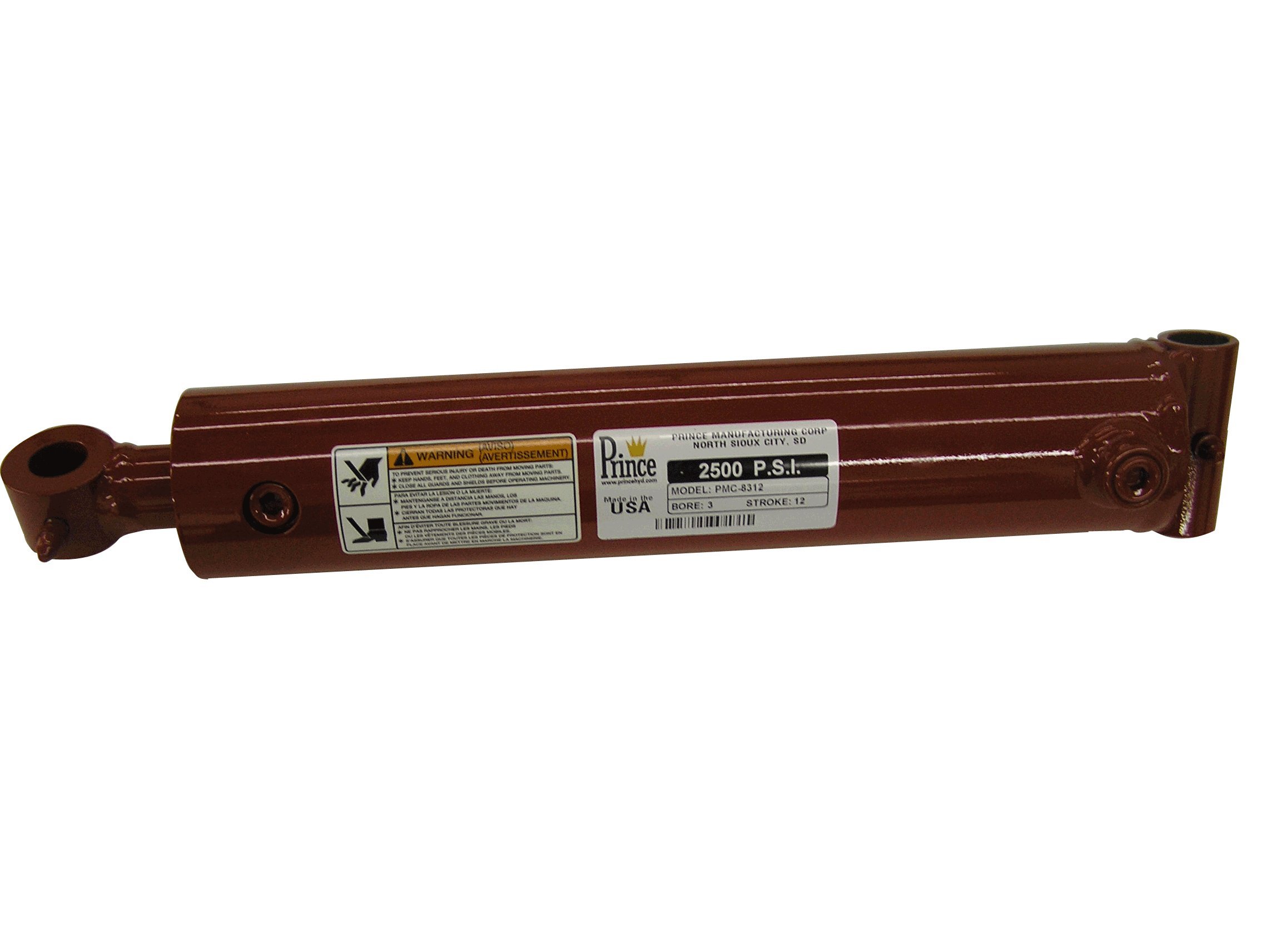

Click for larger image and other views Image is representative of the product family. Select individual products in the table below for more specific images and product specifications

How can we improve our images or Product Specifications?

Prince Royal Double-Acting Welded Hydraulic Cylinder, Crosstube Mounting, Red, Cast Iron, NPTF

Be the first to review this item

Product Specifications
Exterior Finish
Chrome Finish
Item Shape
Welded Body
Mounting Type
Crosstube Mounting
Seal Material Type
Urethane
Seat Material Type
Cast Iron
Connector Type
NPT Female
UNSPSC Code
27121602
Brand Name
Prince Manufacturing
System of Measurement
Inch

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Wed, Sep 3? Order in-stock items in the next 14 hrs 30 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-20 of 40 Next 20 »
Bore Diameter Stroke Length Max Pressure Retracted Length Rod Diameter Port Size Mfr Part # ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All All All All
Currently showing 1-20 of 40 Next 20 »
2-1/2" 42" 2500 PSI 50" 1-3/8" 3/8" NPTF PMC-5442 B005CWKO2K yes $387.97 Buy Options
2-1/2" 36" 2500 PSI 44" 1-3/8" 3/8" NPTF PMC-5436 B005CWKNLM yes $347.07 Buy Options
2-1/2" 32" 2500 PSI 40" 1-3/8" 3/8" NPTF PMC-5432 B005CWKN6M yes $333.07 Buy Options
2-1/2" 30" 2500 PSI 38" 1-3/8" 3/8" NPTF PMC-5430 B005CWKMS6 yes $297.09 Buy Options
2-1/2" 24" 2500 PSI 32" 1-3/8" 3/8" NPTF PMC-5424 B005CWKMGI yes $307.05 Buy Options
2-1/2" 20" 2500 PSI 28" 1-3/8" 3/8" NPTF PMC-5420 B005CWKLCI yes $290.91 Buy Options
2-1/2" 16" 2500 PSI 24" 1-3/8" 3/8" NPTF PMC-5416 B005CWKKWE yes $221.39 Buy Options
2-1/2" 12" 2500 PSI 20" 1-3/8" 3/8" NPTF PMC-5412 B005CWKKKQ yes $286.96 Buy Options
2-1/2" 8" 2500 PSI 16" 1-3/8" 3/8" NPTF PMC-5408 B005CWKK4M yes $273.10 Buy Options
3" 40" 2500 PSI 48" 1-1/2" 1/2" NPTF PMC-8340 B005CWL0AK yes $477.75 Buy Options
3" 32" 2500 PSI 40" 1-1/2" 1/2" NPTF PMC-8332 B005CWKZQ0 yes $429.70 Buy Options
3" 42" 2500 PSI 50" 1-1/2" 1/2" NPTF PMC-8342 B005CWL0OQ yes $417.85 Buy Options
3" 30" 2500 PSI 38" 1-1/2" 1/2" NPTF PMC-8330 B005CWKZF6 yes $402.70 Buy Options
3" 48" 2500 PSI 56" 1-1/2" 1/2" NPTF PMC-8348 B005CWL10E yes $455.11 Buy Options
3" 24" 2500 PSI 32" 1-1/2" 1/2" NPTF PMC-8324 B005CWKZ4M yes $366.31 Buy Options
3" 36" 2500 PSI 44" 1-1/2" 1/2" NPTF PMC-8336 B005CWL01Y yes $394.69 Buy Options
3" 20" 2500 PSI 28" 1-1/2" 1/2" NPTF PMC-8320 B005CWKYKW yes $351.05 Buy Options
3" 16" 2500 PSI 24" 1-1/2" 1/2" NPTF PMC-8316 B005CWKY8Y yes $324.36 Buy Options
3" 14" 2500 PSI 22" 1-1/2" 1/2" NPTF PMC-8314 B005CWKY0M yes $313.31 Buy Options
3" 12" 2500 PSI 20" 1-1/2" 1/2" NPTF PMC-8312 B005CWKXS0 yes $306.40 Buy Options

Key Features

  • Actuator for converting hydraulic power into mechanical motion
  • Welded construction for large loads
  • Ductile iron piston and gland for strength and durability
  • Urethane u-cup seal and wiper ring in gland for resistance to contaminants
  • Maximum operating pressure of 2,500 psi

Product Description

This Prince Royal welded hydraulic cylinder is an actuator for converting hydraulic power into mechanical motion. It is a double-acting cylinder with two National Pipe Taper Female (NPTF) hydraulic ports for both extension and retraction of the rod. It has crosstube end fittings with grease zerks for mounting. It has a welded construction for large loads. The piston and gland are made of ductile iron for strength and durability, with a chromed, ground, and polished piston rod for resistance to wear. The u-cup seal and wiper ring in the gland are made of urethane for resistance to contaminants. This welded hydraulic cylinder has a maximum operating pressure of 2,500 pounds per square inch (psi).

Linear motion actuators are independent units that, when combined with a switch and power source, push or pull loads in a straight line. Actuator types (mechanical, hydraulic, pneumatic, piezoelectric, electro-mechanical, and telescoping) vary and their application is determined by the power source available, as well as the load and space requirements. Linear motion actuators are used in a variety of applications, such as computer disk drives, deck and implement lifts for tractors, wheelchair lifts on a vehicle, and flow control mechanisms, such as flood gates on a dam.

Prince Manufacturing builds hydraulic cylinders, valves, and pumps. The company, founded in 1941, is headquartered in North Sioux City, SD.
