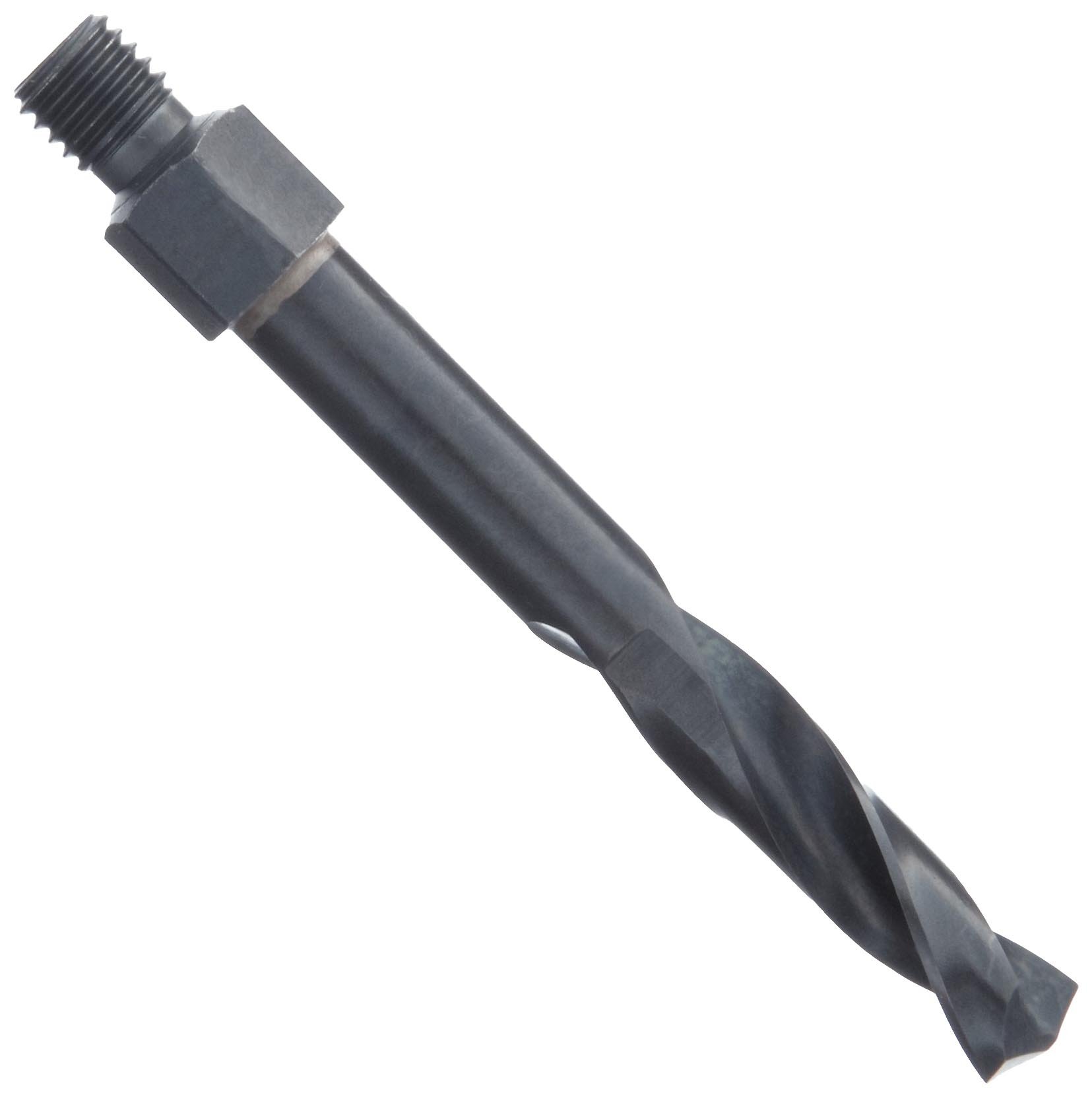

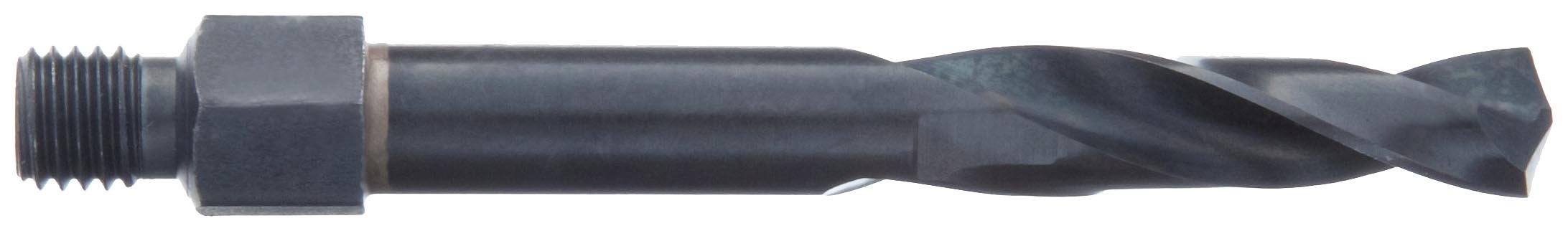

Precision Twist TS18 High Speed Steel Threaded Shank (Short Series) Drill Bit, Black Oxide Finish, Threaded Shank, Spiral Flute, 135 Degree Point Angle

Be the first to review this item

Product Specifications
Cutting Direction
Right-Hand
Finish Types
Black Oxide
Shank Type
Threaded
Material Type
High-Speed Steel
Drill Point
Conventional
UNSPSC Code
20121600
Cutting Angle
135  Degrees
Brand Name
Precision Twist
Flute Type
Spiral

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Fri, Aug 1? Order in-stock items in the next 14 hrs 30 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-20 of 22 Next 2 »
Size Mfg Series # System of Measurement Flute Length Overall Length Pkg Qty Mfr Part # ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All All All
Currently showing 1-20 of 22 Next 2 »
#10 TS18 Wire Gauge 9/16" 1-1/4" 1 45610 B003JTILY6 1 $8.65 Buy Options
#10 TS52 Wire Gauge 1-1/8" 2-1/8" 1 17910 B003JTIM36 1 $8.98 Buy Options
#10 TS41 Wire Gauge 5/16" 9/16" 1 45810 B003JTIM0E 1 $8.29 Buy Options
#11 TS52 Wire Gauge 1-1/8" 2-1/8" 1 17911 B003JTIM3G 1 $8.98 Buy Options
#11 TS41 Wire Gauge 5/16" 9/16" 1 45811 B003JTIM0O 1 $8.29 Buy Options
#11 TS18 Wire Gauge 9/16" 1-1/4" 1 45611 B003JTILYG 1 $8.65 Buy Options
#20 TS52 Wire Gauge 1-1/8" 2-1/8" 1 17920 B003JTIM3Q 1 $7.37 Buy Options
#20 TS41 Wire Gauge 5/16" 9/16" 1 45820 B003JTIM0Y 1 $7.13 Buy Options
#20 TS18 Wire Gauge 9/16" 1-1/4" 1 45620 B003JTILZ0 1 $7.53 Buy Options
#21 TS18 Wire Gauge 9/16" 1-1/4" 1 45621 B003JTILZA 4 $7.53 Buy Options
#21 TS52 Wire Gauge 1-1/8" 2-1/8" 1 17921 B003JTIM40 1 $7.72 Buy Options
#30 TS18 Wire Gauge 9/16" 1-1/4" 1 45630 B003JTILZK 3 $6.32 Buy Options
#30 TS52 Wire Gauge 1-1/8" 2-1/8" 1 17930 B003JTIM4A 1 $6.35 Buy Options
#30 TS41 Wire Gauge 5/16" 9/16" 1 45830 B003JTIM18 2 $8.43 Buy Options
#40 TS18 Wire Gauge 9/16" 1" 1 45640 B003JTIM04 1 $6.35 Buy Options
#40 TS52 Wire Gauge 7/8" 2-1/8" 1 17940 B003JTIM4K 1 $6.35 Buy Options
#40 TS41 Wire Gauge 5/16" 9/16" 1 45840 B003JTIM1I 1 $6.07 Buy Options
1/8" TS51 Inch 7/8" 2-1/8" 1 17958 B003JTIM22 3 $7.10 Buy Options
5/32" TS51 Inch 1-1/8" 2-1/8" 1 17960 B003JTIM2M 1 $7.65 Buy Options
3/16 " TS51 Inch 1-1/8" 2-1/8" 1 17962 B003JTIM2C 1 $8.15 Buy Options

Key Features

  • NAS 965 type B standards, used in the aircraft industry
  • Threaded hex shank, quickly threads into drills and drill attachments

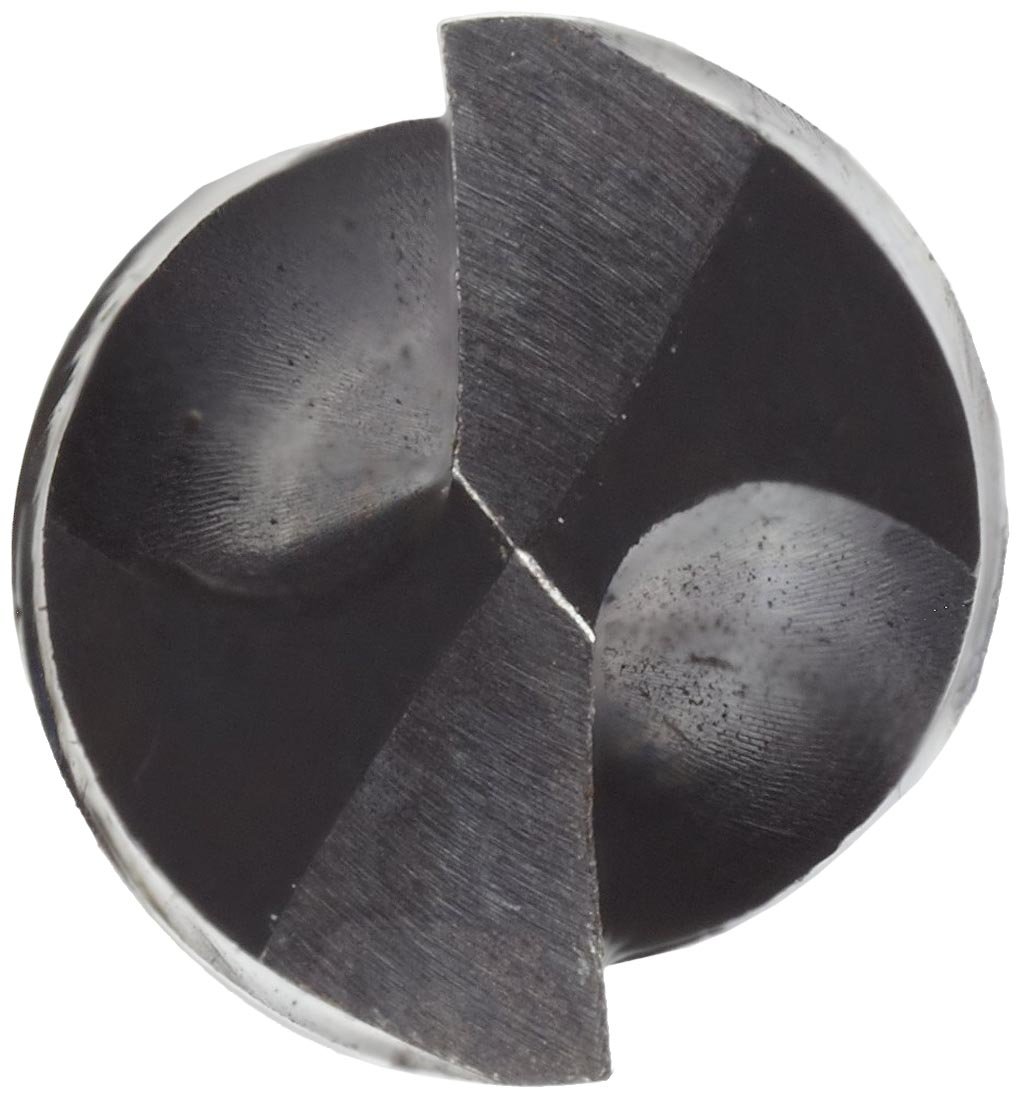

  • 135-degree split-point angles is self-centering, reduces walking, good for hard material and reduces pressure on cutting edges
  • Steam tempering (back oxide) finish retains cutting fluid and prevent chip to tool welding
  • High-speed steel (HSS), for use on a wide variety of materials

Product Description

The Precision Twist TS18 short series, aircraft-threaded, hex shank split-point drill bit is made of HSS with a steam tempering (also called black oxide) finish. Designed for medium-duty service, they are good for drilling into low tensile strength materials in confined spaces.

While the TS18 series was designed for aircraft industry, they also work well in other industries. The short length and 135-degree split point drill geometry provide good maneuverability in confined spaces and ensure an accurate hole by reducing walking when the hole is started. The finish retains lubricants to aid in wear resistance and chip flow. HSS assures good performance at an economical cost.

Drilling, or hole making, is the most common metalworking operation in the world. Twist drill bits are the most common type of drill bit used. Twist drill bits are commonly used to drill holes with hand-operated drills, standalone drill presses, or lathes. The flutes of the drill bit act a passageway for chip extraction from the hole and for coolant to enter the hole. These drill bits have a right-hand twist that brings chips up and away from the cutting edge. They are made to NAS 907 type B industry standards, which ensure that drill bits around the world conform to the same specifications.

Precision manufactures machine tools under the following brands: Precision Twist, Precision Dormer, and Union Butterfield. They have locations around the world, and provide tools adhering to ANSI, NAS, and DIN standards.
