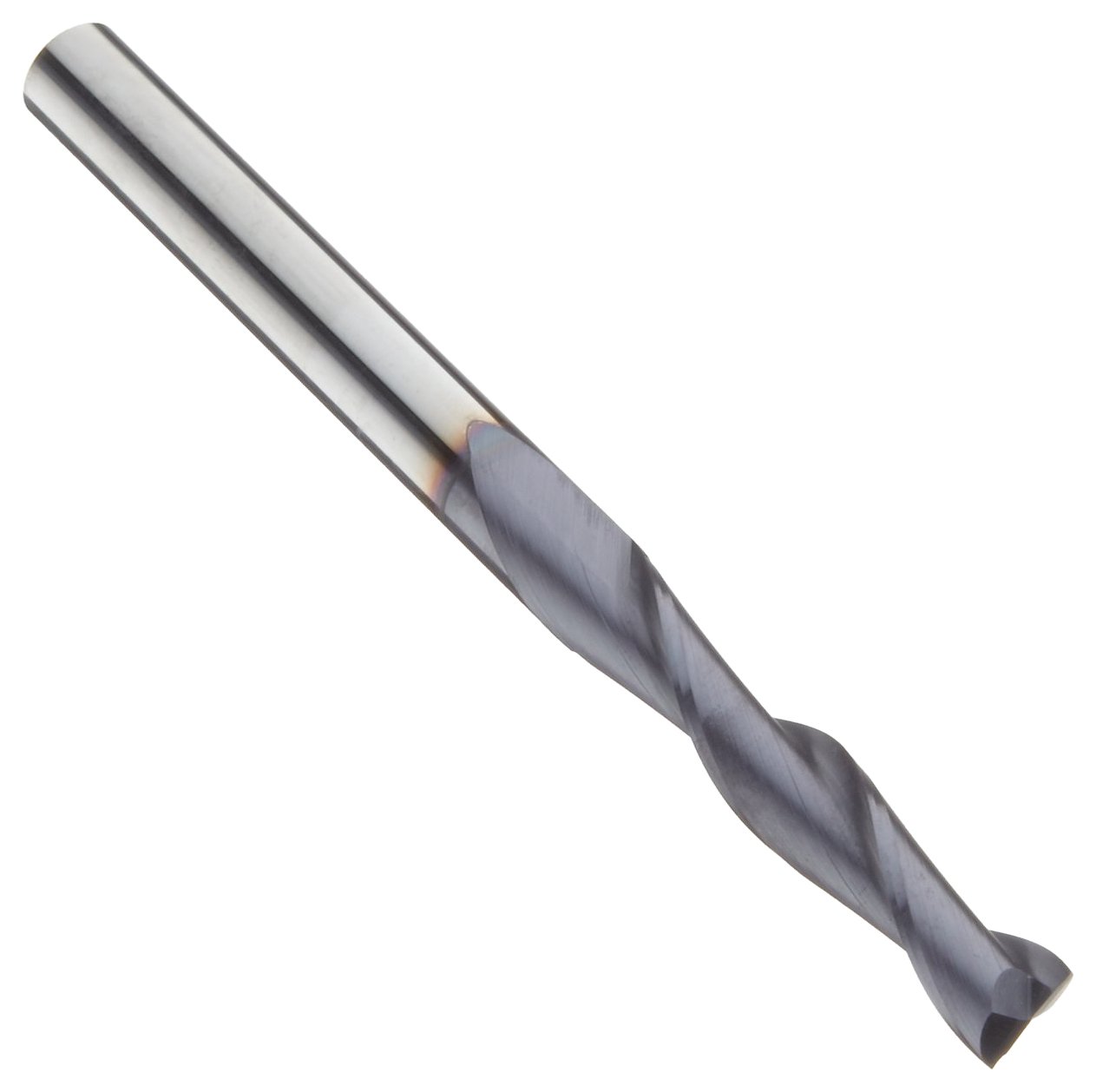

Click for larger image and other views Image is representative of the product family. Select individual products in the table below for more specific images and product specifications

How can we improve our images or Product Specifications?

Precision Twist E6302V Carbide Square Nose End Mills, Inch, Extra Long Length, Straight Shank, TiAlN Finish, Roughing Cut, For Use With Cast Iron, Nickel/Nickel Alloys, Steel/Steel Alloys, Titanium/Titanium Alloys

Be the first to review this item

Product Specifications
Cutting Direction
Right Hand
Specific Uses For Product
Slot Milling , Ramping
Finish Types
TiAlN
End Cut Type
Center Cutting
Material Type
Carbide
Brand Name
Precision Twist
Manufacturer Series Number
E6302V
Compatible Material
Cast Iron, Nickel/Nickel Alloys, Steel/Steel Alloys, Titanium/Titanium Alloys
Shank Type
Straight
Cut Type
Roughing
UNSPSC Code
27112803
System of Measurement
Inch

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tue, Sep 23? Order in-stock items in the next 1 day 16 hrs 51 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-10 of 10
Cutting Diameter Shank Width Cutting Length Overall Length Number of Flutes Mfr Part # ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All All
Currently showing 1-10 of 10
1/8" 1/8" 1" 3" 2 3130 B003JTIDS0 yes $23.36 Buy Options
3/16 " 3/16" 1.125" 3" 2 3131 B003JTIDSA yes $23.78 Buy Options
1/4" 1/4" 1.5" 4" 2 3132 B003JTIDRQ yes $29.56 Buy Options
5/16" 5/16" 1.625" 4" 2 3133 B003JTIDT4 yes $35.56 Buy Options
3/8 " 3/8" 1.75" 4" 2 3134 B003JTIDSU yes $41.90 Buy Options
7/16" 7/16" 3" 6" 2 3135 B003JTIDTO yes $70.72 Buy Options
1/2 " 1/2" 3" 6" 2 3136 B003JTIDRG yes $78.69 Buy Options
5/8" 5/8" 3" 6" 2 3137 B003JTIDTE yes $100.79 Buy Options
3/4" 3/4" 3" 6" 2 3138 B003JTIDSK yes $149.89 Buy Options
1" 1" 3" 6" 2 3139 B003JTIDR6 yes $255.10 Buy Options

Key Features

  • Two flutes offer better chip-carrying capacity than end mills with more flutes, enhancing the tool's ability to remove material
  • Extra-long length end mills have longer cutting edges and can make deeper cuts than long-length end mills
  • Titanium aluminum nitride (TiAlN) coating lubricates the end mill for high-temperature stability and abrasion resistance at high cutting speeds, offering better heat resistance than TiN and TiCN coatings
  • Carbide can run at higher speeds than high-speed or cobalt steel, resisting wear and high cutting temperatures
  • Square nose end mills (also called square end) create sharp, unrounded cuts

Product Description

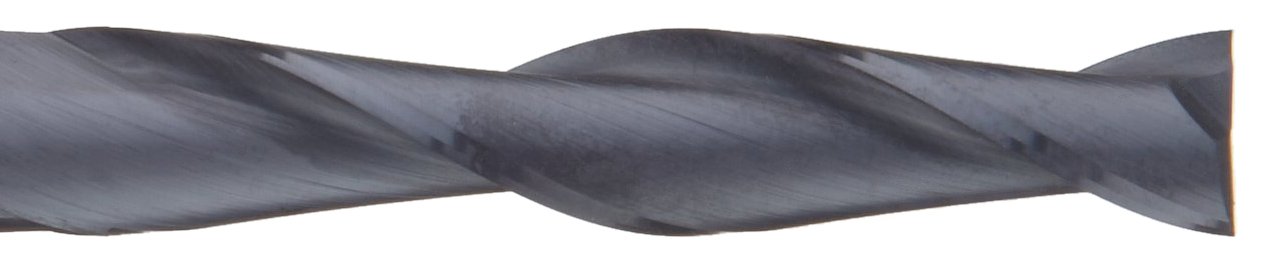

The Precision Twist E6302V TiAlN-coated carbide square end mill has two flutes, a 30-degree helix angle, and an extra-long length design for applications that require a longer reach than long-length end mills. Extra-long length end mills have longer cutting edges than long-length end mills for deep slotting and applications with a high depth of cut. The two flutes have better chip-carrying capacity than end mills with more flutes while offering additional support when the tool goes deep into the material in applications with a high depth of cut. The TiAlN coating resists heat better than TiN and TiCN coatings, increasing tool life and performance. It also offers increased hardness compared to TiN and may reduce the need for lubricants based on the application. (TiAlN is suitable for a range of materials, but uncoated end mills are recommended for machining aluminum.) The carbide substrate is harder than high-speed or cobalt steel, making it more wear resistant at high speeds and providing longer tool life.

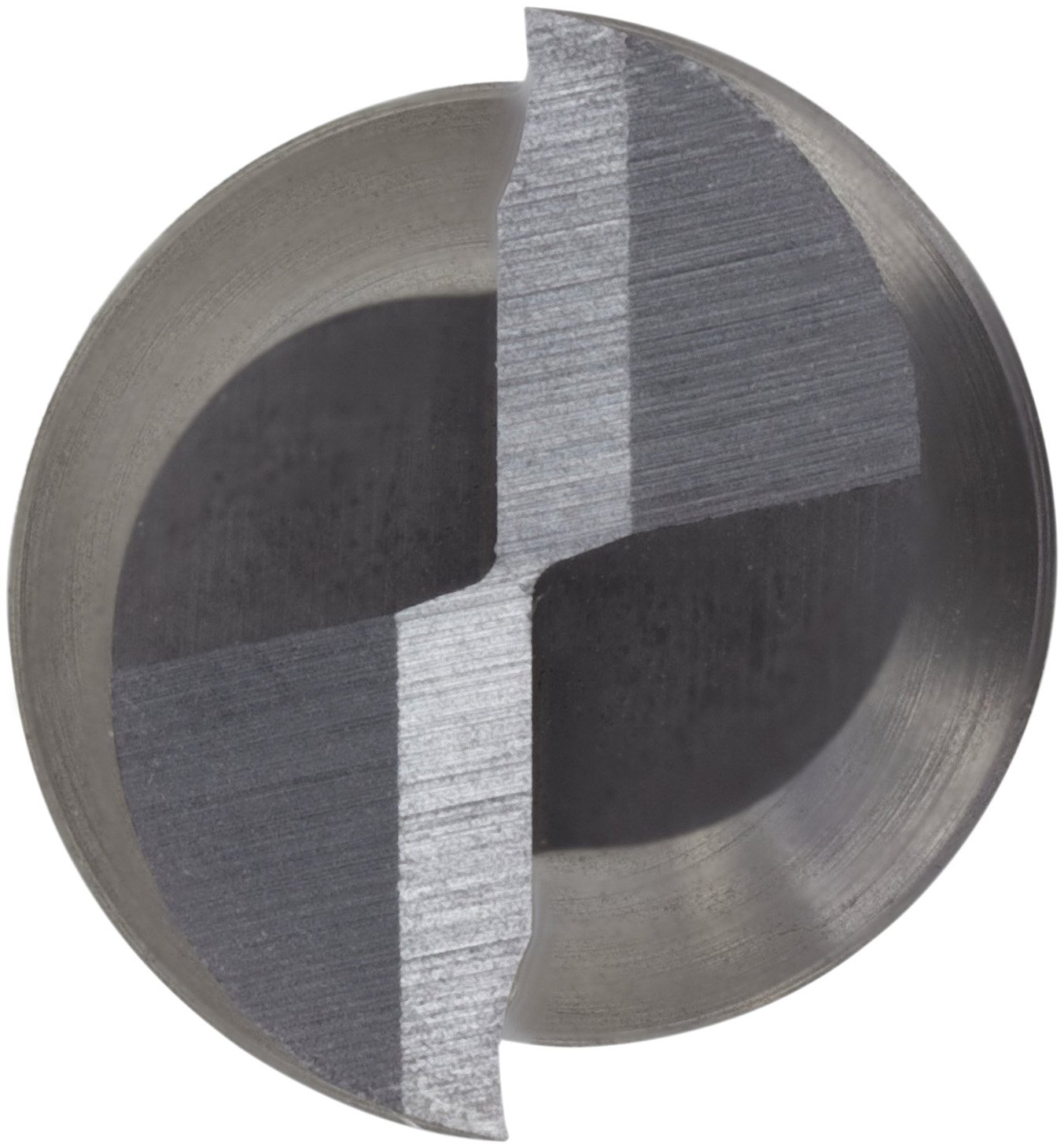

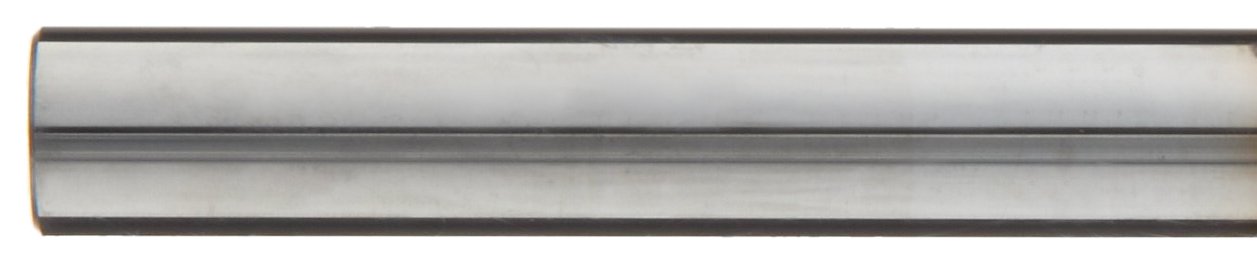

The tool’s square end creates sharp, unrounded cuts. The 30-degree helix angle supports general-purpose applications. It balances lower angles’ strong cutting edge for difficult-to-machine materials with higher angles’ increased cutting action. The center-cutting design has cutting teeth at the end of the tool, so it can be fed into the workpiece like a drill bit; it can also be used for slotting and ramping. The cutting diameter tolerance is +0.000” to -0.002”. This tool has a round shank.

End mills are designed to remove material and create multi-dimensional shapes and profiles. They have cutting edges along the outside diameter and flutes that remove chips from the cutting area and allow cooling fluids to enter. If heat is not reduced effectively, the tool’s cutting edges will dull and additional material buildup can occur. The number of flutes can range from two to eight. Two-flute designs offer the most efficient chip removal, but more flutes provide a smoother finish. The shank is the end of the tool held in place by a tool holder or machine. Center-cutting end mills can create three-dimensional shapes and profiles, and make plunge cuts similar to a drill bit. Non-center-cutting end mills are for applications such as peripheral milling and finishing, but cannot make plunge cuts.

Precision Dormer manufactures cutting tools under the following brands: Precision Twist, Dormer, and Union Butterfield. The company has locations around the world, and provides tools adhering to ANSI, NAS, and DIN standards.
