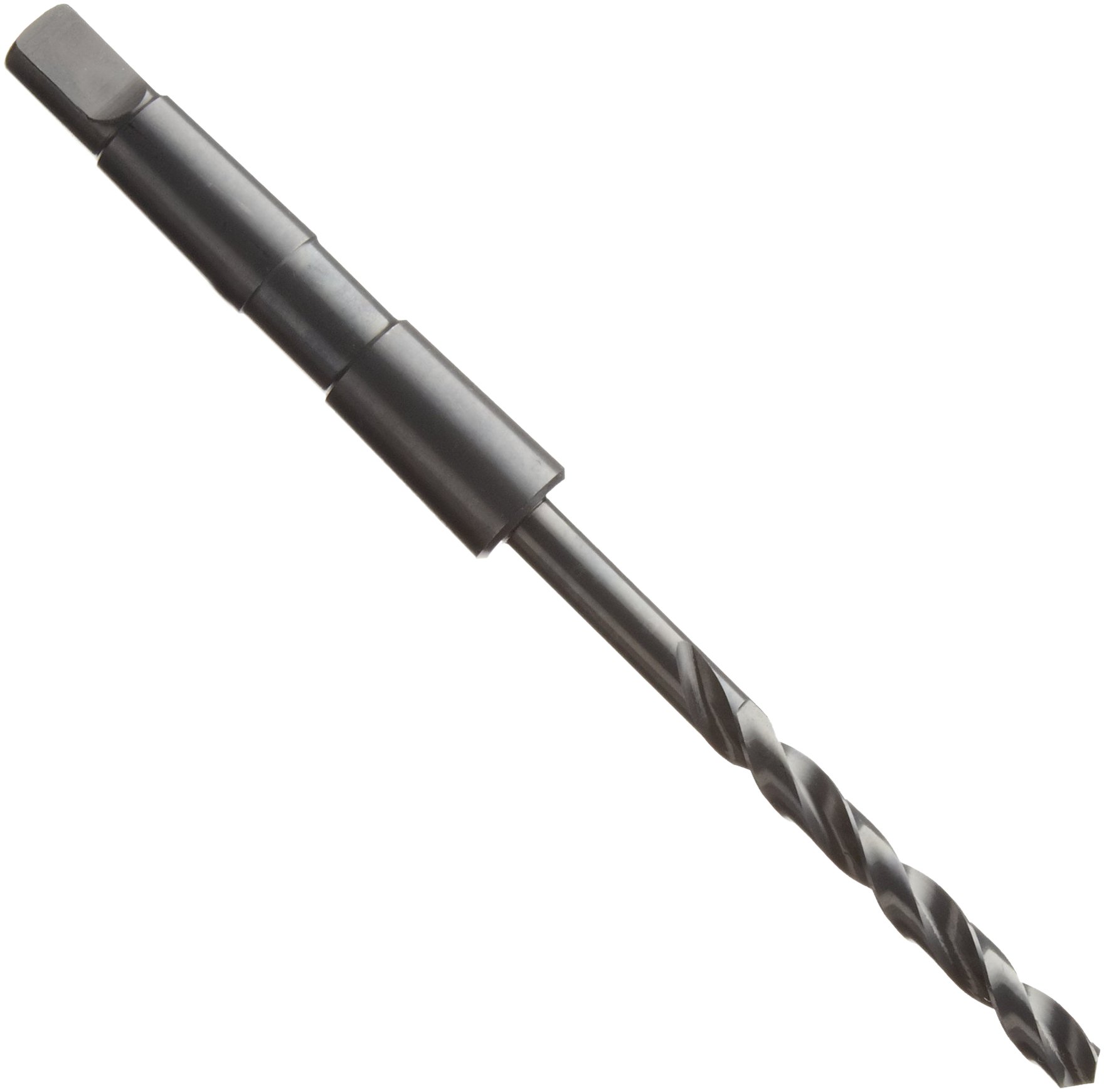

Precision Twist 5ATS High Speed Steel Taper Shank Drill Bit, Black Oxide Finish, Morse Taper Shank, Spiral Flute, 118 Degree Point Angle

Click for larger image and other views

Image is representative of the product family. Select individual products in the table below for more specific images and product specifications

How can we improve our images or Product Specifications?

Precision Twist 5ATS High Speed Steel Taper Shank Drill Bit, Black Oxide Finish, Morse Taper Shank, Spiral Flute, 118 Degree Point Angle

Be the first to review this item

Product Specifications

Brand Name: Precision Twist
Cutting Angle: 118 Degrees
Cutting Direction: Right Hand
Drill Point: Conventional

Finish Types: Black Oxide
Flute Type: Spiral
Material Type: High Speed Steel
Shank Type: Morse Taper

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Thursday, June 20? Order in-stock items in the next 22 hours 1 minute and choose One-Day Shipping at checkout.

Javascript is disabled in your browser. Please enable Javascript for your browser or visit our non JavaScript version of the page with limited functionality.

Currently showing 20 of 90 Show All
Size	System of Measurement	Taper Size	Flute Length	Overall Length	Manufacturer Series #	Pkg Qty	Mfr Part #	ASIN The Amazon Standard Item Number (ASIN) uniquely identifies the item in the AmazonSupply.com (and Amazon) catalog.	Available If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available. You can also order more than we currently have in stock. Read more about back orders in our help section.	Price
All	All	All		All	All	All	All		In Stock Only
Currently showing 20 of 90 Show All
5.00 mm	Metric	Morse Taper	52 mm	133 mm	5ATS	1	026050	B00271DSFE	In Stock (1)	$10.85
5.50 mm	Metric	Morse Taper	57 mm	138 mm	5ATS	1	026055	B002E8XJ54	In Stock (1)	$10.85
6.00 mm	Metric	Morse Taper	57 mm	138 mm	5ATS	1	026060	B00271HYIG	In Stock (1)	$11.28
6.50 mm	Metric	Morse Taper	63 mm	144 mm	5ATS	1	026065	B00271HYJU	In Stock (1)	$11.99
6.80 mm	Metric	Morse Taper	69 mm	150 mm	5ATS	1	026068	B0026H5LUE	In Stock (1)	$12.56
7.00 mm	Metric	Morse Taper	69 mm	150 mm	5ATS	1	026070	B002E8XJ68	In Stock (2)	$11.99
7.50 mm	Metric	Morse Taper	69 mm	150 mm	5ATS	1	026075	B00271HYLS	In Stock (1)	$12.12
8.00 mm	Metric	Morse Taper	75 mm	156 mm	5ATS	1	026080	B00271BUFO	In Stock (1)	$16.29
8.50 mm	Metric	Morse Taper	75 mm	156 mm	5ATS	1	026085	B00271FTQK	In Stock (1)	$17.25
9.00 mm	Metric	Morse Taper	81 mm	162 mm	5ATS	1	026090	B00271DSOA	In Stock (1)	$18.88
9.50 mm	Metric	Morse Taper	81 mm	162 mm	5ATS	1	026095	B00271A1NG	In Stock (1)	$18.88
10.00 mm	Metric	Morse Taper	87 mm	168 mm	5ATS	1	026100	B00271A1OK	In Stock (1)	$18.88
10.20 mm	Metric	Morse Taper	87 mm	168 mm	5ATS	1	026102	B0026H8Q7Y	In Stock (1)	$19.44
10.50 mm	Metric	Morse Taper	87 mm	168 mm	5ATS	1	026105	B002E8QQOK	In Stock (1)	$20.88
11.00 mm	Metric	Morse Taper	94 mm	175 mm	5ATS	1	026110	B002E8TFUM	In Stock (1)	$21.15
11.50 mm	Metric	Morse Taper	94 mm	175 mm	5ATS	1	026115	B00271J21I	In Stock (1)	$22.96
12.00 mm	Metric	Morse Taper	101 mm	182 mm	5ATS	1	026120	B0025QE9VI	In Stock (1)	$24.79
12.20 mm	Metric	Morse Taper	101 mm	182 mm	5ATS	1	026122	B002E8QQRC	In Stock (1)	$28.24
12.50 mm	Metric	Morse Taper	101 mm	182 mm	5ATS	1	026125	B002E8RO0U	In Stock (1)	$24.79
12.80 mm	Metric	Morse Taper	101 mm	182 mm	5ATS	1	026128	B002E8TFXY	In Stock (1)	$29.01

5.00 mm(1)
5.50 mm(1)
6.00 mm(1)
6.50 mm(1)
6.80 mm(1)
7.00 mm(1)
7.50 mm(1)
8.00 mm(1)
8.50 mm(1)
9.00 mm(1)
9.50 mm(1)
10.00 mm(1)
10.20 mm(1)
10.50 mm(1)
11.00 mm(1)
11.50 mm(1)
12.00 mm(1)
12.20 mm(1)
12.50 mm(1)
12.80 mm(1)
13.00 mm(1)
13.50 mm(1)
13.80 mm(1)
14.00 mm(1)
14.25 mm(1)
14.50 mm(1)
14.75 mm(1)
15.00 mm(1)
15.25 mm(1)
15.50 mm(1)
15.75 mm(1)
16.00 mm(1)
16.25 mm(1)
16.50 mm(1)
16.75 mm(1)
17.00 mm(1)
17.25 mm(1)
17.50 mm(1)
18.00 mm(1)
18.50 mm(1)
19.00 mm(1)
19.50 mm(1)
20.00 mm(1)
20.50 mm(1)
21.00 mm(1)
21.50 mm(1)
22.00 mm(1)
22.50 mm(1)
23.00 mm(1)
23.50 mm(1)
24.00 mm(1)
24.50 mm(1)
25.00 mm(1)
25.50 mm(1)
26.00 mm(1)
26.50 mm(1)
27.00 mm(1)
27.50 mm(1)
28.00 mm(1)
28.50 mm(1)
29.00 mm(1)
29.50 mm(1)
30.00 mm(1)
30.50 mm(1)
31.00 mm(1)
31.50 mm(1)
32.00 mm(1)
32.50 mm(1)
33.00 mm(1)
33.50 mm(1)
34.00 mm(1)
34.50 mm(1)
35.00 mm(1)
35.50 mm(1)
36.00 mm(1)
36.50 mm(1)
37.00 mm(1)
37.50 mm(1)
38.00 mm(1)
39.00 mm(1)
40.00 mm(1)
41.00 mm(1)
42.00 mm(1)
43.00 mm(1)
44.00 mm(1)
45.00 mm(1)
47.00 mm(1)
48.00 mm(1)
49.00 mm(1)
50.00 mm(1)

026050(1)
026055(1)
026060(1)
026065(1)
026068(1)
026070(1)
026075(1)
026080(1)
026085(1)
026090(1)
026095(1)
026100(1)
026102(1)
026105(1)
026110(1)
026115(1)
026120(1)
026122(1)
026125(1)
026128(1)
026130(1)
026135(1)
026138(1)
026140(1)
026142(1)
026145(1)
026147(1)
026150(1)
026152(1)
026155(1)
026157(1)
026160(1)
026162(1)
026165(1)
026167(1)
026170(1)
026172(1)
026175(1)
026180(1)
026185(1)
026190(1)
026195(1)
026200(1)
026205(1)
026210(1)
026215(1)
026220(1)
026225(1)
026230(1)
026235(1)
026240(1)
026245(1)
026250(1)
026255(1)
026260(1)
026265(1)
026270(1)
026275(1)
026280(1)
026285(1)
026290(1)
026295(1)
026300(1)
026305(1)
026310(1)
026315(1)
026320(1)
026325(1)
026330(1)
026335(1)
026340(1)
026345(1)
026350(1)
026355(1)
026360(1)
026365(1)
026370(1)
026375(1)
026380(1)
026390(1)
026400(1)
026410(1)
026420(1)
026430(1)
026440(1)
026450(1)
026470(1)
026480(1)
026490(1)
026500(1)

Key Features

Morse taper shank, secure and accurate tool-holding system
Black oxide finish, improves lubricity, resists corrosion, and will not chip or flake off
Jobber-length, the most common length drill bit, is suitable for a wide range of applications

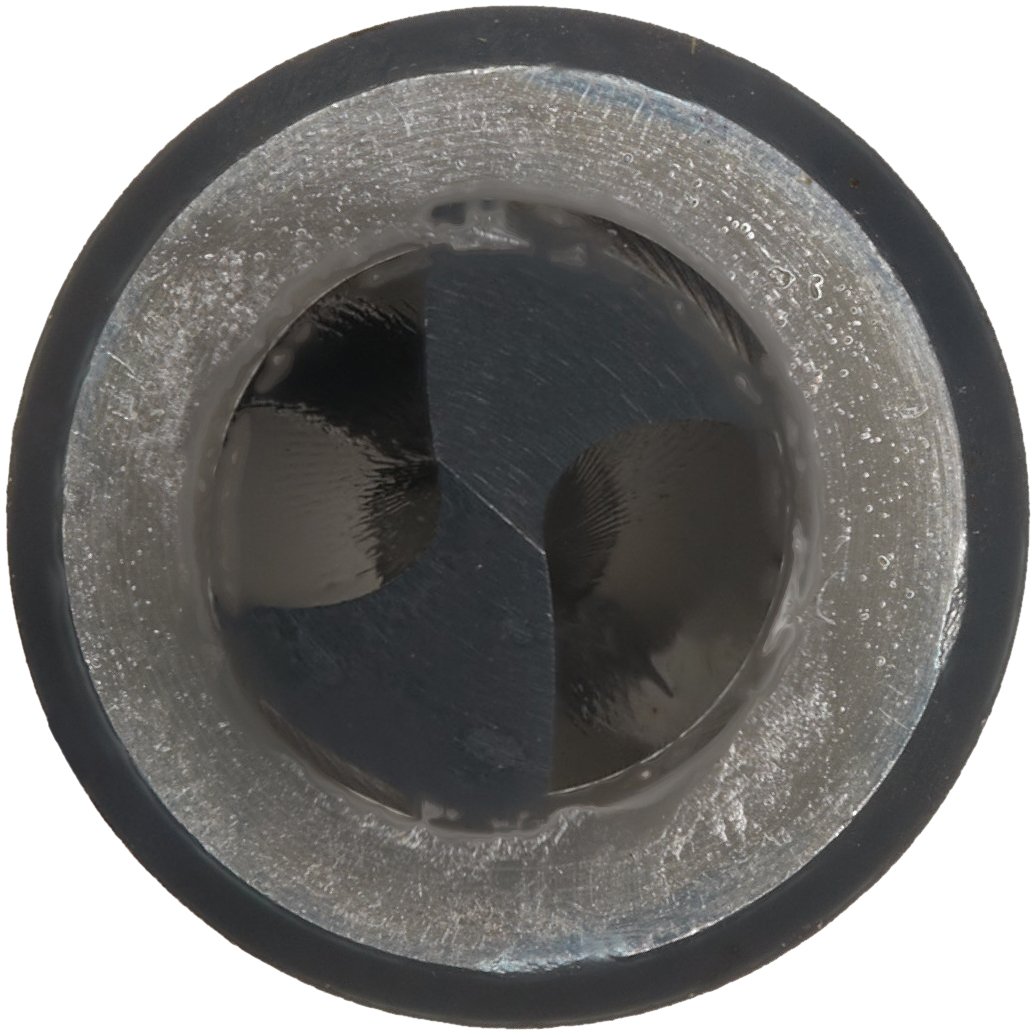

118-degree conventional point angles, for general drilling applications
High-speed steel (HSS), for use on a wide variety of materials

Product Description

The Precision Twist 5ATS jobber-length, black oxide-coated, general-purpose, Morse taper shank drill bit drills holes into a wide variety of metals and synthetic materials with best performance in steel and cast iron. It can drill to a depth up to four times the diameter of the drill size.

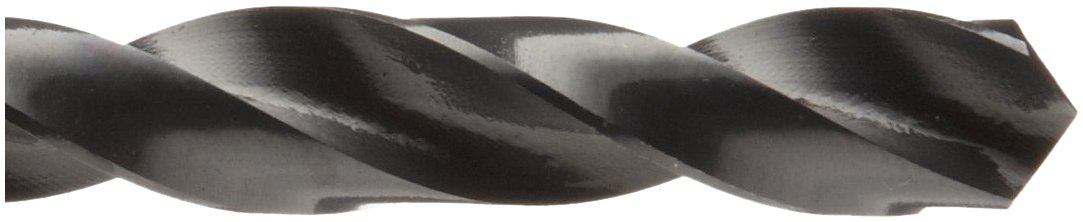

The 5ATS series has a type N flute form (a regular helix angle of 21 to 34 degrees) and has best performance when drilling into magnetic soft steel or structural steel (case carburizing steel). Black oxide helps to prevent buildup and welding of material on the drill’s cutting edge when working with iron and steel. Spiral flutes act as a passageway for chip extraction from the hole and for coolant to enter the hole. Right-hand twist brings chips up and away from the cutting edge. The extra length allows for more freedom in being able to drill a wider variety of circumstances. HSS assures good performance at an economical cost.

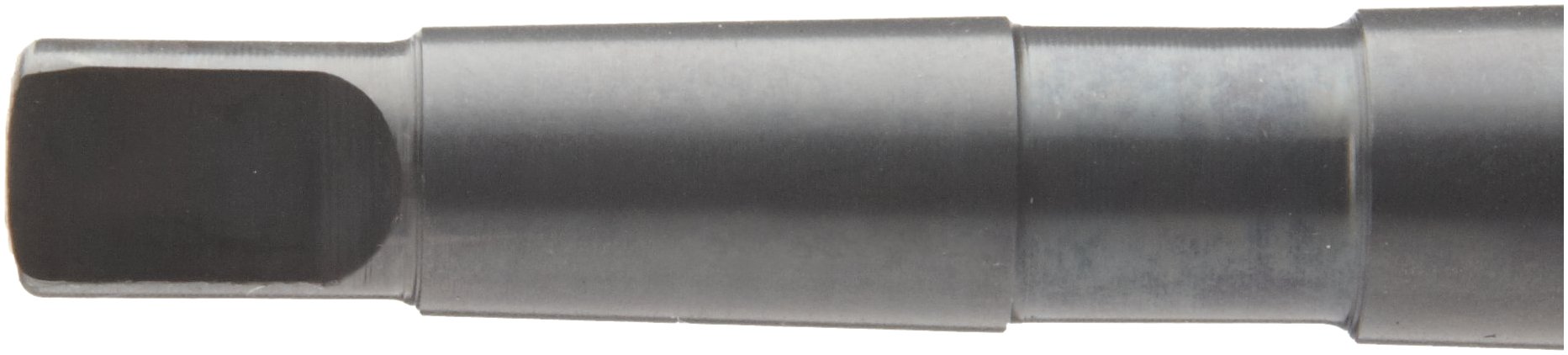

The Morse taper is a shank that is tapered from one end to another. The taper of the tool fits into the taper of the tool-holder. The friction between the surfaces provides a secure holding system and accurate placement of the tool. A drift pin is knocked into the slot at the tang to remove the tool.

Drilling, or hole making, is the most common metalworking operation in the world. Twist drill bits are the most common type of drill bit used. Twist drill bits are commonly used to drill holes with hand-operated drills, standalone drill presses, or lathes. The flutes of the drill bit act a passageway for chip extraction from the hole and for coolant to enter the hole. These drill bits have a right-hand twist that brings chips up and away from the cutting edge. They are made to DIN 1897 industry standards (metric sizing), which helps ensure that drill bits around the world, conform to the same specifications.

Precision manufactures machine tools under the following brands: Precision Twist, Precision Dormer, and Union Butterfield. They have locations around the world, and provide tools adhering to ANSI, NAS, and DIN standards.
