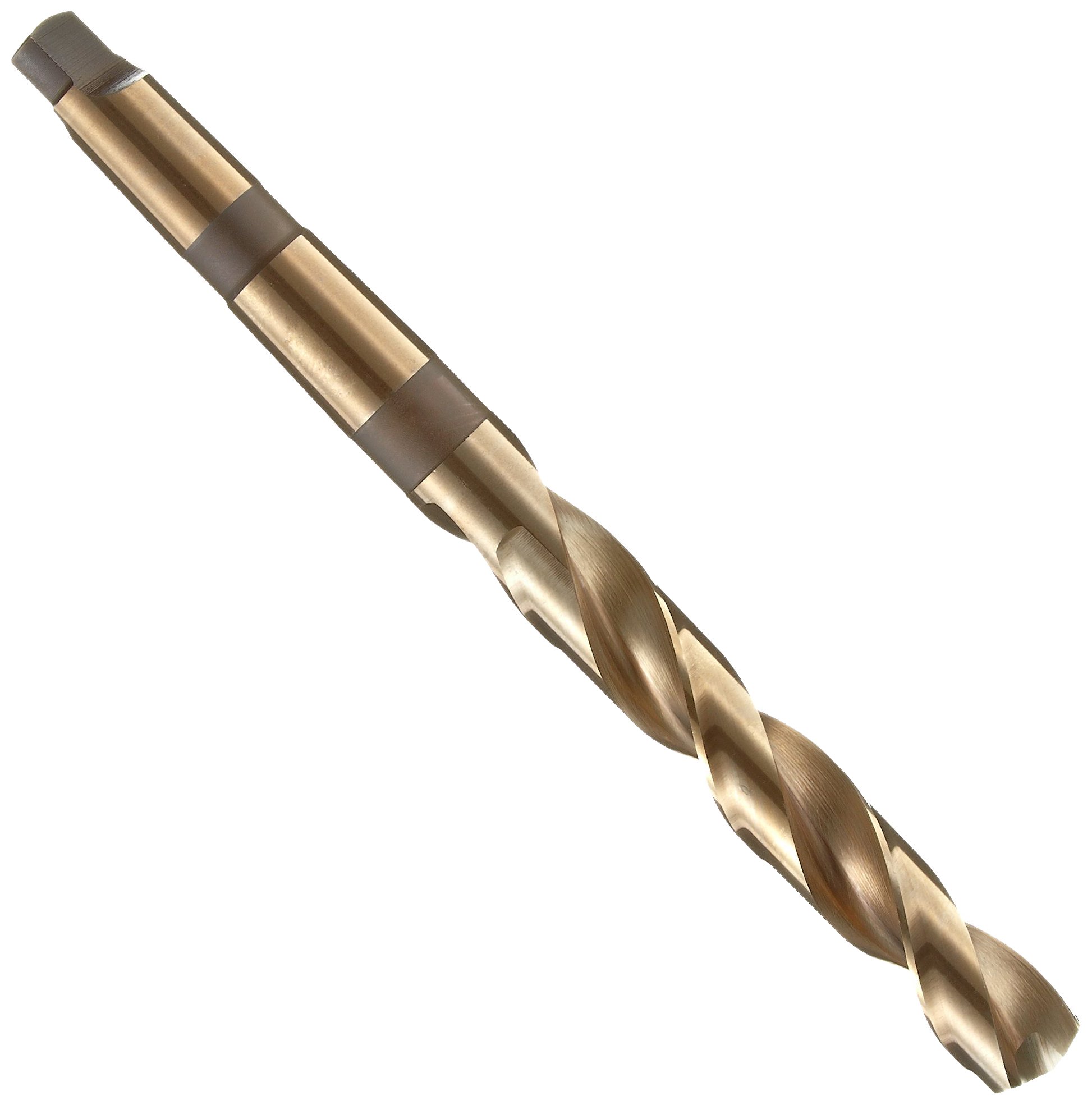

Precision Twist 209CO Cobalt Steel Taper Shank Drill Bit, Gold Oxide Finish, Morse Taper Shank, Spiral Flute, 135 Degree Point Angle

Be the first to review this item

Product Specifications
Cutting Direction
Right-Hand
Finish Types
Gold Oxide
Shank Type
Morse Taper
Material Type
Cobalt Steel
Drill Point
Conventional
UNSPSC Code
20121600
Cutting Angle
135  Degrees
Brand Name
Precision Twist
Flute Type
Spiral

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Fri, Aug 1? Order in-stock items in the next 7 hrs 21 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-20 of 67 Next 20 »
Size System of Measurement Taper Size Flute Length Overall Length Manufacturer Series # Pkg Qty Mfr Part # ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All All All All
Currently showing 1-20 of 67 Next 20 »
1/4" Inch Morse Taper 2-7/8" 6-1/8" 209CO 1 21316 B002E8OJ44 1 $22.27 Buy Options
9/32" Inch Morse Taper 3" 6-1/4" 209CO 1 21318 B0026HCHVU 1 $23.52 Buy Options
5/16" Inch Morse Taper 3-1/8" 6-3/8" 209CO 1 21320 B002E8XI4Q 1 $23.52 Buy Options
11/32" Inch Morse Taper 3-1/4" 6-1/2" 209CO 1 21322 B002E8TELM 1 $26.00 Buy Options
3/8 " Inch Morse Taper 3-1/2" 7-3/8" 209CO 1 21324 B0025QG90C 1 $28.69 Buy Options
13/32" Inch Morse Taper 3-5/8" 7-1/2" 209CO 1 21326 B0026HCI00 1 $29.90 Buy Options
27/64" Inch Morse Taper 3-7/8" 7-3/4" 209CO 1 21327 B0026H8PGQ 1 $32.66 Buy Options
7/16" Inch Morse Taper 3-7/8" 7-3/4" 209CO 1 21328 B0026H3KJ8 1 $30.86 Buy Options
29/64" Inch Morse Taper 4-1/8" 8" 209CO 1 21329 B0025QA3XQ 2 $36.57 Buy Options
15/32" Inch Morse Taper 4-1/8" 8" 209CO 1 21330 B0025QC82A 1 $32.81 Buy Options
31/64" Inch Morse Taper 4-3/8" 8-1/4" 209CO 1 21331 B0025QE9B8 2 $37.62 Buy Options
1/2 " Inch Morse Taper 4-3/8" 8-1/4" 209CO 1 21332 B0026H5KYG 1 $36.19 Buy Options
33/64" Inch Morse Taper 4-5/8" 8-1/2" 209CO 1 21333 B0025QC85M 1 $40.46 Buy Options
17/32" Inch Morse Taper 4-5/8" 8-1/2" 209CO 1 21334 B002094OHE 1 $38.43 Buy Options
35/64" Inch Morse Taper 4-7/8" 8-3/4" 209CO 1 21335 B002094OUG 1 $42.14 Buy Options
9/16" Inch Morse Taper 4-7/8" 8-3/4" 209CO 1 21336 B0025QG95W 1 $40.00 Buy Options
37/64" Inch Morse Taper 4-7/8" 8-3/4" 209CO 1 21337 B0025QE9EU 1 $43.68 Buy Options
19/32" Inch Morse Taper 4-7/8" 8-3/4" 209CO 1 21338 B0025QI4UU 1 $42.22 Buy Options
39/64" Inch Morse Taper 4-7/8" 8-3/4" 209CO 1 21339 B00208X78M 1 $47.86 Buy Options
5/8" Inch Morse Taper 4-7/8" 8-3/4" 209CO 1 21340 B0025QA44O 1 $50.07 Buy Options

Key Features

  • Morse taper shank, for a secure and accurate tool-holding system
  • Long length drill bits (also called taper length) have longer flutes and overall lengths than Jobber drill bits
  • High-speed steel (HSS) containing cobalt is a good combination of toughness and hardness, for use on drilling through hard substances

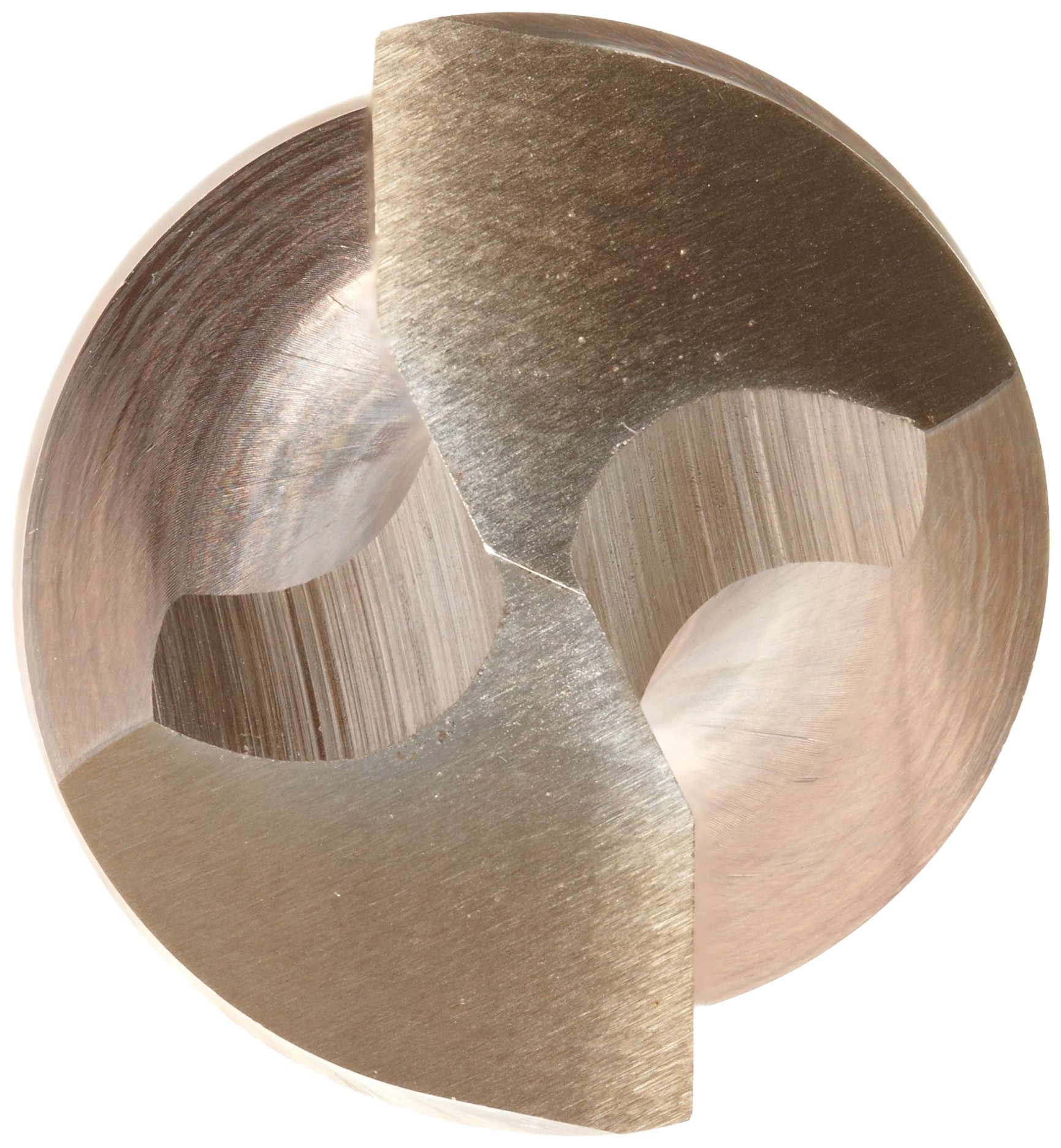

  • 135-degree, notch-point angle is self-centering, reduces walking, good for hard material and reduces pressure on cutting edges
  • Gold oxide to retain cutting fluid and prevent chip to tool welding

Product Description

The Precision Twist 209CO taper-length drill bit is a 135-degree, notch-point, heavy duty, Morse taper shank drill bit made of high speed steel and cobalt with a gold oxide finish. Best performance with drilling into hardened, tempered alloy steel, nodular graphite malleable cast iron, and stainless. It is suitable for drilling to a depth up to four times the diameter of the drill.

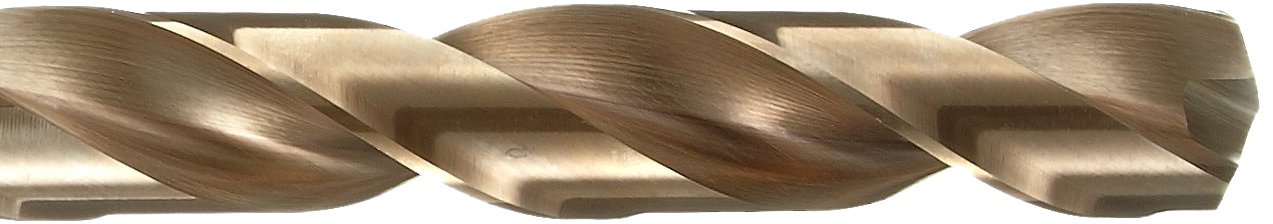

The 209CO series has a type N flute form, with a regular helix angle (21 to 34 degrees). The gold oxide is a low temperature heat treatment which reduces grinding stress within the tool, and has an appealing, easy-to-identify gold color. Gold oxide is commonly used to identify cobalt steel tools. Spiral flutes act as a passageway for chip extraction from the hole and for coolant to enter the hole. Right-hand twist brings chips up and away from the cutting edge.

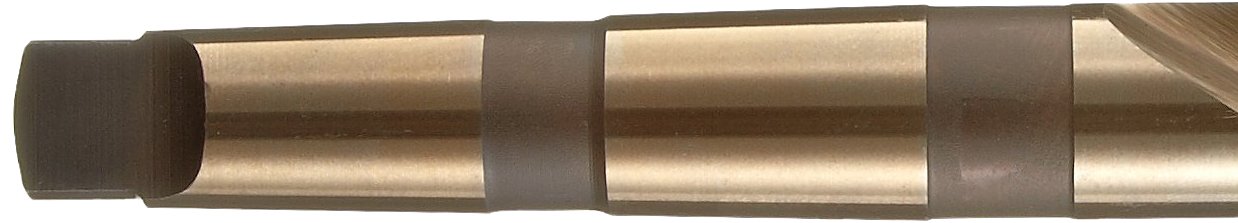

The Morse taper is a shank that is tapered from one end to another. The taper of the tool fits into the taper of the tool-holder. The friction between the surfaces provides a secure holding systems and accurate placement of the tool. A drift pin is knocked into the slot at the tang to remove the tool.

Drilling, or hole making, is the most common metalworking operation in the world. Twist drill bits are the most common type of drill bit used. Twist drill bits are commonly used to drill holes with hand-operated drills, standalone drill presses, or lathes. The flutes of the drill bit act a passageway for chip extraction from the hole and for coolant to enter the hole. These drill bits have a right-hand twist that brings chips up and away from the cutting edge. They are made to DIN 1897 industry standards (metric sizing), which helps ensure that drill bits around the world, conform to the same specifications.

Precision manufactures machine tools under the following brands: Precision Twist, Precision Dormer, and Union Butterfield. They have locations around the world, and provide tools adhering to ANSI, NAS, and DIN standards.
