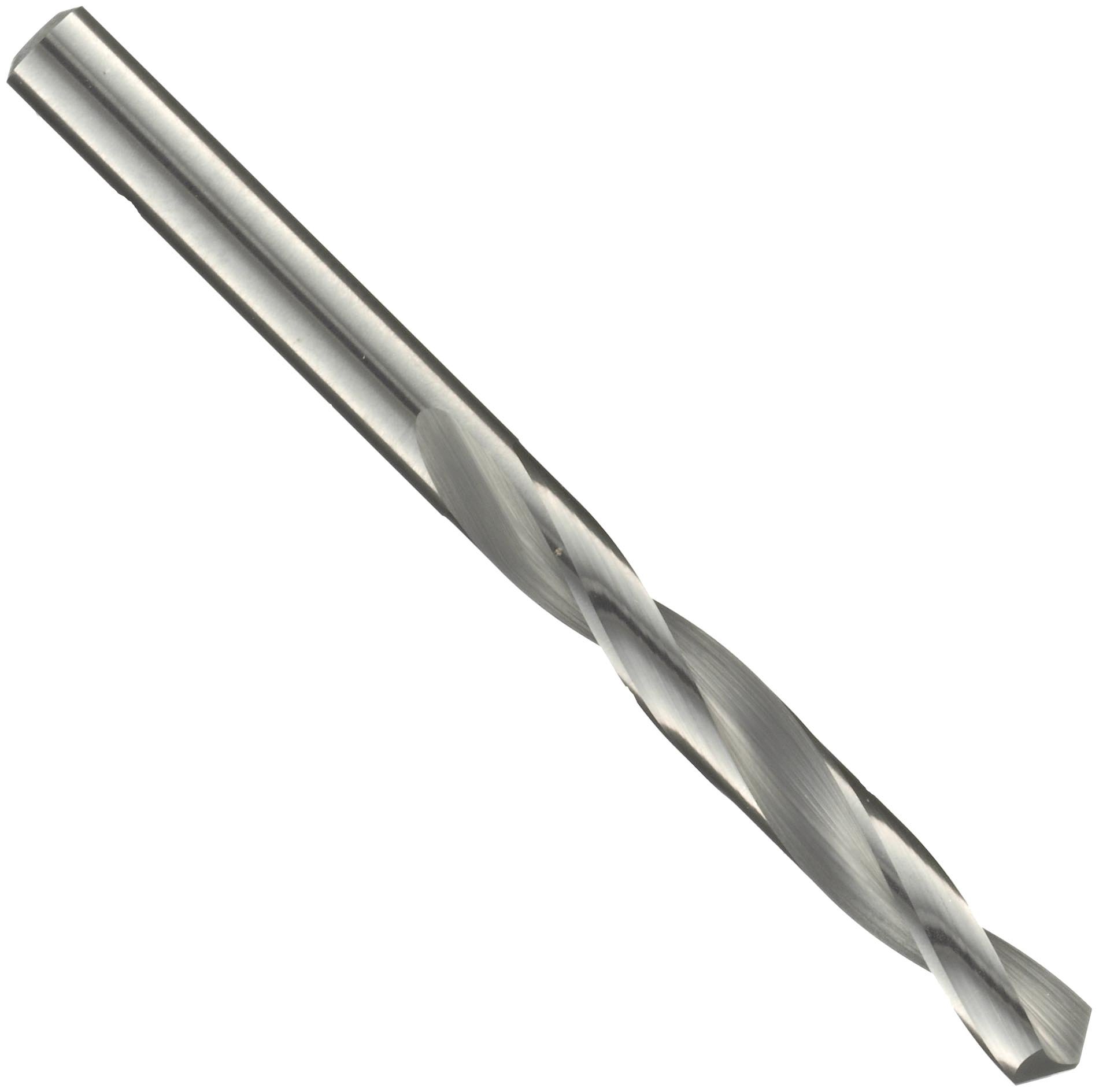

Precision Twist D33F Solid Carbide Short Length Drill Bit, Uncoated (Bright) Finish, Round Shank, Spiral Flute, 118 Degree Point Angle

Be the first to review this item

Product Specifications
Cutting Direction
Right-Hand
Finish Types
Uncoated (Bright)
Shank Type
Round
Material Type
Carbide
Drill Point
Conventional
UNSPSC Code
20121600
Cutting Angle
118  Degrees
Brand Name
Precision Twist
Flute Type
Spiral

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tue, Dec 23? Order in-stock items in the next 18 hrs 56 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-20 of 30 Next 10 »
Size Mfg Series # System of Measurement Flute Length Overall Length Pkg Qty Mfr Part # ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All All All
Currently showing 1-20 of 30 Next 10 »
1/32" D33F Inch 1/2" 1-1/4" 1 3501 B003JTI7UO yes $13.29 Buy Options
3/64" D33F Inch 3/4" 1-1/2" 1 3514 B003JTI81W yes $10.82 Buy Options
1/16" D33F Inch 3/4" 1-1/2" 1 3518 B003JTI7TK yes $11.55 Buy Options
5/64" D33F Inch 7/8" 1-3/4" 1 3524 B003JTI83A Usually ships in 2 to 3 weeks $11.18 Buy Options
3/32" D33F Inch 1" 2" 1 3531 B003JTI81M yes $15.30 Buy Options
7/64" D33F Inch 1-1/4" 2-1/4" 1 3538 B003JTI844 Usually ships in 2 to 3 weeks $15.81 Buy Options
1/8" D33F Inch 1-1/4" 2-1/4" 1 3544 B003JTI7W2 Usually ships in 2 to 3 weeks $18.05 Buy Options
9/64" D33F Inch 1-3/8" 2-1/2" 1 3548 B003JTI84O yes $21.75 Buy Options
5/32" D33F Inch 1-3/8" 2-1/2" 1 3554 B003JTI830 yes $22.85 Buy Options
11/64" D33F Inch 1-5/8" 2-3/4" 1 3560 B003JTI7WW yes $19.76 Buy Options
13/64" D33F Inch 1-3/4" 3" 1 3573 B003JTI7Y0 yes $23.31 Buy Options
7/32" D33F Inch 1-3/4" 3" 1 3578 B003JTI83U yes $37.20 Buy Options
15/64" D33F Inch 2" 3-1/4" 1 3582 B003JTI7YU yes $40.00 Buy Options
1/4" D33F Inch 2" 3-1/4" 1 3586 B003JTI7V8 Usually ships in 2 to 3 weeks $38.00 Buy Options
17/64" D33F Inch 2-1/8" 3-1/2" 1 3589 B003JTI7Z4 yes $26.21 Buy Options
9/32" D33F Inch 2-1/8" 3-1/2" 1 3594 B003JTI84E yes $46.08 Buy Options
19/64" D33F Inch 2-3/8" 3-3/4" 1 3597 B003JTI7ZE yes $31.49 Buy Options
5/16" D33F Inch 2-3/8" 3-3/4" 1 3599 B003JTI82Q yes $50.91 Buy Options
21/64" D33F Inch 2-1/2" 4" 1 3602 B003JTI7ZO yes $34.78 Buy Options
11/32" D33F Inch 2-1/2" 4" 1 3605 B003JTI7WC Usually ships in 2 to 3 weeks $36.41 Buy Options

Key Features

  • Solid carbide tools offer long tool life and faster cutting speeds than other substrates, but are more brittle and must be used with rigid toolholding systems
  • Uncoated tools feature just the base substrate without any additional treatment or coatings and are suitable for a wide range of applications
  • Round shanks allow use with a wide variety of toolholding systems
  • When run in a counterclockwise direction (right-hand cut) spiral fluted tools evacuate chips up and out of the cut to reduce clogging
  • Standard length

Product Description

The Precision Twist D33F jobber-length, uncoated, heavy duty, round shank drill bit drills holes into a wide variety of metals and synthetic materials. It can drill to a depth up to three times the diameter of the drill size. The shank diameter is the same as the drill size.

The D33F series has a type N flute form, with a standard spiral (21- to 34-degree helix angle) have best performance for drilling into copper and synthetic materials. The uncoated finish helps increase chip flow in soft materials. Round shanks allow use with a wide variety of tool holding systems.

Made of carbide, a metallic carbide composite with binder material, many times harder/stiffer than high-speed steel (HSS), will hold an edge longer, and will deflect less than HSS. These are also more resistant to heat than HSS. These qualities allow it to run at higher speeds and feeds. They are made to ANSI (fractional sizing) industry standards, which ensure that drill bits around the world conform to the same specifications.

Drilling, or hole making, is the most common metalworking operation in the world. Twist drill bits are the most common type of drill bit used. Twist drill bits are commonly used to drill holes with hand-operated drills, standalone drill presses, or lathes. The flutes of the drill bit act a passageway for chip extraction from the hole and for coolant to enter the hole. These drill bits have a right-hand twist that brings chips up and away from the cutting edge.

Precision manufactures machine tools under the following brands: Precision Twist, Precision Dormer, and Union Butterfield. They have locations around the world, and provide tools adhering to ANSI, NAS, and DIN standards.
