Precision Twist C8R56CO Cobalt Steel Reduced Shank Drill Bit Set with Metal Case, Black and Gold Oxide Finish, Round Shank, 118 Degree Split Point, 8 piece, 9/16" 1" x 16ths

Be the first to review this item

ASIN B003JTI5N8

Specifications for this item
Finish Types
Black and Gold Oxide
Part Number
90328
Shank Diameter
1/2  inches
Cutting Angle
118  Degrees
Brand Name
Precision Twist
Style Name
Reduced-Shank
Number of Items
1
Cutting Direction
right hand
Drill Point
split
Material Type
Cobalt Steel
UPC
086071903280
Size Name
9/16" -1" x 16ths
Flute Type
Spiral
Manufacturer Series Number
C8R56CO
EAN
0086071903280
Shank Type
Round
UNSPSC Code
20121600
System of Measurement
Inch

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Fri, Aug 22? Order in-stock items in the next 8 hrs 46 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Set of 8 reduced shank drill bits includes inch sizes 9/16" through 1" in 1/16" increments
  • Cobalt steel provides extended tool life compared to HSS drill bits when drilling hard materials
  • Black and gold oxide finish resists corrosion and increases the hardness of the drill bit

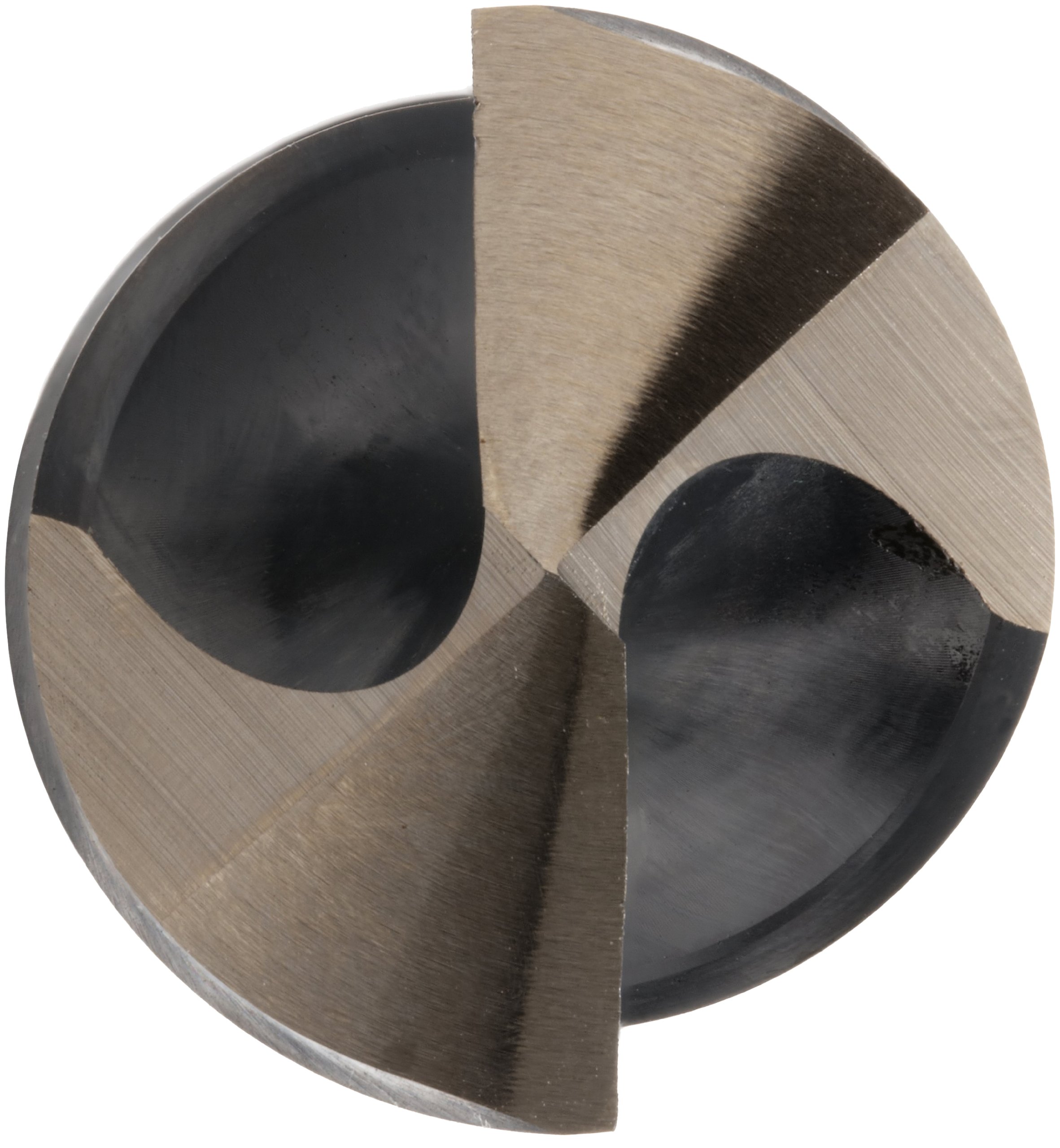

  • Self-centering 118-degree split point penetrates material without a pilot hole
  • Drill bits conform to ANSI standards

Package Details

Shipping Weight: 4.6 pounds
Package Size: 10.4 x 7.9 x 2.2 inches

Product Description

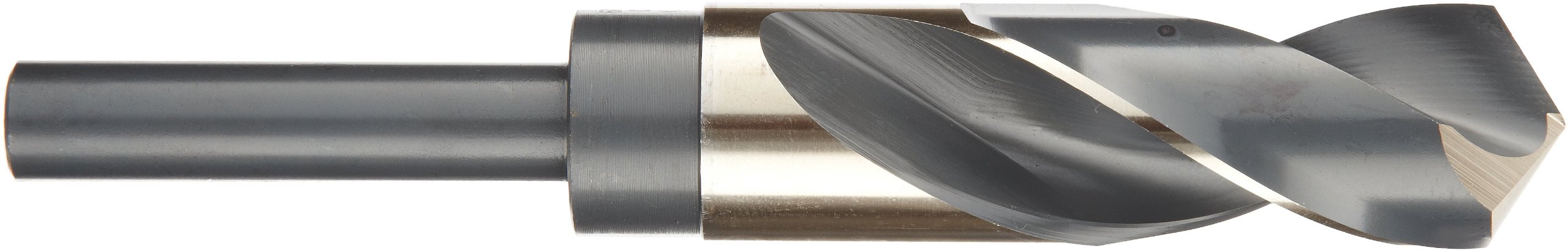

This Precision Twist C8R56CO reduced shank drill bit set contains 8 high-speed steel drill bits, including inch sizes 9/16" through 1" in 1/16" increments, with a black and gold oxide finish and a 118-degree split point for use with drilling machines with a 1/2" chuck to create large holes in ferrous materials. The cobalt steel provides extended tool life compared to HSS drill bits and maintains the tool's toughness and hardness even in high drilling temperatures. The drill bits have a combined black and gold oxide finish that resists corrosion and increases the hardness of the drill bit. Commonly called Silver and Deming drill bits, these reduced shank drill bits have a drilling depth of 4 times their diameter and a standardized 1/2" diameter round shank, which enables drills with a 1/2" chuck to create holes with diameters larger than the chuck. The self-centering 118-degree split point penetrates material without a pilot hole. The set comes in a metal index case with labeled compartments for identification and organization. Drill bits conform to American National Standards Institute (ANSI) standards.

Drill bits are cutting tools used to make holes in a range of materials using machines such as handheld portable drills, machining centers, and lathes. Drill bits come in a variety of lengths and types, the most common of which is the twist drill bit. The round, twisted shaft of the twist drill bit typically has two cutting edges and flutes. The helical twist of the flutes brings chips up and away from the cutting edges and allows for coolant to reach the cutting edges. Jobber length twist drill bits, the most common length of twist drill bit, offer a good compromise of length and reach to work with the widest range of materials and applications. Mechanic's length twist drill bits (also called maintenance length) are a little shorter than jobber length and less prone to deflection when drilling. Short length twist drill bits (also called stub or screw-machine length) are the shortest and stiffest twist drill bits, helping to reduce the chance of deflection or breakage when drilling. Reduced shank drill bits (also called Silver and Deming drill bits) have a shank that is smaller in diameter than its shaft, permitting drilling machines with either a 1/2" or 3/4" drill chuck to create large holes. Long length twist drill bits (also called taper length) are a little longer than jobber length, allowing for deeper holes and longer reach. Extra long twist drill bits (also called extension) are longer than long length twist drill bits for greater reach or for drilling deeper holes.

Precision Dormer manufactures cutting tools under the brands Precision Twist, Dormer, and Union Butterfield. The company, headquartered in Crystal Lake, IL, meets International Organization for Standardization (ISO) standards 9001 and 14000.

What’s in the Box?

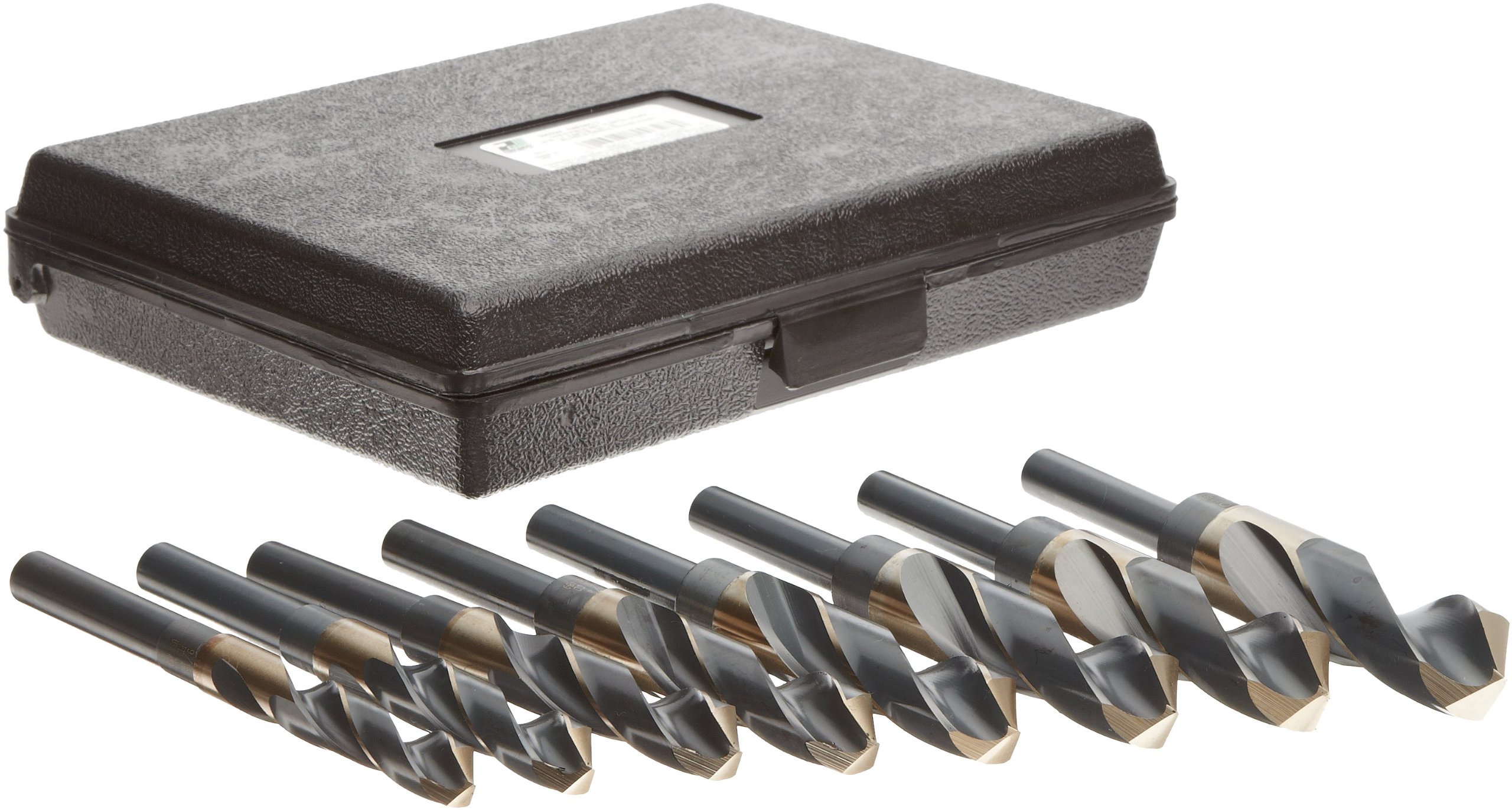

  • 8 drill bits, inch sizes 9/16" through 1" in 1/16" increments
  • Metal case
