Precision Twist C60R52 High Speed Steel Long Length Drill Bit Set, Uncoated (Bright) Finish, 118 Degree Point, Wire Size, 60 piece, #60 to #1

Be the first to review this item

ASIN B003JTI5MY

Specifications for this item
Number of Items
1
Cutting Direction
right hand
Finish Types
Uncoated (Bright)
Material Type
High Speed Steel
Drill Point
Conventional
Part Number
90155
UPC
086071901552
Cutting Angle
118  Degrees
Size Name
#60 - #1
Brand Name
Precision Twist
Flute Type
Spiral
EAN
0086071901552
Manufacturer Series Number
C60R52
Shank Type
Round
Style Name
Taper
System of Measurement
Wire Gauge
List price:
$804.00
Price:
$324.68
You save:
$479.32 (60%)
Quantity:

In Stock (3)

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Fri, Apr 25? Order in-stock items in the next 16 hrs 22 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Set of 60 long length drill bits includes one each of wire gauge sizes #60 through #1
  • High-speed steel (HSS) provides hardness for wear resistance
  • Uncoated (bright) finish is an untreated surface that can be used on a range of materials, especially soft metals

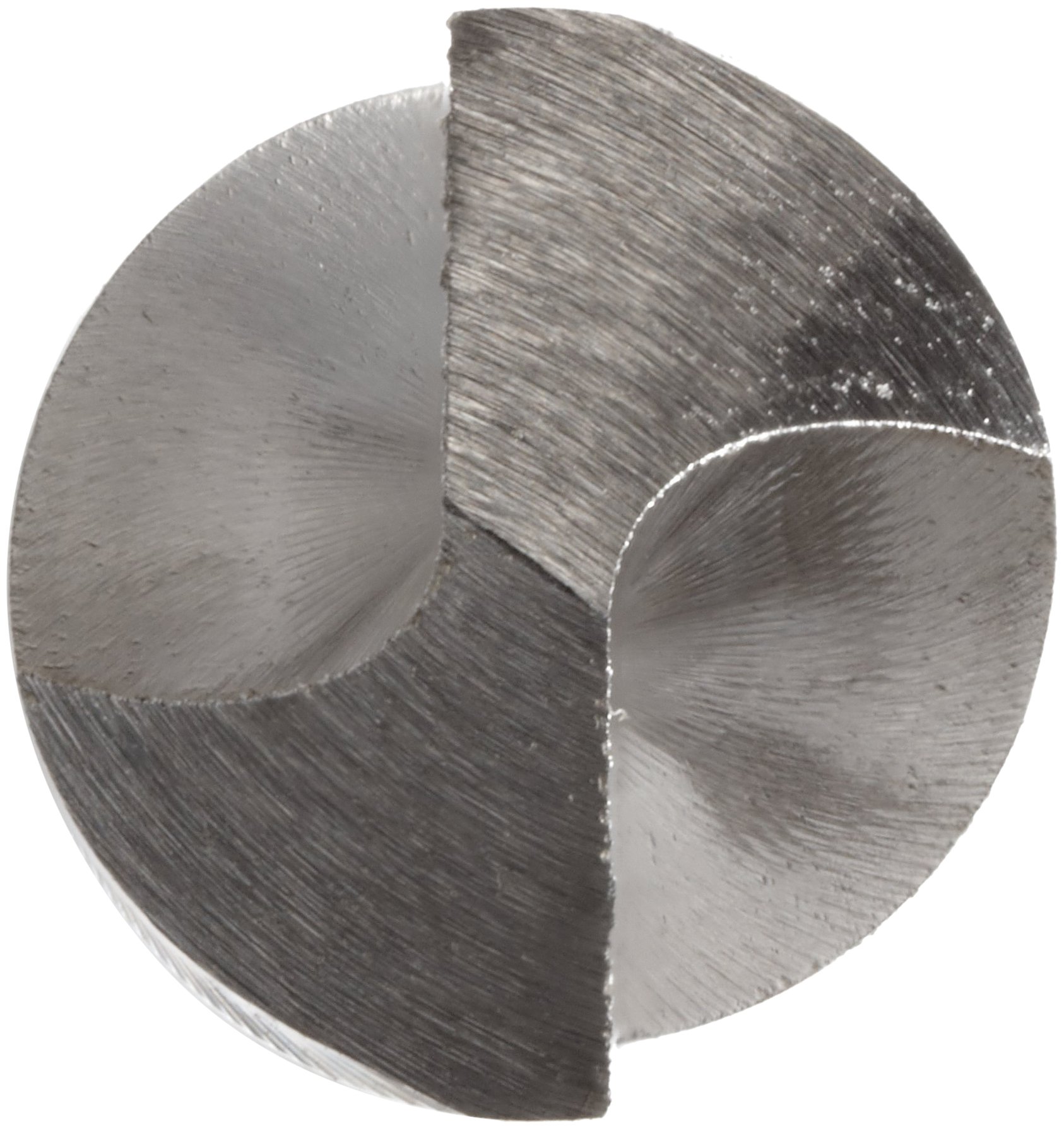

  • 118-degree conventional point for a range of drilling applications
  • Drill bits conform to ANSI standards

Package Details

Shipping Weight: 2.05 pounds
Package Size: 7.1 x 3.7 x 1.3 inches

Product Description

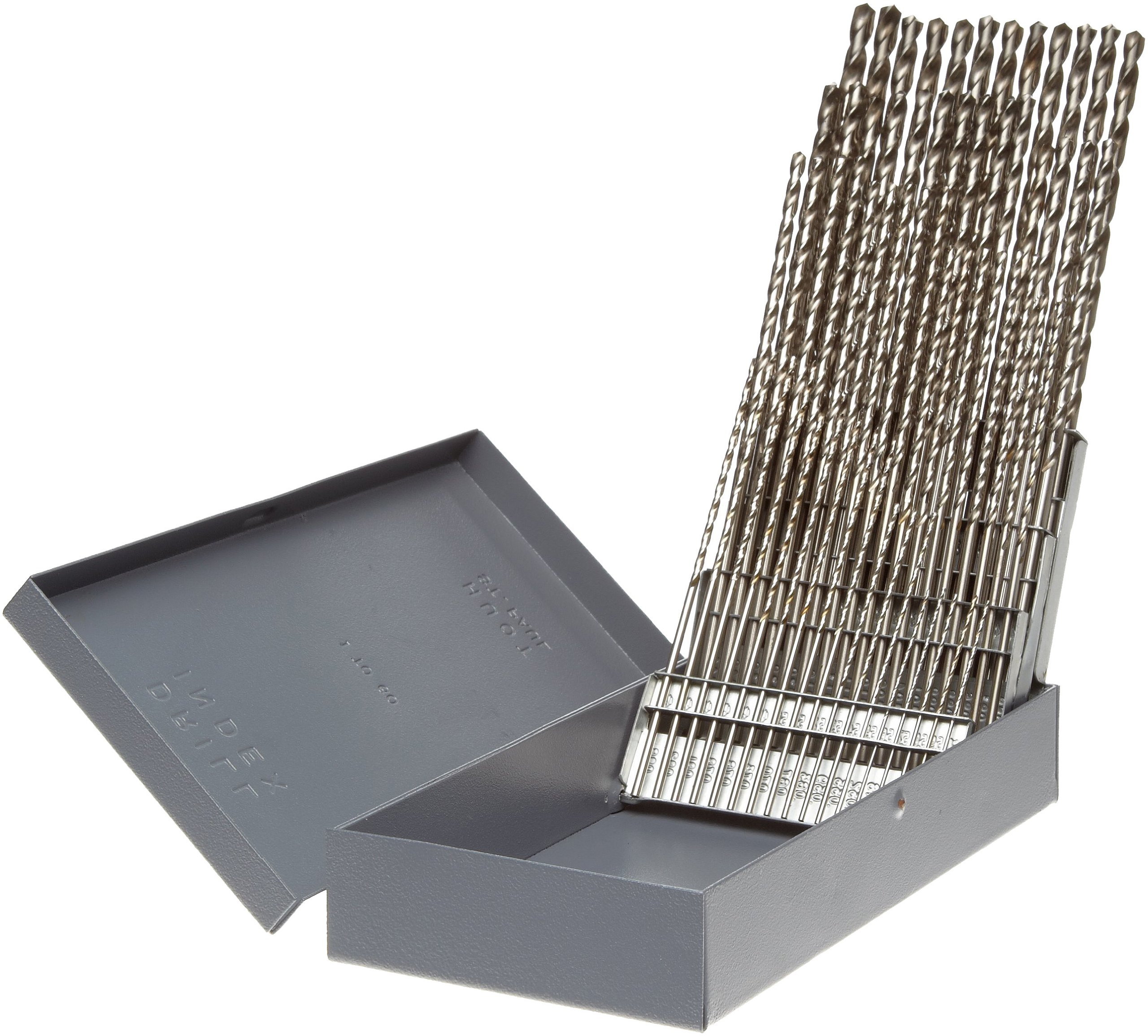

This Precision Twist C60R52 long length drill bit set contains 60 high-speed steel drill bits, including one each of wire gauge sizes #60 through #1, with an uncoated (bright) finish and a 118-degree conventional point for deep drilling applications in a variety of materials, especially soft metals. High-speed steel (HSS) provides hardness for wear resistance, and the uncoated (bright) finish provides an untreated surface. A long length drill bit reaches farther and drills deeper than a jobber length drill bit due to its longer flutes and overall length. The round shank accommodates most drill chucks. The set comes in a metal index case with labeled compartments for identification and organization. Drill bits conform to American National Standards Institute (ANSI) standards.

Drill bits are cutting tools used to make holes in a range of materials using machines such as handheld portable drills, machining centers, and lathes. Drill bits come in a variety of lengths and types, the most common of which is the twist drill bit. The round, twisted shaft of the twist drill bit typically has two cutting edges and flutes. The helical twist of the flutes brings chips up and away from the cutting edges and allows for coolant to reach the cutting edges. Jobber length twist drill bits, the most common length of twist drill bit, offer a good compromise of length and reach to work with the widest range of materials and applications. Mechanic's length twist drill bits (also called maintenance length) are a little shorter than jobber length and less prone to deflection when drilling. Short length twist drill bits (also called stub or screw-machine length) are the shortest and stiffest twist drill bits, helping to reduce the chance of deflection or breakage when drilling. Reduced shank drill bits (also called Silver and Deming drill bits) have a shank that is smaller in diameter than its shaft, permitting drilling machines with either a 1/2" or 3/4" drill chuck to create large holes. Long length twist drill bits (also called taper length) are a little longer than jobber length, allowing for deeper holes and longer reach. Extra long twist drill bits (also called extension) are longer than long length twist drill bits for greater reach or for drilling deeper holes.

Precision Dormer manufactures cutting tools under the brands Precision Twist, Dormer, and Union Butterfield. The company, headquartered in Crystal Lake, IL, meets International Organization for Standardization (ISO) standards 9001 and 14000.

What’s in the Box?

  • 60 drill bits, one each of wire gauge sizes #60 through #1
  • Metal case
