Precision Twist C29R40C High Speed Steel Short Length Drill Bit Set, Black Oxide Finish, 135 Degree Point, Inch, 29 piece, 1/16" to 1/2" x 64ths

Be the first to review this item

ASIN B00209448I

Specifications for this item
Number of Items
1
Cutting Direction
right hand
Finish Types
Black Oxide
Material Type
High Speed Steel
Drill Point
Conventional
Part Number
99903
Cutting Angle
135  Degrees
UPC
086071999030
Brand Name
Precision Twist
Size Name
1/16" - 1/2" x 64ths
Flute Type
Spiral
Manufacturer Series Number
C29R40C
EAN
0086071999030
Shank Type
Round
Style Name
Stub
System of Measurement
Inch
List price:
$236.00
Price:
$107.64
You save:
$128.36 (54%)
Quantity:

In Stock (6)

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Fri, Apr 18? Order in-stock items in the next 10 hrs 23 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Set of 29 short length drill bits includes inch sizes 1/16" through 1/2" in 1/64" increments
  • High-speed steel (HSS) provides hardness for wear resistance
  • Black oxide finish reduces bit wear while promoting chip and coolant flow on ferrous material

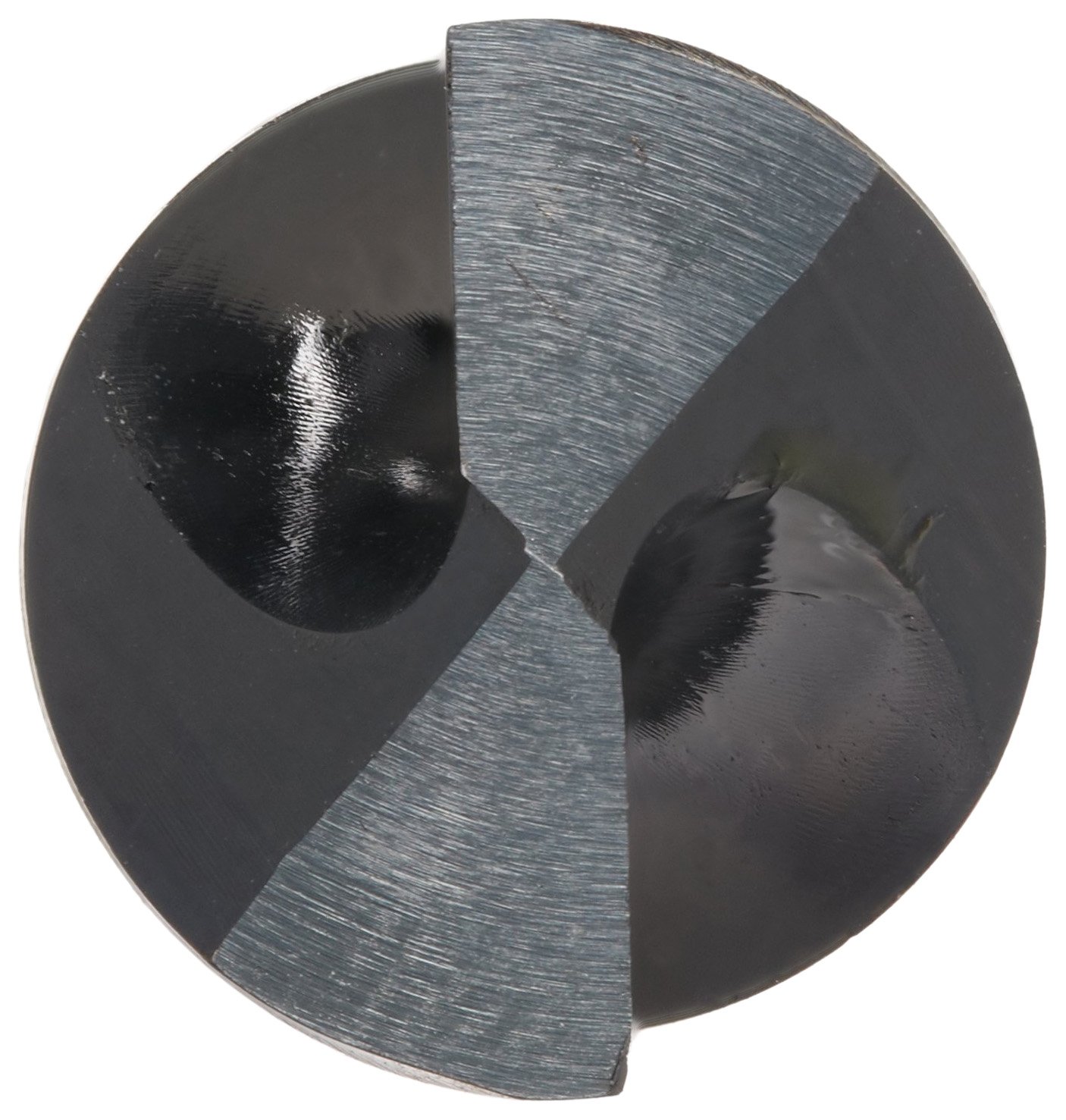

  • Self-centering 135-degree split point penetrates hard material without a pilot hole and produces small chips to reduce clogging
  • Drill bits conform to ANSI standards

Product Description

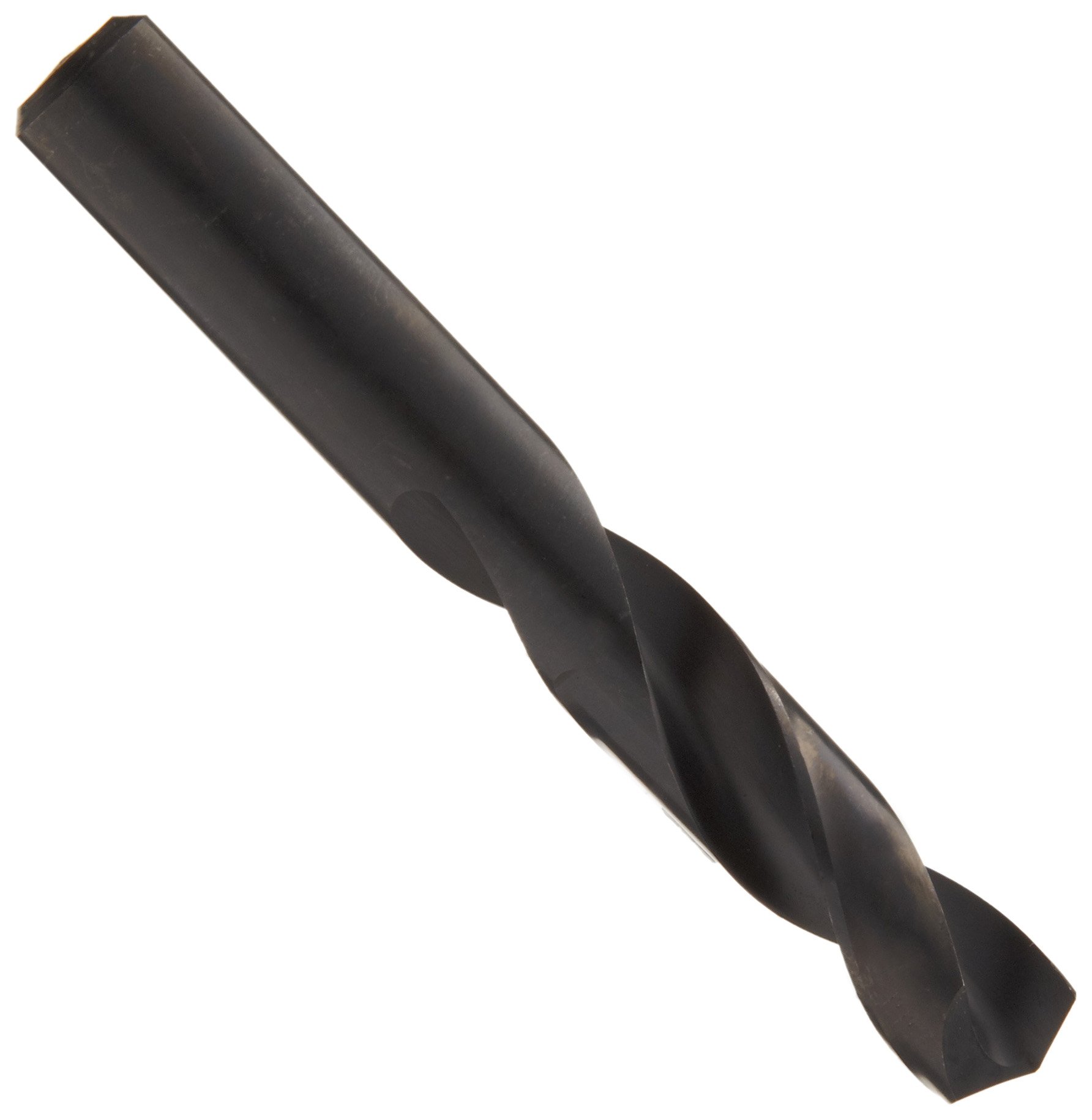

This Precision Twist C29R40C short length drill bit set contains 29 high-speed steel drill bits, including inch sizes 1/16" through 1/2" in 1/64" increments, with a black-oxide finish and a 135-degree split point for increased rigidity in heavy feed-rate drilling applications on ferrous material. High-speed steel (HSS) provides hardness for wear resistance, and the black oxide finish acts as a lubricant to reduce wear while promoting chip and coolant flow. Compared to standard drill bits, these tools have a thicker web for increased strength and rigidity. The self-centering 135-degree split penetrates hard material without a pilot hole and produces smaller chips, which are less likely to clog a hole than a 118-degree point. These short length drill bits have a drilling depth of up to 2.5 times their diameter. The round shank accommodates most drill chucks. The set comes in a metal index case with labeled compartments for identification and organization. Drill bits conform to American National Standards Institute (ANSI) standards.

Drill bits are cutting tools used to make holes in a range of materials using machines such as handheld portable drills, machining centers, and lathes. Drill bits come in a variety of lengths and types, the most common of which is the twist drill bit. The round, twisted shaft of the twist drill bit typically has two cutting edges and flutes. The helical twist of the flutes brings chips up and away from the cutting edges and allows for coolant to reach the cutting edges. Jobber length twist drill bits, the most common length of twist drill bit, offer a good compromise of length and reach to work with the widest range of materials and applications. Mechanic's length twist drill bits (also called maintenance length) are a little shorter than jobber length and less prone to deflection when drilling. Short length twist drill bits (also called stub or screw-machine length) are the shortest and stiffest twist drill bits, helping to reduce the chance of deflection or breakage when drilling. Reduced shank drill bits (also called Silver and Deming drill bits) have a shank that is smaller in diameter than its shaft, permitting drilling machines with either a 1/2" or 3/4" drill chuck to create large holes. Long length twist drill bits (also called taper length) are a little longer than jobber length, allowing for deeper holes and longer reach. Extra long twist drill bits (also called extension) are longer than long length twist drill bits for greater reach or for drilling deeper holes.

Precision Dormer manufactures cutting tools under the brands Precision Twist, Dormer, and Union Butterfield. The company, headquartered in Crystal Lake, IL, meets International Organization for Standardization (ISO) standards 9001 and 14000.

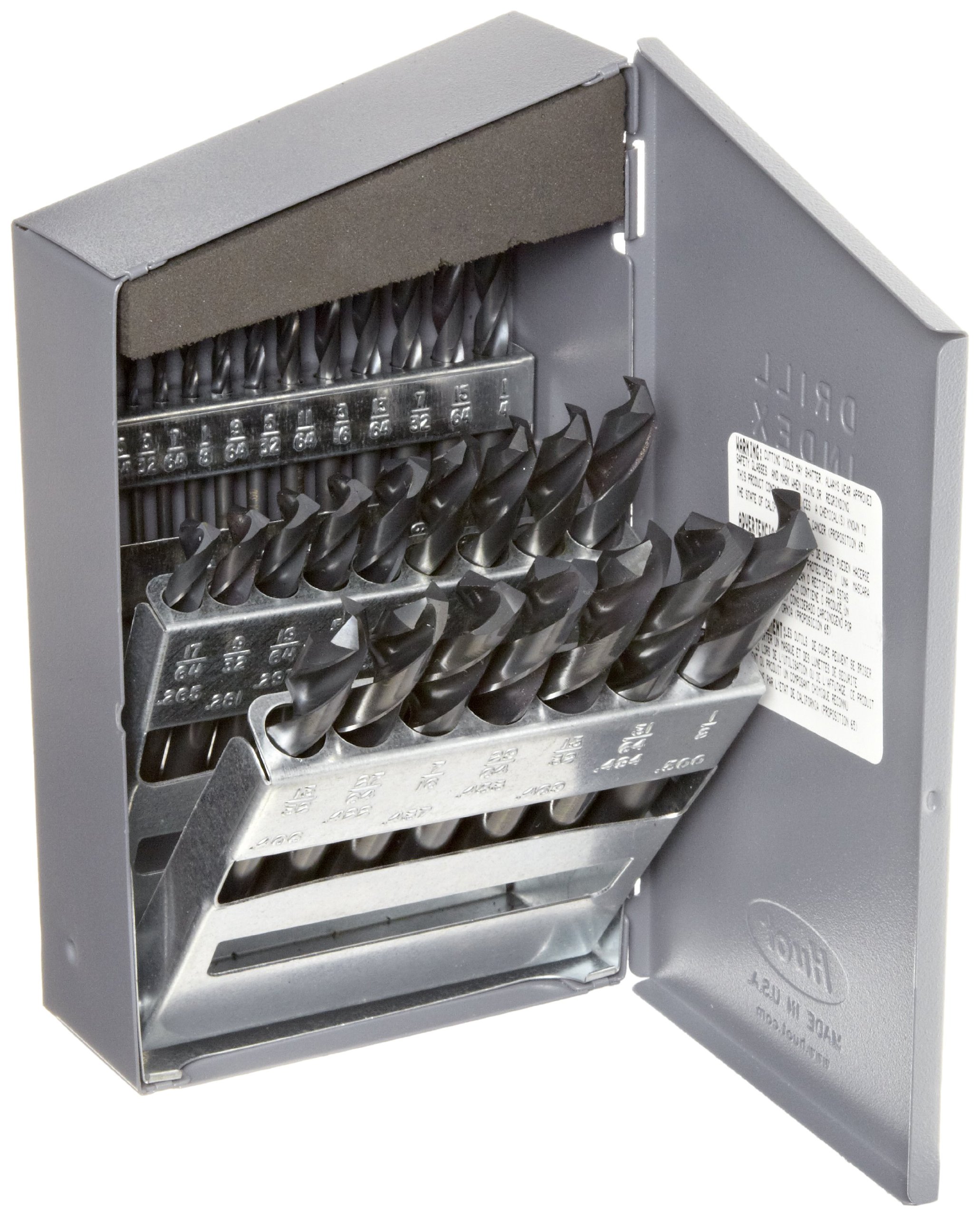

What’s in the Box?

  • 29 drill bits, inch sizes 1/16" through 1/2" in 1/64" increments
  • Metal case
