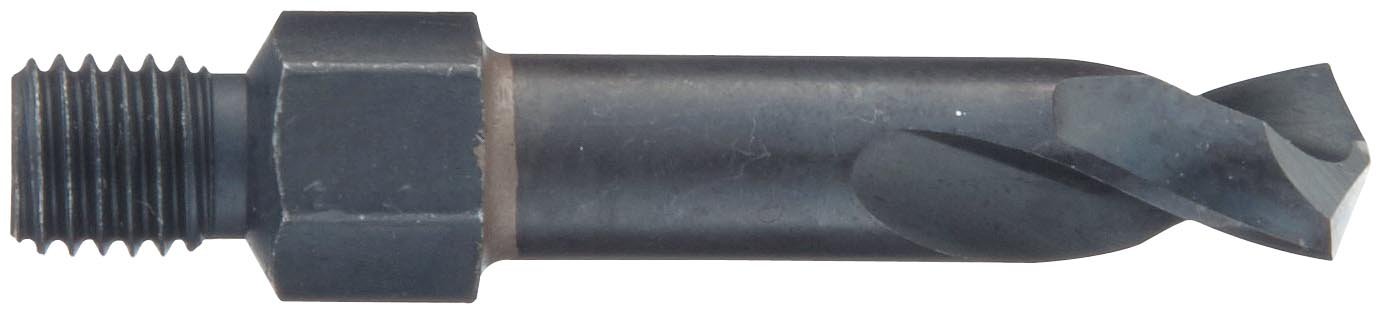

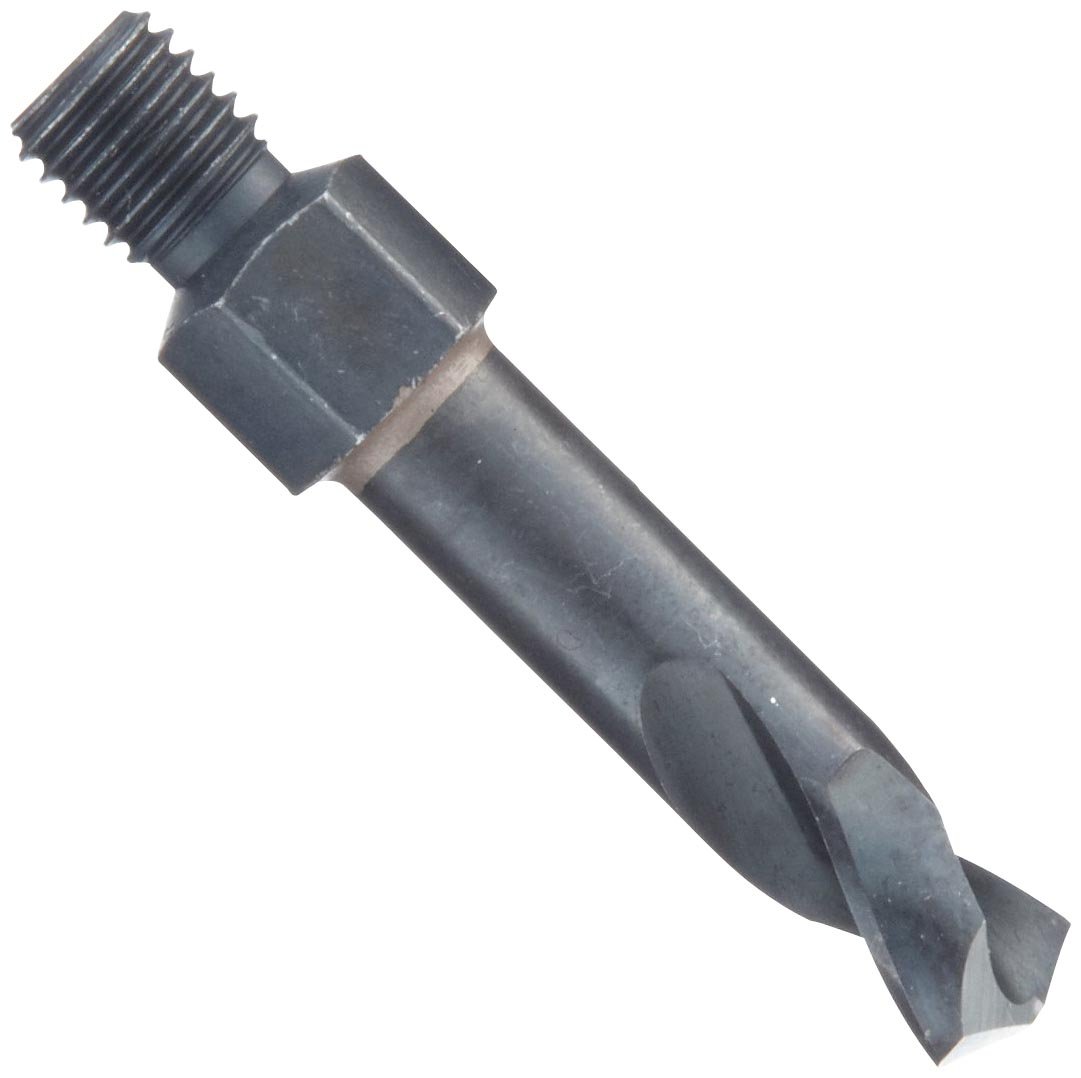

Click for larger image and other views Image is representative of the product family. Select individual products in the table below for more specific images and product specifications

How can we improve our images or Product Specifications?

Precision Twist TS10 High Speed Steel Threaded Shank (Short Series) Drill Bit, Black Oxide Finish, Threaded Shank, Spiral Flute, 135 Degree Point Angle

Be the first to review this item

Product Specifications
Cutting Direction
Right-Hand
Finish Types
Black Oxide
Shank Type
Threaded
Material Type
High-Speed Steel
Drill Point
Conventional
UNSPSC Code
20121600
Cutting Angle
135  Degrees
Brand Name
Precision Twist
Flute Type
Spiral

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tue, Sep 23? Order in-stock items in the next 1 day 13 hrs 53 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-5 of 5
Size Mfg Series # System of Measurement Flute Length Overall Length Pkg Qty Mfr Part # ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All All All
Currently showing 1-5 of 5
1/8" TS10 Inch 9/16" 1" 1 45708 B003JTILWS yes $7.89 Buy Options
5/32" TS10 Inch 9/16" 1-1/4" 1 45710 B003JTILXC yes $8.21 Buy Options
3/16 " TS10 Inch 9/16" 1-1/4" 1 45712 B003JTILX2 yes $11.10 Buy Options
7/32" TS10 Inch 9/16" 1-1/4" 1 45714 B003JTILXM yes $9.15 Buy Options
1/4" TS10 Inch 9/16" 1-1/4" 1 45716 B003JTILWI yes $10.56 Buy Options

Key Features

  • NAS 907 type 965 standards, for use in the aerospace industry

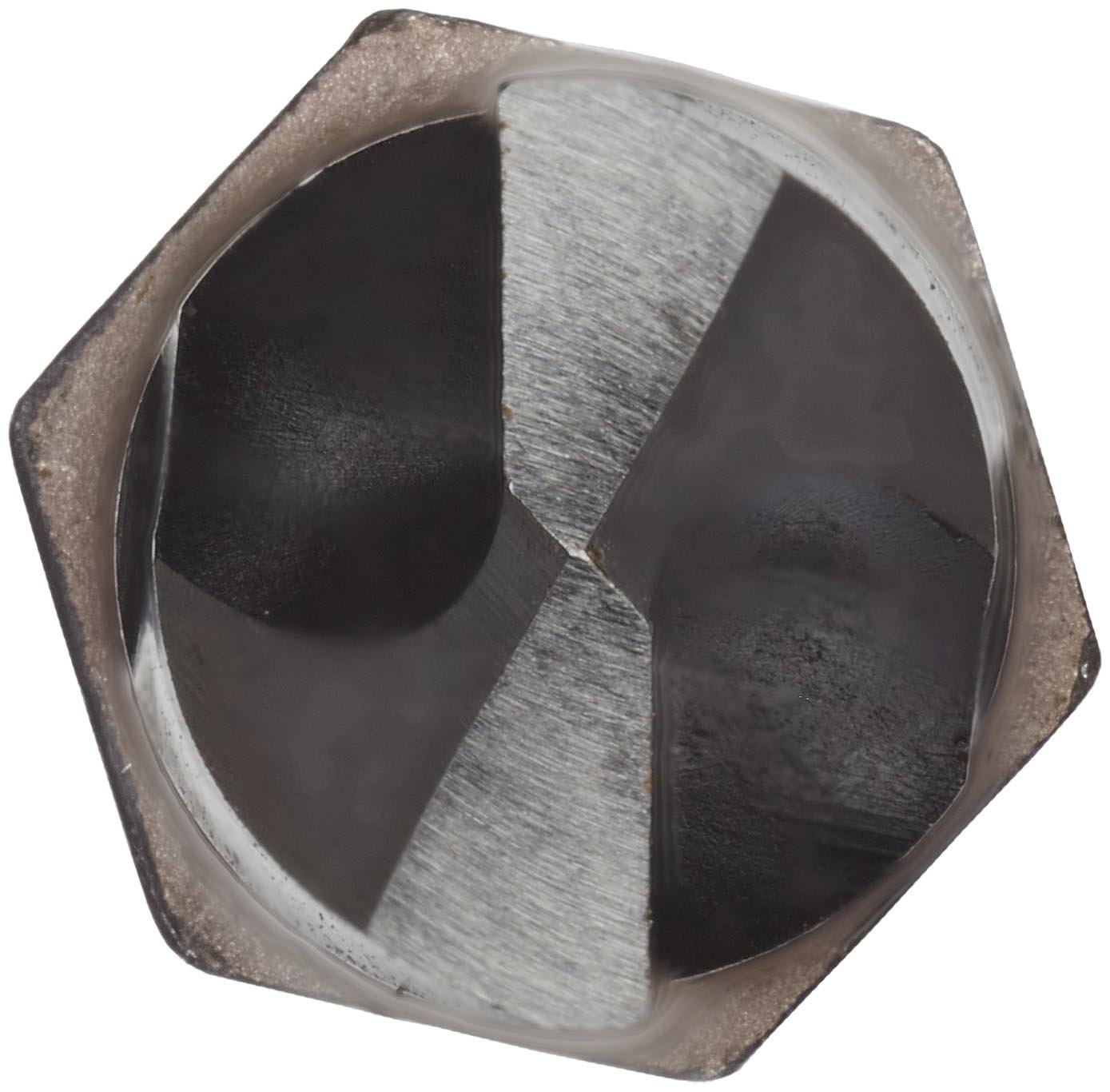

  • 135-degree split-point angle, for self-centering, to reduce walking, for use with hard materials, and to reduce pressure on cutting edges
  • Steam Tempering (also called black oxide) finish, to retain cutting fluids and to prevent chip-to-tool welding
  • Threaded hex shank, quickly threads into drills and drill attachments
  • Short-length, for a wide range of applications

Product Description

The Precision Twist TS10 short series, aircraft-threaded, hex shank split-point drill bit is made of high-speed steel (HSS) with a steam tempering (also called black oxide) finish. Designed for medium-duty service, they are good for drilling into low tensile strength materials in confined spaces.

The TS10 series has a type N flute form, with a regular helix (21- to 34-degree) angle, and is designed for aircraft industry, but also work well in other industries. The short length and 135-degree split point drill geometry provide good maneuverability in confined spaces and help ensure an accurate hole by reducing walking when the hole is started. The finish retains lubricants to aid in wear resistance and chip flow. HSS assures good performance at an economical cost.

Drilling, or hole making, is the most common metalworking operation in the world. Twist drill bits are the most common type of drill bit used. Twist drill bits can be used in hand-operated drills, standalone drill presses, or a lathe. They are made to ANSI and NAS 907 type 965 industry standards, which ensure that drill bits around the world conform to the same specifications.

Precision manufactures machine tools under the following brands: Precision Twist, Precision Dormer, and Union Butterfield. The company has locations around the world, and provides tools adhering to ANSI, NAS, and DIN standards.
