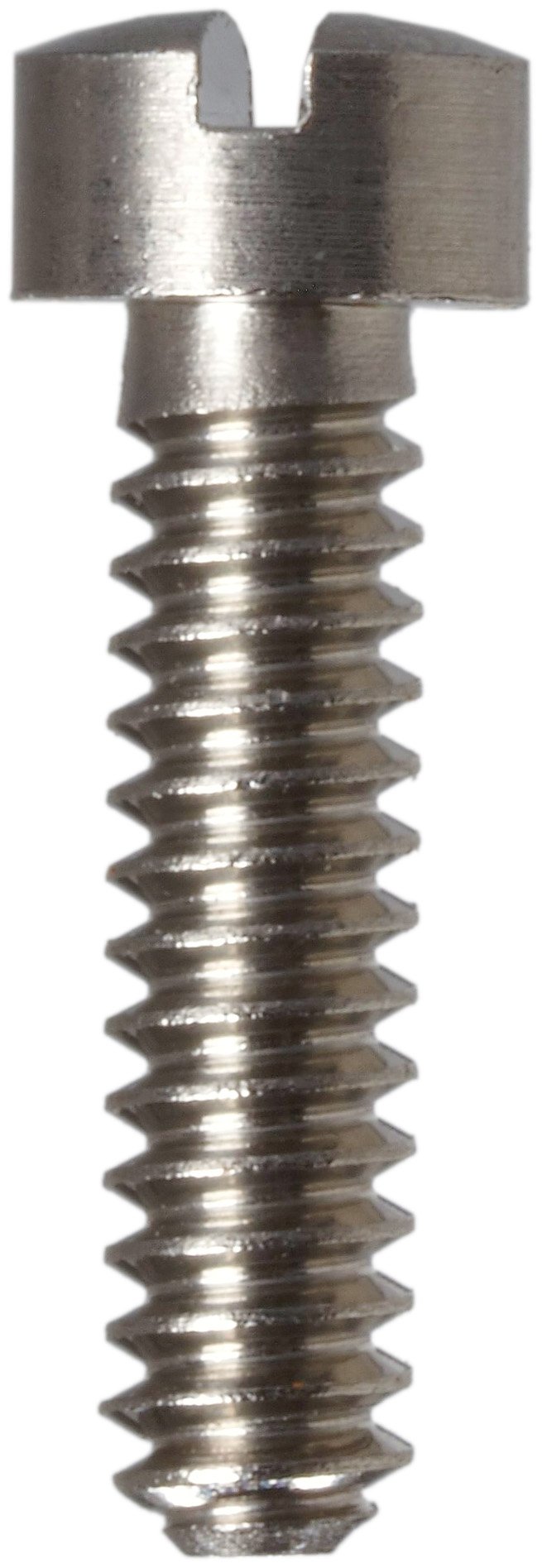

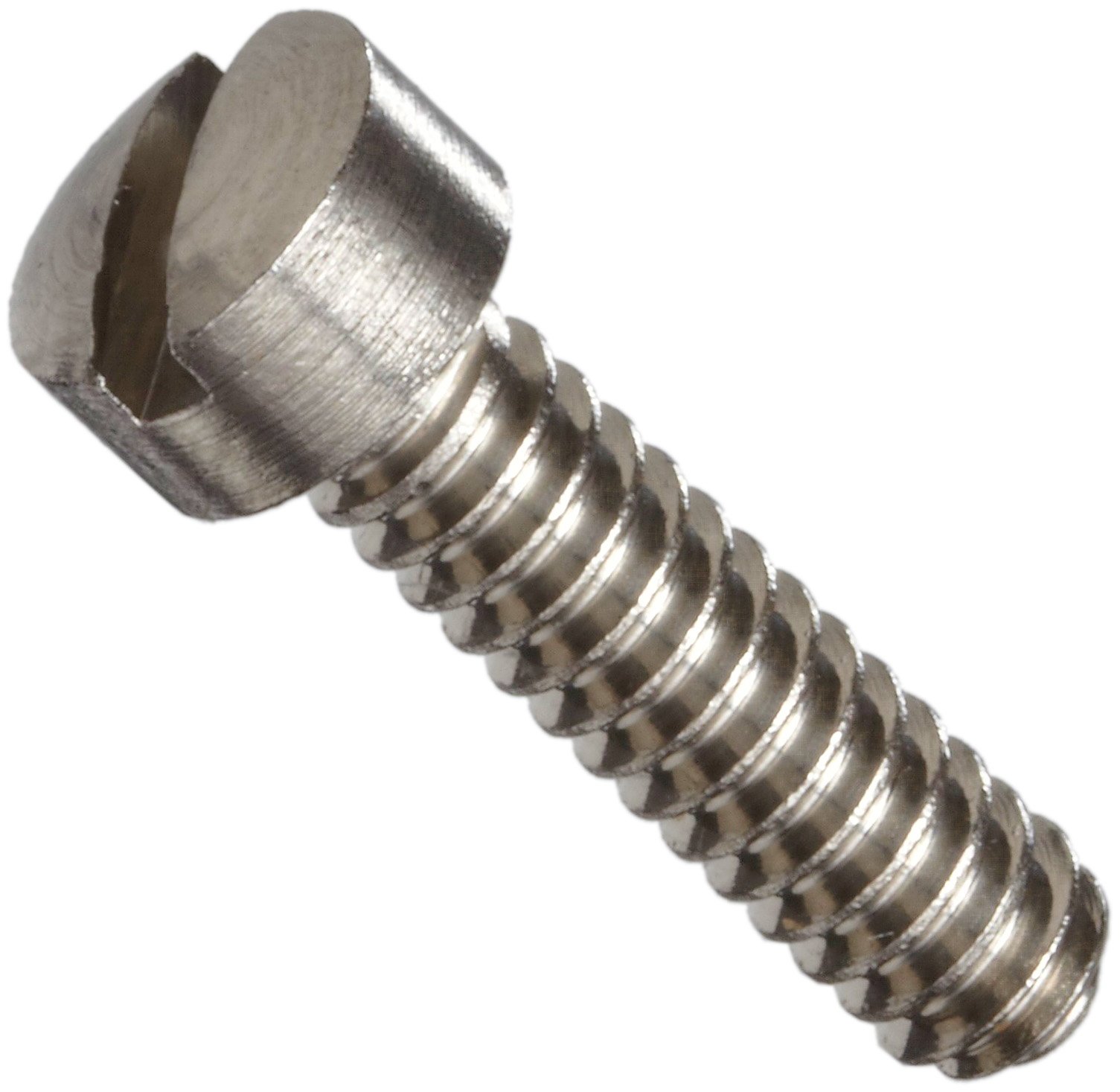

Precision Stainless Steel 303 Machine Screw, Fillister Head, Slotted Drive, ANSI B18.6.3
Be the first to review this item
Product Specifications
- Brand Name
- Antrin Miniature Specialties, Inc.
- Color Name
- Silver
- Drive Style
- Slotted
- Exterior Finish
- Plain
- Grade
- Precision
- Head Style
- Fillister
- Material Type
- Stainless Steel 303
- Specification Met
- ANSI B18.6.3
- System of Measurement
- Inch
- Thread Style
- Right Hand
These items ship for FREE with 2-Day Shipping on orders over $50. (Details)
Want it delivered on Tuesday, May 29? Order in-stock items in the next 15 hours 50 minutes and choose One-Day Shipping at checkout.
Key Features
- Screws conform to ANSI B18.6.3
- Precision, Burr free
- 303 Stainless Steel Material conforms to AMS-5640 Type 1, ASTM-A-582, MIL-S-7720, QQS763C, QQS764B
- Aerospace Quality
- Medical Quality
Product Description
Machine Screws, also referred to as Machine Bolts, are often used with nuts or driven into tapped holes. They come in a variety of head types and drive styles, but are generally available in smaller sizes.
Stainless steels are used for their corrosion resistance, high-temperature strength, scaling resistance, and low-temperature toughness. These properties account for their extremely wide use in practically every industry. Austenitic Stainless Steels are alloys of iron and carbon that contain between 16% and 30% Chromium, a maximum of 0.15% carbon, along with Nickel (or Manganese), and other alloying elements. The chromium, which helps develop a passive surface oxide film, provides corrosion resistance in stainless steels. Austenitic Stainless Steels are designated by a 3 digit SAE Stainless Steel Grade beginning with the number 3 (e.g. 304, 316).
Stainless Steel 303 contains 0.15% carbon, along with traces of sulfur and phosphorus which makes this a free machining alloy. Free machining refers to the ability to cut and finish the materials without heavy wear on the machining tools. Tensile Strength is 35000 psi (pounds per square inch).
Fillister head for high torque and good hold-down strength
A threaded fastener's size name includes information about the major external diameter, followed by the threads per inch, which indicates if it is coarse or fine. Fine threads are preferable when working with harder materials or when threading into a thin material. They are also stronger in tension than coarse threads, and generally provide higher shear strength
