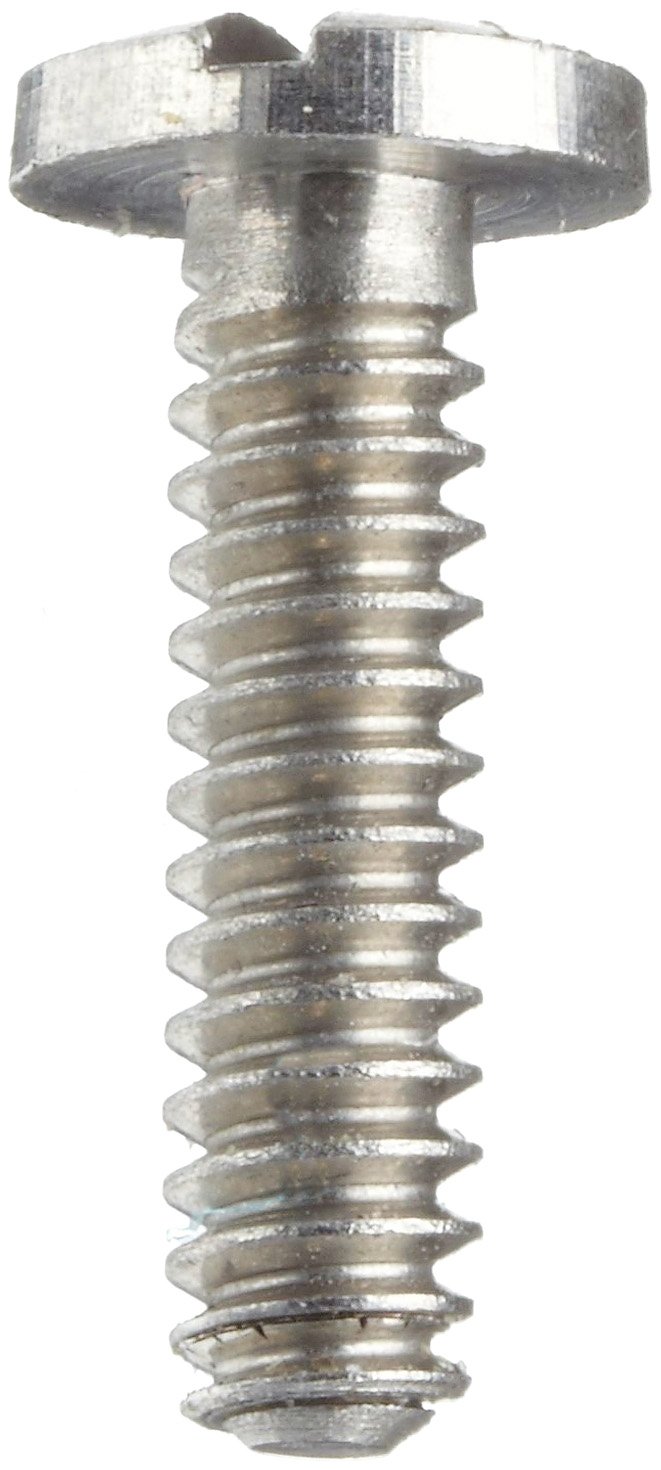

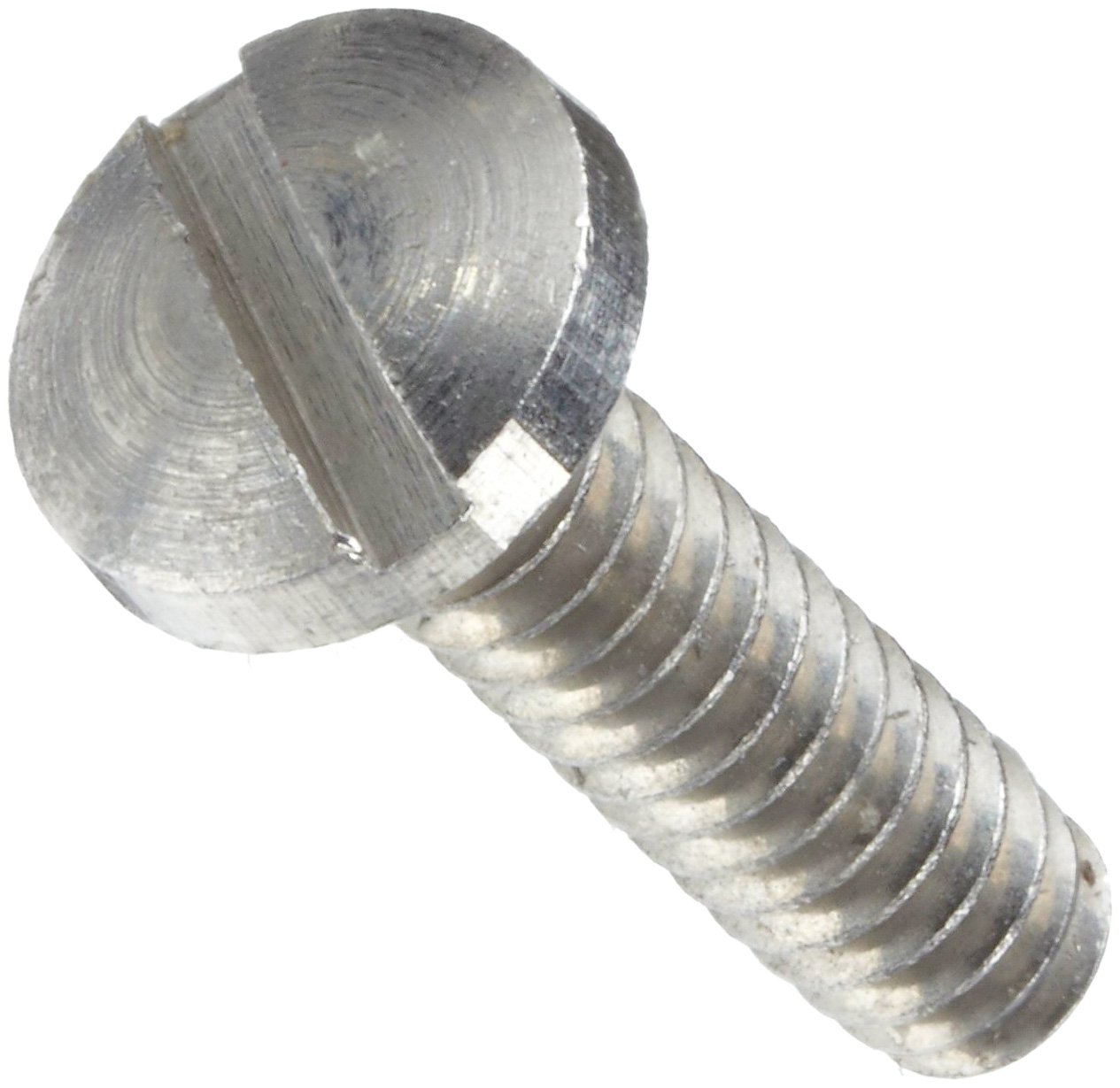

Precision Stainless Steel 303 Machine Screw, Binding Head, Slotted Drive, ANSI B18.6.3
Be the first to review this item
ASIN B003R7JDH4
Specifications for this item
- Brand Name
- Antrin Miniature Specialties, Inc.
- Color Name
- Silver
- Drive Style
- Slotted
- Exterior Finish
- Plain
- Grade
- Precision
- Head Style
- Binding
- Material Type
- Stainless Steel 303
- Part Number
- B003R7JDH4
- Point Style
- Flat
- Specification Met
- ANSI B18.6.3
- System of Measurement
- Inch
- Thread Style
- Right Hand
This item is no longer available
This item is NOT eligible for "Free Standard Shipping on orders over $50.00" promotion. (Details)
Key Features
- Screws conform to ANSI B18.6.3
- Precision, Burr free
- 303 Stainless Steel Material conforms to AMS-5640 Type 1, ASTM-A-582, MIL-S-7720, QQS763C, QQS764B
- Aerospace Quality
- Medical Quality
Product Description
Machine Screws, also referred to as Machine Bolts, are often used with nuts or driven into tapped holes. They come in a variety of head types and drive styles, but are generally available in smaller sizes.
Stainless steels are used for their corrosion resistance, high-temperature strength, scaling resistance, and low-temperature toughness. These properties account for their extremely wide use in practically every industry. Austenitic Stainless Steels are alloys of iron and carbon that contain between 16% and 30% Chromium, a maximum of 0.15% carbon, along with Nickel (or Manganese), and other alloying elements. The chromium, which helps develop a passive surface oxide film, provides corrosion resistance in stainless steels. Austenitic Stainless Steels are designated by a 3 digit SAE Stainless Steel Grade beginning with the number 3 (e.g. 304, 316).
Stainless Steel 303 contains 0.15% carbon, along with traces of sulfur and phosphorus which makes this a free machining alloy. Free machining refers to the ability to cut and finish the materials without heavy wear on the machining tools. Tensile Strength is 35000 psi (pounds per square inch).
Generally used in electrical or radio work, these fasteners are slightly undercut under the head. That provides the ability to bind stranded wire tightly and prevent fraying.
A threaded fastener's size name includes information about the major external diameter, followed by the threads per inch, which indicates if it is coarse or fine. Fine threads are preferable when working with harder materials or when threading into a thin material. They are also stronger in tension than coarse threads, and generally provide higher shear strengths.
