Click for larger image and other views Image is representative of the product family. Select individual products in the table below for more specific images and product specifications

How can we improve our images or Product Specifications?

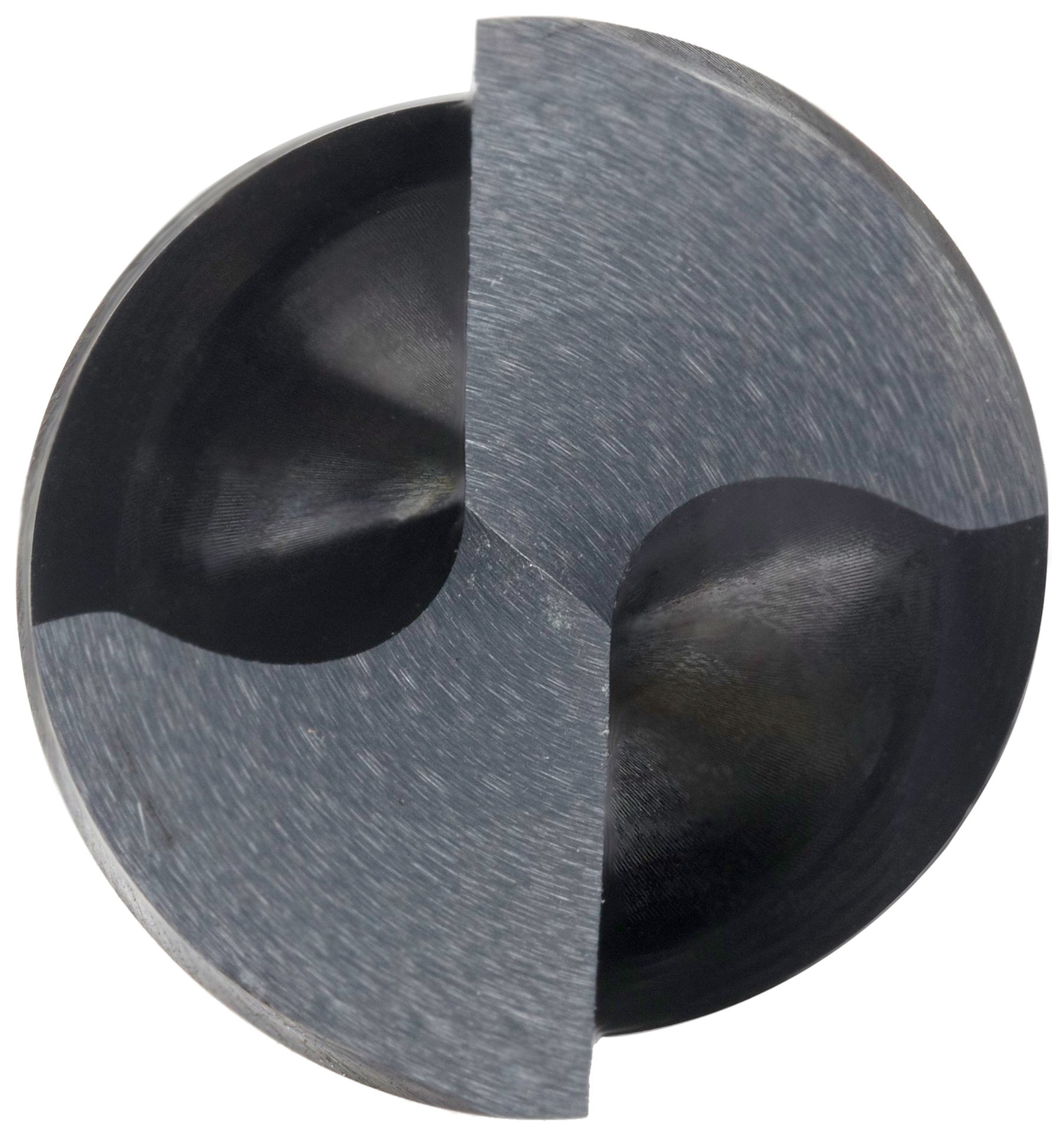

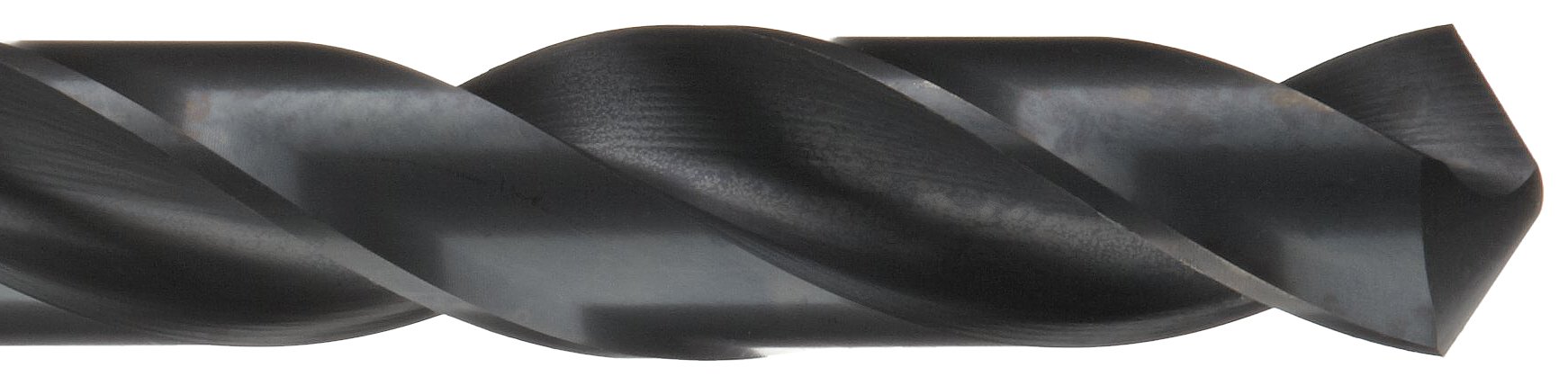

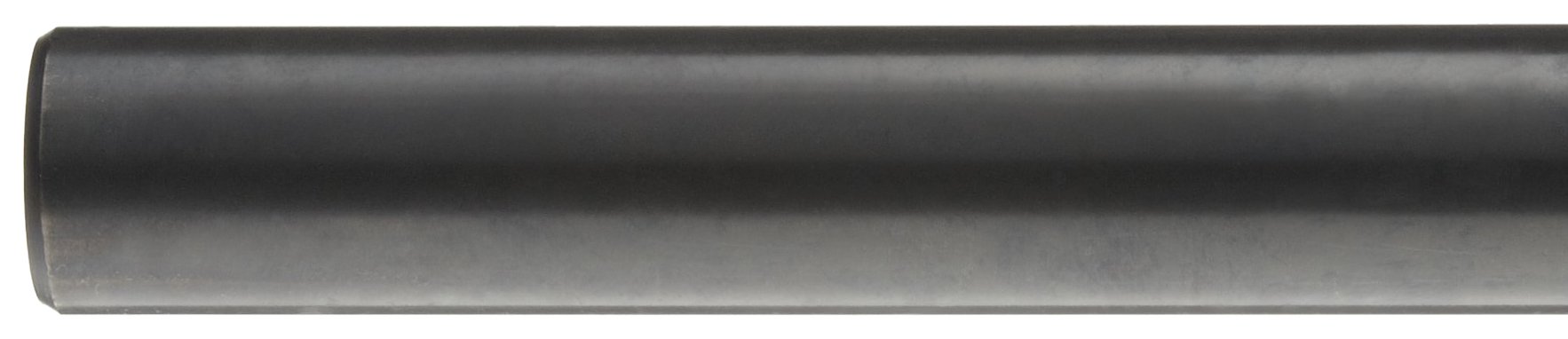

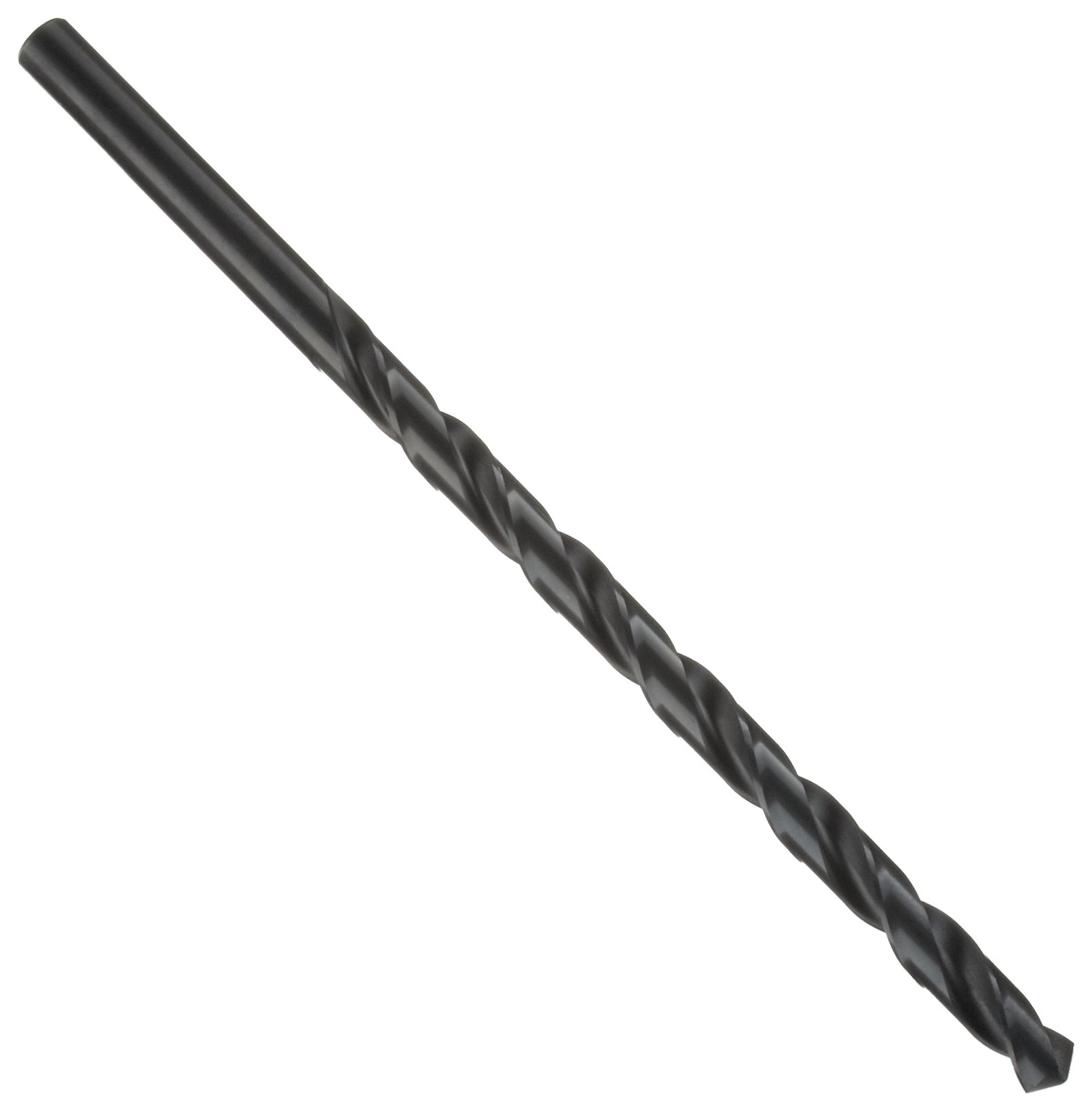

Precision Twist 1511 High Speed Steel Extra Long Length Drill Bit, Uncoated (Bright) Finish, Round Shank, Spiral Flute, 118 Degree Point Angle

Be the first to review this item

Product Specifications
Cutting Direction
Right-Hand
Finish Types
Uncoated (Bright)
Shank Type
Round
Material Type
High-Speed Steel
Drill Point
Conventional
UNSPSC Code
20121600
Cutting Angle
118  Degrees
Brand Name
Precision Twist
Flute Type
Spiral

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Wed, Sep 3? Order in-stock items in the next 10 hrs 48 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-19 of 19
Size Mfg Series # System of Measurement Flute Length Overall Length Pkg Qty Mfr Part # ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All All All
Currently showing 1-19 of 19
3/16 " 1511 Inch 11" 15" 1 59512 B002093QBE yes $30.84 Buy Options
1/4" 1511 Inch 11" 15" 1 59516 B00209B120 yes $31.61 Buy Options
5/16" 1511 Inch 11" 15" 1 59520 B002095URM yes $34.07 Buy Options
11/32" 1511 Inch 11" 15" 1 59522 B0025QBYHA yes $36.54 Buy Options
3/8 " 1511 Inch 11" 15" 1 59524 B00209793A yes $37.35 Buy Options
7/16" 1511 Inch 11" 15" 1 59528 B00209B1DY yes $40.89 Buy Options
1/2 " 1511 Inch 11" 15" 1 59532 B002091PYE yes $48.95 Buy Options
17/32" 1511 Inch 11" 15" 1 59534 B0025Q8K86 Usually ships in 1 to 2 months $46.39 Buy Options
9/16" 1511 Inch 11" 15" 1 59536 B0026HCVMA yes $52.98 Buy Options
5/8" 1511 Inch 11" 15" 1 59540 B002091Q5W yes $60.44 Buy Options
21/32" 1511 Inch 11" 15" 1 59542 B002E8QNRA yes $69.83 Buy Options
11/16" 1511 Inch 11" 15" 1 59544 B0025QHV4A yes $74.11 Buy Options
23/32" 1511 Inch 11" 15" 1 59546 B003JTI0KG yes $78.78 Buy Options
3/4" 1511 Inch 11" 15" 1 59548 B001VXY7PE yes $68.12 Buy Options
25/32" 1511 Inch 11" 15" 1 59550 B0025Q8KAO yes $92.37 Buy Options
13/16" 1511 Inch 11" 15" 1 59552 B0026H7GK2 yes $105.11 Buy Options
7/8" 1511 Inch 11" 15" 1 59554 B0020979NK yes $111.64 Buy Options
15/16" 1511 Inch 11" 15" 1 59556 B00209B1TI yes $123.73 Buy Options
1" 1511 Inch 11" 15" 1 59558 B002095VGC yes $137.16 Buy Options

Key Features

  • Extra-length, for deeper holes
  • 118-degree conventional point angles good for general drilling applications
  • Round shanks can be used with a variety of tool-holding systems
  • Uncoated (bright), economical and useful with a wide range of drilling applications
  • High-speed steel (HSS), for use on a wide variety of materials

Product Description

The Precision Twist 1511 long length, 118-degree conventional point, general-purpose round shank drill bit made of high-speed steel (HSS) with uncoated finish is suitable for drilling holes to a depth up to 15 times the diameter of the drill size. The shank diameter is the same as the drill size.

The 1511 series has a type N flute form (a regular helix angle of 21 to 34 degrees) which is good for drilling in a variety of materials, such as metal, wood, and synthetics. For drill bit sizes larger than 17/32 of an inch (13.49375mm/0.53125) inches, the drills have a black oxide (also called steam tempering) finish. This finish gives a strongly adhering surface treatment that acts to retain cutting fluid and prevent chip to tool welding, reducing the formation of a built-up edge. All other sizes have an uncoated finish, which helps keep costs down, yet provides acceptable performance in most situations.

Precision manufactures machine tools under the following brands: Precision Twist, Precision Dormer, and Union Butterfield. They have locations around the world, and provide tools adhering to ANSI, NAS, and DIN standards. They are made to ANSI (fractional sizing) industry standards, which help ensure that drill bits around the world conform to the same specifications.

Precision manufactures machine tools under the following brands: Precision Twist, Precision Dormer, and Union Butterfield. They have locations around the world, and provide tools adhering to ANSI, NAS, and DIN standards.
