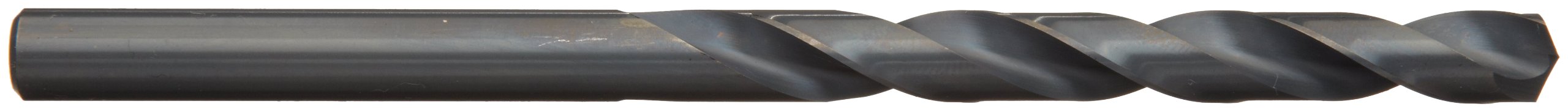

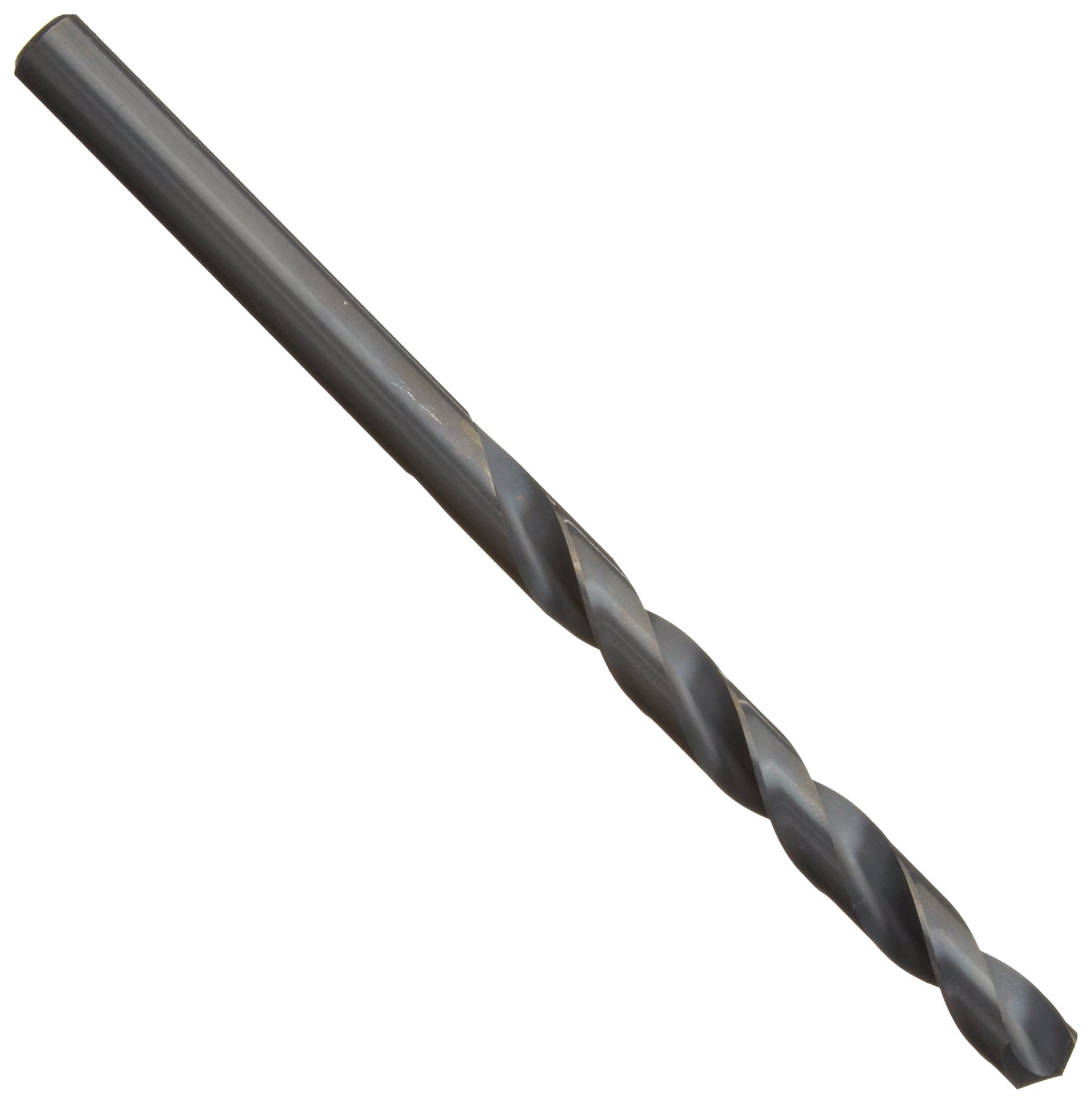

Precision Twist 500 6 High Speed Steel Extension Drill Bit, Black Oxide Finish, Round Shank, Spiral Flute, 135 Degree Point Angle

Be the first to review this item

Product Specifications
Cutting Direction
Right-Hand
Finish Types
Black Oxide
Shank Type
Round
Material Type
High-Speed Steel
Drill Point
Conventional
UNSPSC Code
20121600
Cutting Angle
135  Degrees
Brand Name
Precision Twist
Flute Type
Spiral

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Fri, Oct 24? Order in-stock items in the next 11 hrs 15 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-20 of 24 Next 4 »
Size Mfg Series # System of Measurement Flute Length Overall Length Pkg Qty Mfr Part # ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All All All
Currently showing 1-20 of 24 Next 4 »
3/64" 500-6 Inch 3/4" 6" 12 58003 B002093OFC yes $76.55 Buy Options
5/64" 500-6 Inch 1" 6" 12 58005 B0026HGMKW yes $36.93 Buy Options
7/64" 500-6 Inch 1-1/2" 6" 12 58007 B0026HELG4 yes $31.33 Buy Options
1/8" 500-6 Inch 1-5/8" 6" 12 58008 B002095T1E yes $30.85 Buy Options
9/64" 500-6 Inch 1-3/4" 6" 12 58009 B0025QBXO4 yes $35.65 Buy Options
5/32" 500-6 Inch 2" 6" 12 58010 B0025QBXOO yes $35.93 Buy Options
13/64" 500-6 Inch 2-7/16" 6" 12 58013 B0026HELIC yes $46.53 Buy Options
7/32" 500-6 Inch 2-1/2" 6" 12 58014 B002KNDXLI yes $47.83 Buy Options
15/64" 500-6 Inch 2-5/8" 6" 12 58015 B00271JAYM yes $51.13 Buy Options
17/64" 500-6 Inch 2-7/8" 6" 6 58017 B0026HAWP8 yes $56.97 Buy Options
9/32" 500-6 Inch 2-15/16" 6" 6 58018 B0025QFYIA yes $60.48 Buy Options
19/64" 500-6 Inch 3-1/16" 6" 6 58019 B00271JB00 yes $68.45 Buy Options
5/16" 500-6 Inch 3-3/16" 6" 6 58020 B0026H7F1C yes $74.45 Buy Options
21/64" 500-6 Inch 3-5/16" 6" 6 58021 B0026HCU0I yes $80.96 Buy Options
11/32" 500-6 Inch 3-7/16" 6" 6 58022 B00271L0JK yes $79.03 Buy Options
23/64" 500-6 Inch 3-1/2" 6" 6 58023 B002E8XQ3Y yes $88.26 Buy Options
3/8 " 500-6 Inch 3-5/8" 6" 6 58024 B002091NXC yes $94.89 Buy Options
25/64" 500-6 Inch 3-3/4" 6" 6 58025 B003JTI44I yes $100.09 Buy Options
13/32" 500-6 Inch 3-7/8" 6" 6 58026 B00271E2G8 yes $96.19 Buy Options
27/64" 500-6 Inch 3-15/16" 6" 6 58027 B002E8VMYY yes $105.95 Buy Options

Key Features

  • NAS 907 type B standards, used in the aerospace industry
  • Extra-length drill bits, provide long reach

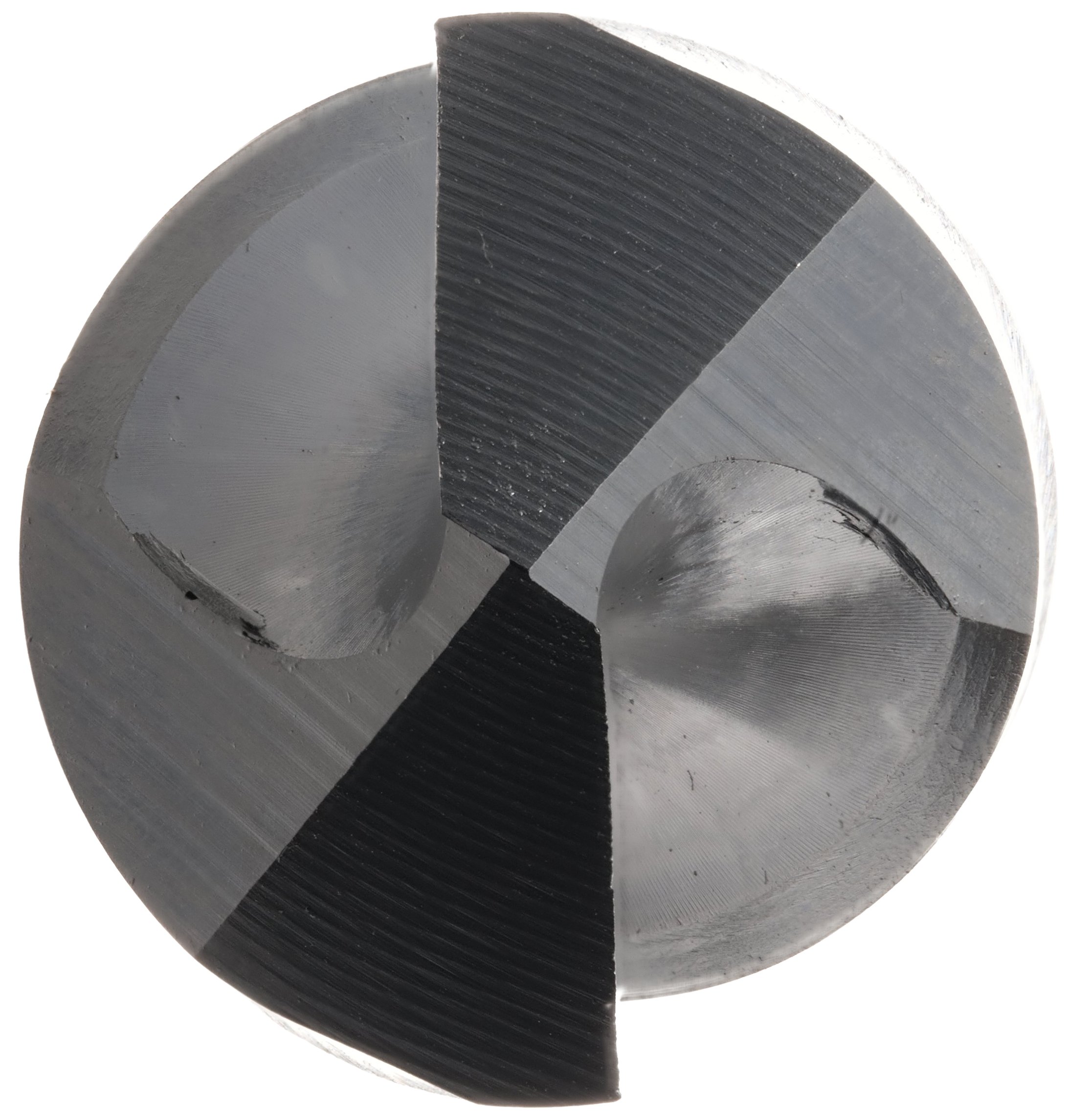

  • 135-degree split-point angles, is self-centering, reduces walking, good for hard material, and reduces pressure on cutting edges
  • Steam tempering (also called black oxide) retains cutting fluid and prevents chip to tool welding
  • High-speed steel (HSS), for use on a wide variety of materials

Product Description

The Precision Twist 500-6 extra-length, aircraft extension drill bit, is a round shank bit made of HSS with a steam tempering (also called black oxide) finish. It is suitable for drilling to a depth up to four times the diameter of the drill. The shank diameter is the same as the drill size. Best performance with drilling into hardened, tempered alloy steel, stainless steel, and titanium. These should be less than 30 on the Rockwell C hardness scale.

While the 500-6 series was designed for aircraft industry, they also work well for drilling into a variety of materials. The extra length and 135-degree split point drill geometry provide extra reach and ensure an accurate hole by reducing walking when the hole is started. The finish retains lubricants to aid in wear resistance and chip flow.

Drilling, or hole making, is the most common metalworking operation in the world. Twist drill bits are the most common type of drill bit used. Twist drill bits are commonly used to drill holes with hand-operated drills, standalone drill presses, or lathes. The flutes of the drill bit act a passageway for chip extraction from the hole and for coolant to enter the hole. These drill bits have a right-hand twist that brings chips up and away from the cutting edge. They are made to ANSI (fractional sizing) and NAS 907 type B industry standards, which helps ensure that drill bits around the world conform to the same specifications.

Precision manufactures machine tools under the following brands: Precision Twist, Precision Dormer, and Union Butterfield. They have locations around the world, and provide tools adhering to ANSI, NAS, and DIN standards.
