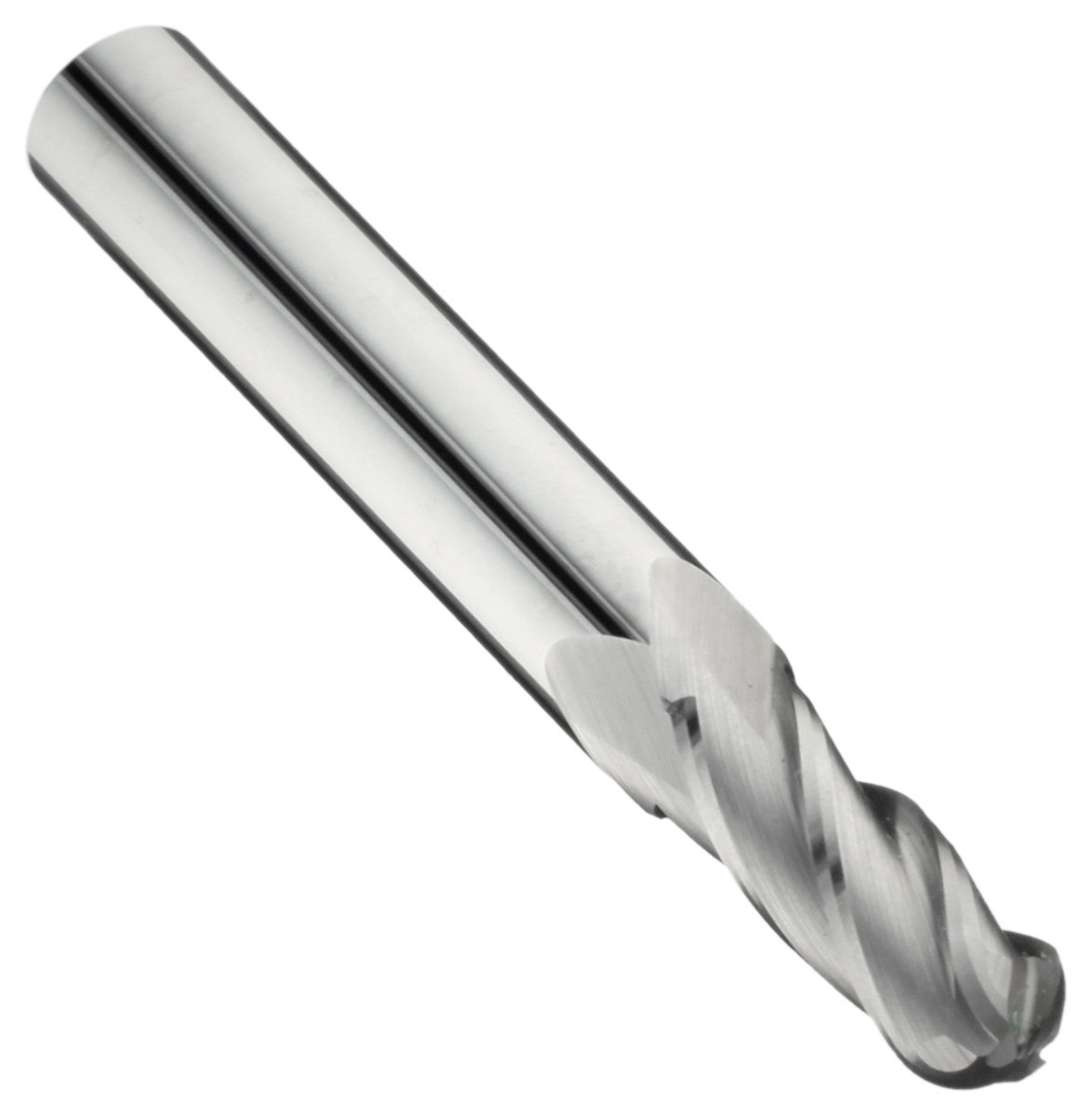

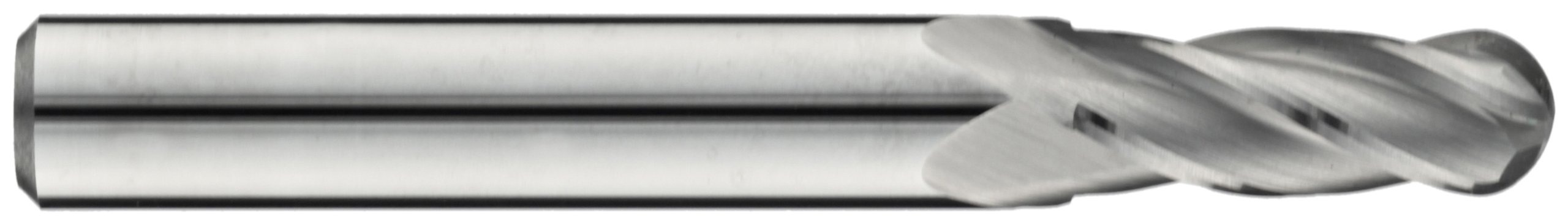

Precision Twist EB3304M Solid Carbide End Mill, Uncoated (Bright) Finish, 4 Flute, Ball End

Be the first to review this item

Product Specifications
Brand Name
Precision
Cut Type
General Purpose
End Cut Type
Non-Center Cutting
Material Type
Carbide

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tuesday, May 29? Order in-stock items in the next 15 hours 55 minutes and choose One-Day Shipping at checkout.

0 items added

To add items,
choose from the table below

  • Share

You must be logged in to use this feature.

Cancel
Currently showing 19 of 19
Cutting Diameter Shank Width Cutting Length Overall Length Number of Flutes Mfr Part # ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

 Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

 Price Quantity
All All All All All
Currently showing 19 of 19
2.00 mm 2.00 mm 6.0 mm 38.0 mm 4 001344 B003JTIFNI In Stock (1) $15.59
2.50 mm 2.50 mm 6.0 mm 38.0 mm 4 001343 B003JTIFNS In Stock (1) $16.54
3.00 mm 3.00 mm 12.0 mm 38.0 mm 4 001342 B003JTIFOM In Stock (1) $14.21
3.50 mm 3.50 mm 14.0 mm 50.0 mm 4 001341 B003JTIFOW In Stock (1) $20.36
4.00 mm 4.00 mm 14.0 mm 50.0 mm 4 001340 B003JTIFP6 In Stock (2) $17.13
4.50 mm 4.50 mm 14.0 mm 50.0 mm 4 001339 B003JTIFPG In Stock (1) $20.36
5.00 mm 5.00 mm 16.0 mm 50.0 mm 4 001338 B003JTIFPQ In Stock (1) $22.33
6.00 mm 6.00 mm 19.0 mm 63.0 mm 4 001337 B003JTIFQA In Stock (1) $20.82
7.00 mm 7.00 mm 19.0 mm 63.0 mm 4 001336 B003JTIFQU In Stock (2) $25.99
8.00 mm 8.00 mm 19.0 mm 63.0 mm 4 001335 B003JTIFR4 In Stock (1) $24.84
9.00 mm 9.00 mm 22.0 mm 70.0 mm 4 001334 B003JTIFRE In Stock (1) $34.21
10.00 mm 10.00 mm 22.0 mm 70.0 mm 4 001333 B003JTIFL0 In Stock (1) $33.34
11.00 mm 11.00 mm 25.0 mm 70.0 mm 4 001332 B003JTIFLK In Stock (1) $38.53
12.00 mm 12.00 mm 25.0 mm 75.0 mm 4 001331 B003JTIFLU In Stock (1) $50.38
14.00 mm 14.00 mm 30.0 mm 88.0 mm 4 001330 B003JTIFME In Stock (1) $78.62
16.00 mm 16.00 mm 32.0 mm 88.0 mm 4 001329 B003JTIFMY In Stock (1) $83.78
18.00 mm 18.00 mm 36.0 mm 100.0 mm 4 001328 B003JTIFN8 In Stock (1) $127.06
20.00 mm 20.00 mm 38.0 mm 100.0 mm 4 001327 B003JTIFO2
Out of Stock
$187.81
25.00 mm 25.00 mm 38.0 mm 100.0 mm 4 001326 B003JTIFOC
Out of Stock
$204.99

Key Features

  • Ball nose end mills, for machining three-dimensional surfaces
  • Uncoated (bright) finish, economical and useful in wide range of materials
  • Carbide, for excellent wear resistance and long tool life
  • Four flutes, for better surface finish and reduce chip load
  • Regular length, for usage with a wide variety of applications, reducing tool changing

Product Description

The Precision Twist EB3304M series of end mills are a regular length, ball nose, four flutes are made of carbide with a bright finish is used for high speed machining of curved surfaces and best performance in steel and cast iron.

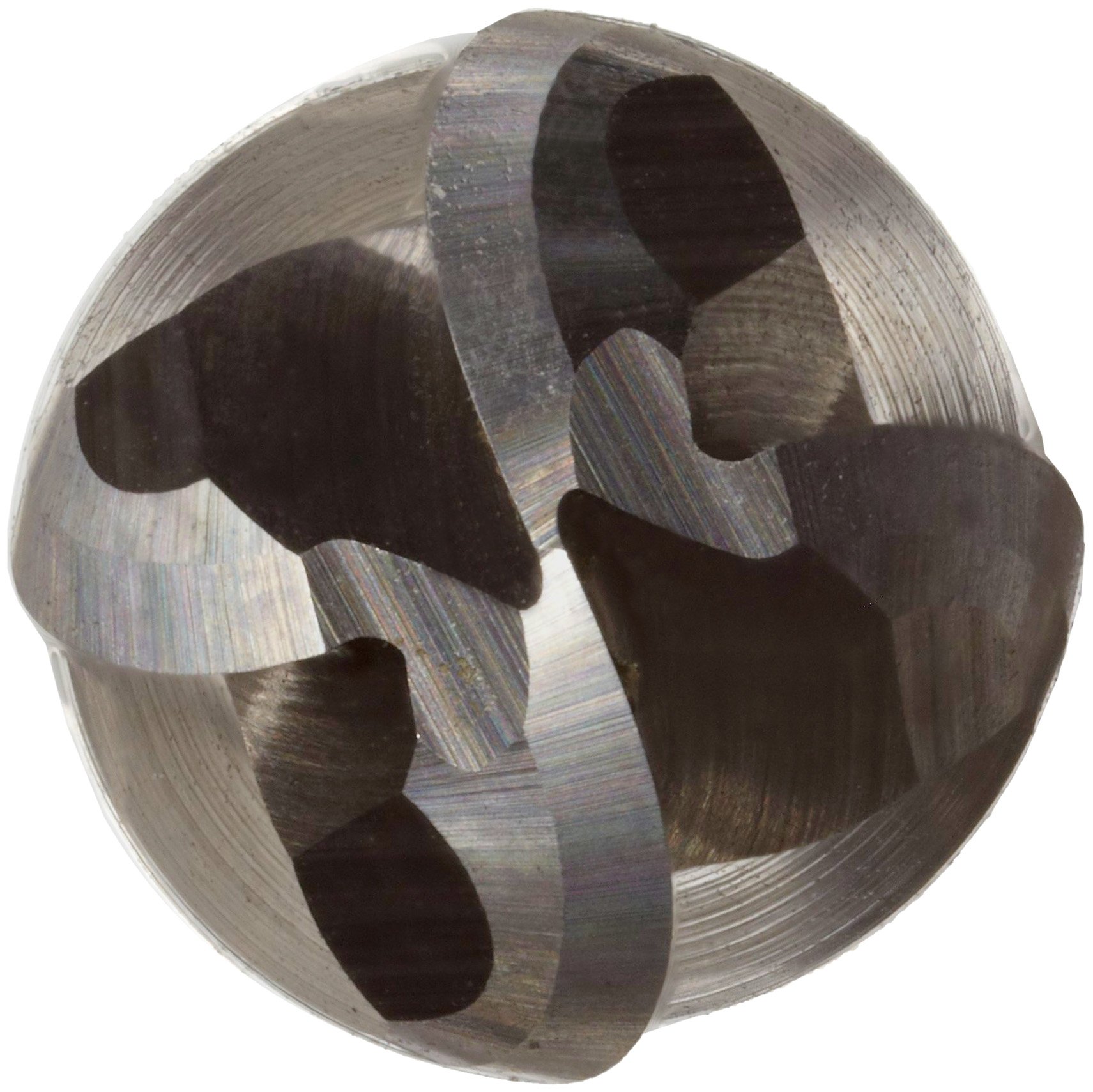

Ball nose end mills have a smooth geometry of the cutting tip, which facilitates lower cutting forces, giving the cutter added strength under pressure. They can also produce radii in the bottom of slots or pockets for added strength, reducing stress concentrations.

Four flutes have the highest rigidity, the largest section area and a small chip space. They also give the best surface finish and are recommended for profiling, side milling and shallow slotting.

End mills are tools with cutting teeth on the sides and on one (single ended) or both ends (doubled ended). The teeth may be parallel to the axis of rotation or helical, and commonly are called spiral end mills. The shape of the end might be square or round. Some end mills are center cutting, which allow for boring into a work piece like a drill bit.

Together, the Precision and Dormer brands represent a new, streamlined organization that provides a strong North American tool brand for high productivity Carbide and HSS drill and tap products. Precision was founded in 1952 in Crystal Lake, Illinois. Dormer tools, was founded in 1913 in Sheffield, England, is known worldwide for innovative metalworking products.
