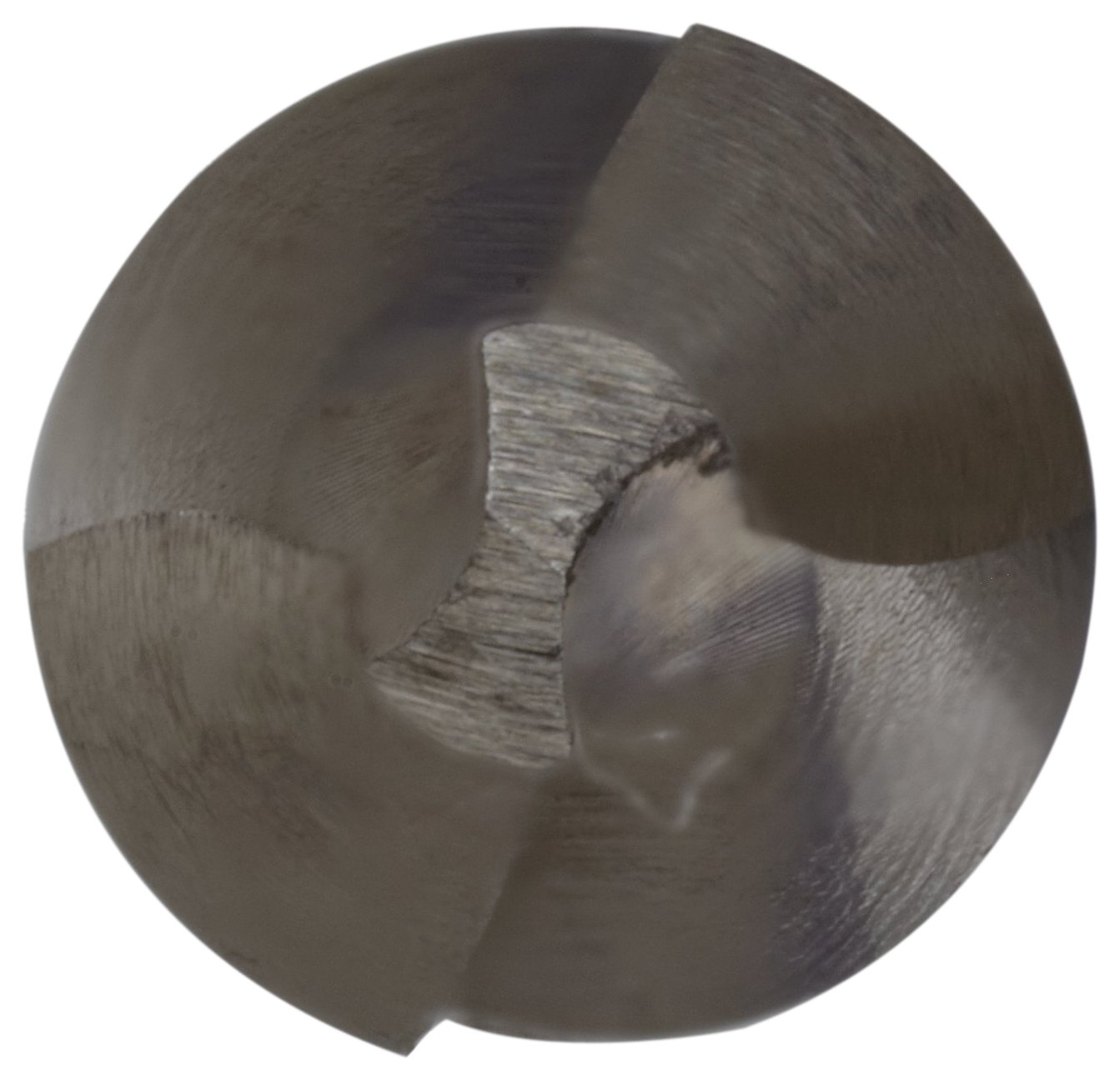

Click for larger image and other views Image is representative of the product family. Select individual products in the table below for more specific images and product specifications

How can we improve our images or Product Specifications?

Precision Twist 76LO High Speed Steel Center Drill Bit, Uncoated (Bright) Finish, Round Shank, Spiral Flute, 60 Degree Point Angle

Be the first to review this item

Product Specifications
Cutting Direction
Right-Hand
Finish Types
Uncoated (Bright)
Shank Type
Round
Material Type
High-Speed Steel
UNSPSC Code
20121600
Brand Name
Precision Twist
Flute Type
Spiral

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tue, Nov 25? Order in-stock items in the next 1 day 2 hrs 23 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-9 of 9
Size System of Measurement Flute Length Overall Length Manufacturer Series # Pkg Qty Mfr Part # ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All All All
Currently showing 1-9 of 9
#1 Letter 5/64" 4" 76LO 1 97714 B0026HAJZG yes $20.53 Buy Options
#2 Letter 7/64" 4" 76LO 1 97725 B0026H8OIK yes $24.66 Buy Options
#3 Letter 1/8" 4" 76LO 1 97735 B0025QHWZ8 yes $26.03 Buy Options
#5 Letter 7/32" 5" 76LO 1 97756 B0026H5K6O yes $31.87 Buy Options
#5 Letter 3/16" 6" 76LO 1 97755 B0026H3JTO yes $37.40 Buy Options
#6 Letter 7/32" 6" 76LO 1 97765 B0020967A6 yes $30.33 Buy Options
#6 Letter 1/4" 6" 76LO 1 97766 B002E8OIUO yes $35.57 Buy Options
#7 Letter 5/16" 6" 76LO 1 97776 B0026HAK5A yes $66.30 Buy Options
#8 Letter 13/16" 2" 76LO 1 97786 B0025QG13C yes $71.54 Buy Options

Key Features

  • Extra-length center drill bits, for easier hole-starting than regular length
  • 60-degree conventional point angles, for reduced stress on drill's corners
  • Round shanks, for use on a variety of tool-holding systems
  • Uncoated (bright), for use with a wide range of drilling materials
  • High-speed steel (HSS), for use on a wide variety of materials

Product Description

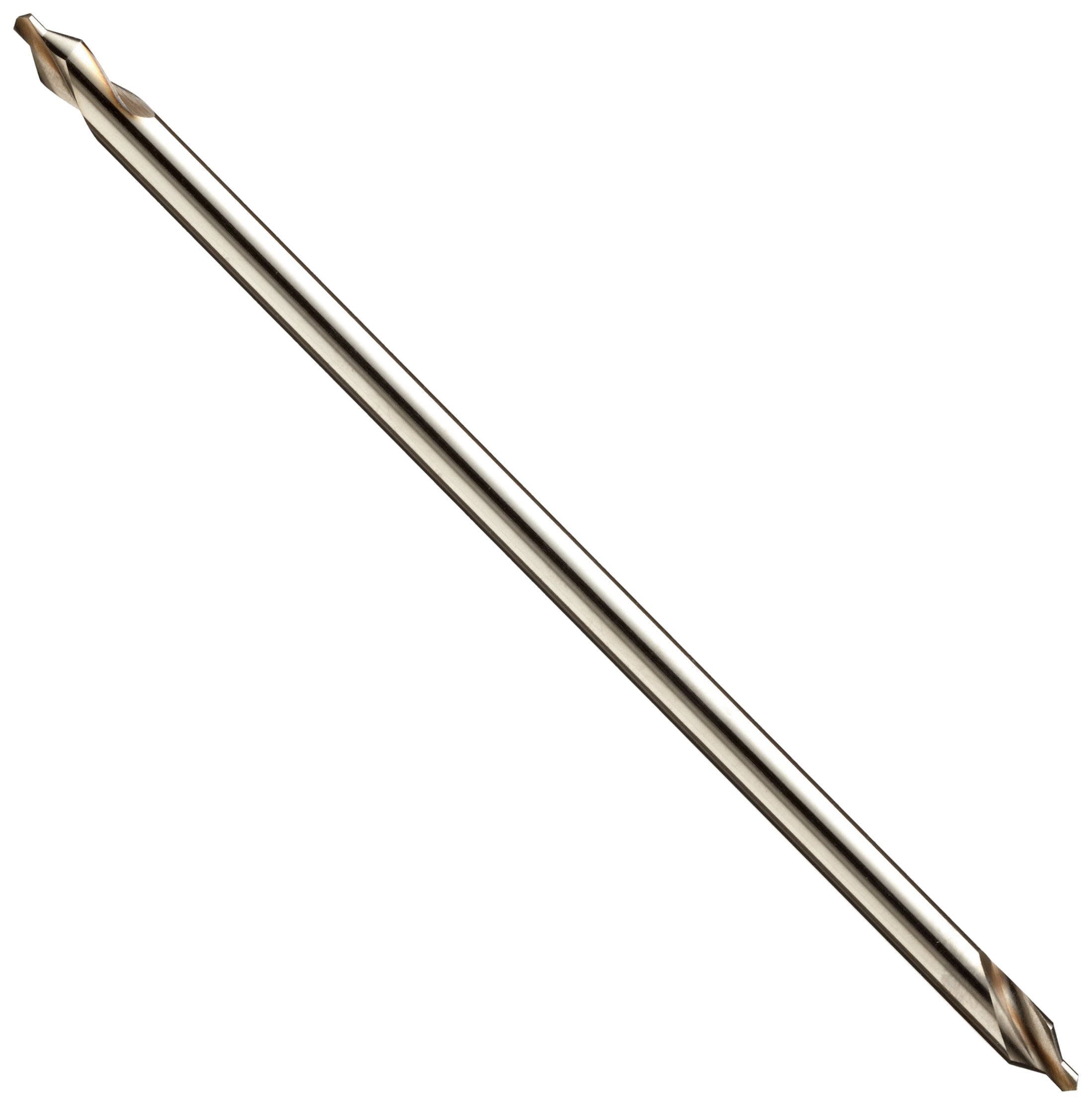

The Precision Twist 76LO extra-length bit is a round shank, center drill bit made of HSS with an uncoated finish and is used for starting a hole. It is designed for drilling to a depth up to one times the diameter of the drill. It is suitable for drilling into a wide variety of metals and synthetic materials, performing best with steel and cast iron. It is double ended with the same type of cutting edges on both ends.

The 76LO series with a 60-degree conventional point geometry should only be used to start holes; do not go deeper than the diameter of the drill bit. Recommended for use in lathes, this design creates a small starter hole, which guides the follow-up drill and prevents walking. They also create a countersink of 60 degrees. The extra length offers greater reach for hole-starting. The uncoated finish helps increase chip flow in soft materials. Spiral flutes with a right-hand twist act as a passageway for chip extraction from the hole and for coolant to enter the hole. Right-hand twist brings chips up and away from the cutting edge.

Drilling, or hole making, is the most common metalworking operation in the world. Twist drill bits are the most common type of drill bit used. Twist drill bits can be used in hand-operated drills, standalone drill presses, or a lathe. They are made to ANSI industry standards, which ensure that drill bits around the world, confirm to the same specifications.

Precision manufactures machine tools under the following brands: Precision Twist, Precision Dormer, and Union Butterfield. The company has locations around the world, and provides tools adhering to ANSI, NAS, and DIN standards.
