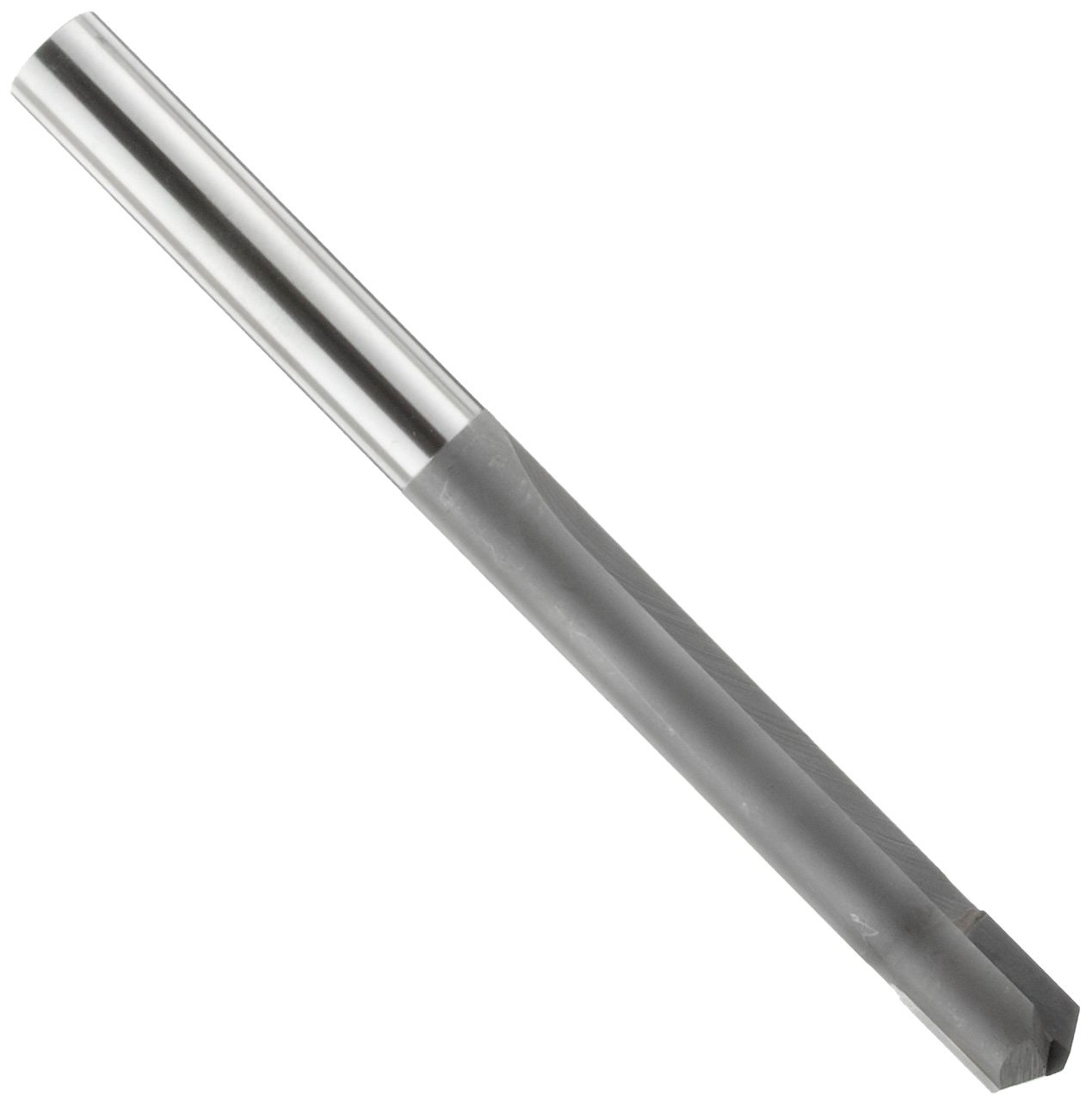

Precision Twist D000 Carbide-Tipped Die Drill Bit, Uncoated (Bright) Finish, Round Shank, Straight Flute, 118 Degree Point Angle

Be the first to review this item

Product Specifications
Cutting Direction
Right-Hand
Finish Types
Uncoated (Bright)
Shank Type
Round
Material Type
Carbide Tipped
Drill Point
Split
UNSPSC Code
20121600
Brand Name
Precision Twist
Flute Type
Straight

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Thu, Sep 18? Order in-stock items in the next 8 hrs 21 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-20 of 21 Next 1 »
Size Mfg Series # System of Measurement Flute Length Overall Length Pkg Qty Mfr Part # ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All All All
Currently showing 1-20 of 21 Next 1 »
3/16 " D000 Inch 1-1/2" 3-1/2" 1 30012 B003JTI600 yes $28.82 Buy Options
13/64" D000 Inch 1-3/4" 3-3/4" 1 30013 B003JTI5SS yes $29.41 Buy Options
7/32" D000 Inch 1-3/4" 3-3/4" 1 30014 B003JTI63W yes $29.41 Buy Options
17/64" D000 Inch 2-1/4" 4-1/4" 1 30017 B003JTI5V0 yes $31.60 Buy Options
5/16" D000 Inch 2-1/2" 4-1/2" 1 30020 B003JTI62I yes $30.79 Buy Options
21/64" D000 Inch 2-3/4" 4-3/4" 1 30021 B003JTI5WY yes $32.80 Buy Options
11/32" D000 Inch 2-3/4" 4-3/4" 1 30022 B003JTI5RE yes $32.80 Buy Options
23/64" D000 Inch 3" 5" 1 30023 B003JTI5XS yes $34.63 Buy Options
3/8 " D000 Inch 3" 5" 1 30024 B003JTI61E yes $35.28 Buy Options
25/64" D000 Inch 3" 5-1/4" 1 30025 B003JTI5YM yes $39.62 Buy Options
27/64" D000 Inch 3" 5-1/2" 1 30027 B003JTI5Z6 yes $44.93 Buy Options
7/16" D000 Inch 3" 5-1/2" 1 30028 B003JTI63C yes $44.93 Buy Options
15/32" D000 Inch 3-1/4" 5-3/4" 1 30030 B003JTI5TC yes $49.08 Buy Options
17/32" D000 Inch 3-1/2" 6" 1 30034 B003JTI5UG yes $68.92 Buy Options
9/16" D000 Inch 3-1/2" 6" 1 30036 B003JTI64G yes $68.92 Buy Options
19/32" D000 Inch 4" 7" 1 30038 B003JTI5VK yes $74.57 Buy Options
5/8" D000 Inch 4" 7" 1 30040 B003JTI632 yes $74.57 Buy Options
21/32" D000 Inch 4-1/2" 7-1/2" 1 30042 B003JTI5WE yes $78.33 Buy Options
11/16" D000 Inch 4-1/2" 7-1/2" 1 30044 B003JTI5QU yes $80.22 Buy Options
23/32" D000 Inch 4-3/4" 8" 1 30046 B003JTI5XI yes $84.36 Buy Options

Key Features

  • High speed steel (HSS) with carbide tipped cutting edges, for use on abrasive materials and wear resistance
  • Jobber-length, the most common length drill bit, is suitable for a wide range of applications

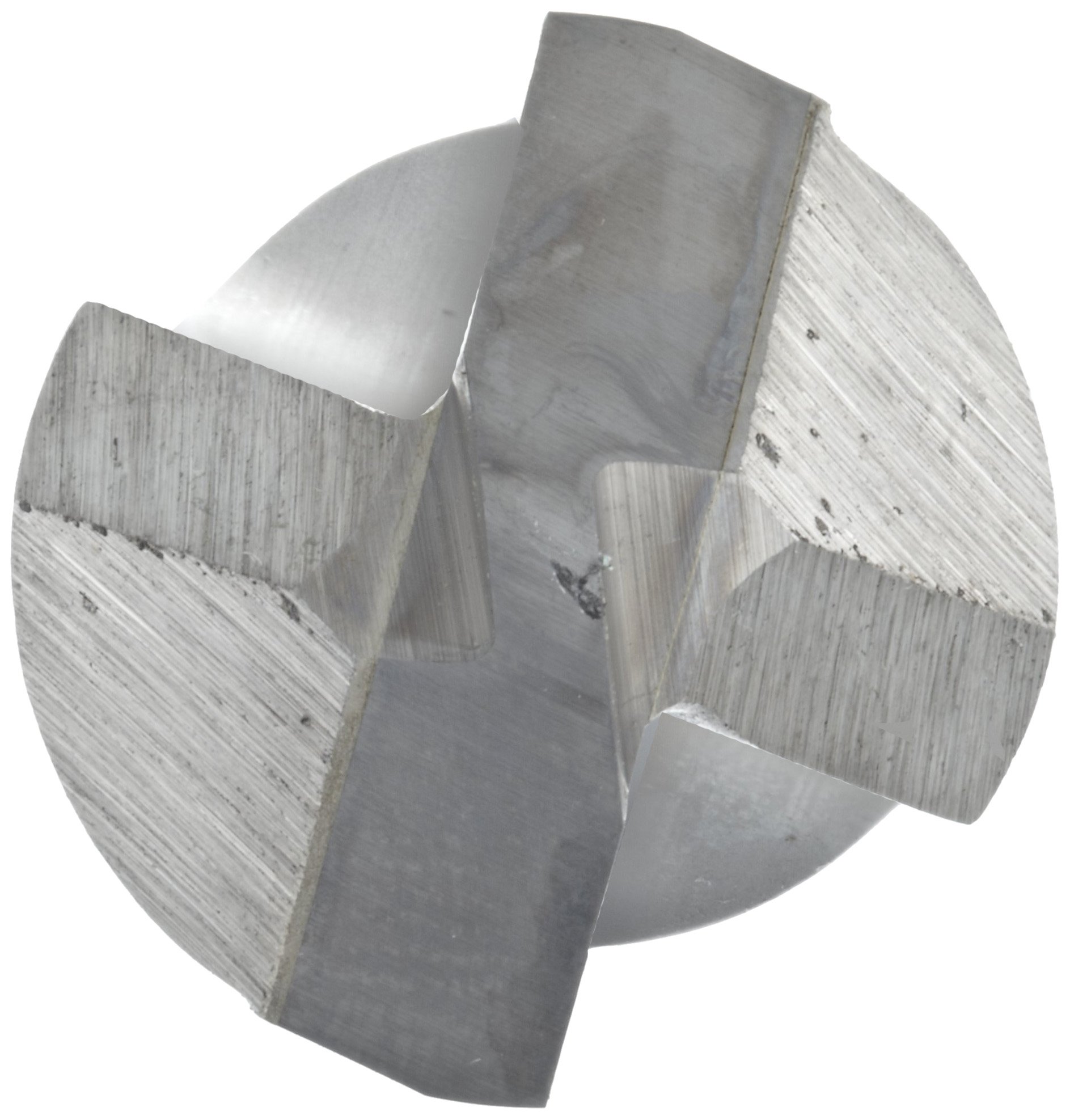

  • 118-degree split-point angles are self-centering, to reduce walking, good for hard material, and to reduce pressure on cutting edges
  • Round shanks, for use on a variety of tool-holding systems
  • Uncoated (bright), economical and useful with a wide range of drilling materials

Product Description

The Precision Twist D000 jobber-length, carbide-tipped, straight flute, round shank, die drill performs best when drilling holes into alloy steel or hardened and tempered steel. It can drill to a depth up to four times the diameter of the drill size. The shank diameter is the same as the drill size.

The D000 series has straight flutes which help prevent the bit from digging in. The uncoated finish help increase chip flow in soft materials. Round shanks allow use with a wide variety of tool holding systems.

A high speed or cobalt steel tipped with carbide, is many times harder/stiffer than high-speed steel (HSS), will hold an edge longer, will deflect less than HSS, and are more resistant to heat than HSS. These qualities allow it to run at higher speeds and feeds. They are made to ANSI industry (fractional sizing) standards, which ensure that drill bits around the world conform to the same specifications.

Drilling, or hole making, is the most common metalworking operation in the world. Twist drill bits are the most common type of drill bit used. Twist drill bits are commonly used to drill holes with hand-operated drills, standalone drill presses, or lathes. The flutes of the drill bit act a passageway for chip extraction from the hole and for coolant to enter the hole. These drill bits have a right-hand twist that brings chips up and away from the cutting edge.

Precision manufactures machine tools under the following brands: Precision Twist, Precision Dormer, and Union Butterfield. They have locations around the world, and provide tools adhering to ANSI, NAS, and DIN standards.
