Precision Brand QR-H Quick Release Partial Stainless Worm Gear Hose Clamp

Be the first to review this item

Product Specifications
Manufacturer Series Number
QR-H
Item Shape
Worm Gear
Grade
300
Material Type
Stainless Steel
Bolt Hole Size
5/16  inches
UNSPSC Code
31162906
Brand Name
Precision Brand

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Oct 27? Order in-stock items in the next 20 hrs 18 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-11 of 11
Min Diameter Max Diameter Pkg Qty Mfr Part # ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All
Currently showing 1-11 of 11
1" 2-1/4" 10 47903 B0036R4V0O yes $12.55 Buy Options
1" 4" 10 47905 B0036R4V18 yes $13.85 Buy Options
1-1/2" 3-1/2" 10 47904 B0036R4V0Y yes $7.40 Buy Options
1-3/4" 8-9/16" 10 47910 B0036R4V2C yes $21.66 Buy Options
1-3/4" 7" 10 47908 B0036R4V22 yes $17.49 Buy Options
1/2" 1-1/4" 10 47901 B0036R4V04 yes $11.69 Buy Options
2" 10" 10 47911 B0036R4V2M yes $23.39 Buy Options
2" 5" 10 47906 B0036R4V1I yes $14.57 Buy Options
2-1/16" 6" 10 47907 B0036R4V1S yes $19.94 Buy Options
2-1/16" 12-5/16" 10 47912 B0036R4V2W yes $23.91 Buy Options
3/4" 1-3/4" 10 47902 B0036R4V0E yes $12.27 Buy Options

Key Features

  • Series 300 stainless steel band helps provide resistance to corrosion
  • Zinc-plated carbon steel screw resists rust
  • Quick release screw swivels to lock or disengage the clamp
  • Band width of 1/2" for secure sealing area

Product Description

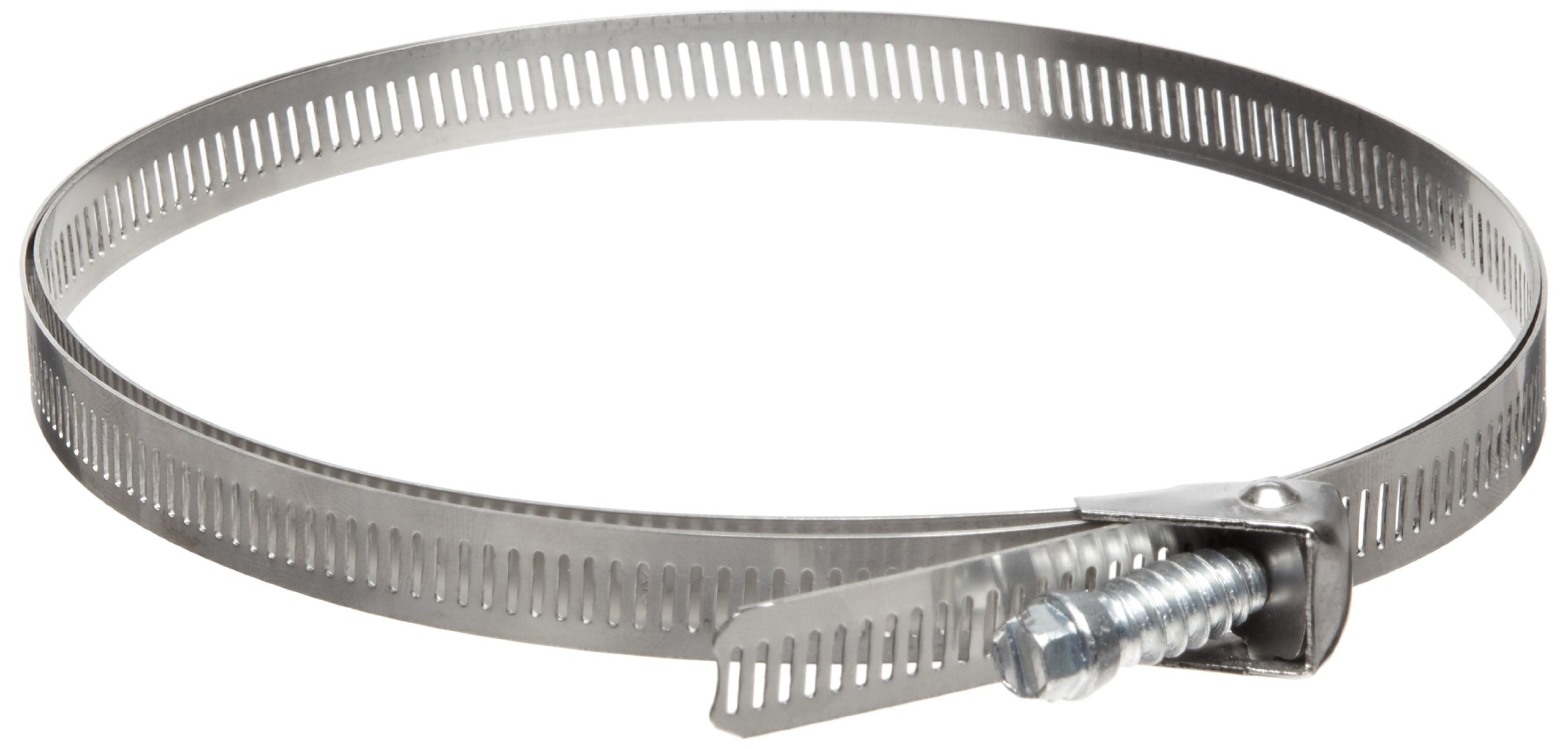

The Precision Brand QR-H series partial stainless steel quick release worm gear clamp has a stainless steel band and housing, a zinc-plated steel screw, and a mechanism that swivels to lock the clamp or disengage it for quick release. A worm gear mechanism adjusts the clamp’s diameter to precisely apply sealing pressure. The 1/2" band provides a secure sealing area. The band and housing are made of stainless steel that conforms to the Society of Automotive Engineers (SAE) 300 series standard and provides resistance to corrosion. The slotted, 5/16” hex-head screw allows installation using a blade screwdriver, nut driver, or socket wrench. The screw is made of steel that is zinc-plated for resistance to rust, and the bridge is made of SAE 400 series stainless steel for resistance to corrosion.

Hose clamps attach hoses to fittings to prevent flow leakage. They come in a variety of designs and distribute uniform pressure over the circumference of hoses to bind them to fittings. Hose clamps are suitable for a large number of industries, and commonly used in industrial, electronic, and automotive applications.

Precision Brand Products manufactures products such as hose clamps, shims, keystock, threaded rods, punch and die sets, and wire. The company, founded in 1946 and headquartered in Downers Grove, IL, meets International Organization for Standardization (ISO) standard 9001.
