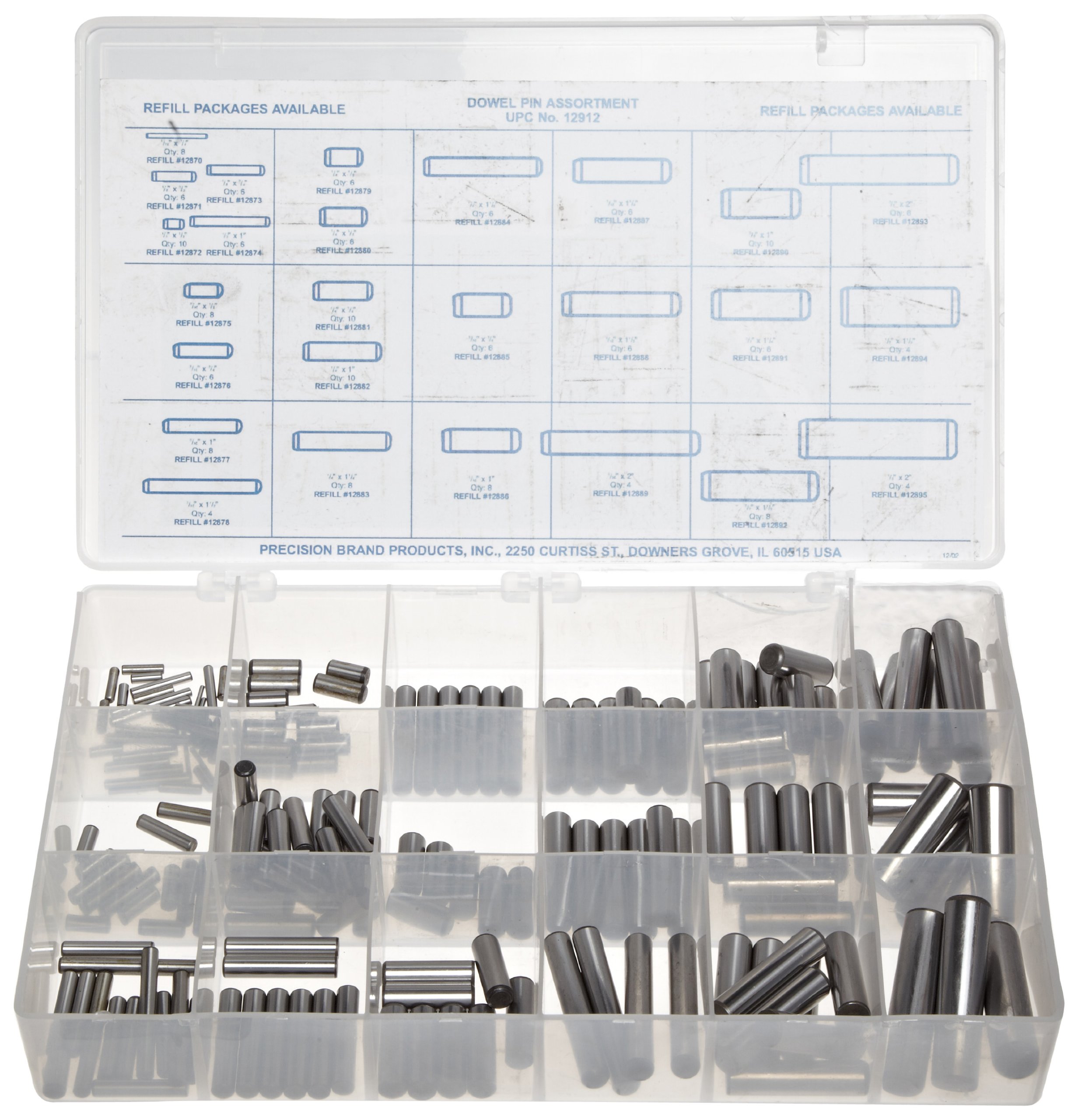

Alloy Steel Dowel Pin Assortment (176 Pieces), Plain Finish, Inch, With Case

Be the first to review this item

ASIN B00065UZKY

Specifications for this item
Number of Items
176
Material Type
Alloy Steel
Part Number
29126
UPC
698158129126
Brand Name
Small Parts
EAN
0698158129126
UNSPSC Code
31163203

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Oct 27? Order in-stock items in the next 2 hrs 32 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Assortment includes 176 dowel pins in a variety of sizes
  • Retain parts in a fixed position or to preserve alignment when additional accuracy is required
  • Made of alloy steel for strength
  • Uncoated (bright) finish has no additional surface treatment or coating
  • Comes in a compartmented plastic case for organized storage

Package Details

Shipping Weight: 4.48 pounds
Package Size: 12 x 5 x 1.63 inches

Product Description

The 176-piece alloy steel dowel pin assortment with plain finish includes dowel pins in various sizes and comes in a compartmented plastic case for storage and organization. They retain parts in a fixed position or to preserve alignment when additional accuracy is required. The pins are made from alloy steel for strength. The material is magnetic.

Pins are non-threaded cylindrical fasteners that are inserted into one or more holes to fix a component's position, join components, or maintain alignment between them. Several different pin styles fit a variety of application and installation requirements. Dowel pins, for example, have a solid shaft that is often rounded or beveled at the ends. Quick-release pins have a button, handle, or ring at one end that releases retractable balls at the other end to act as a lock-and-release mechanism. Clevis pins have a head at one end and one or more cross holes at the other end that allow insertion of cotter pins to lock components in place. Cotter pins have two prongs that can be inserted into the hole of clevis pins or other fasteners and bent to secure them in place. Taper pins are tapered consistently across the body of the pin so that one end has a slightly larger diameter than the other. Spring pins are slotted or coiled to expand to fit the diameter of a hole, which should be smaller than the diameter of the pin.

What's in the Box?

  • (8) 1/16" x 3/4" dowel pins
  • (6) 1/8" x 3/8" dowel pins
  • (10) 1/8" x 1/2" dowel pins
  • (6) 1/8" x 3/4" dowel pins
  • (6) 1/8" x 1" dowel pins
  • (8) 3/16" x 1/2" dowel pins
  • (6) 3/16" x 3/4" dowel pins
  • (8) 3/16" x 1" dowel pins
  • (4) 3/16" x 1-1/2" dowel pins
  • (6) 1/4" x 1/2" dowel pins
  • (6) 1/4" x 5/8" dowel pins
  • (10) 1/4" x 3/4" dowel pins
  • (10) 1/4" x 1" dowel pins
  • (8) 1/4" x 1-1/4" dowel pins
  • (6) 1/4" x 1-1/2" dowel pins
  • (6) 5/16" x 3/4" dowel pins
  • (8) 5/16" x 1" dowel pins
  • (6) 5/16" x 1-1/4" dowel pins
  • (6) 5/16" x 1-1/2" dowel pins
  • (4) 5/16" x 2" dowel pins
  • (10) 3/8" x 1" dowel pins
  • (6) 3/8" x 1-1/4" dowel pins
  • (8) 3/8" x 1-1/2" dowel pins
  • (6) 3/8" x 2" dowel pins
  • (4) 1/2" x 1-1/2" dowel pins
  • (4) 1/2" x 2" dowel pins
  • (1) plastic case
