Precision Brand CS-H Series Collared Screw Worm Gear Hose Clamp

Be the first to review this item

Product Specifications
Manufacturer Series Number
CS-H
Item Shape
Worm Gear
Material Type
Stainless Steel
Bolt Hole Size
3/8  inches
UNSPSC Code
31162906
Brand Name
Precision Brand

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tue, Nov 25? Order in-stock items in the next 1 day 23 hrs 22 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-14 of 14
Min Diameter Max Diameter Pkg Qty Mfr Part # ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All
Currently showing 1-14 of 14
1" 2" 10 47947 B0036R4VCW yes $12.11 Buy Options
1-1/8" 3" 10 47951 B0036R4VEK yes $14.11 Buy Options
1-5/16" 3-1/4" 10 47952 B0036R4VEU yes $17.44 Buy Options
1-5/16" 2-1/4" 10 47948 B0036R4VDG yes $12.21 Buy Options
1-5/8" 3-1/2" 10 47953 B0036R4VF4 yes $17.43 Buy Options
1-7/8" 3-3/4" 10 47954 B0036R4VFO yes $17.53 Buy Options
1-9/16" 2-1/2" 10 47949 B0036R4VE0 yes $12.21 Buy Options
1/2" 1-1/4" 10 47944 B0036R4VBI yes $11.95 Buy Options
2-1/8" 4" 10 47955 B0036R4VFY yes $17.53 Buy Options
3/4" 1-3/4" 10 47946 B0036R4VCM yes $13.82 Buy Options
3/4" 1-1/2" 10 47945 B0036R4VC2 yes $12.03 Buy Options
3/8" 7/8" 10 47941 B0036R4VAO yes $11.95 Buy Options
7/16" 1" 10 47942 B0036R4VAY yes $11.95 Buy Options
7/8" 2-3/4" 10 47950 B0036R4VEA yes $12.43 Buy Options

Key Features

  • Series 300 stainless steel band helps provide resistance to corrosion in marine environments
  • Zinc-plated carbon steel screw resists rust
  • Collared and slotted hex-head screw helps reduce risk of hose damage from screwdriver slippage
  • Band width of 9/16" provides greater sealing area than standard-sized band

Product Description

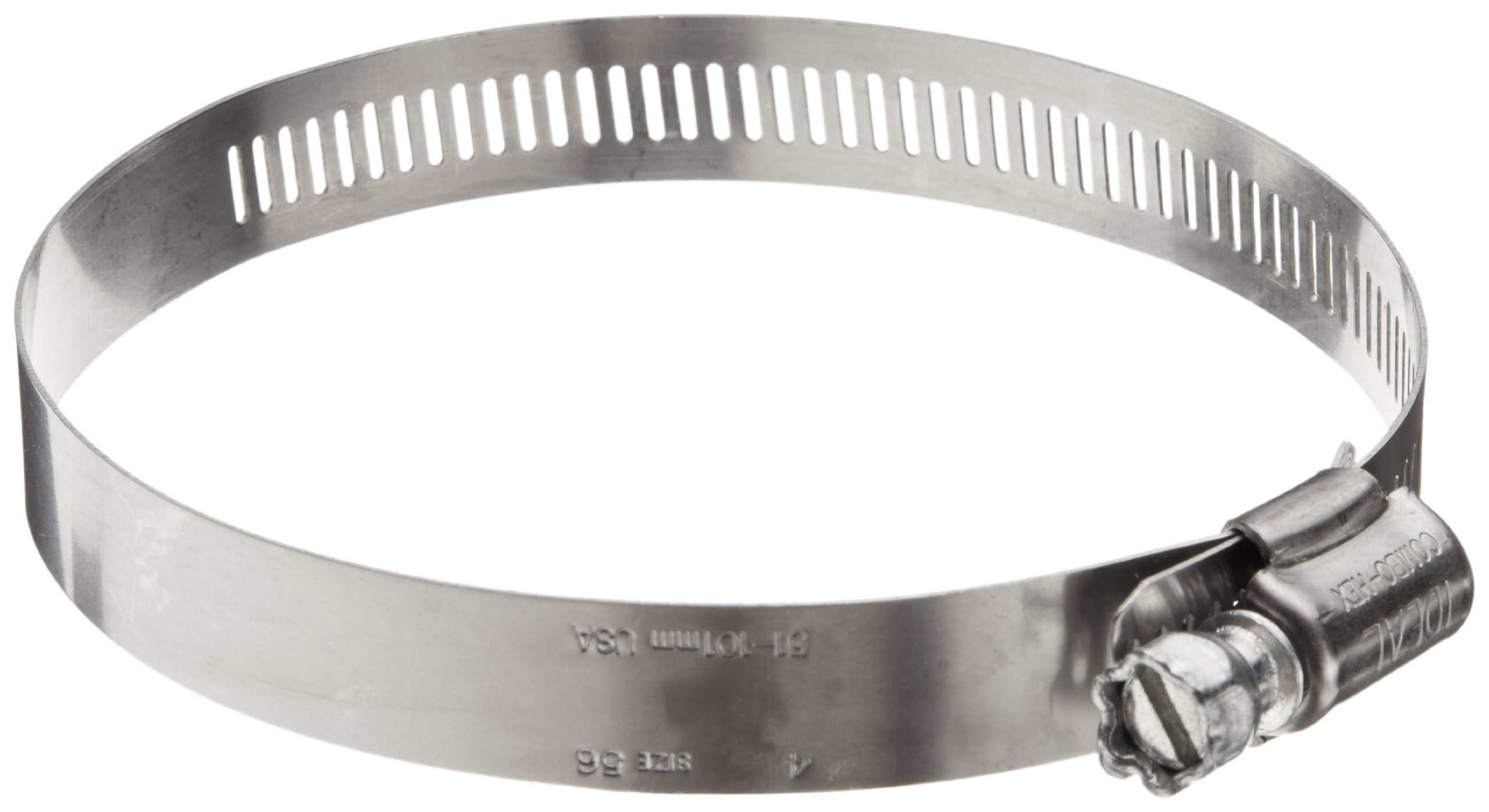

The Precision Brand C-H series collared screw worm gear clamp has a series 300 stainless steel band and housing, and a zinc-plated steel screw that is collared to help reduce the risk of hose damage from screwdriver slippage. A worm gear mechanism adjusts the clamp’s diameter to precisely apply sealing pressure. The band’s 9/16” width provides a greater sealing area than clamps of smaller width. The band, housing and screw are made of stainless steel that conforms to the Society of Automotive Engineers (SAE) 300 series standard and provides resistance to corrosion in marine environments. The slotted, 5/16” hex-head screw allows installation using a blade screwdriver, nut driver, or socket wrench. The screw is made of carbon steel that is zinc-plated for resistance to rust.

Hose clamps attach hoses to fittings to prevent flow leakage. They come in a variety of designs and distribute uniform pressure over the circumference of hoses to bind them to fittings. Hose clamps are suitable for a large number of industries, and commonly used in industrial, electronic, and automotive applications.

Precision Brand Products manufactures products such as hose clamps, shims, keystock, threaded rods, punch and die sets, and wire. The company, founded in 1946 and headquartered in Downers Grove, IL, meets International Organization for Standardization (ISO) standard 9001.
