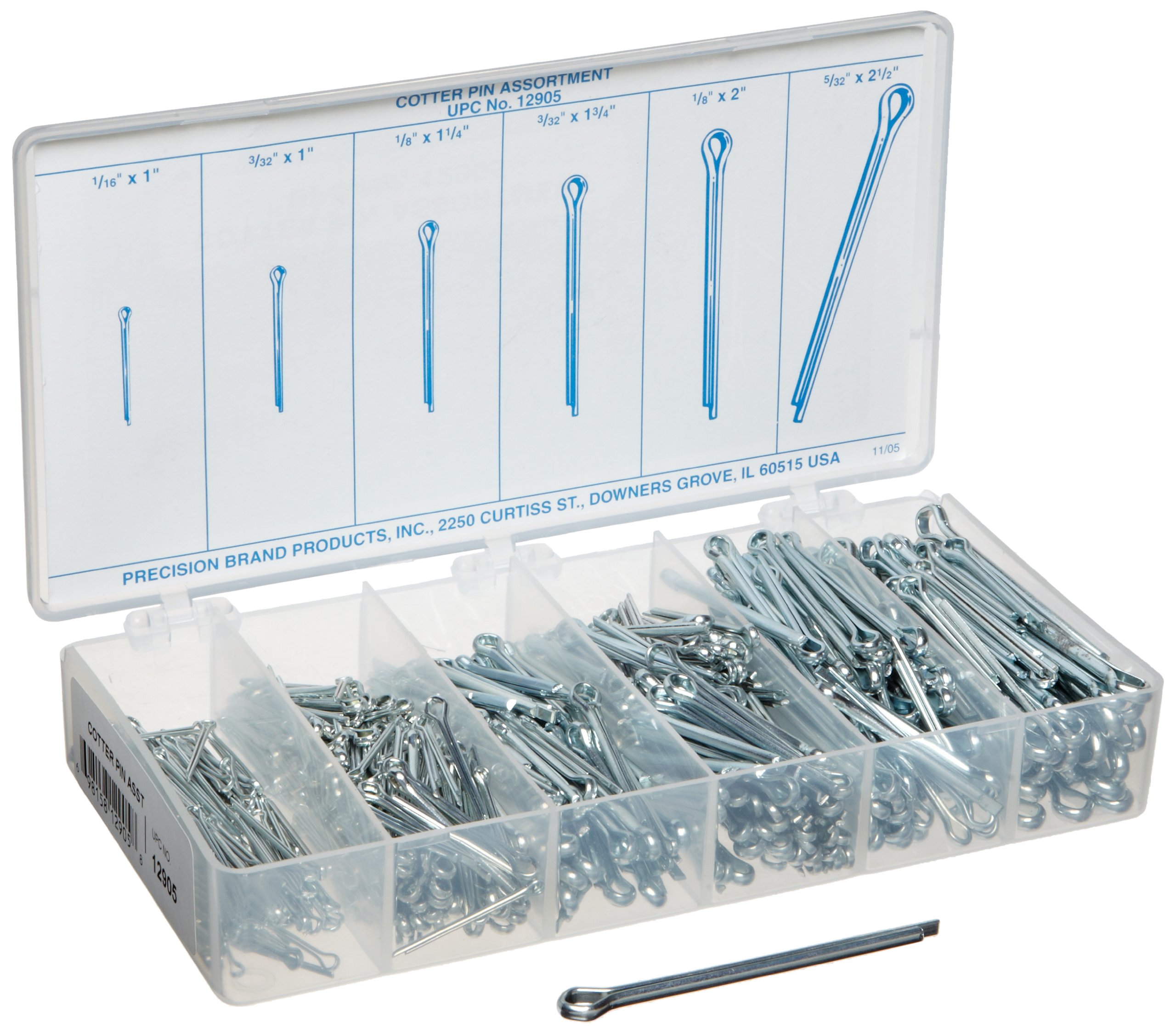

Steel Cotter Pin Assortment (600 Pieces), Zinc Plated Finish, Inch, With Case

Be the first to review this item

ASIN B00065UZEK

Specifications for this item
Number of Items
600
External Testing Certification
0
Material Type
Steel
Part Number
29058
Item Weight
2.3 pounds
UPC
698158129058
Brand Name
Small Parts
EAN
0698158129058
UNSPSC Code
31163204

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Jul 28? Order in-stock items in the next 6 hrs 13 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Assortment includes 600 cotter pins in a variety of sizes
  • One prong is extended for insertion and bending
  • Made of steel for strength and toughness
  • Zinc plating offers corrosion resistance and a reflective appearance
  • Comes in a compartmented plastic case for organized storage

Package Details

Shipping Weight: 2.8 pounds
Package Size: 8.1 x 4.1 x 1.4 inches

Product Description

The 600-piece zinc plated steel cotter pin assortment includes cotter pins in various sizes and comes in a compartmented plastic case for storage and organization. Each pin has one prong extended for insertion and bending, and has a chisel point end. The pins are made from steel for strength. The material is magnetic. The zinc plating offers corrosion resistance and a reflective appearance.

Pins are non-threaded cylindrical fasteners that are inserted into one or more holes to fix a component's position, join components, or maintain alignment between them. Several different pin styles fit a variety of application and installation requirements. Dowel pins, for example, have a solid shaft that is often rounded or beveled at the ends. Quick-release pins have a button, handle, or ring at one end that releases retractable balls at the other end to act as a lock-and-release mechanism. Clevis pins have a head at one end and one or more cross holes at the other end that allow insertion of cotter pins to lock components in place. Cotter pins have two prongs that can be inserted into the hole of clevis pins or other fasteners and bent to secure them in place. Taper pins are tapered consistently across the body of the pin so that one end has a slightly larger diameter than the other. Spring pins are slotted or coiled to expand to fit the diameter of a hole, which should be smaller than the diameter of the pin.

What's in the Box?

  • (130) 1/16" x 1" cotter pins
  • (100) 1/8" x 1-1/4" cotter pins
  • (80) 1/8" x 2" cotter pins
  • (150) 3/32" x 1" cotter pins
  • (100) 3/32" x 1-3/4" cotter pins
  • (40) 5/32" x 2-1/2" cotter pins
  • (1) plastic case
