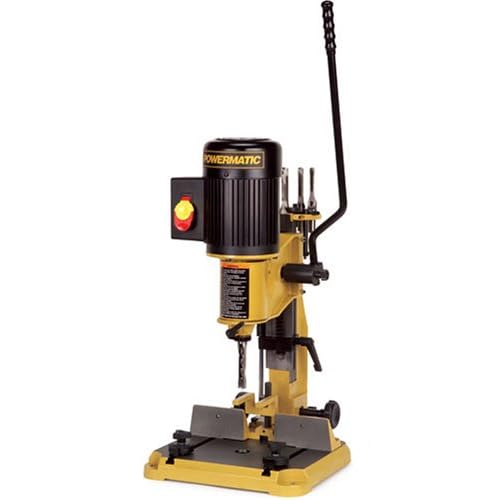

Powermatic 1791310 PM701 Benchtop Deluxe Mortiser

Be the first to review this item


Specifications for this item
Part Number
Brand Name
115.00  Volts
Power Source Type

This item is no longer available

This item is NOT eligible for "Free Standard Shipping on orders over $50.00" promotion. (Details)

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List

You can add a description later

Key Features

  • 3/4-horsepower bench mortiser with 1/2-inch chuck, in-line depth stop, and 5/8- and 3/4-inch bushing sizes
  • Operates up to 1,725 rpm, 5-1/2-inch head stroke capacity, reversible handle for left/right-hand operation
  • Some assembly required
  • Includes mortiser, 3/4-inch chisel bushing, chuck extension adaptor, chuck key, and handle
  • 16-5/16-by-13/3-4-inch base; 93-pounds; 1-year warranty

Package Details

Shipping Weight: 90.2 pounds
Package Size: 24.2 x 19.2 x 17.3 inches

Product Description

From the Manufacturer

The Powermatic Model 701 benchtop deluxe mortiser is powered by a 3/4-horsepower, 115-volt motor that runs at 1725 rpm and has a chuck capacity of 1/2-inch. The head-stroke capacity is 5-1/2-inches and the chisel center to fence is 4-3/8-inch with a chisel capacity up to 3/4-inch. There is an in line depth stop whichallows you to stop at pre-set depths without racking the drill bit to the base. The heavy-duty handle is reversible and can be changed from one side to the other and does not require any special tools, great for the left handed woodworkers out there. The stock hold down features a double lock system to eliminate any slippage when removing the chisel from the work-piece. The fence has a quick action cam lock to make positioning simple. Large hinged chuck door with magnetic catchallows you to easily access the drill chuck with the standard 4-inch chuck key. The fence is adjusted with by a rack and pinion system.
