Posi Lock PMI6 Internal Slide Hammer Puller Set

Be the first to review this item

ASIN B00207T6MY

Specifications for this item
Number of Items
1
Part Number
PMI6
UPC
733477003198
Brand Name
Posi Lock
EAN
0733477003198
List price:
$485.00
Price:
$298.11
You save:
$186.89 (39%)
Quantity:

In Stock (3)

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Apr 21? Order in-stock items in the next 1 day 5 hrs 48 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Internal slide puller set for extraction of shaft-fitted parts, including bearings, bushings, gears, and pulleys
  • Steel to help prevent rust and corrosion
  • 105 puller has a 2.8" reach and a 0.56 to 4" spread range for increased pulling leverage
  • Suitable for removal of crankshaft pilot bearings, bearing cups, needle bearings, bushings, seals and grease retainers

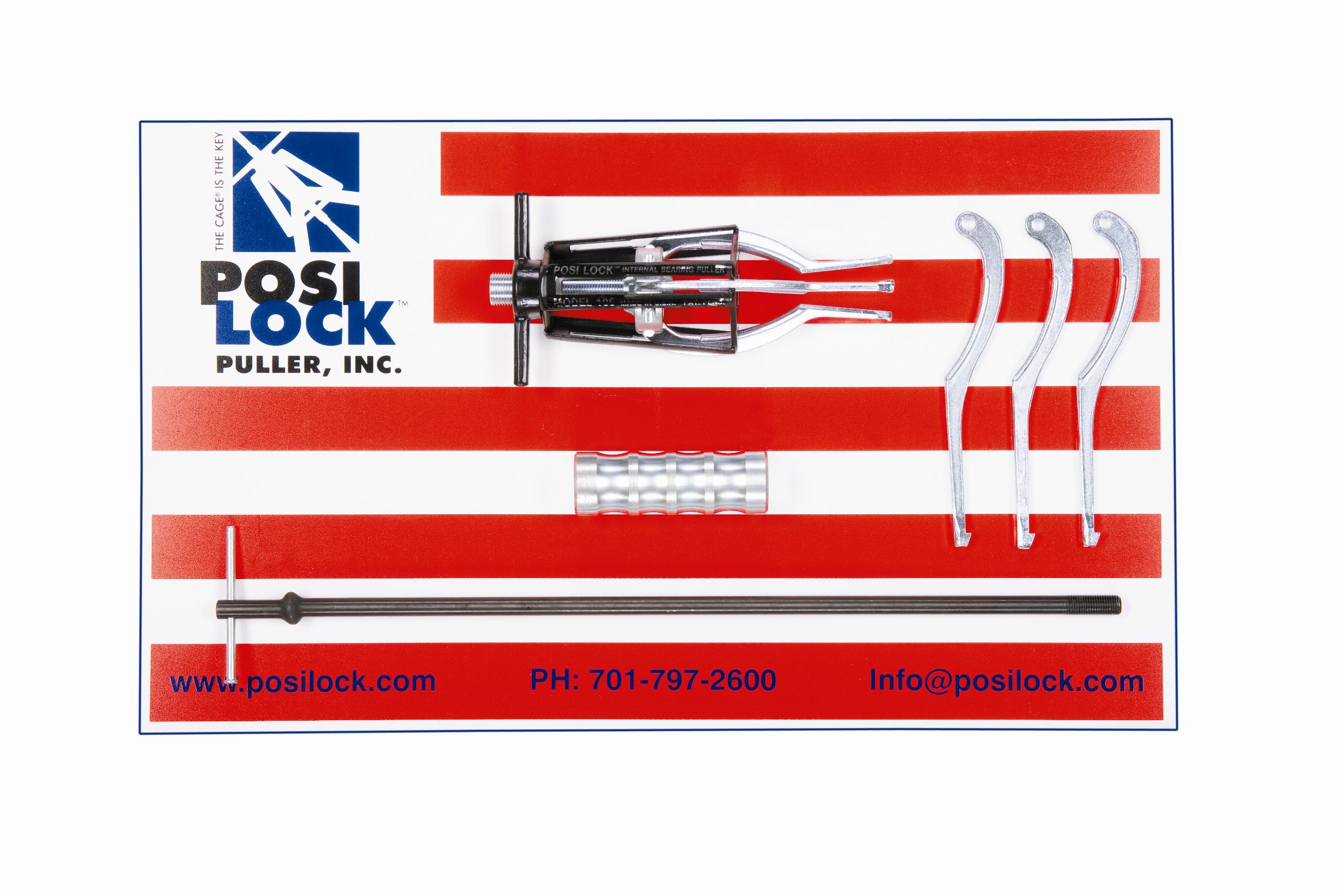

  • Set includes a 105 three-jaw internal puller, 10561 slide rod, 10562 hammer, L5 set of internal long jaws, and a tool board with hooks

Package Details

Shipping Weight: 13.2 pounds
Package Size: 28.3 x 16.7 x 6.5 inches

Product Description

This Posi Lock PMI6 internal slide hammer puller set is for extraction of shaft-fitted parts (bearings, bushings, gears, and pulleys) from housings or shafts where the fit is on the outer edge, reducing the force required to dismount the part. The puller and accessories are constructed of steel to help prevent rust and corrosion. This set includes a 105 three-jaw internal puller, 10561 slide rod and 10562 hammer for additional pulling power, an L5 set of internal long jaws for additional length, and a plastic tool board with hooks for hanging the pullers and accessories on the wall. This Posi Lock puller set is suitable for extracting crankshaft pilot bearings, bearing cups, needle bearings, bushings, seals and grease retainers in applications in the automotive, agricultural, and manufacturing industries.

Specifications

Reach2.8”
Spread range0.56 to 4”
Tool board16 x 26 inches/406 x 660mm (H x W)

(H is height, the vertical distance from lowest to highest point; W is width, the horizontal distance from left to right. Hardware is included.)

Gear and bearing pullers are tools designed to remove mechanical, press-fit parts, such as bearings, bushings, gears, and pulleys, from a shaft, or to remove a shaft from inside a hole. Pullers have three main parts—the center bolt, gripping jaws, and T-handle—and can be operated manually or hydraulically. The jaws of the puller form a claw that grips the edge of the gear, which is pulled off the shaft when the screw is turned. Pullers are typically configured with two or three jaws and can be constructed of iron, steel, or other alloyed metal. Pullers can be used manually or can be powered by a hydraulic cylinder, adding speed and precision, and reducing the physical labor required for pulls. With a hydraulic puller, compressed air is forced through the cylinder by a pump that is either connected by hose to the puller or is integral to it. Pullers are used in hundreds of applications in the automotive, agricultural, and manufacturing industries, among others.

Posi Lock manufactures pulling jaws, vises, and specialty tools. The company, founded in 1978, is headquartered in Cooperstown, ND and meets International Organization for Standardization (ISO) 9002:1994 standards.

What’s in the Box?

  • 105 puller
  • 10561 slide rod
  • 10562 hammer
  • L5 set of internal long jaws
  • Tool board with tool hooks and hanging screws
