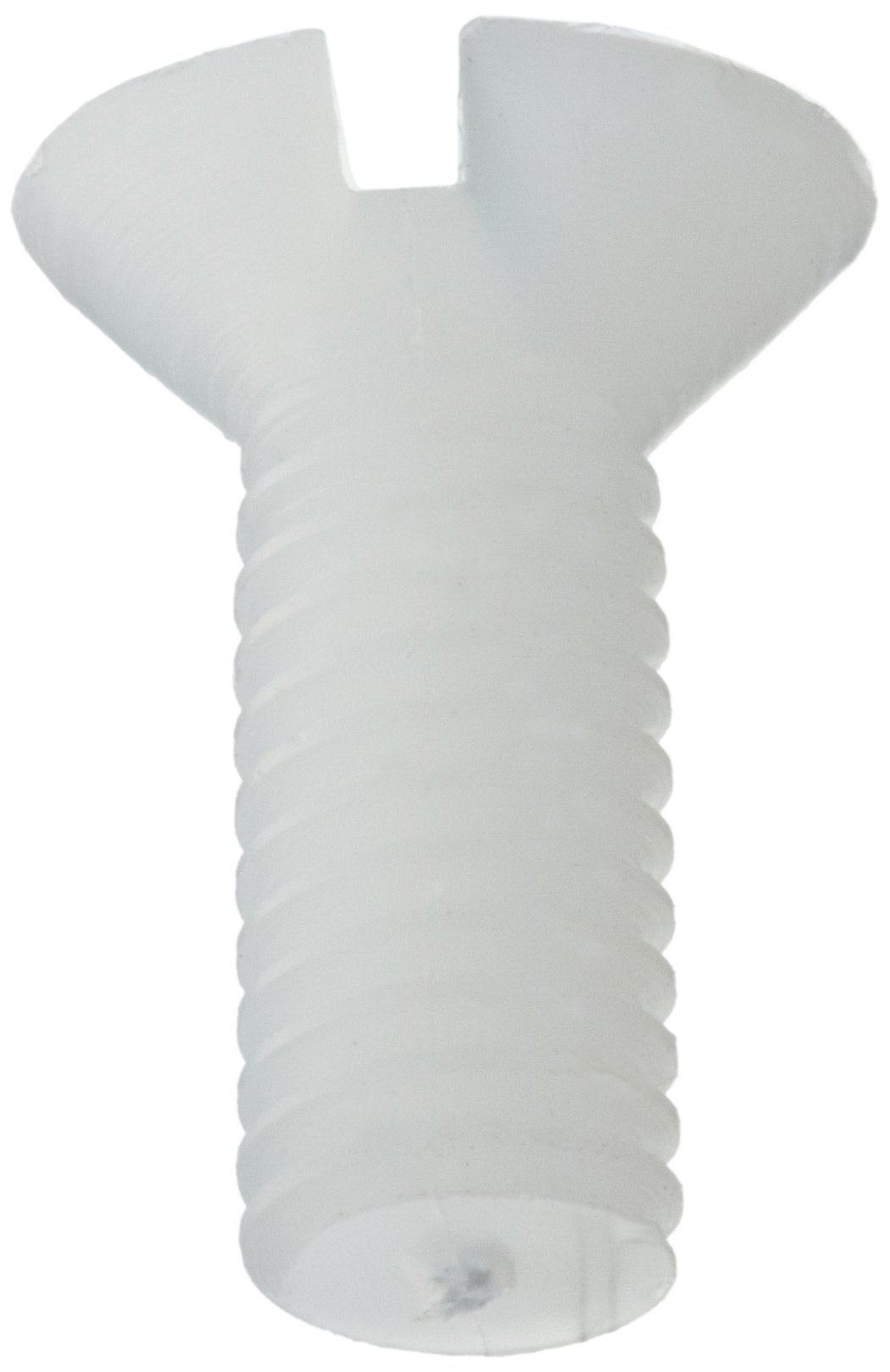

Polypropylene Machine Screw, Flat Head, Slotted Drive
Be the first to review this item
Product Specifications
- Brand Name
- Small Parts
- Drive Style
- Slotted
- Exterior Finish
- Plain
- Head Angle
- 82 Degrees
- Head Style
- Flat
- Material Type
- Polypropylene (PP)
- Part Number
- B003R7JDGK
- Self Locking Mechanism
- None
- System of Measurement
- Inch
- Thread Style
- Right Hand
Free Standard Shipping! on orders over $50.00.
(limited-time offer, certain restrictions apply)
(Details)
Key Features
- Machine Screws are often used with nuts or driven into tapped holes
- Polypropylene is suitable for applications where resistance to chemicals and water (including steam) is important
- Flat head style allows fastener to sit flush to the surface
- Driven by a flat-bladed driver
Product Description
Machine Screws, also referred to as Machine Bolts, are often used with nuts or driven into tapped holes. They come in a variety of head types and drive styles, but are generally available in smaller sizes.
Polypropylene is a thermoplastic which is autoclavable (meaning that it can be sterilized using steam), and is non-hydroscopic (it won't absorb water even after extended periods of contact). Polypropylene has excellent chemical resistance to dilute acids, concentrated acids (except oxidizing acids), alkalis, alcohols, detergents, and water. Polypropylene resists aromatic hydrocarbons, chlorinated hydrocarbons, greases, and oils at room temperature. Maximum operating temperature is 212 degrees Fahrenheit. Polypropylene has a low co-efficient of friction and a high dielectric strength (meaning it operates well as an insulator). Polypropylene has approximately half the tensile strength and impact strength of Nylon 6/6. The tensile strength of Polypropylene is 5000 psi (pounds per square inch). Impact Strength, as measured by the Izod impact test method (which measures force required to break material) is 0.5 pounds per foot.
Flat head fasteners are designed to fit flush to the surface when used with countersunk holes. Length is measured from the top of the head. Common applications for slotted screws include woodworking, although the drive style is not designed to be used with power drivers.
A threaded fastener's size name includes information about the major external diameter, followed by the threads per inch, which indicates if it is coarse or fine. Fine threads are preferable when working with harder materials or when threading into a thin material. They are also stronger in tension than coarse threads, and generally provide higher shear strengths.
