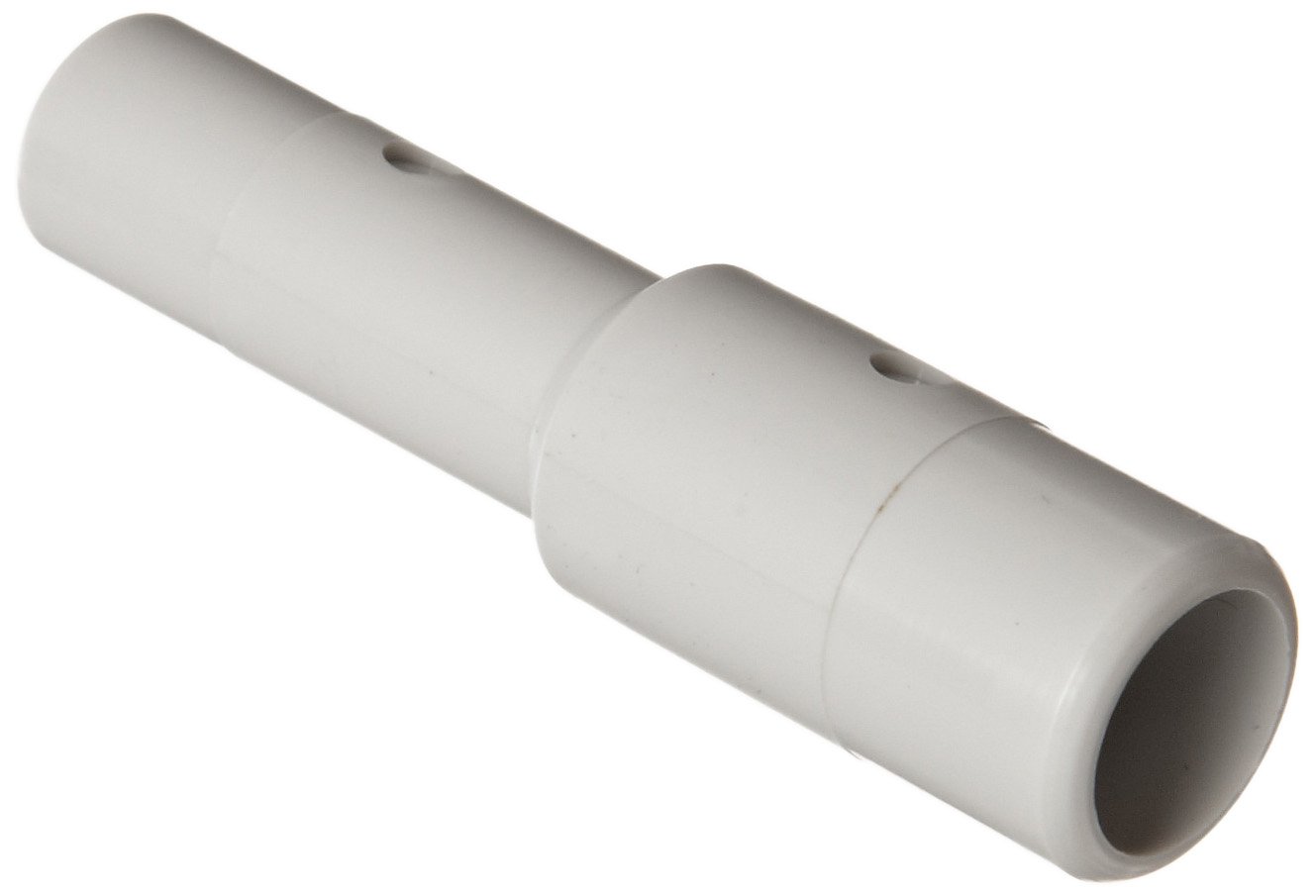

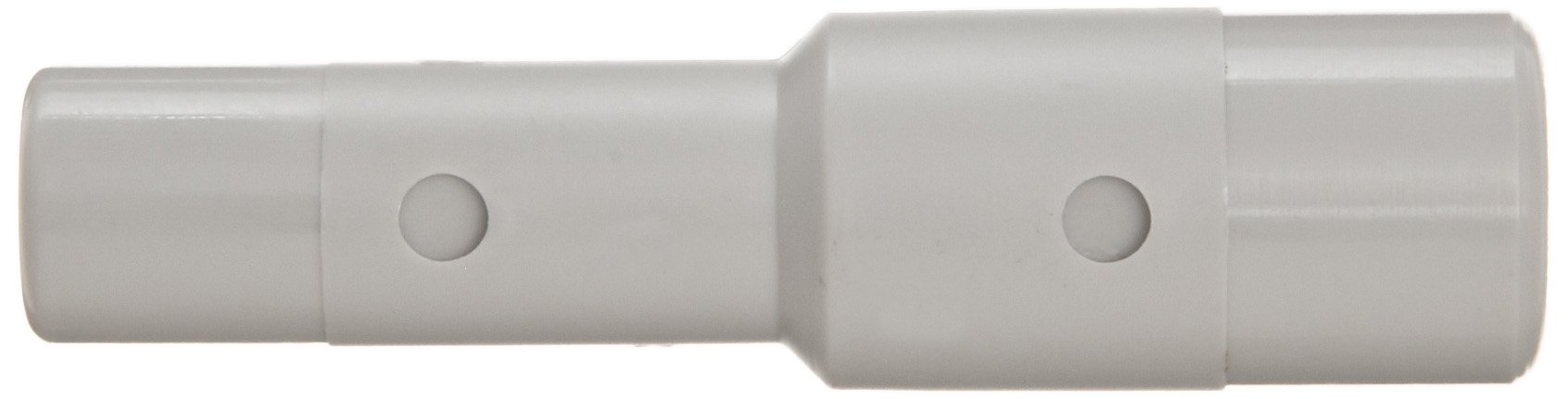

SMC KQ2 Series Polybutylene Terephthalate Push-to-Connect Tube Fitting, Reducer Nipple, Tube OD, White

Be the first to review this item

Product Specifications
Upper Temperature Range
60  Degrees Celsius
Item Shape
Reducer Nipple
Material Type
PBT (Polybutylene Terephthalate)
Color Name
White
Maximum Pressure
145  PSI
UNSPSC Code
40183100
System of Measurement
Inch
LowerTemperature Range
-5  Degrees Celsius

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Fri, Sep 19? Order in-stock items in the next 20 hrs 15 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-6 of 6
Size name ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All
Currently showing 1-6 of 6
1/4" x 3/8" B0065RDHMA yes $1.15 Buy Options
1/4" x 5/16" B0065RDW2A yes $1.10 Buy Options
1/8" x 5/32" B0065RIQ08 yes $1.00 Buy Options
3/8" x 1/2" B0065RO2EW yes $3.30 Buy Options
5/16" x 1/2" B0065RR4G0 yes $3.25 Buy Options
5/32" x 1/4" B0065RRMSA yes $3.29 Buy Options

Key Features

  • Reducer nipple for connecting two pipes or fittings with different diameters
  • Accepts nylon and polyurethane tube fittings
  • Made of polybutylene terephthalate (PBT) for resistance to solvents, shrinkage, heat, and impact
  • Working pressure of up to 145 psi
  • Operating temperature ranges from -5 to 60 degrees C

Product Description

The SMC KQ2 series reducer nipple fitting is made of polybutylene terephthalate (PBT) and has tube connectors. This reducer nipple fitting is for connecting pipes or fittings with different diameters. It is a push-to-connect fitting that accepts the insertion of nylon, soft nylon and polyurethane tube fittings. The fitting is made of polybutylene terephthalate (PBT), which is a polymer resistant to solvents, shrinkage, heat, and impact, and it can be treated to increase resistance to UV and flammability. The working pressure for this fitting is up to 145 pounds per square inch (psi), and its operating temperature ranges from -5 to 60 degrees C.

Pipe fittings are components used for connecting, terminating, controlling flow, and changing the direction of piping in many different industries. Push-to-connect compression fittings do not require tools or sealants, and are useful in installations where a heat source, such as a soldering torch, is prohibited. When purchasing pipe fittings, consider the application, as this will affect material type, shape, size, and required durability. Fittings are available threaded or unthreaded, in many shapes, styles, sizes, and schedules (pipe wall thickness).

SMC Corporation manufactures actuators, valves, airline equipment, connector fittings, electrical products, vacuum products, dryers, temperature control chillers, and accessories. SMC Corporation of America is headquartered in Noblesville, IN, and meets International Organization for Standardization (ISO) 9000:2000 standards.
