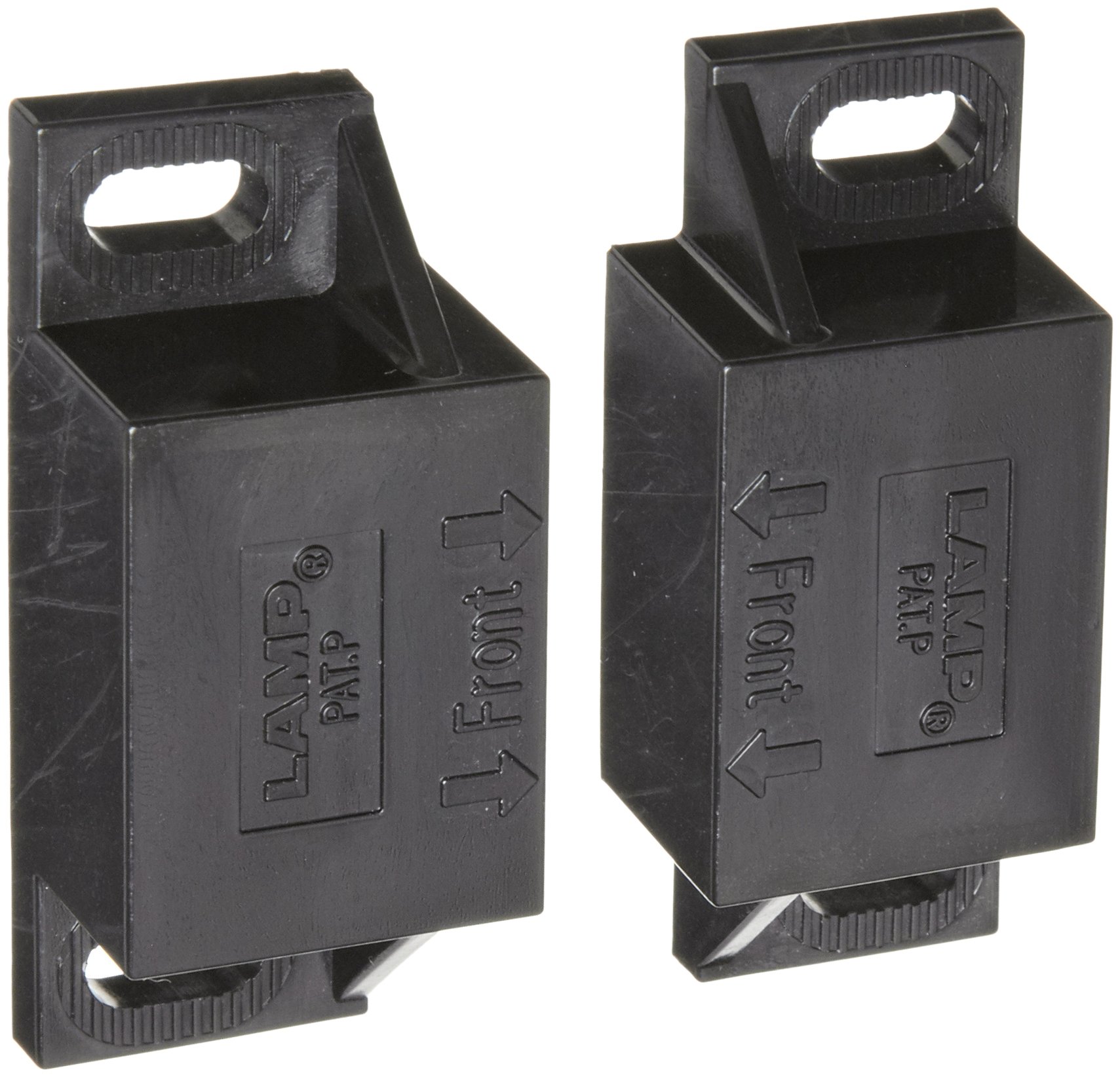

Polyacetal Surface Mount Sealed Magnetic Catch

Be the first to review this item

Product Specifications
Mounting Type
Surface Mount
Material Type
POM (Polyoxymethylene)
UNSPSC Code
31162421
Brand Name
Small Parts

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Thu, Sep 4? Order in-stock items in the next 23 hrs 53 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-2 of 2
Pull Power Catch Length Catch Width Screw Size Catch Center to Center Pkg Qty ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All All All
Currently showing 1-2 of 2
6.6 lbs 1-31/32" 53/64" 4.4 mm 1.17" 2 B006WBNPZI yes $15.47 Buy Options
6.6 lbs 1-31/32" 53/64" 4.4 mm, 9 mm 1.17" 2 B006WBNQO8 yes $16.62 Buy Options

Key Features

  • Body material: polyacetal
  • Safety catch: yes
  • Comes with screws: no
  • Screw size: 4.4mm
  • Locking type: non-locking

Product Description

Hermetically sealed magnetic catch. Ideal for high corrosion resistance. No metal-to-metal contact. Strong magnetic force. Application for cleanroom and water environment. Screws not included. Recommended screw size: M4 binding head. RoHS Compliant. Neodymium magnet. Adjustable: no. Safety catch: yes. Locking type: non-locking. White color. Polyacetal catch with white color. Screw size: 4.4mm. Applicable for 304 and 430 stainless steel strike sold separately. 304 SS (MC-JM49) strike measures 1-59/64" length by 19/32" width by 5/64" height, 430 SS (AS-68) strike measures 2-43/64" length by 45/64" width by 5/64" height and polypropylene (MC-JMP45) 1-49/64" length by 43/64" width by 7/32" height.
