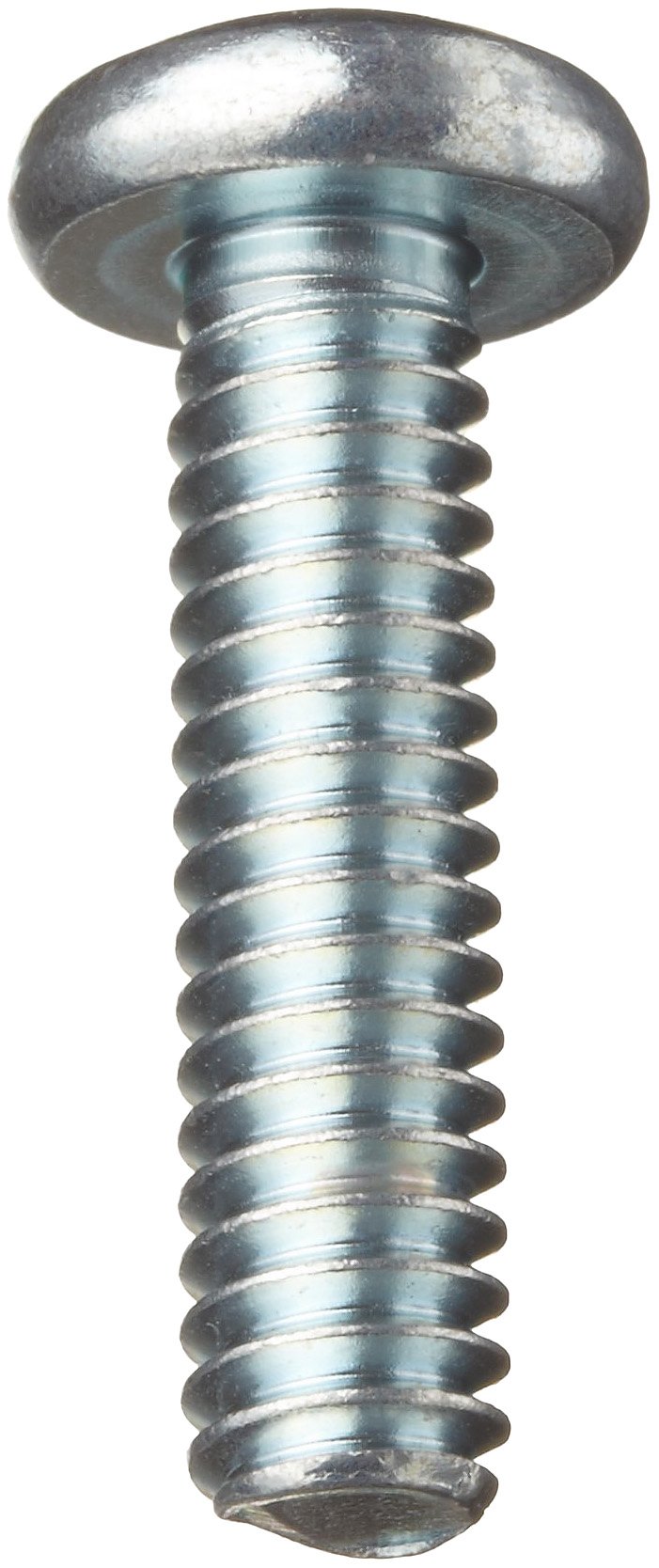

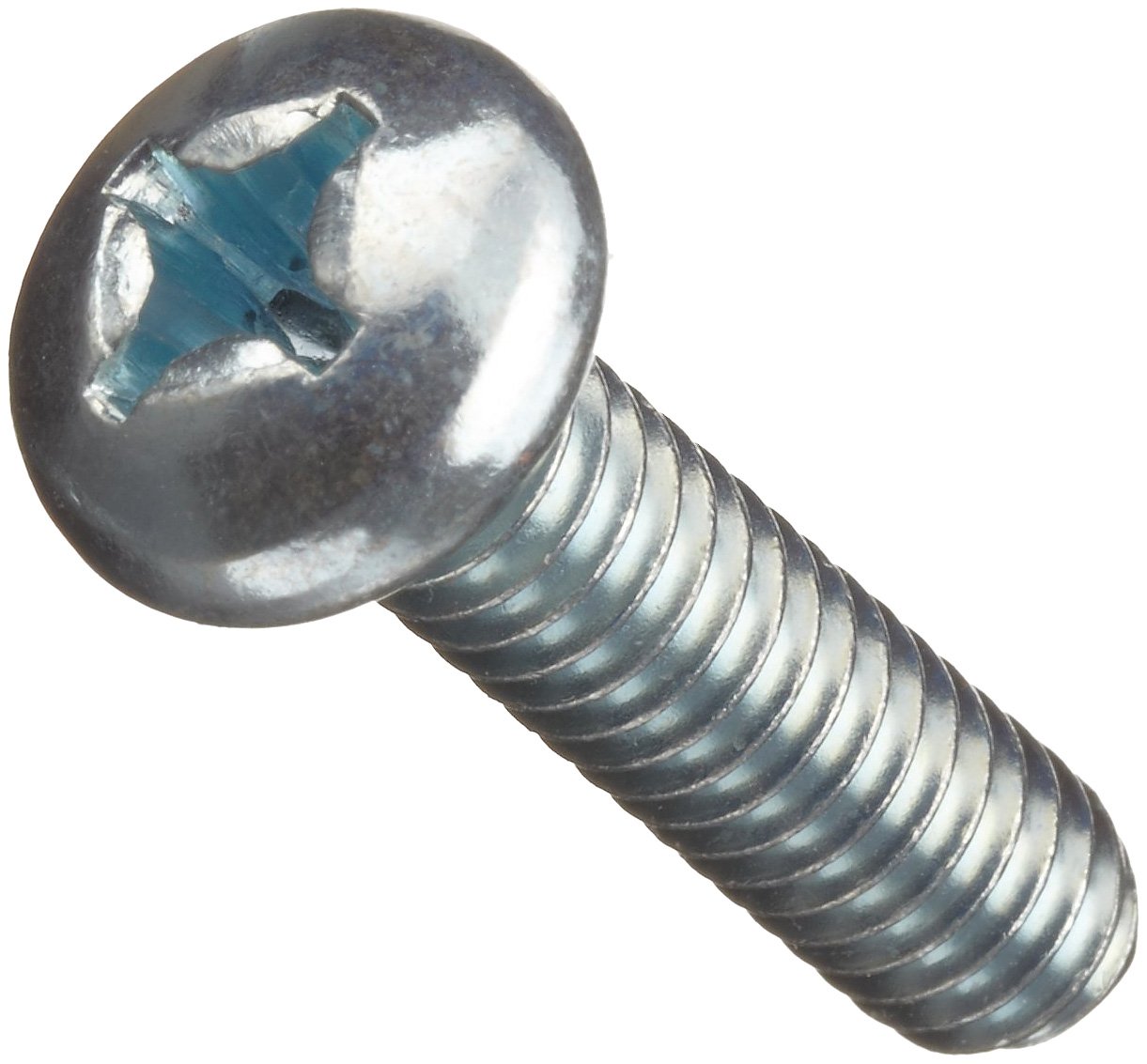

ASME B18.6.3 Zinc Plated Steel Pan Head Machine Screw, Phillips Drive
Be the first to review this item
ASIN B003R7JF3G
Specifications for this item
- Brand Name
- Small Parts
- Color Name
- Silver
- Drive Style
- Phillips
- Exterior Finish
- Zinc Plating
- Head Height
- 0.044 inches
- Head Style
- Pan
- Material Type
- Steel
- Part Number
- B003R7JF3G
- Self Locking Mechanism
- None
- Specification Met
- ASME B18.6.3
- System of Measurement
- Inch
- Thread Class
- 2A
- Thread Style
- Right Hand
This item is no longer available
This item is NOT eligible for "Free Standard Shipping on orders over $50.00" promotion. (Details)
Key Features
- Machine Screws are often used with nuts or driven into tapped holes
- Zinc Plated Steel fasteners are suitable where strength and corrosion resistance are primary considerations
- Pan head allows for higher tightening torques
- Phillips drive is designed to cam out under too much torque
Product Description
Machine Screws, also referred to as Machine Bolts, are often used with nuts or driven into tapped holes. They come in a variety of head types and drive styles, but are generally available in smaller sizes.
Steels are designated by a 4 number SAE Steel grade. The first two digits indicate the primary materials used to form the steel. The last 2 digits identify the percentage of carbon for the alloy (in hundredths). The steel used in these fasteners has a tensile strength ranging from 100,000 to 150,000 psi (pounds per square inch). Zinc Plating helps to prevent corrosion.
Pan head fasteners have a low, large cylindrical head with a high rounded top edge for higher tightening torques - these fasteners are often recommended to replace older head styles such as round, binding, or truss-head where possible. The Phillips drive style was originally designed so that the driver would slip out under extreme torque, preventing over-tightening and damage to the fastener or the material.
A threaded fastener's size name includes information about the major external diameter, followed by the threads per inch, which indicates if it is coarse or fine.
