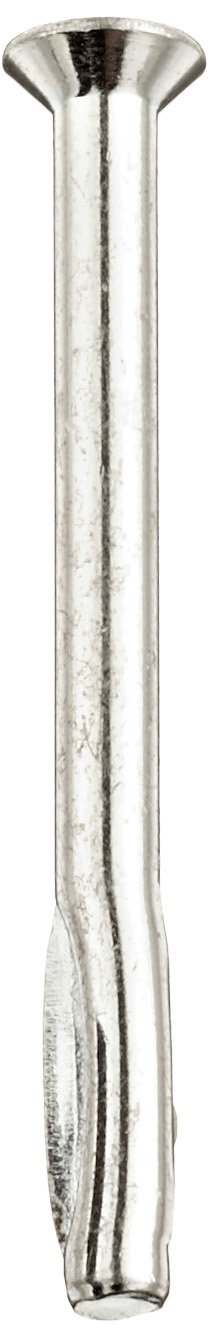

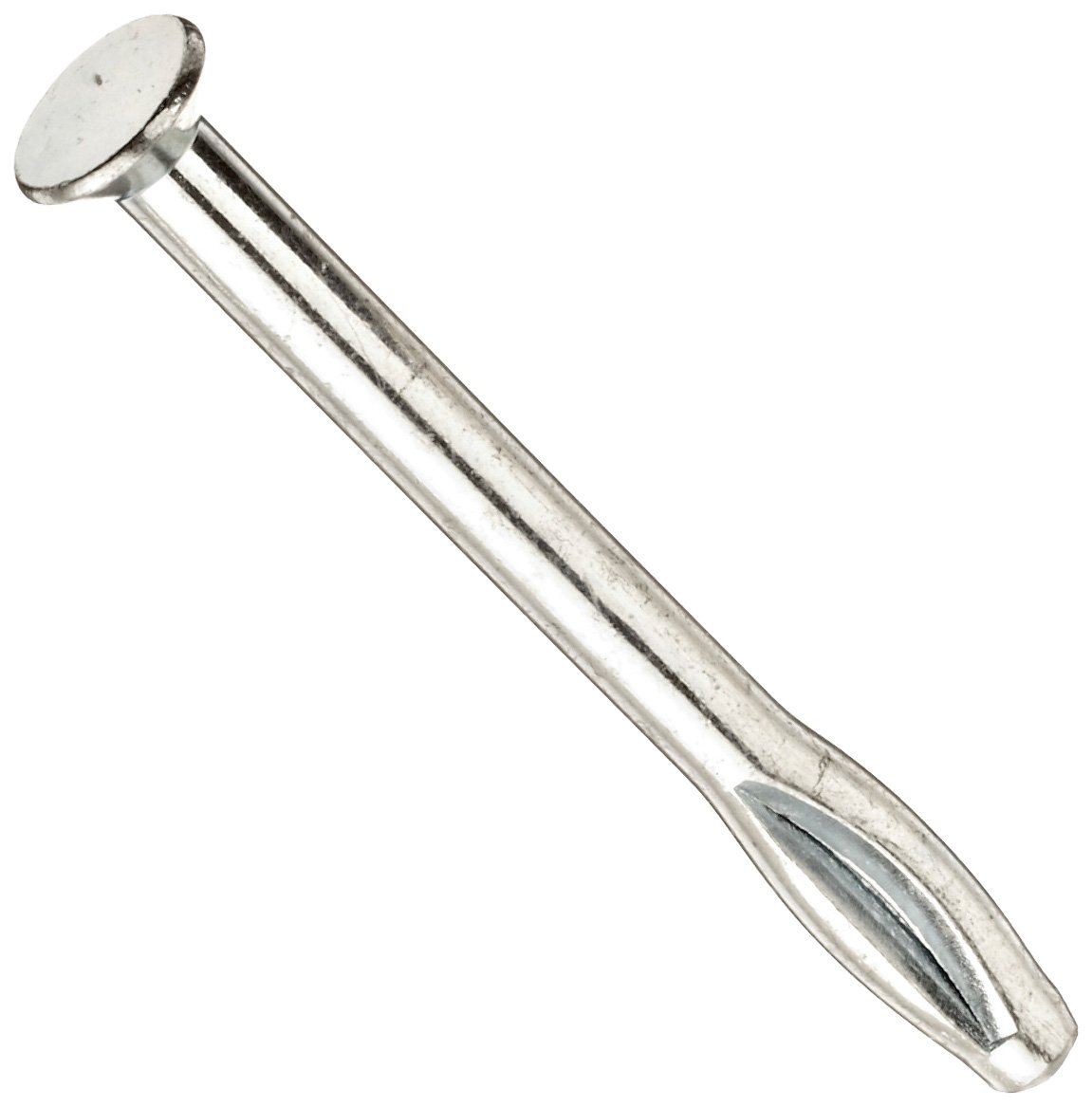

US Anchor Drive Anchor, Steel, Zinc Plated Finish, 1/4" Diameter, 3" Length, Imported (Pack Of 100)

Be the first to review this item

ASIN B00137WAXY

Specifications for this item
Number of Items
100
Material Type
Steel
Outside Diameter
1/4  inches
Part Number
B00137WAXY
Temperature Range
-20/212  Degrees Fahrenheit
Brand Name
US Anchor
Exterior Finish
Zinc Plated
UNSPSC Code
31162100
Import Designation
Imported
Overall Length
3  inches
System of Measurement
Inch

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Wed, Sep 3? Order in-stock items in the next 1 day 2 hrs 32 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • For static loads use one-fourth (25%) of the ultimate tensile & shear strengths shown
  • Ultimate tensile strength of 11579 pounds in 3000 psi concrete with an embedment depth of 3"
  • Ultimate shear strength of 15537 pounds in 3000 psi concrete with an embedment depth of 3"
  • Meets federal specification FFS-325, Group II, Type 4, Class 1
  • Bolt size is hole size, allowing precision placement of equipment through pre-drilled holes.

Package Details

Shipping Weight: 3.35 pounds
Package Size: 8.3 x 3.4 x 2.3 inches

Product Description

Sleeve Anchors provide a large bearing surface, you can count on these anchors for secure, permanent holding power. All provide a threaded stud when installed. Use them to hold steel, aluminum, wood panels, doors, framing, and shelving to concrete. To install, drive the anchor through the fixture and into a drilled hole, then tighten the bolt to expand the end. Anchors meet GSA specifications. Ultimate tension and shear strength are based on tests in 4,000 psi concrete. Not removable.
