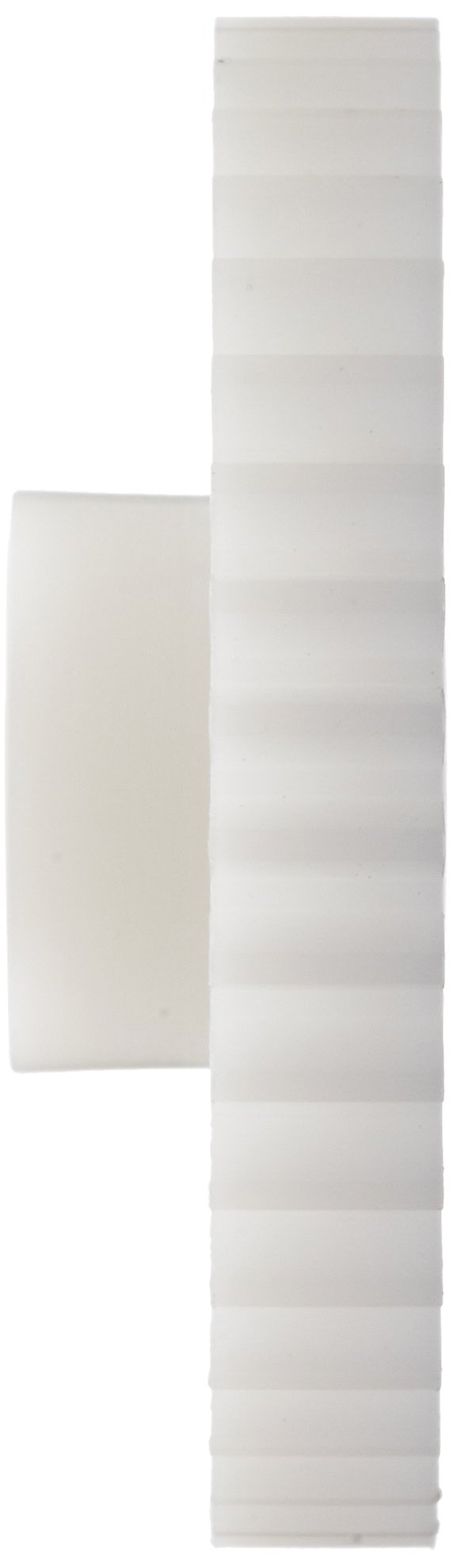

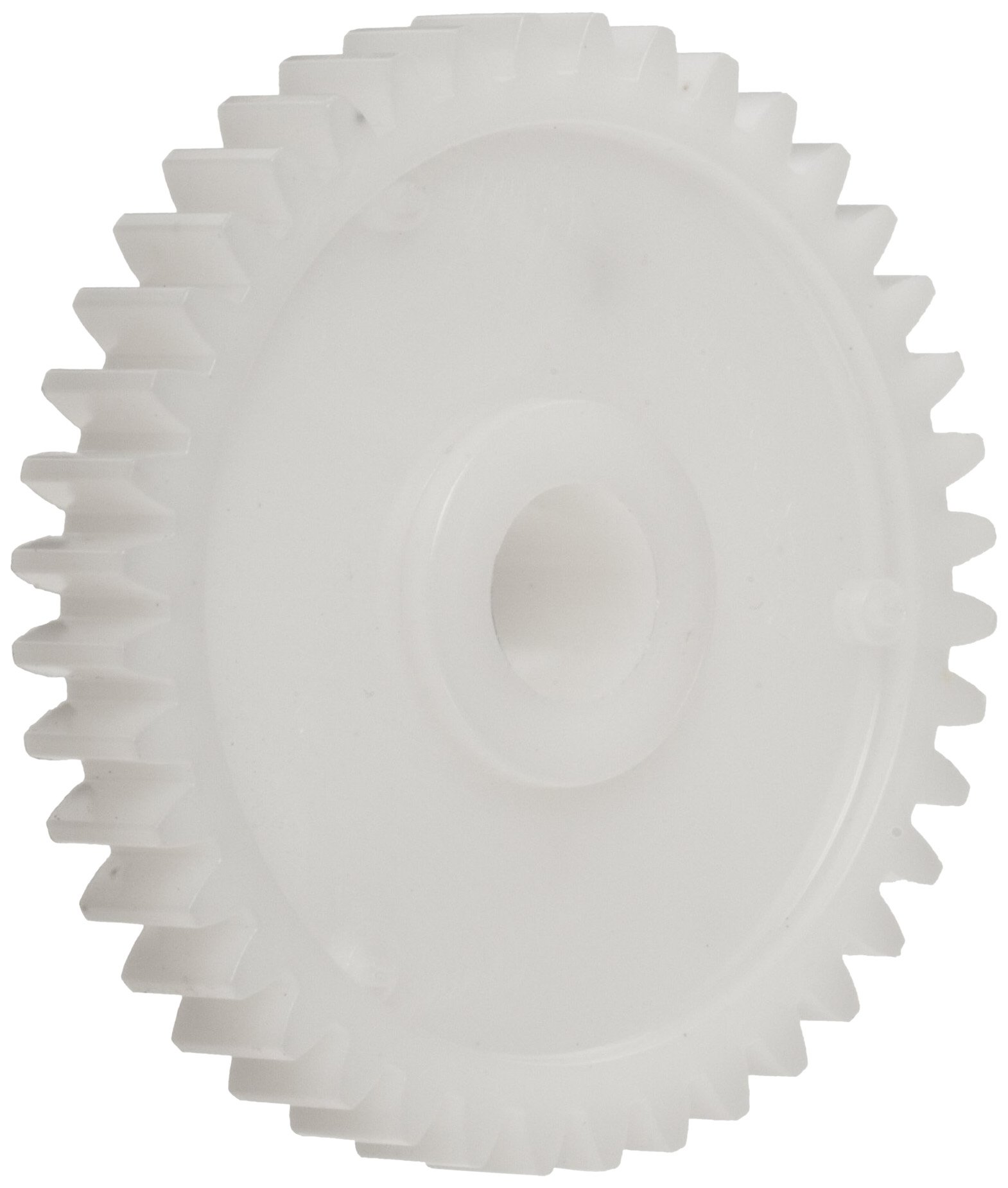

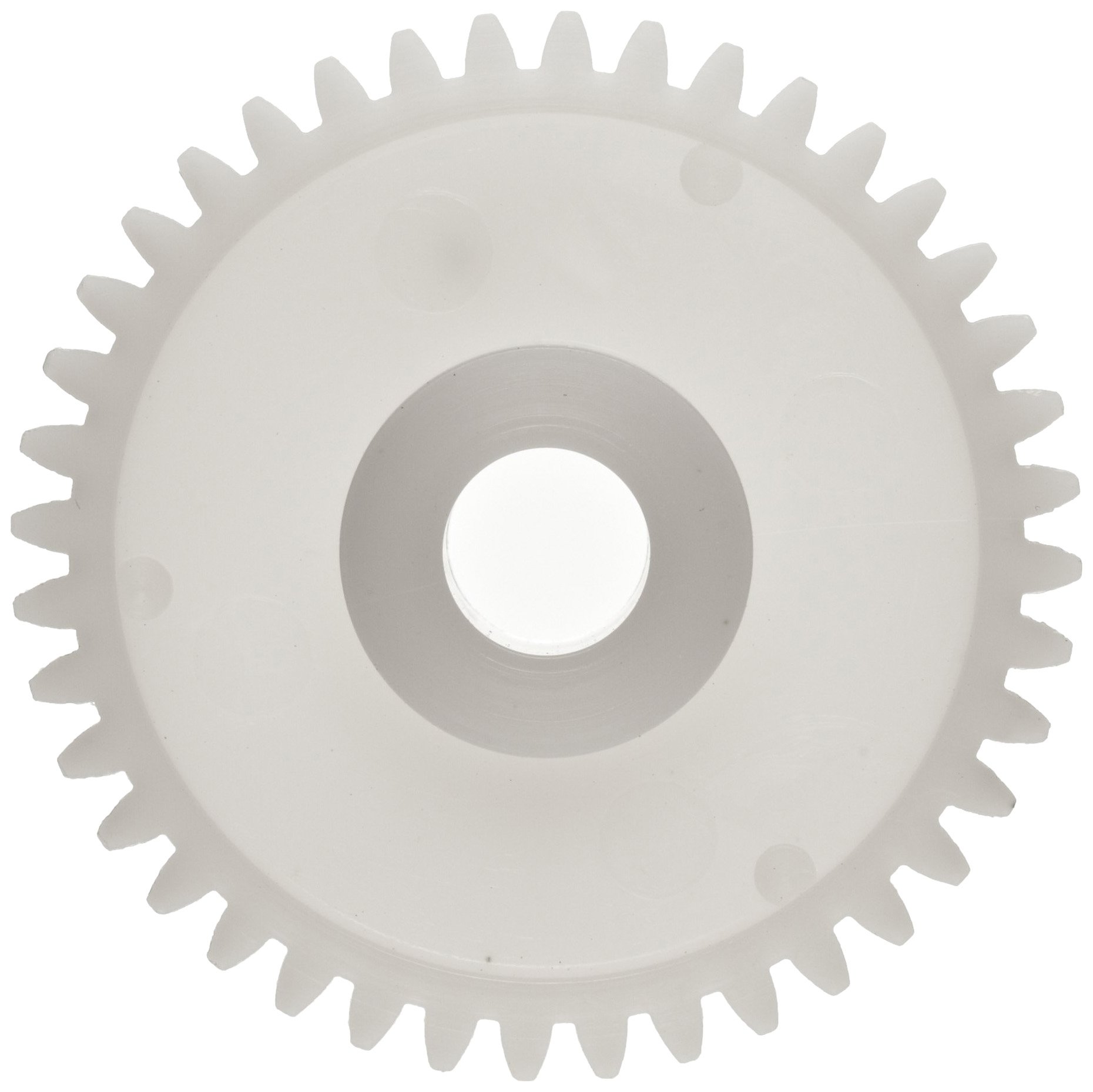

Plastic PowerDrive 10M040B8 Polyoxymethylene Spur Gear, 20 Degree Pressure Angle, 40 Teeth x 8mm Bore x 40mm Pitch Diameter 1,0 Module
Be the first to review this item
ASIN B003HGGRRY
Specifications for this item
- Body Outside Diameter
- 42 millimeters
- Bore Diameter
- 8 millimeters
- Bore Diameter Tolerance
- +/- 0.001 inches
- Brand Name
- Plastic Powerdrive Products
- Face Width
- 6 millimeters
- Hub Diameter
- 16 millimeters
- Hub Projection
- 6 millimeters
- Material Type
- Polyoxymethylene_(POM)
- Number of Items
- 1
- Number of Teeth
- 40
- Operating Angle
- 20 Degrees
- Overall Length
- 12 millimeters
- Part Number
- 10M040B8
- Pitch Diameter
- 1,0 module
- Standard Construction
- injection molded
- Trade Size
- 1,0 module
This item ships for FREE with 2-Day Shipping on orders over $50. (Details)
Want it delivered on Tuesday, May 21? Order in-stock items in the next 2 days 9 hours 40 minutes and choose One-Day Shipping at checkout.
Key Features
- Agma Q8
- 20 Degree pressure angle
- Material 500P acetal natural
- Face width, hub diameter, and hub projection tolerances are +/- 0.08 mm
- Made in the U.S.A.
Package Details
Shipping Weight:
0.5 pounds
Package Size:
3 x 1.5 x 0.3 inches
Product Description
The Plastic PowerDrive Products, 10M012B6, is a 1,0 module delrin spur gear. Delrin spur gears have the advantage of being quiet, non-corrosive, lightweight and shock resistant. Useful for both continuous movement and in static control systems where only a quarter or half turn is made. They may be used in train with brass, steel or cast iron gears. The color material used to make these gears is natural.
