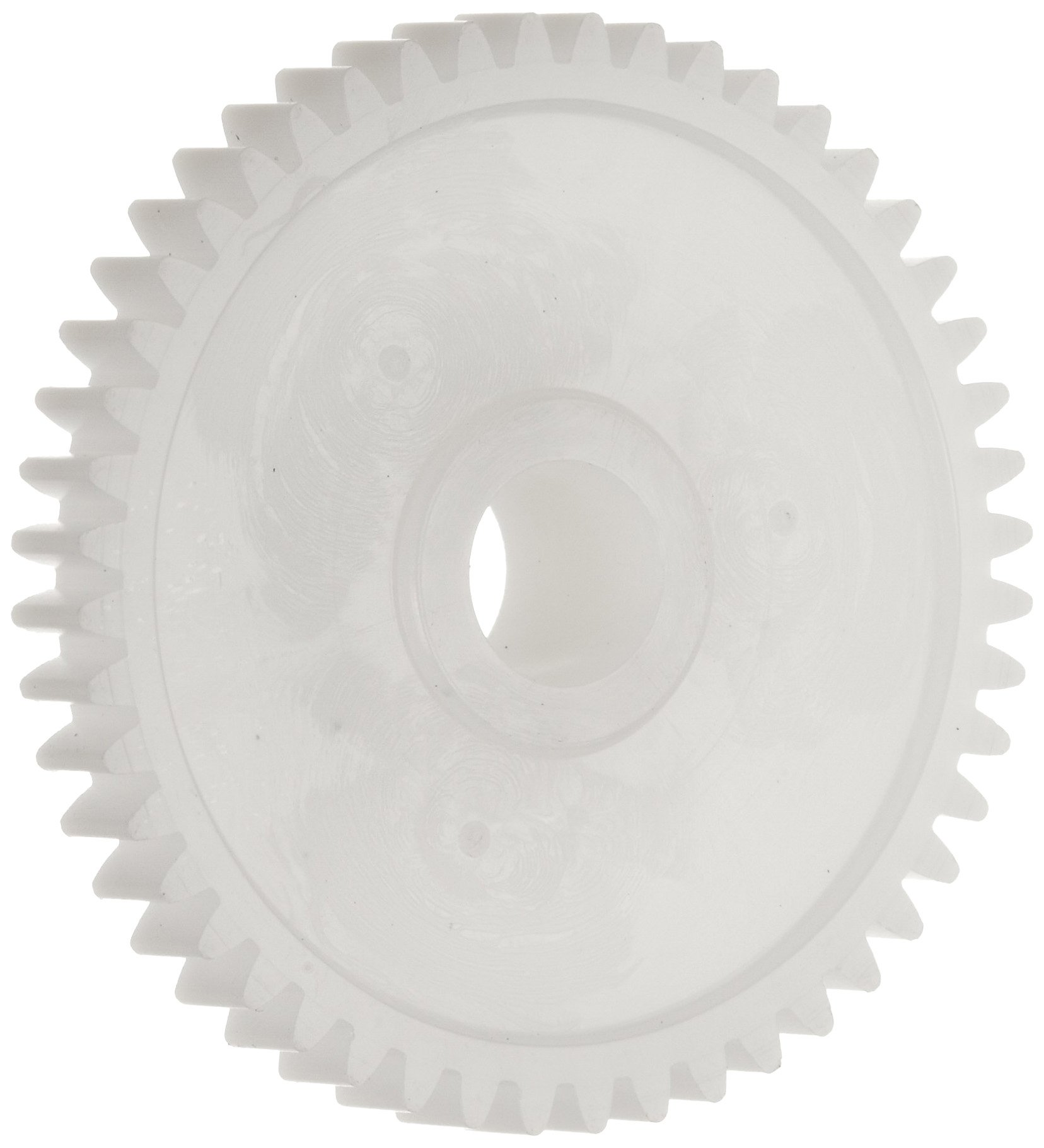

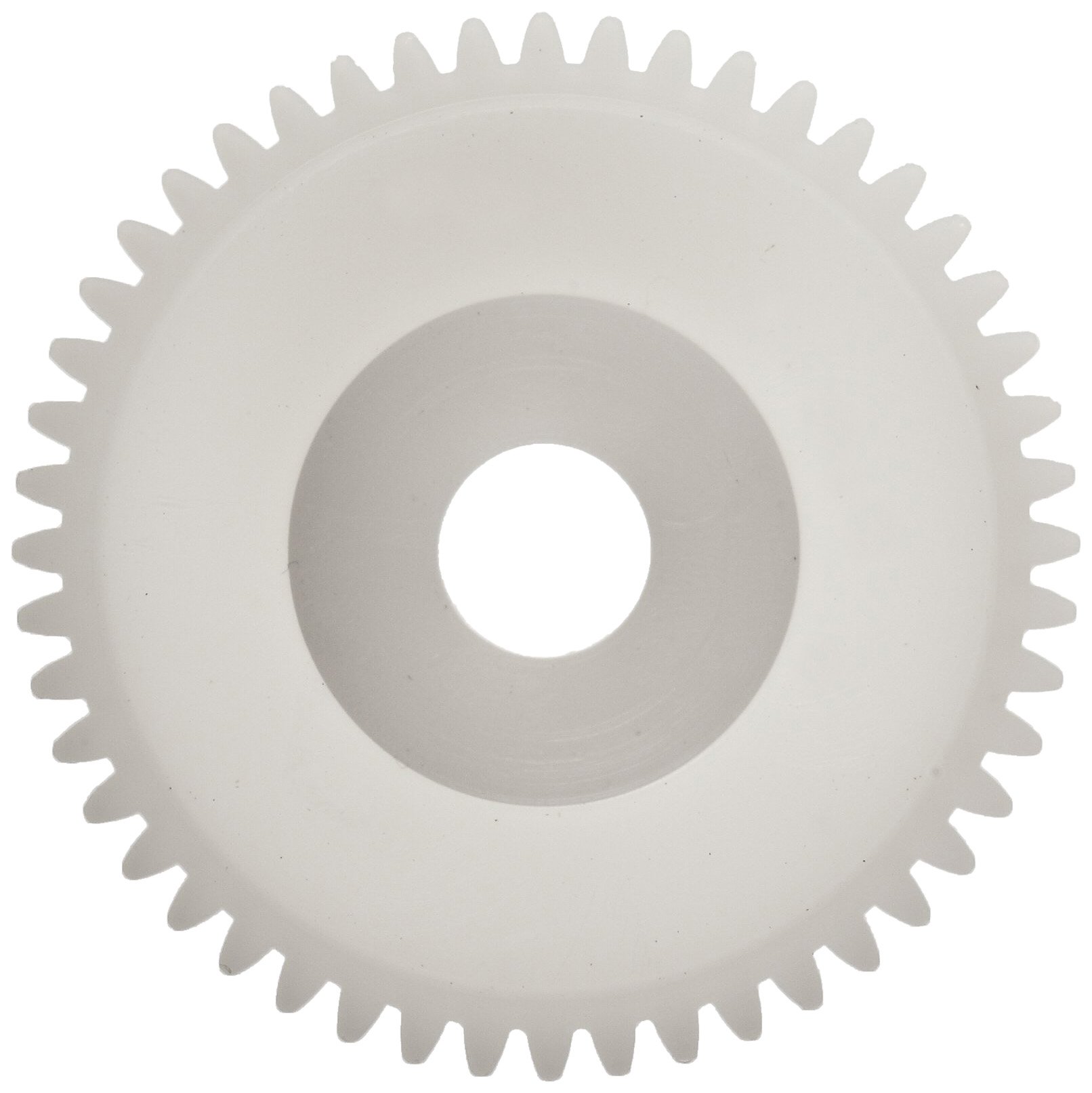

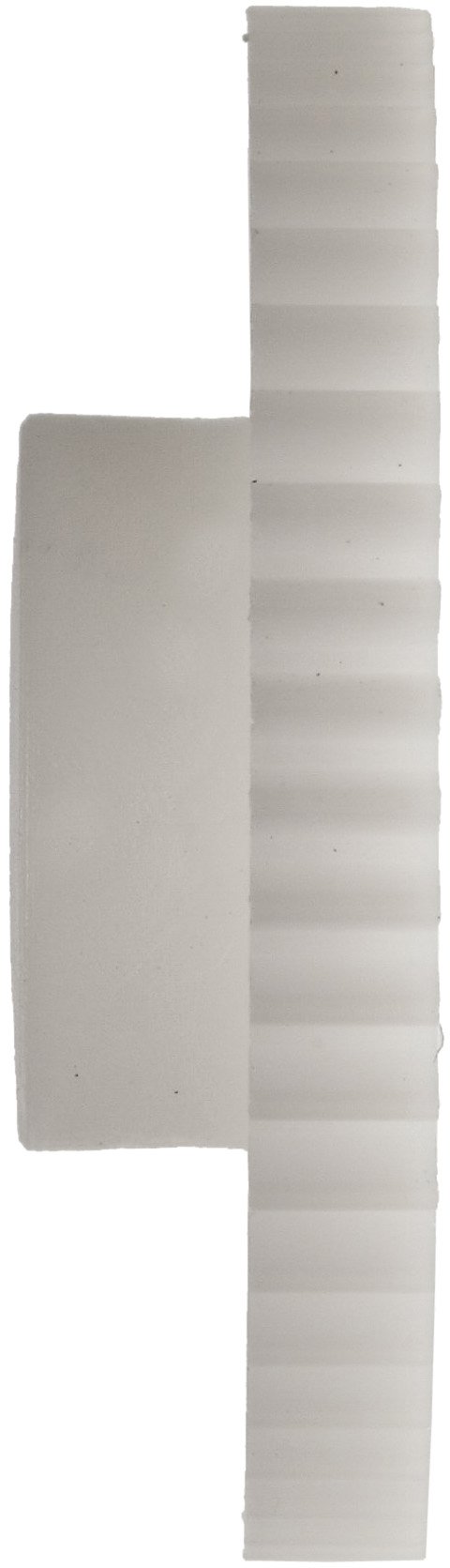

Plastic PowerDrive 05M048B5 Polyoxymethylene Spur Gear, 20 Degree Pressure Angle, 48 Teeth x 5mm Bore x 24mm Pitch Diameter 0,5 Module
Be the first to review this item
ASIN B003HGGRBA
Specifications for this item
- Body Outside Diameter
- 25 millimeters
- Bore Diameter
- 5 millimeters
- Bore Diameter Tolerance
- +/- 0.001 inches
- Brand Name
- Plastic Powerdrive Products
- Face Width
- 3 millimeters
- Hub Diameter
- 12 millimeters
- Hub Projection
- 4 millimeters
- Material Type
- Polyoxymethylene_(POM)
- Number of Items
- 1
- Number of Teeth
- 48
- Operating Angle
- 20 Degrees
- Overall Length
- 7 millimeters
- Part Number
- 05M048B5
- Pitch Diameter
- 0,5 module
- Standard Construction
- injection molded
- Trade Size
- 0,5 module
This item ships for FREE with 2-Day Shipping on orders over $50. (Details)
Want it delivered on Thursday, June 20? Order in-stock items in the next 10 hours 52 minutes and choose One-Day Shipping at checkout.
Key Features
- Agma Q8
- 20 Degree pressure angle
- Material 500P acetal natural
- Face width, hub diameter, and hub projection tolerances are +/- 0.08 mm
- Made in the U.S.A.
Package Details
Shipping Weight:
0.05 pounds
Package Size:
2.7 x 2.7 x 0.7 inches
Product Description
The Plastic PowerDrive Products, 05M048B5, is a 0,5 module delrin spur gear. Delrin spur gears have the advantage of being quiet, non-corrosive, lightweight and shock resistant. Useful for both continuous movement and in static control systems where only a quarter or half turn is made. They may be used in train with brass, steel or cast iron gears. The color material used to make these gears is natural.
