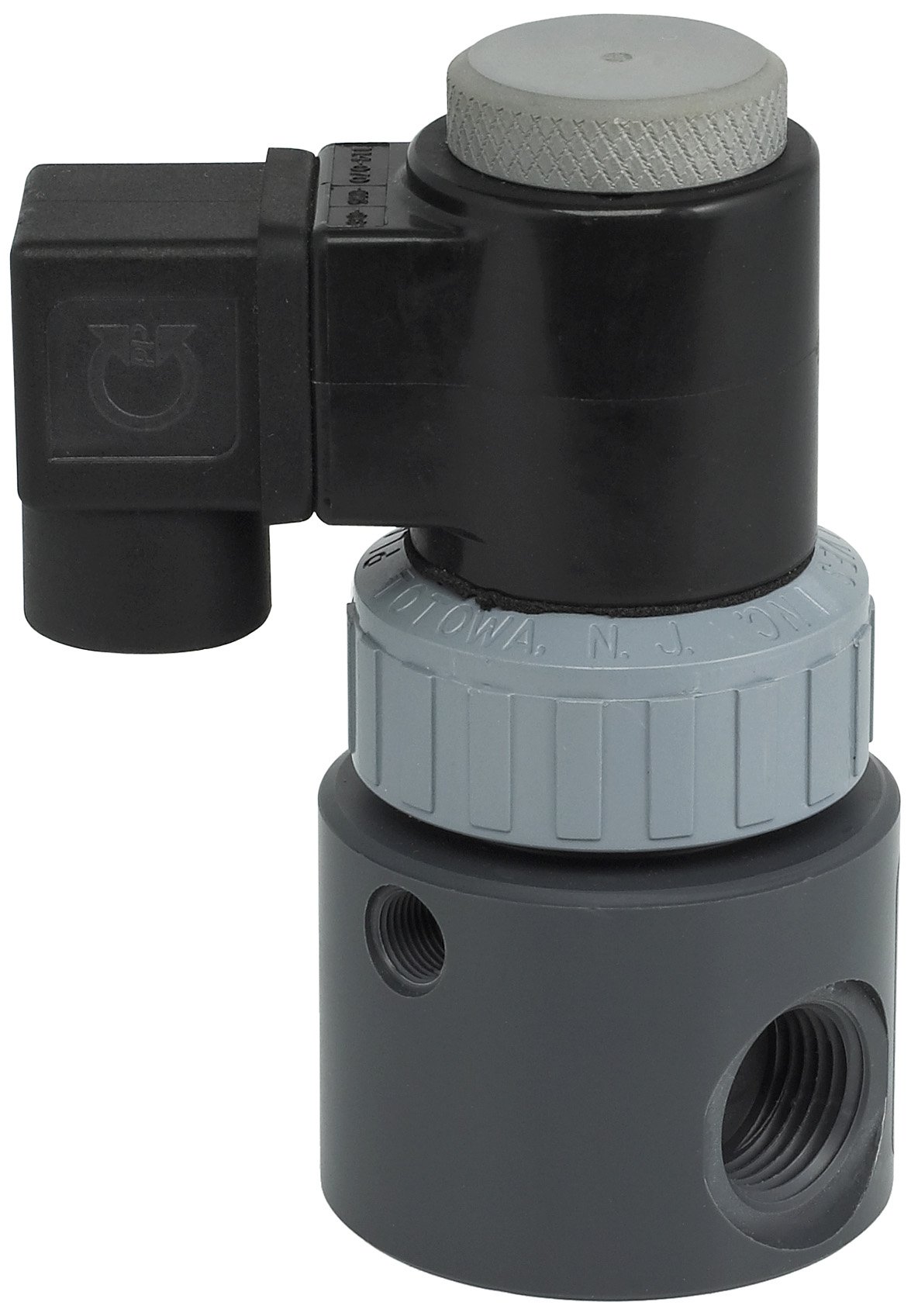

Plast-O-Matic EAST Series PVC Solenoid Valve, For Corrosive and Ultra-Pure Liquids, 2 Ways, Normally Closed, Viton Diaphragm, NPT Female

Be the first to review this item

Product Specifications
Manufacturer Series Number
EAST
Upper Temperature Range
140  Degrees Fahrenheit
Item Shape
Inline
Seal Material Type
Viton
Material Type
PVC (Polyvinyl Chloride)
Operation Mode
Direct Acting
Construction Type
Rugged thermoplastic construction
Style Name
Threaded
Connector Type
NPT Female
Brand Name
Plast-O-Matic

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Apr 21? Order in-stock items in the next 1 day 13 hrs 47 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-4 of 4
Size name ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All
Currently showing 1-4 of 4
1/2" B007R8GT58 1 $270.80 Buy Options
1/2" B007R8GSPE 1 $310.00 Buy Options
1/4" B007R8GSCW 1 $270.80 Buy Options
1/4" B007R8GRZA 1 $270.80 Buy Options

Key Features

  • Only 4-9/16" high, these valves are ideal for limited space installations
  • PTFE bellows barrier type dynamic seal prevents leaking or fugitive emissions to the atmosphere
  • Can be used with all type solutions; includes acids, caustics, solvents, chlorine solutions and ultra-pure liquids
  • 2,000,000 cycle design
  • Rugged thermoplastic construction is resistant to both internal and atmospheric corrosion

Product Description

Compact and Economical PTFE bellows thermoplastic solenoid valves for applications requiring a compact, cost effective and high pressure rated valve with extended cycle life. Only 4-9/16 in. high, these valves are ideal for limited space installations. Low unit cost coupled with high pressure ratings and considerable flow rate (Cv to 0.8) offer excellent opportunities for systems requiring quick opening/quick closing solenoid valves. Particularly for applications where high back-pressures (up to 70 PSI) are required e.g. controlling flow to spray nozzles, high pressure chemical injections, etc. PTFE bellows barrier type dynamic seal prevents leaking or fugitive emissions to the atmosphere. Can be used with all type solutions. Includes acids, caustics, solvents, chlorine solutions and ultra-pure liquids. 2,000,000 cycle design. Molded 11 Watt NEMA 4 style coil with DIN standard connector results in low energy consumption. Rugged thermoplastic construction is resistant to both internal and atmospheric corrosion. No metal parts in wetted areas. Patented Fail-Dry safety design feature provides advance visual warning if seal malfunctions, while permitting valves to continue operating until maintenance can be scheduled. Coil connector light can be ordered with this optional feature, which lights up brightly to show when the solenoid is energized.
