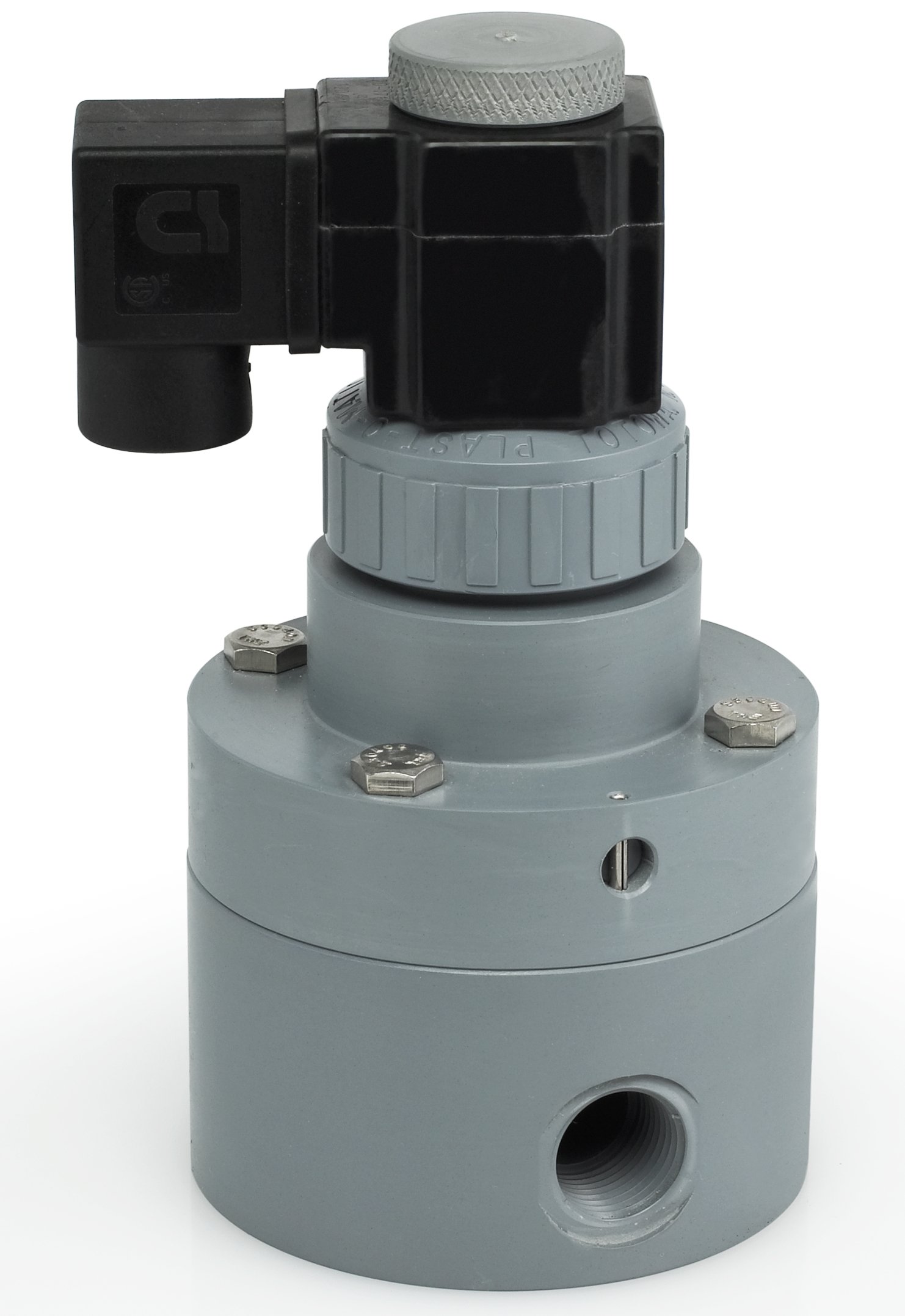

Plast-O-Matic PS Series PVC Pilot Solenoid Valve, For Acids and Highly Corrosive Liquids, 2 Ways, Normally Closed, Viton Diaphragm, NPT Female
Be the first to review this item
Product Specifications
- Brand Name
- Plast-O-Matic
- Connector Type
- NPT Female
- Construction Type
- Rugged thermoplastic construction
- Item Shape
- Inline
- Manufacturer Series Number
- PS
- Material Type
- PVC (Polyvinyl Chloride)
- Maximum Pressure
- 140 PSI
- Operation Mode
- Pilot Operated
- Seal Material Type
- Viton
- Style Name
- Threaded
- Upper Temperature Range
- 140 Degrees Fahrenheit
These items ship for FREE with 2-Day Shipping on orders over $50. (Details)
Want it delivered on Tuesday, May 21? Order in-stock items in the next 1 day 6 hours 13 minutes and choose One-Day Shipping at checkout.
Key Features
- Normally closed, in-line design with bubble-tight shut-off
- Minimum 5 PSI differential required
- Patented Fail-Dry vented design
- Resistant to atmospheric corrosion
- PTFE Bellows barrier-type dynamic seal prevents leaking of fugitive emissions to the atmosphere
Product Description
PS Series Solenoid Valves are pilot-operated, 2- way, normally-closed valves. They require a minimum line pressure and minimum differential pressure to open and close. When the solenoid coil is de-energized, upstream pressure atop the diaphragm holds the valve closed. When the coil is energized, flow through the pilot valve creates a pressure difference across the diaphragm which opens the main valve orifice. These valves have 11-watt coils and can be energized continuously. Although these valves are normally-closed, positive, leak tight sealing requires a small inlet pressure. A minimum inlet pressure of 5 PSI is recommended. These valves should open fully at 5 PSI differential and higher. "PS" valves have very high Cv-factors. If process flow rates do not maintain 5 psid, the valve will not stay fully open, which means the pressure drop may be higher and the Cv-factor lower than anticipated. This should not adversely affect valve performance. Series PS automatically shuts off flow of highly corrosive and ultra-pure liquids. They can handle acids, caustics, solvents, chlorine solutions, sodium solutions, deionized water, reverse osmosis water, brewery processes, etc. as long as a 5 psi differential is maintained. Series PS is not suitable for solutions containing particulate matter or solutions that tend to precipitate solids. High pressure: Particularly for applications where high back-pressures (up to 70 PSI) are required e.g. controlling flow spray nozzles, high pressure chemical injections, etc. Inlet pressure to 140 PSI. Patented Fail-Dry safety design feature provides advance visual warning if seal malfunctions, while permitting valves to continue operating until maintenance can be scheduled. Cycle life in excess of 1,000,000 cycles. Energy-efficient 11 watt coil. Molded coil and standard DIN connector; designed to meet NEMA 4X. Body material: PVC.
