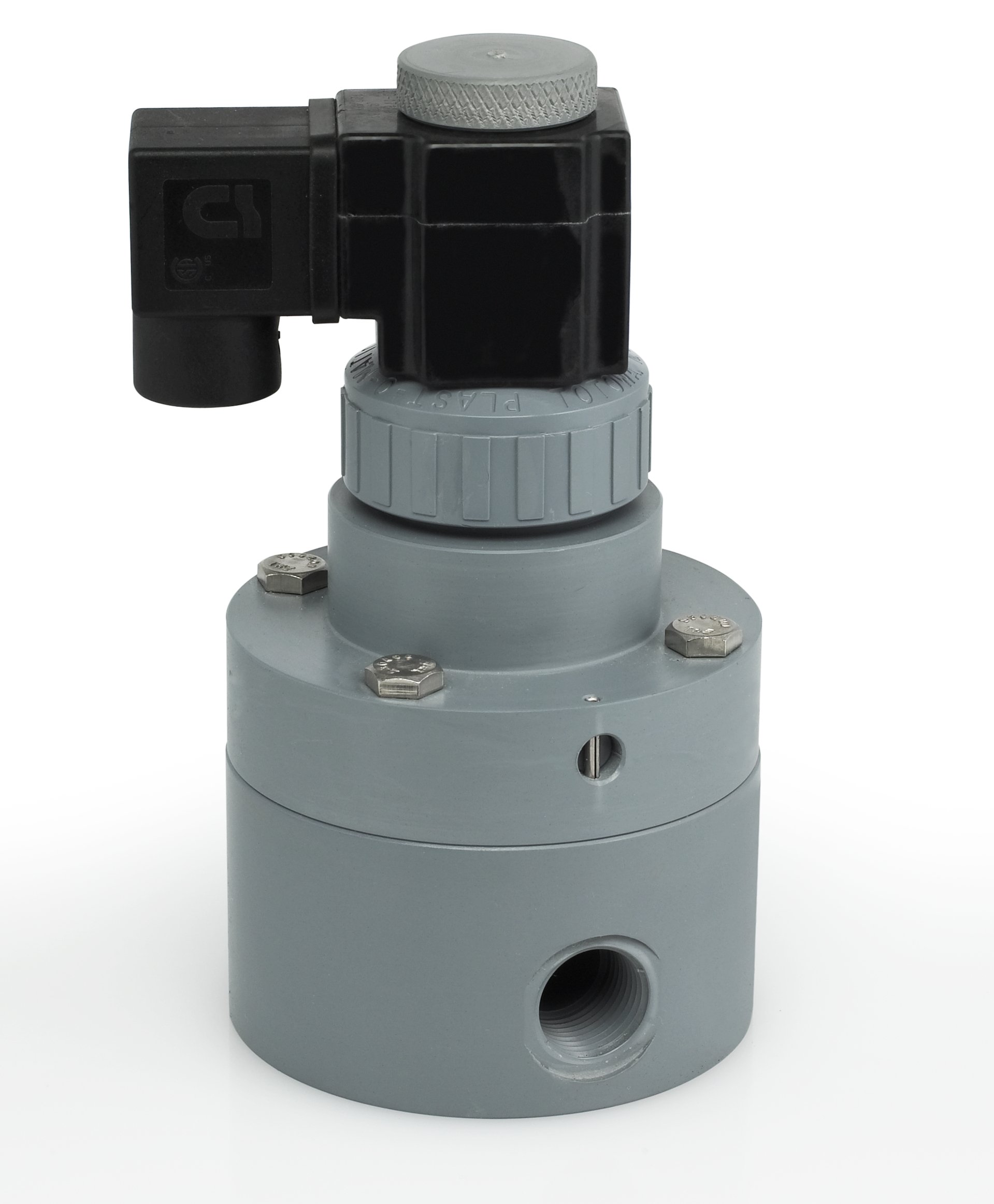

Click for larger image and other views Image is representative of the product family. Select individual products in the table below for more specific images and product specifications

How can we improve our images or Product Specifications?

Plast-O-Matic PS Series Polypropylene Pilot Solenoid Valve, For Acids and Highly Corrosive Liquids, 2 Ways, Normally Closed, EPDM Diaphragm, NPT Female

Be the first to review this item

Product Specifications
Item Shape
Inline
Seal Material Type
EPDM
Material Type
Polypropylene (PP)
Operation Mode
Pilot Operated
Construction Type
Rugged thermoplastic construction
Brand Name
Plast-O-Matic
Manufacturer Series Number
PS
Upper Temperature Range
140  Degrees Fahrenheit
Maximum Pressure
140  PSI
Connector Type
NPT Female
Style Name
Threaded
UNSPSC Code
40141605

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tue, Oct 28? Order in-stock items in the next 1 day 19 hrs 49 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-5 of 5
Size name ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All
Currently showing 1-5 of 5
1" B007R8HMXG yes $580.00 Buy Options
1-1/2" B007R8HNEY yes $810.00 Buy Options
1/2" B007R8HLEG yes $537.40 Buy Options
2" B007R8HO20 yes $890.00 Buy Options
3/4" B007R8HMHC yes $560.00 Buy Options

Key Features

  • Normally closed, in-line design with bubble-tight shut-off
  • Minimum 5 PSI differential required
  • Patented Fail-Dry vented design
  • Resistant to atmospheric corrosion
  • PTFE Bellows barrier-type dynamic seal prevents leaking of fugitive emissions to the atmosphere

Product Description

PS Series Solenoid Valves are pilot-operated, 2- way, normally-closed valves. They require a minimum line pressure and minimum differential pressure to open and close. When the solenoid coil is de-energized, upstream pressure atop the diaphragm holds the valve closed. When the coil is energized, flow through the pilot valve creates a pressure difference across the diaphragm which opens the main valve orifice. These valves have 11-watt coils and can be energized continuously. Although these valves are normally-closed, positive, leak tight sealing requires a small inlet pressure. A minimum inlet pressure of 5 PSI is recommended. These valves should open fully at 5 PSI differential and higher. "PS" valves have very high Cv-factors. If process flow rates do not maintain 5 psid, the valve will not stay fully open, which means the pressure drop may be higher and the Cv-factor lower than anticipated. This should not adversely affect valve performance. Series PS automatically shuts off flow of highly corrosive and ultra-pure liquids. They can handle acids, caustics, solvents, chlorine solutions, sodium solutions, deionized water, reverse osmosis water, brewery processes, etc. as long as a 5 psi differential is maintained. Series PS is not suitable for solutions containing particulate matter or solutions that tend to precipitate solids. High pressure: Particularly for applications where high back-pressures (up to 70 PSI) are required e.g. controlling flow spray nozzles, high pressure chemical injections, etc. Inlet pressure to 140 PSI. Patented Fail-Dry safety design feature provides advance visual warning if seal malfunctions, while permitting valves to continue operating until maintenance can be scheduled. Cycle life in excess of 1,000,000 cycles. Energy-efficient 11 watt coil. Molded coil and standard DIN connector; designed to meet NEMA 4X. Body material: Polypropylene.
