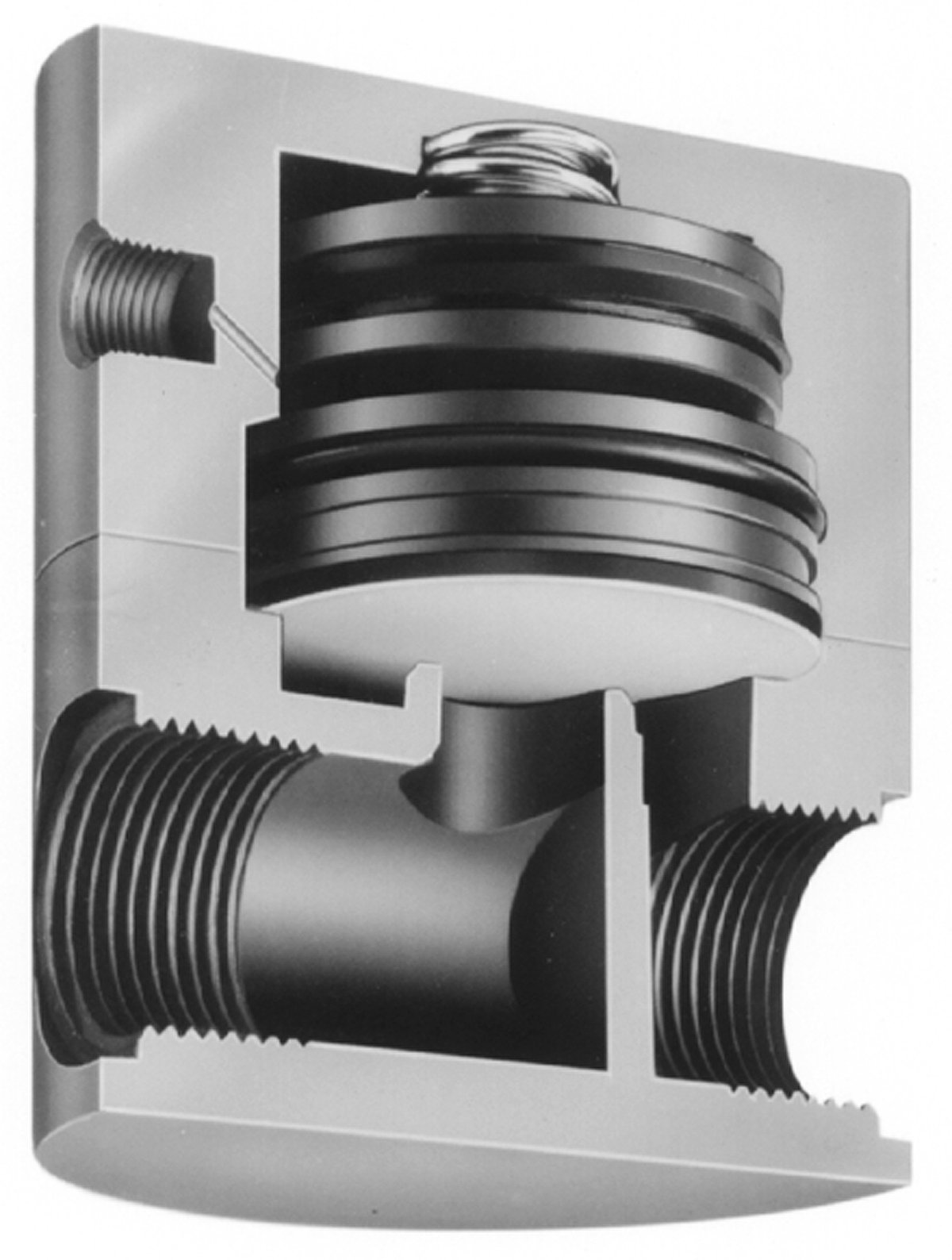

Click for larger image and other views Image is representative of the product family. Select individual products in the table below for more specific images and product specifications

How can we improve our images or Product Specifications?

Plast-O-Matic BSDA Series Polypropylene Shut-Off Valve, For Corrosive and Ultra-Pure Liquids, NPT Female

Be the first to review this item

Product Specifications
Item Shape
Inline
Seal Material Type
PTFE
Color Name
Translucent white
Material Type
Polypropylene (PP)
Operation Mode
Air Operated
Brand Name
Plast-O-Matic
Manufacturer Series Number
BSDA
Upper Temperature Range
180  Degrees Fahrenheit
Maximum Pressure
100  PSI
Connector Type
NPT Female
UNSPSC Code
40141621
Style Name
Threaded
LowerTemperature Range
32  Degrees Fahrenheit

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Fri, Oct 3? Order in-stock items in the next 14 hrs 22 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-3 of 3
Size name ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All
Currently showing 1-3 of 3
1" B007R8GIL8 yes $117.71 Buy Options
1-1/2" B007R8GIV8 yes $650.00 Buy Options
1/4" B007R8GH8C yes $290.00 Buy Options

Key Features

  • Unique PTFE wetted diaphragm provides the ultimate in purity and chemical resistance
  • Compact - light in weight, million-cycle, non-sticking design
  • Can be mounted in any position
  • Normally-closed design provides bubble-tight shut off in the event of air or electrical failure
  • Patented Fail-Dry safety design warns of seal failure; permits valve to continue operating

Product Description

The standard diaphragm material is a combination of the PTFE on the wetted side backed-up with FKM for strength and flexibility. Body made of Natural Polypropylene. There are no metal parts in the wetted areas. The miniature air-operated diaphragm valve that performs like a heavyweight. Designed for pressure and drain applications with highly corrosive or ultra-pure liquid systems when space is critical. The valve is ideal for a broad range of industrial applications, from electronic to chemical plants, commercial laundries, car wash operations, etc. For applications with ultra-pure water and concentrated etchants, such as in the semi-conductor industry, it provides the ultimate in non-leaching, contamination-free sealing. The standard valves are air pressure to open with spring return to close. There is no minimum inlet pressure required. Not designed for vacuum service. Normally-closed operation. A 3-way air solenoid valve connected to the 1/8" NPT port is required to actuate the diaphragm valve. When air pressure is applied, the diaphragm valve opens and when removed spring force closes the valve. The standard valves are precision machined from the highest quality brand thermoplastic bar stock with female NPT connections. It is recommended that filtered, lubricated compressed air be used. The cylinder head features multiple seals, in addition to the main diaphragm seal in contact with the liquid. There is a vent located between two seals (above the main diaphragm, below the cylinder head u-cups) that will "weep" in the event of a primary seal failure. The valve will still function, under pressure, without metal contacting liquid. This is the patented Plast-O-Matic Fail-Dry, which adds an additional layer of "protection" for your process.
