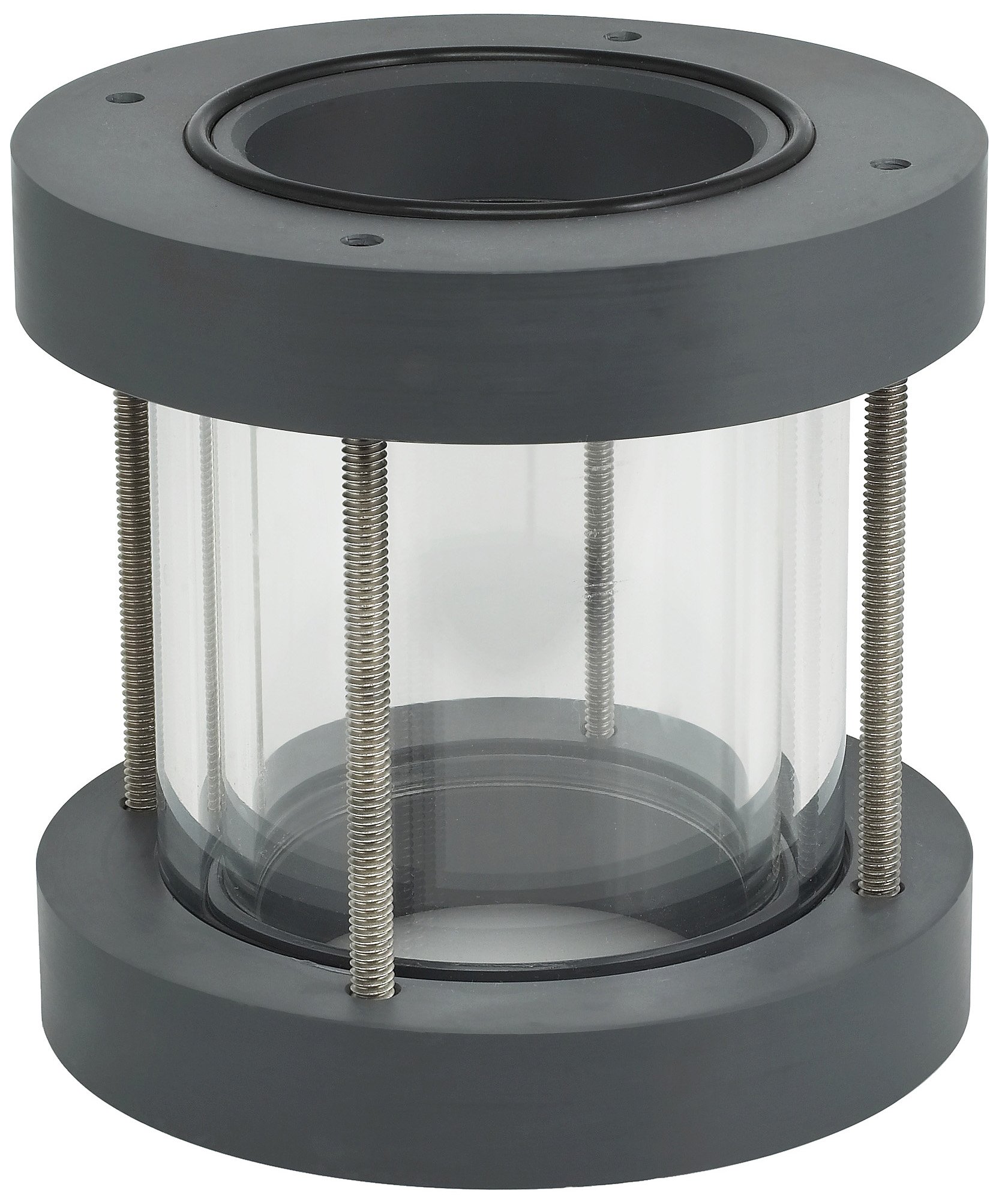

Click for larger image and other views Image is representative of the product family. Select individual products in the table below for more specific images and product specifications

How can we improve our images or Product Specifications?

Plast-O-Matic GYW Series PVC Sight Glass Flow Indicator, Double-Wall, For Extremely Corrosive and Ultra-Pure Liquids, Wafer

Be the first to review this item

Product Specifications
Manufacturer Series Number
GYW
Max Temperature
140  Degrees Fahrenheit
Item Shape
Inline
Seal Material Type
Viton
Construction Type
Double-Wall
Color Name
Dark Gray
Material Type
PVC (Polyvinyl Chloride)
Max Pressure
140  PSI
Connector Type
Wafer
Brand Name
Plast-O-Matic
LowerTemperature Range
32  Degrees Fahrenheit

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Thu, Apr 24? Order in-stock items in the next 7 hrs 58 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-6 of 6
Connection Size Overall Length Pkg Qty Mfr Part # ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All
Currently showing 1-6 of 6
1-1/2" 4-1/2" 1 GYW150V-PV B007R8H64G 1 $377.00 Buy Options
2" 5" 1 GYW200V-PV B007R8H6NW 1 $434.00 Buy Options
3" 5-1/4" 1 GYW300V-PV B007R8H72M 1 $575.00 Buy Options
4" 5-5/8" 1 GYWX400V-PV B007R8H7J0 1 $810.00 Buy Options
6" 6-1/8" 1 GYWX600V-PV B007R8H84Y 1 $905.00 Buy Options
8" 6-1/4" 1 GYWX800V-PV B007R8H8PI 1 $975.00 Buy Options

Key Features

  • Large 360 degree viewing area
  • Full flow design; no corners to collect debris
  • Double wall Pyrex and acrylic construction for maximum safety
  • Designed to withstand reasonable external shocks
  • No special hardware required for installation; completely assembled and pre-tested

Product Description

Series GYW flow indicators utilize a double-wall construction and are used on flanged piping systems handling highly corrosive and ultra-pure liquids compatible with Pyrex glass. They cannot be used with hydrofluoric acid or sodium hydroxide as they will etch the Pyrex cylinder wall. Natural polypropylene ends are standard and are also the least expensive. FKM seals are standard. These indicators will fit 1-1/2" smooth face standard companion flanges as well as DIN (European standard) flanges. Two flange O-ring seals are supplied; therefore, other gasket materials are not required. An optional fluttering device is also offered. Flow indicators are designed to indicate the presence or clarity of high purity or corrosive liquid in a piping system. For use with ultrapure liquids or chemicals compatible with acrylic. O-ring seals are used on indicators allowing them to seal at extremely low pressures as well as high pressures. Flow indicators are full ported, eliminating any possible flow resistance. Standard O-ring seals are Viton. Standard fasteners are stainless steel. The transparent outer cylinder wall is high impact strength acrylic. The inner wall (wetted) is Pyrex. Made of PVC.
