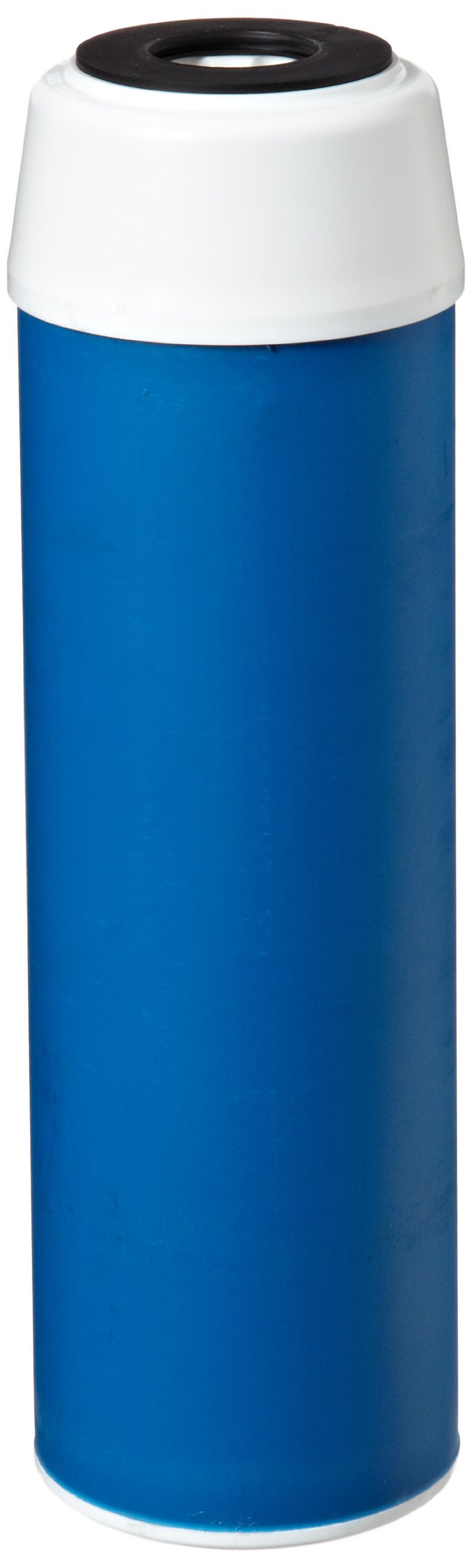

Pentek UDS-10EX1 Bacteriostatic KDF and Carbon Filter Cartridge, 9-3/4" x 2-7/8", 5 Micron

Be the first to review this item

ASIN B0014C5D78

Specifications for this item
Number of Items
1
Part Number
255800-43
Item Weight
1.65 pounds
UPC
051678002988
Brand Name
Pentek
EAN
0051678002988
Particle Retention Size
5  Micron
UNSPSC Code
40161502

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tue, Oct 21? Order in-stock items in the next 9 hrs 38 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Reduces chlorine taste and odor, water-soluble heavy metals, scale, and algae, and inhibits bacterial growth in drinking water
  • Nominal filtration rating of 5 microns
  • KDF 55 copper-zinc granules and granular activated carbon (GAC) media
  • Recommended flow rate of 1 gpm
  • Temperature range of 40 to 125 degrees F (4.4 to 51.7 degrees C)

Package Details

Shipping Weight: 1.8 pounds
Package Size: 9.9 x 2.8 x 1.8 inches

Product Description

This Pentek UDS-10EX1 bacteriostatic kinetic degradation fluxion (KDF) and carbon filter cartridge reduces chlorine taste and odor, water-soluble heavy metals, and scale, and inhibits the growth of algae and bacteria in drinking water. The filter is made of granular activated carbon (GAC) to reduce chlorine taste and odor, and 1 pound of KDF 55 copper-zinc granules, which use redox (exchange of electrons) to effectively reduce heavy metals and inhibit the growth of algae and bacteria. It has a recommended flow rate of 1 gallon per minute (gpm), and operates over a temperature range of 40 to 125 degrees F (4.4 to 51.7 degrees C). This KDF and GAC filter cartridge meets Environmental Protection Agency (EPA) and Food and Drug Administration (FDA) standards for levels of zinc and copper in potable water, is certified by NSF International/American National Standards Institute (NSF/ANSI) standard 61.8, which limits the amount of lead in plumbing fixtures that come in contact with drinking water, and is for purification of rural and residential drinking water.

Specifications

Nominal filtration rating 5 microns
Recommended flow rate 1 gpm
Operating temperature range 40 to 125 degrees F (4.4 to 51.7 degrees C)
Maximum dimensions (H x W) 9-3/4 x 2-7/8 inches (248 x 73 mm)

The nominal filtration rating is for a particle removal efficiency of 85%.

H is height, the vertical distance from lowest to highest point; W is width, the horizontal distance from left to right; D is depth, the horizontal distance from front to back.

Water filters remove undesirable particles, chemicals, and microorganisms from water by means of a semipermeable barrier, adsorption, or biological processes. They are made of densely packed synthetic or natural fibers that trap suspended particles, materials that block microbes or adsorb unwanted chemicals, or substances that cause a chemical change, such as acid neutralization. For most residential, commercial, and industrial applications, water filters are manufactured in the form of replaceable cartridges that fit inside permanent housings. Filtration systems typically consist of a series of two or more types of filters, each designed to remove different contaminants. The performance of filters is measured by the minimum particle size that is blocked, the percentage of particles or microorganisms that are removed, the downstream concentration of unwanted chemicals, the maximum flow rate, and the amount of water that can be filtered before the filter must be replaced. Water filters are used in a wide range of applications, including drinking water purification, swimming pools, industrial processes, and irrigation, among others.

Pentair manufactures industrial, commercial, and residential water filtration components and systems. The company, founded in 1966 and headquartered in Minneapolis, MN, meets International Organization for Standardization (ISO) standards 9001 and 14001 for quality assurance.
