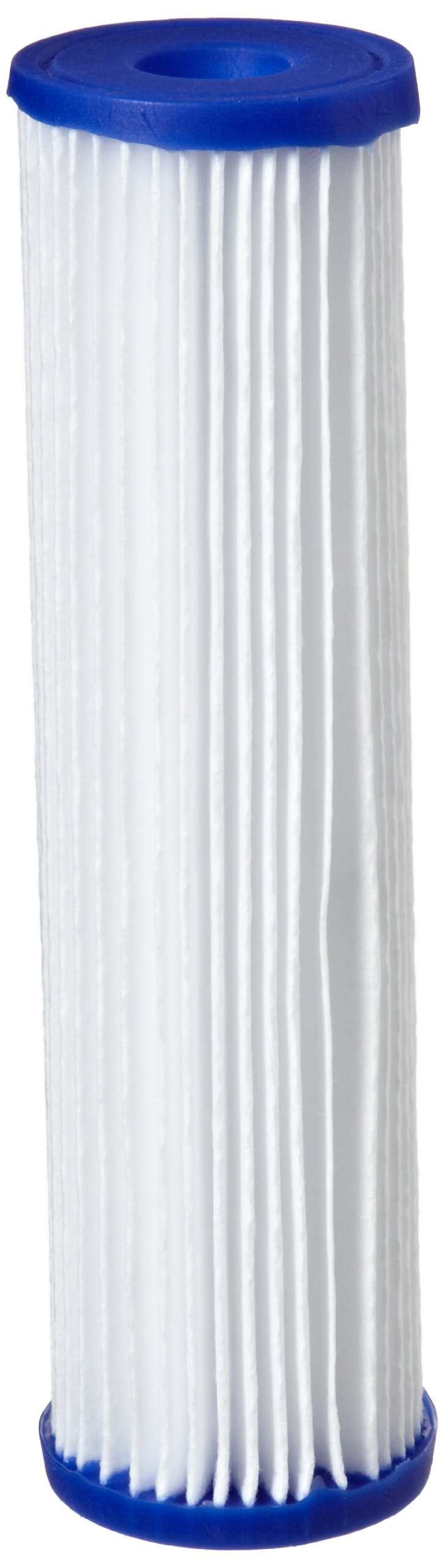

Pentek R30 Pleated Polyester Filter Cartridge, 9-3/4" x 2-5/8", 30 Microns

Be the first to review this item

ASIN B0014C283K

Specifications for this item
Number of Items
1
Part Number
155017-43
UPC
051678017432
Brand Name
Pentek
EAN
0051678017432
Particle Retention Size
30  Micron
UNSPSC Code
40161502

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Wed, Sep 3? Order in-stock items in the next 13 hrs 45 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Reduces sand, dirt, silt, rust, and scale particles in residential and commercial water
  • Nominal filtration rating of 30 microns
  • Non-woven polyester media pleated around a polypropylene core for strength
  • Initial pressure drop of less than 1 psi at a flow rate of 10 gpm
  • Temperature range of 40 to 125 degrees F (4.4 to 51.7 degrees C)

Package Details

Shipping Weight: 0.02 pounds
Package Size: 9.8 x 2.5 x 1.8 inches

Product Description

This Pentek R30 pleated polyester filter cartridge reduces sand, dirt, silt, rust, and scale particles in residential and commercial water. It has a nominal filtration rating of 30 microns at an efficiency of 85%. The filter is made of resin-impregnated cellulose and polyester media pleated around a polypropylene core for strength. It has an initial pressure drop of less than 1 pound per square inch (psi) at a flow rate of 10 gallons per minute (gpm), and operates over a temperature range of 40 to 125 degrees F (4.4 to 51.7 degrees C). This pleated polyester filter cartridge is for use in various applications, including drinking water purification, irrigation, and industrial processes, among others.

Specifications

Nominal filtration rating30 microns
Initial pressure drop at 10 gpm<1 psi
Temperature range40 to 125 degrees F (4.4 to 51.7 degrees C)
Maximum dimensions (H x W)9-3/4 x 2-5/8 inches (248 x 67 mm)

The nominal filtration rating is for a particle removal efficiency of 85%.

H is height, the vertical distance from lowest to highest point; W is width, the horizontal distance from left to right; D is depth, the horizontal distance from front to back.

Water filters remove undesirable particles, chemicals, and microorganisms from water by means of a semipermeable barrier, adsorption, or biological processes. They are made of densely packed synthetic or natural fibers that trap suspended particles, materials that block microbes or adsorb unwanted chemicals, or substances that cause a chemical change, such as acid neutralization. For most residential, commercial, and industrial applications, water filters are manufactured in the form of replaceable cartridges that fit inside permanent housings. Filtration systems typically consist of a series of two or more types of filters, each designed to remove different contaminants. The performance of filters is measured by the minimum particle size that is blocked, the percentage of particles or microorganisms that are removed, the downstream concentration of unwanted chemicals, the maximum flow rate, and the amount of water that can be filtered before the filter must be replaced. Water filters are used in a wide range of applications, including drinking water purification, swimming pools, industrial processes, and irrigation, among others.

Pentair manufactures industrial, commercial, and residential water filtration components and systems. The company, founded in 1966 and headquartered in Minneapolis, MN, meets International Organization for Standardization (ISO) standards 9001 and 14001 for quality assurance.
